TC-ER 3C×10AWG Industrial Cable Bare Copper Stranded Wire With XLPE Insulation / XLPE Jacket FT1
TC-ER 3C×10AWG Industrial Cable Bare Copper Stranded Wire With XLPE Insulation / XLPE Jacket FT1
TC-ER 3C×10AWG Industrial Cable Bare Copper Stranded Wire With XLPE Insulation / XLPE Jacket FT1
TC-ER 3C×10AWG Industrial Cable Bare Copper Stranded Wire With XLPE Insulation / XLPE Jacket FT1
Specifications
Temperature :
-40~90℃
Name :
Industrial Wire and Cable
Brand Name :
Shineplus
Insulation :
XLPE
Delivery Time :
3-4 Weeks
Conductor :
Bare Copper Stranded
Packing :
Packed in rolls or reels
Application :
Industrial,comsumer Electrics,etc
Certification :
RoHS Reach
SP :
2100941
Payment Terms :
T/T,L/C,Western Union
Jacket :
XLPE
Place of Origin :
China
Model Number :
TC-ER
Packaging Details :
Packed in rolls or reels
Supply Ability :
100km per day
Voltage :
600V
Price :
To be negotiated
MOQ :
1000m
Description

TC-ER 3C×10AWG Industrial Cable Bare Copper Stranded with XLPE Insulation and XLPE Jacket FT1

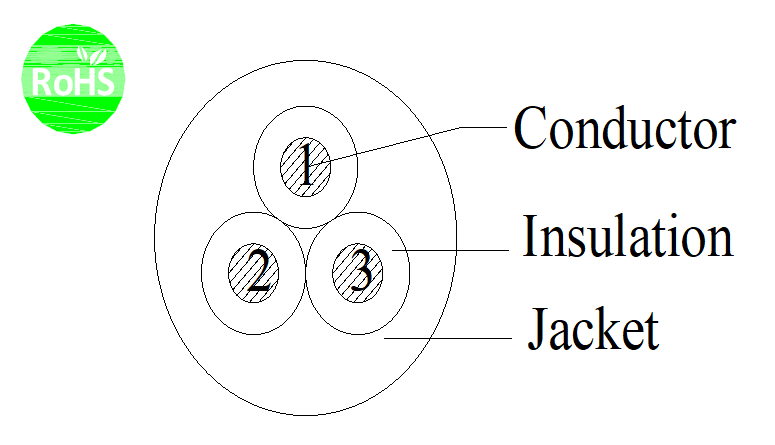

Construction
Conductor Bare Copper Stranded
Cross section 10AWG
Construction 105/0.254mm
Strand Dia. 3.10mm
Insulation XLPE
Nom.Thickness 0.76mm
Min.Thickness 0.69mm
Insulation Dia. 4.80±0.20mm
Insulation colour 1.black 2.red 3.green/yellow
Assembly 3C×10AWG
Jacket XLPE
Nom.Thickness 1.14mm
Min.Thickness 0.91mm
O.D. 12.80±0.35mm
Colour black

Application: Internal wring or external interconnection of electronic equipment.

It is suitable for the output main line of the AC end of the photovoltaic inverter.The power supply of the motor, and the connection of other power equipment in the industrial environment.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥250%

Aged condition:121±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥70%

Technical data
Rated voltage:600V
Rated Temperature: -40~90℃
Max.conductor DC resistance(20℃):3.409Ω/km
Dielectric Strength AC:3.0kV/1min

TC-ER 3C×10AWG Industrial Cable Bare Copper Stranded Wire With XLPE Insulation / XLPE Jacket FT1
