UL2464 7Cx14AWG Tinned Stranded Copper Cable With PVC Insulation / PVC Jacket 300V
UL2464 7Cx14AWG Tinned Stranded Copper Cable With PVC Insulation / PVC Jacket 300V
UL2464 7Cx14AWG Tinned Stranded Copper Cable With PVC Insulation / PVC Jacket 300V
UL2464 7Cx14AWG Tinned Stranded Copper Cable With PVC Insulation / PVC Jacket 300V
Specifications
MOQ :
1000m
Delivery Time :
3-4 Weeks
Voltage :
300V
SP :
2005467
Certification :
RoHS Reach
Name :
Stranded Copper Cable
Model Number :
UL2464
Insulation :
PVC
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in rolls or reels
Price :
To be negotiated
Temperature :
-40~80℃
Supply Ability :
100km per day
Application :
Industrial,comsumer Electrics,etc
Brand Name :
Shineplus
Conductor :
Tinned Copper Stranded
Place of Origin :
China
Jacket :
PVC
Packaging Details :
Packed in rolls or reels
Description

UL2464 7Cx14AWG Tinned Copper Stranded Industrial Flexible Cable with PVC Insulation PVC Jacket 300V

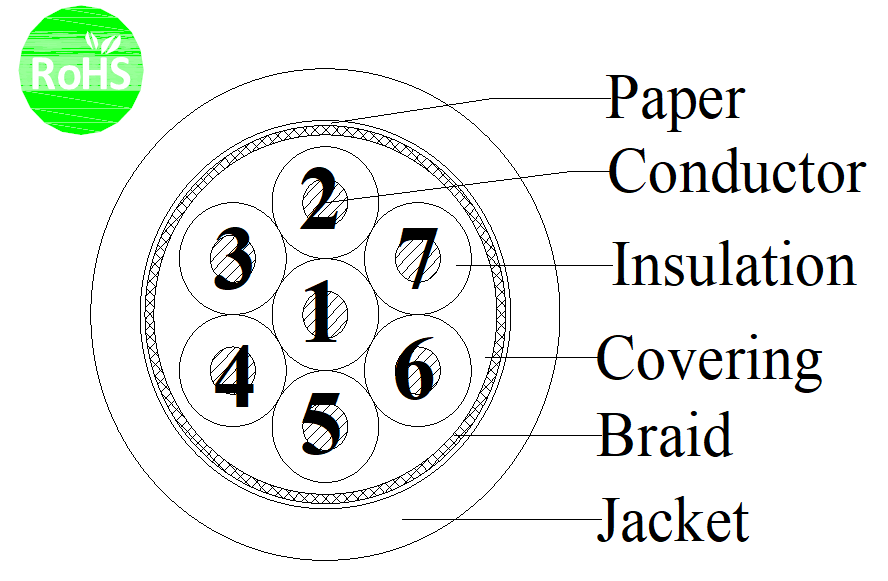

Construction
Conductor Bare copper stranded
Cross section 14AWG
Construction 50/0.254mm
Strand Dia. 2.07mm
Insulation PVC
Nom.Thickness 0.38mm
Min.Thickness 0.33mm
Insulation Dia. 3.00±0.15mm
Insulation colour 1.black 2.white 3.red 4.green 5.brown 6.blue 7.orange
Covering PVC
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
Outer Dia. 10.80±0.35mm
Colour Gray
Braid Tinned copper,0.15mm ≥85%
Tape Paper
Jacket PVC
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
Outer Dia. 13.90±0.35mm

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Technical data
Rated voltage:300V
Rated Temperature: -40~80℃
Max.conductor DC resistance(20℃):8.62Ω/km
Dielectric Strength AC:2.0kV/1min

Standards
International:UL2464
RoHS

VW-1

UL2464 7Cx14AWG Tinned Stranded Copper Cable With PVC Insulation / PVC Jacket 300V
