UL2586 Cable 3C×1.3mm2 Flexible Industrial Cable 600V 105℃
UL2586 Cable 3C×1.3mm2 Flexible Industrial Cable 600V 105℃
UL2586 Cable 3C×1.3mm2 Flexible Industrial Cable 600V 105℃
UL2586 Cable 3C×1.3mm2 Flexible Industrial Cable 600V 105℃
Specifications
MOQ :
1000m
Delivery Time :
3-4 Weeks
Voltage :
600V
SP :
1605799
Certification :
RoHS Reach
Insulation :
PVC
Model Number :
UL2586
Conductor :
Bared Copper Stranded
Payment Terms :
T/T,L/C,Western Union
Application :
Industrial,comsumer Electrics,etc
Price :
To be negotiated
Temperature :
105℃
Supply Ability :
100km per day
Packing :
Packed in Rolls or Reels
Brand Name :
Shineplus
Name :
Flexible Industrial Cable
Place of Origin :
China
Jacket :
PVC
Packaging Details :
Packed in rolls or reels
Description

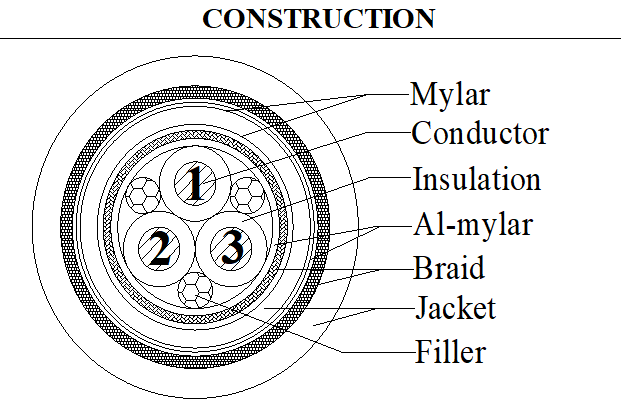

UL2586 3C×1.3mm2 Robot Cable Bared Copper Stranded with PVC Insulation and PVC Jacket 600V 105℃

ITEM (3C×1.3mm2(168/0.10B)+AB)+AB
CONDUCTOR Material Bare Copper Stranded
Size 168/0.10±0.008mm
O.D.(Ref) 1.60mm
INSULATION Material PVC
Min.average thickness 0.50mm
Min.thickness at any point 0.40mm
O.D. 2.70±0.10mm
CABLING-1 Assembly 3C×1.3mm2(168/0.10B)+A
Filler Cotton
Material Al-mylar(face out)
BRAID-1 Material Tinned copper
Size 0.10mm ( 80% min.)
CABLING-2 Assembly 3C×1.3mm2(168/0.10B)+ABM
Material Mylar
INNER JACKET Material PVC
Min.average thickness 0.50mm
Min.thickness at any point 0.40mm
O.D. 7.60±0.25mm
CABLING Material Mylar
Material Al-mylar(face out)
BRAID Material Tinned copper
Size 0.10mm ( 80% min.)
JACKET Material PVC
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 10.40±0.30mm

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Electric Performance:

Rated Temperature:105℃

Voltage rating:600V

Max.conductor DC resistance(20℃): 13.7Ω/km

Dielectric Strength AC:2.0kV/1min

Voltage withstand test:Core-Core:AC 2.0kV/1min Braid-Braid-1:AC 0.6kV/1min

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:136±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Chain test:bending radius:75mm,travel:500mm,20times/min.,150000 cycles min.
