UL2464 2P×20AWG Tinned Copper Stranded Industrial Flexible Cable with SR-PVC Insulation PVC Jacket
UL2464 2P×20AWG Tinned Copper Stranded Industrial Flexible Cable with SR-PVC Insulation PVC Jacket
UL2464 2P×20AWG Tinned Copper Stranded Industrial Flexible Cable with SR-PVC Insulation PVC Jacket
UL2464 2P×20AWG Tinned Copper Stranded Industrial Flexible Cable with SR-PVC Insulation PVC Jacket
Specifications
Model Number :
UL2464
Insulation :
SR-PVC
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in rolls or reels
Price :
To be negotiated
Application :
Industrial,comsumer Electrics,etc
Supply Ability :
100km per day
SP :
1701393
Name :
Industrial Wire and Cable
Brand Name :
Shineplus
Conductor :
Bare Copper Stranded
Packaging Details :
Packed in rolls or reels
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
-40~80℃
Certification :
RoHS Reach
Jacket :
PVC
Place of Origin :
China
Voltage :
300V
Description

UL2464 2P×20AWG Tinned Copper Stranded Industrial Flexible Cable with SR-PVC Insulation PVC Jacket

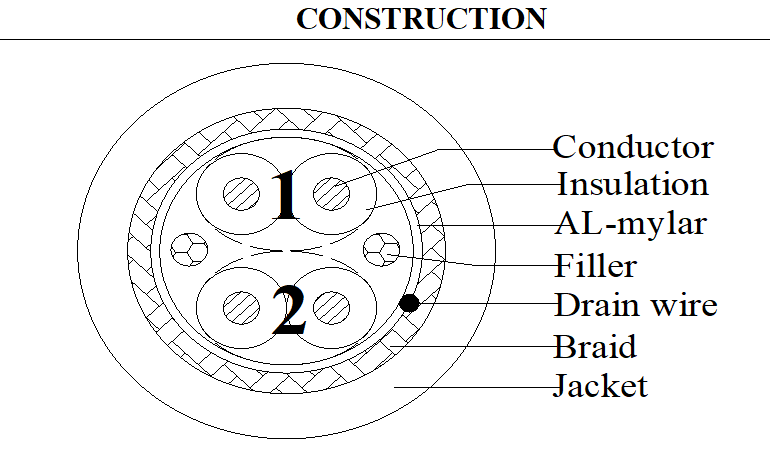

ITEM 2P×20AWG(105/0.08T)+ADB
CONDUCTOR Material Tinned copper stranded+Nylon
Size 105/0.08±0.008mm+250D
O.D.(Ref) 1.05mm
INSULATION Material SR-PVC
Min.average thickness 0.23mm
Min.thickness at any point 0.18mm
O.D. 1.50±0.10mm
TWISTED O.D.(Ref) 3.00mm
CABLING Filler cotton
Material Al-mylar(face out)
Assembly 2P×20AWG(105/0.08T)+AD
DRAIN Material Tinned copper stranded
Size 105/0.08±0.008mm+250D
BRAID Material Tinned copper
Size 0.12mm(80% min.)
JACKET Material PVC
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 7.50±0.30mm


Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Technical data
Rated voltage:300V
Rated Temperature: -40～80℃
Max.conductor DC resistance(20℃):36.7Ω/km
Dielectric Strength AC:2.0kV/1min

Standards
International:UL2464
RoHS

VW-1

FT1
