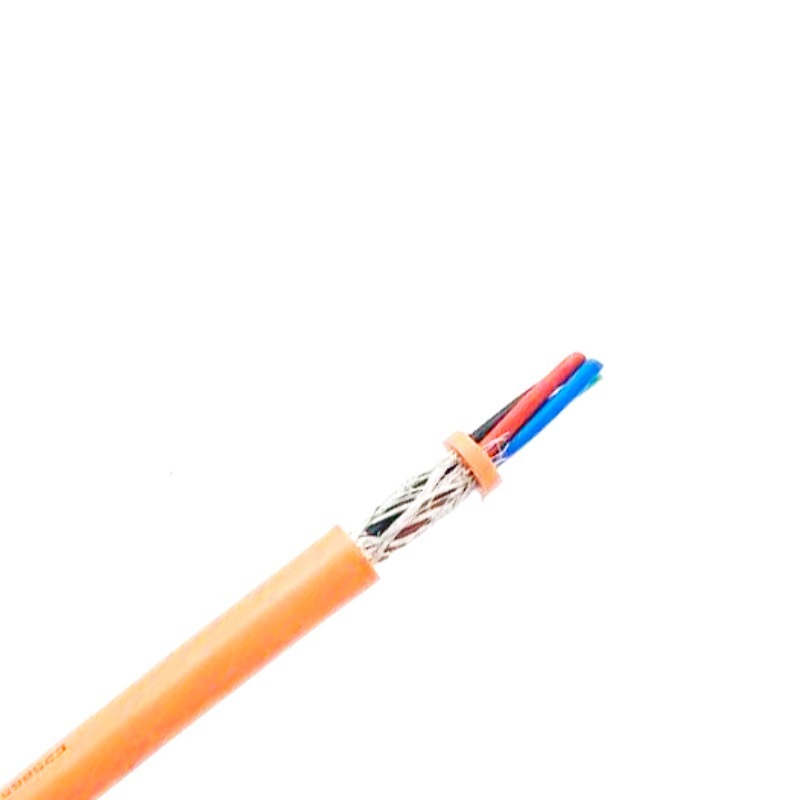

5Cx10 AWG Stranded Copper Wire , Flexible Industrial Cable UL2517
5Cx10 AWG Stranded Copper Wire , Flexible Industrial Cable UL2517
5Cx10 AWG Stranded Copper Wire , Flexible Industrial Cable UL2517
5Cx10 AWG Stranded Copper Wire , Flexible Industrial Cable UL2517
Specifications
Place of Origin :
China
Temperature :
105℃
Name :
Industrial Wire and Cable
Payment Terms :
T/T,L/C,Western Union
Insulation :
PVC
Delivery Time :
3-4 Weeks
Jacket :
PVC
MOQ :
1000m
Packing :
Packed In Reels
Supply Ability :
100km per day
Model Number :
UL2517
Brand Name :
Shineplus
Application :
Industrial,comsumer Electrics,etc
Certification :
RoHS Reach
SP :
2601984
Conductor :
Tinned Copper Stranded
Price :
To be negotiated
Voltage :
300V
Packaging Details :
Packed in rolls or reels
Description

UL2517 5Cx10AWG+W Tinned Copper Stranded Industrial Flexible Cable with PVC Insulation and PVC Jacket

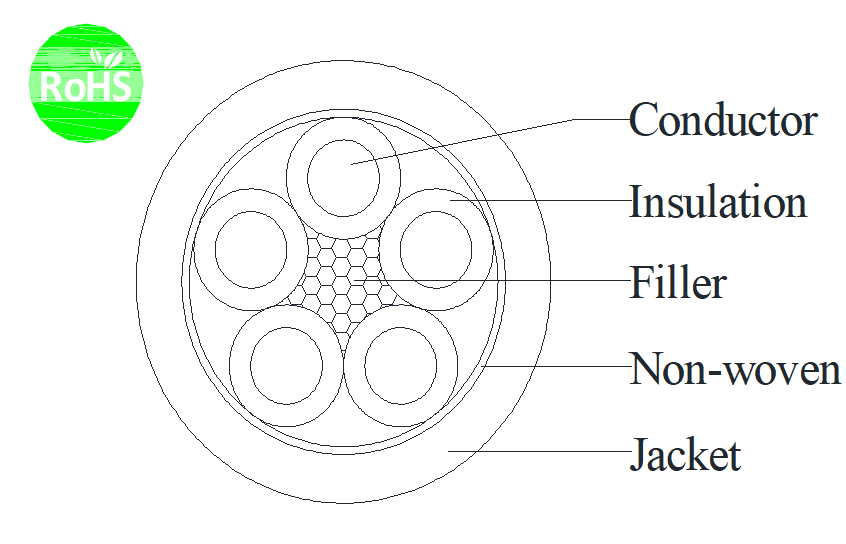

Construction
Conductor Tinned copper stranded
Cross section 10AWG
Construction 105/0.254mm
Strand Dia. 3.20mm(Ref.)
Insulation PVC
Nom.Thickness 0.38mm
Min.Thickness 0.33mm
Insulation Dia. 4.20±0.20mm
Insulation colour 1.black 2.white 3.brown 4.blue 5.yellow/green
Filler Optional
Material Non-woven,≥25%
Assembly 5Cx10AWG
Jacket PVC
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
Outer Dia. 13.50±0.50mm
Colour black

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:136±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Technical data
Rated voltage:300V
Rated Temperature: 105℃
Max.conductor DC resistance(20℃):3.546Ω/km
Dielectric Strength AC:2.0kV/1min

Standards
International:UL2517
RoHS

VW-1
