300V Tinned Copper Cable UL2517 3C×22 AWG Stranded Copper Wire
300V Tinned Copper Cable UL2517 3C×22 AWG Stranded Copper Wire
300V Tinned Copper Cable UL2517 3C×22 AWG Stranded Copper Wire
300V Tinned Copper Cable UL2517 3C×22 AWG Stranded Copper Wire
Specifications
MOQ :
1000m
Delivery Time :
3-4 Weeks
Voltage :
300V
Name :
Tinned Copper Cable
Certification :
RoHS Reach
Insulation :
SR-PVC
Place of Origin :
China
Jacket :
PVC
Model Number :
UL2517
Conductor :
Tinned Copper Stranded
Supply Ability :
100km per day
Packing :
Packed in Rolls or Reels
Brand Name :
Shineplus
SP :
1500312
Payment Terms :
T/T,L/C,Western Union
Application :
Industrial,comsumer Electrics,etc
Price :
To be negotiated
Temperature :
-40~105℃
Packaging Details :
Packed in rolls or reels
Description

UL2517 3C×22AWG Industrial Cable Tinned copper stranded with SR-PVC Insulation and PVC Jacket 300V 105℃

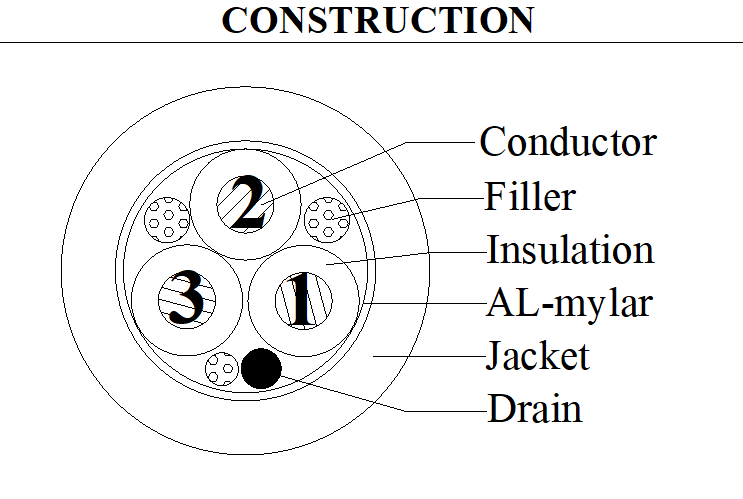

ITEM 3C×22AWG(26/0.127T)
CONDUCTOR Material Tinned copper stranded
Size 26/0.127±0.008mm
O.D.(Ref) 0.75mm
INSULATION Material SR-PVC
Min.average thickness 0.23mm
Min.thickness at any point 0.18mm
O.D. 1.30±0.05mm
CABLING Filler Cotton
Drain wire Tinned copper stranded 7/0.254±0.008mm
Material Al-mylar(foil face in)
Assembly 3C×22AWG(26/0.127T)
JACKET Material PVC
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 4.80±0.20mm

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Electric Performance:

Rated Temperature:-40~105℃

Voltage rating:300V

Max.conductor DC resistance(20℃):59.4Ω/km

Dielectric Strength AC:2.0kV/1min

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:136±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Flame test:VW-1 FT1

Bending test: L=300g R=2mm ±90° 30cycles/min

300V Tinned Copper Cable UL2517 3C×22 AWG Stranded Copper Wire
