UL2464 4C×16AWG Tinned Copper Stranded Industrial Flexible Cable with PVC Insulation PVC Jacket
UL2464 4C×16AWG Tinned Copper Stranded Industrial Flexible Cable with PVC Insulation PVC Jacket
UL2464 4C×16AWG Tinned Copper Stranded Industrial Flexible Cable with PVC Insulation PVC Jacket
UL2464 4C×16AWG Tinned Copper Stranded Industrial Flexible Cable with PVC Insulation PVC Jacket
Specifications
Temperature :
80℃
MOQ :
1000m
Delivery Time :
3-4 Weeks
Jacket :
PVC
Certification :
RoHS Reach
Insulation :
PVC
Model Number :
UL2464
Packing :
Packed in rolls or reels
Price :
To be negotiated
SP :
2102743
Supply Ability :
100km per day
Conductor :
Tinned Copper Stranded
Brand Name :
Shineplus
Name :
Industrial Wire and Cable
Application :
Industrial,comsumer Electrics,etc
Payment Terms :
T/T,L/C,Western Union
Packaging Details :
Packed in rolls or reels
Voltage :
300V
Place of Origin :
China
Description

UL2464 4C×16AWG Tinned Copper Stranded Industrial Flexible Cable with PVC Insulation PVC Jacket

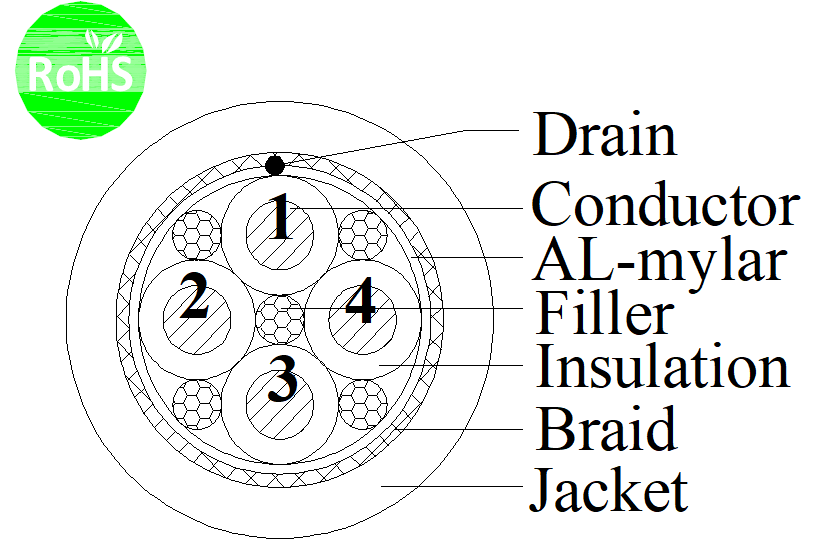

Construction
Conductor Tinned Copper Stranded
Cross section 16AWG
Construction 26/0.254mm
Strand Dia. 1.49mm(Ref.)
Insulation PVC
Nom.Thickness 0.38mm
Min.Thickness 0.33mm
Insulation Dia. 2.30±0.10mm
Insulation colour 1.red 2.black 3.brown 4.blue
Filler Optional
Material Al-mylar(foil face out),≥25%
Drain Tinned Copper Stranded,26/0.16mm
Assembly 4C×16AWG+A
Braid Tinned copper
Size 0.10mm,≥80%
Jacket PVC(soft)
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
O.D. 7.80±0.30mm


Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Technical data
Rated voltage:300V
Rated Temperature: 80℃
Max.conductor DC resistance(20℃):14.6Ω/km
Dielectric Strength AC:2.0kV/1min

Standards
International:UL2464
RoHS

VW-1
