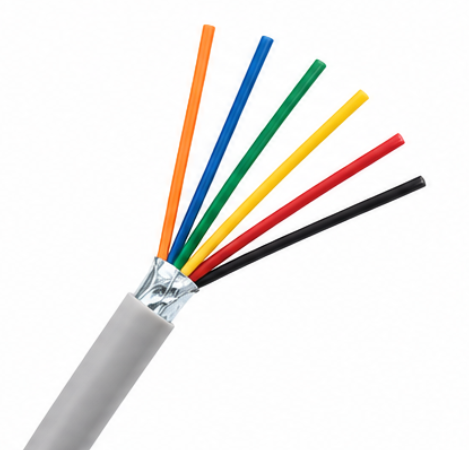

UL2464 6C×20AWG Flexible Industrial Cable Tinned Copper Stranded with SR-PVC Insulation and PVC Jacket 300V 80℃
UL2464 6C×20AWG Flexible Industrial Cable Tinned Copper Stranded with SR-PVC Insulation and PVC Jacket 300V 80℃
UL2464 6C×20AWG Flexible Industrial Cable Tinned Copper Stranded with SR-PVC Insulation and PVC Jacket 300V 80℃
UL2464 6C×20AWG Flexible Industrial Cable Tinned Copper Stranded with SR-PVC Insulation and PVC Jacket 300V 80℃
Specifications
Supply Ability :
100km per day
Conductor :
Tinned Copper Stranded
Model Number :
UL20549
Packing :
Packed in Rolls or Reels
MOQ :
1000m
Delivery Time :
3-4 Weeks
Application :
Industrial,comsumer Electrics,etc
Payment Terms :
T/T,L/C,Western Union
Insulation :
SR-PVC
Temperature :
80℃
Name :
Industrial Wire and Cable
Price :
To be negotiated
Jacket :
PVC
Voltage :
300V
Certification :
RoHS Reach
Place of Origin :
China
Packaging Details :
Packed in rolls or reels
Brand Name :
Shineplus
SP :
1802104
Description

UL2464 6C×20AWG Flexible Industrial Cable Tinned Copper Stranded with SR-PVC Insulation and PVC Jacket 300V 80℃

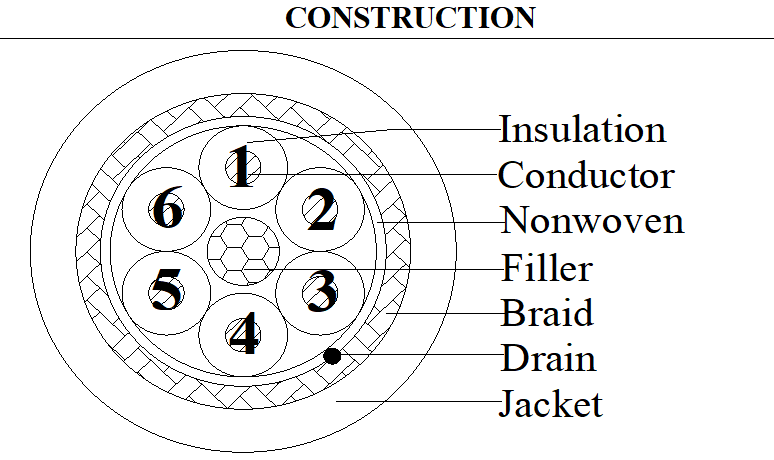

ITEM 6C×20AWG(65/0.10T)+WDB
CONDUCTOR Material Tinned copper stranded+nylon
Size 65/0.10±0.008mm
O.D.(Ref) 0.98mm
INSULATION Material SR-PVC
Min.average thickness 0.23mm
Min.thickness at any point 0.18mm
O.D. 1.50±0.10mm
CABLING Filler cotton
Material Nonwoven tape
Assembly 6C×20AWG(65/0.10T)+WD
DRAIN Material Tinned copper stranded
Size 19/0.127±0.008mm
BRAID Material Tinned copper
Size 0.12mm(85% min.)
JACKET Material PVC 70±3A
Min.average thickness 1.20mm
Min.thickness at any point 0.96mm
O.D. 7.80±0.30mm


Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.


Electric Performance:

Rated Temperature:80℃

Voltage rating:300V

Max.conductor DC resistance(20℃): 36.7Ω/km

Dielectric Strength AC:2.0kV/1min


Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Bending test:R=25.4mm,12times/min.


UL2464 6C×20AWG Flexible Industrial Cable Tinned Copper Stranded with SR-PVC Insulation and PVC Jacket 300V 80℃
