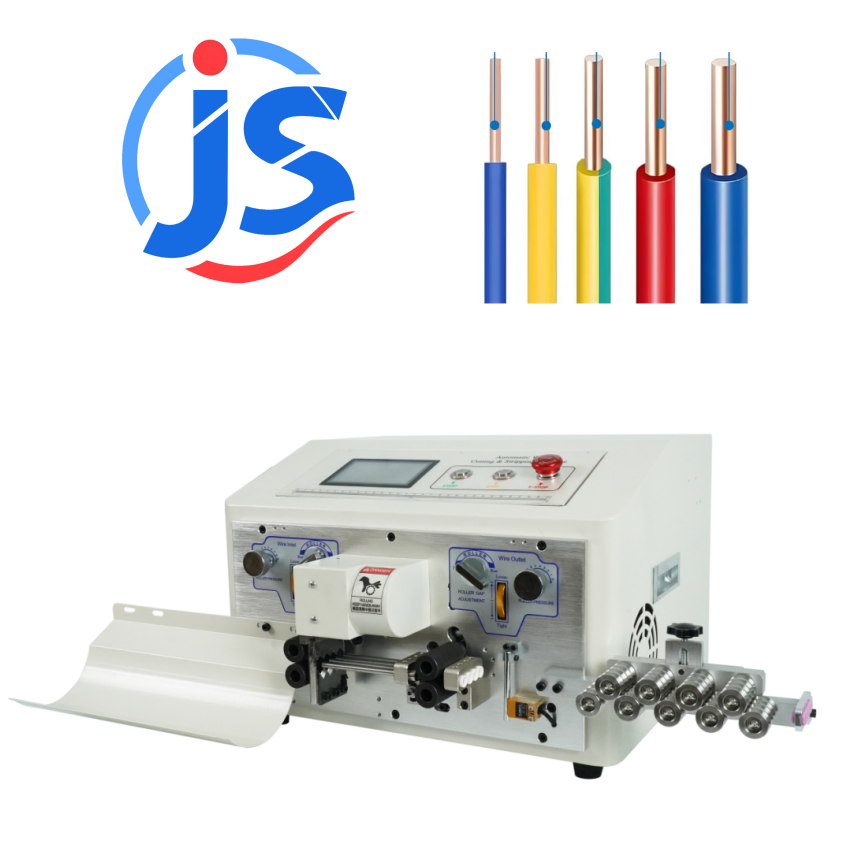

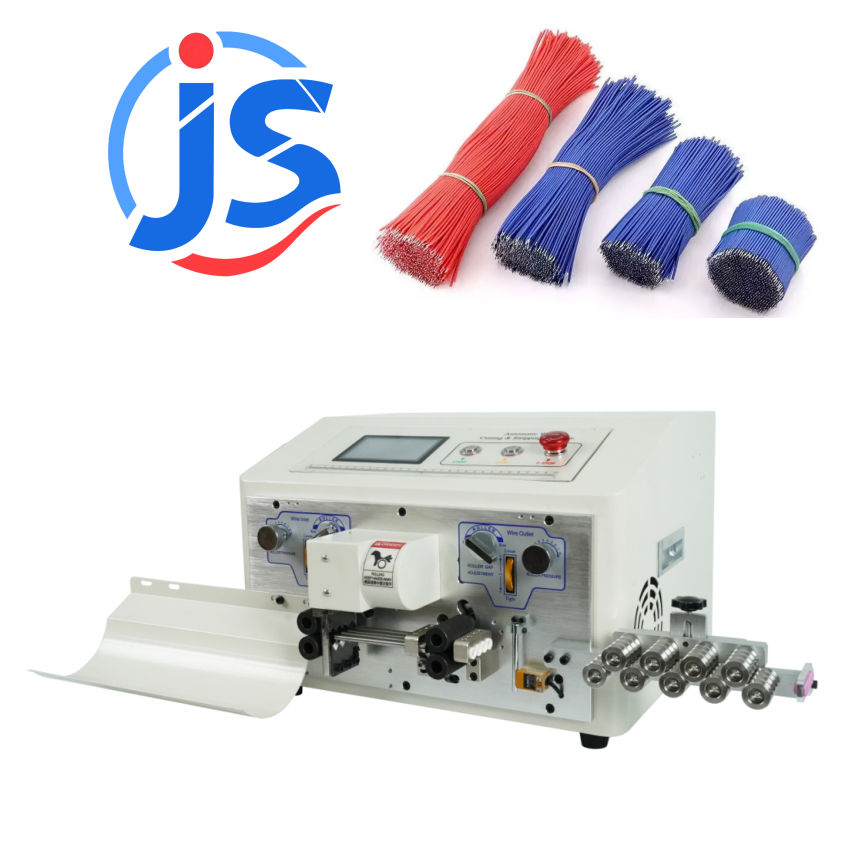

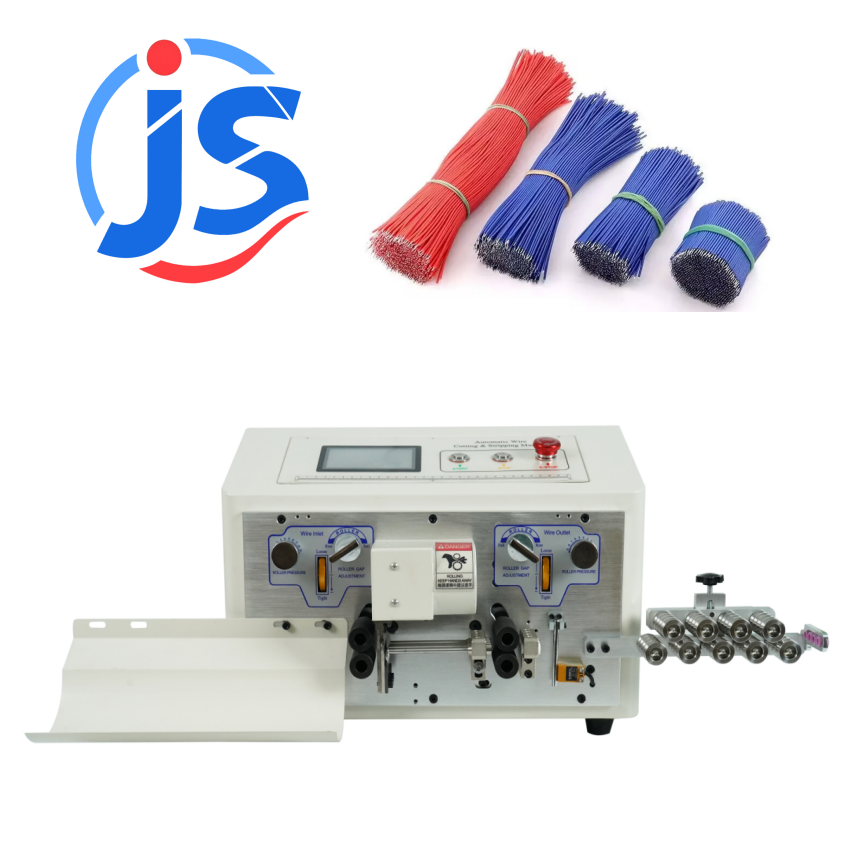

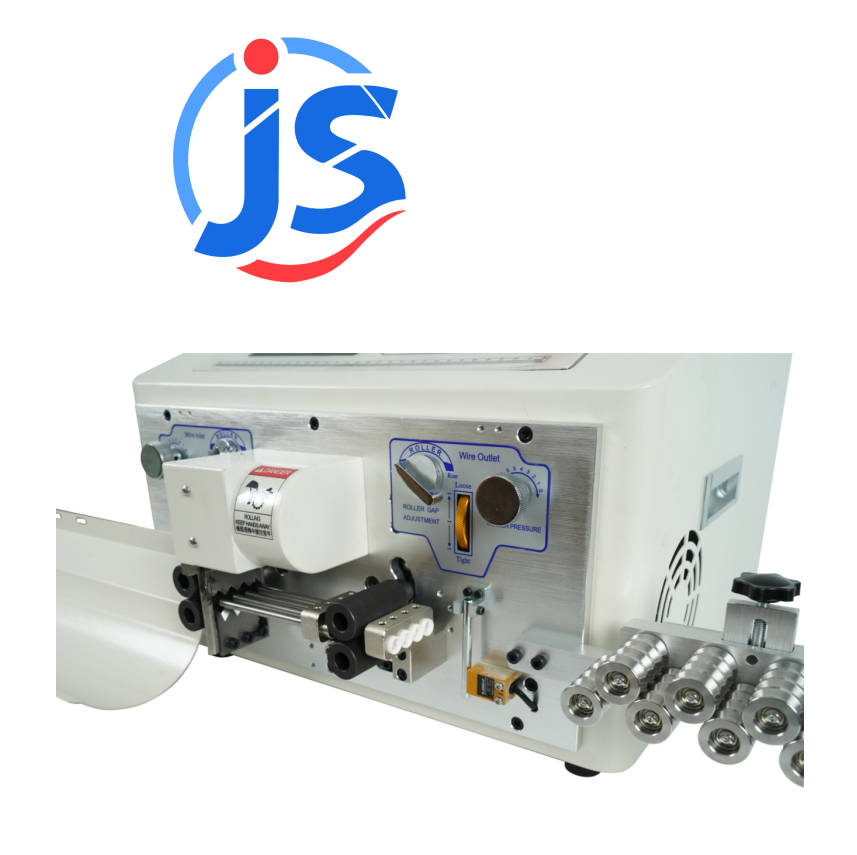

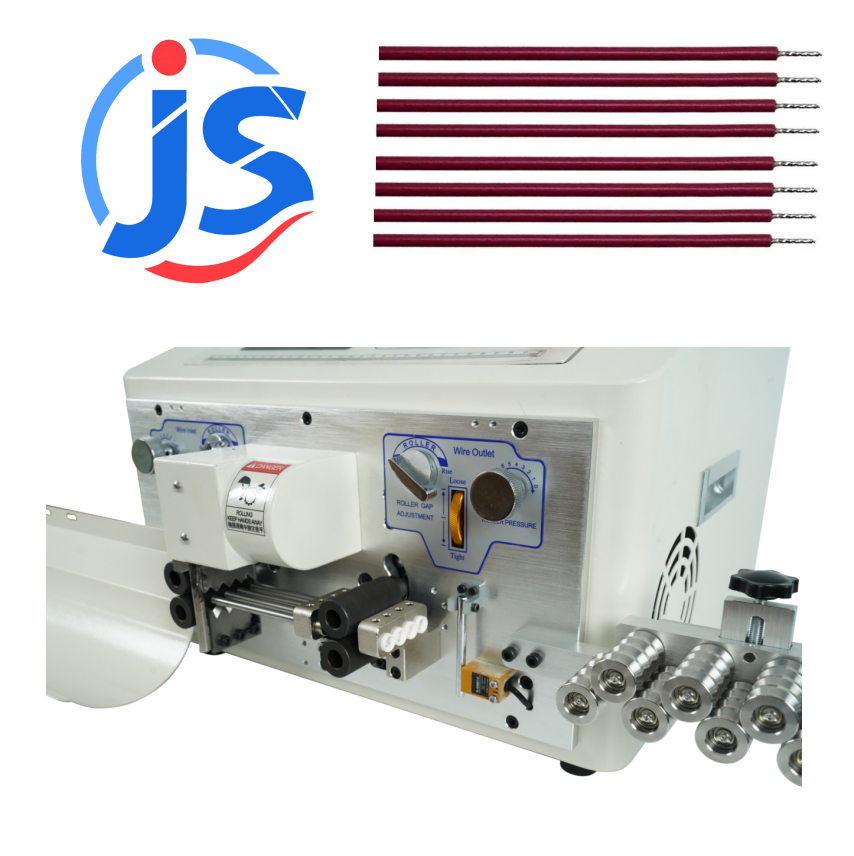

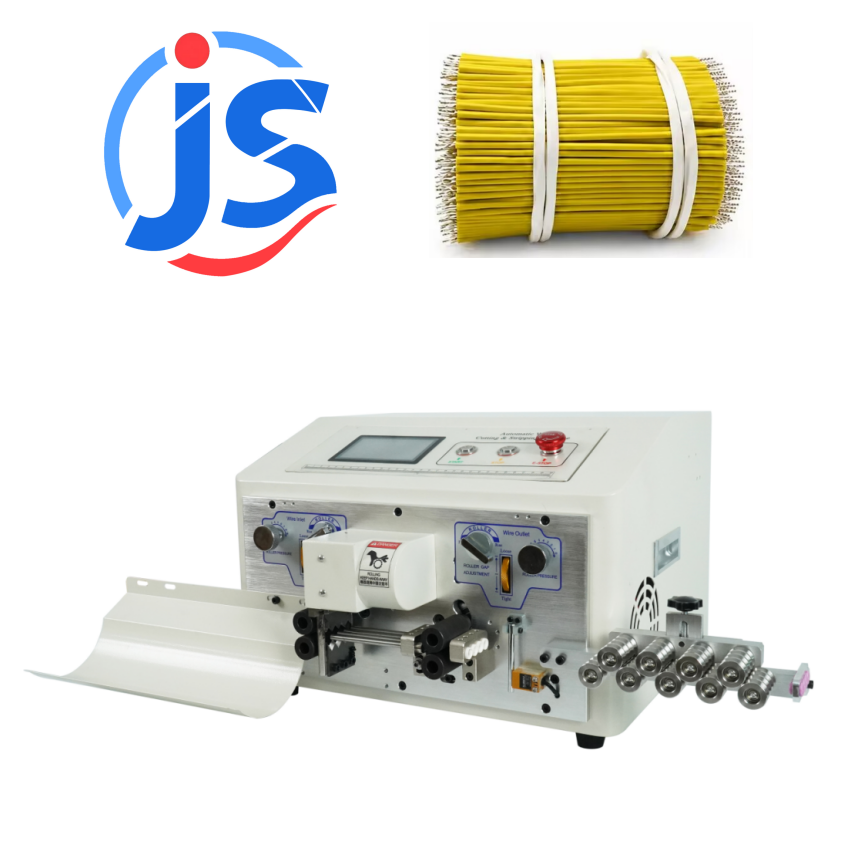

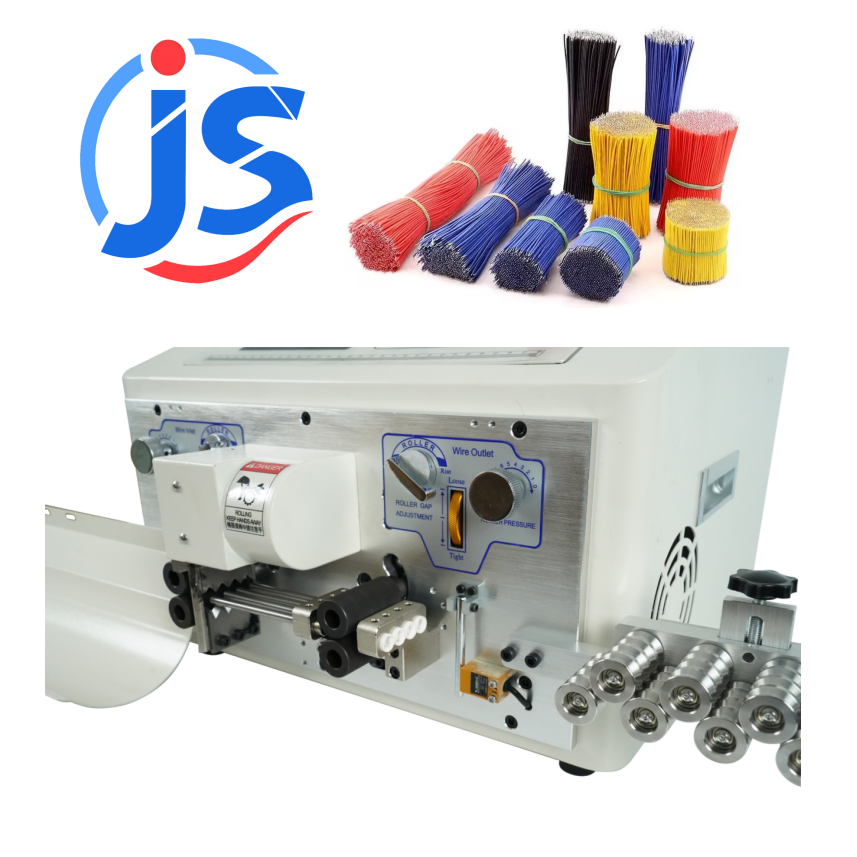

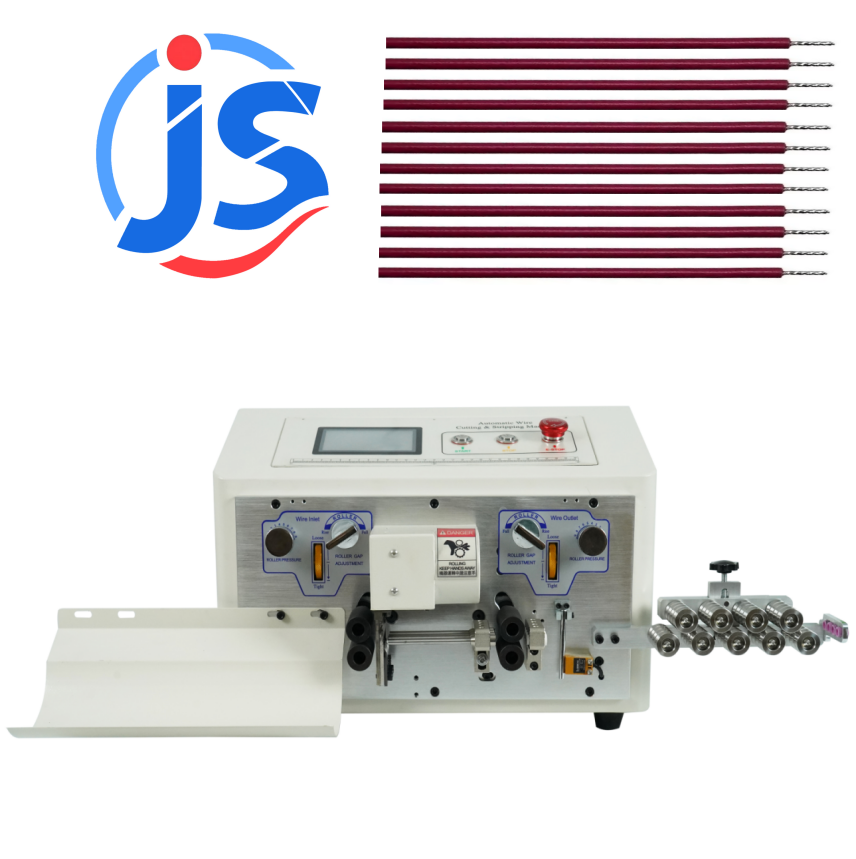

4.3 Inch Touch Screen Automatic Cable Stripping Machine with Hard Tungsten Steel Blade and 4000-10000PCS/H Capacity
4.3 Inch Touch Screen Automatic Cable Stripping Machine with Hard Tungsten Steel Blade and 4000-10000PCS/H Capacity
4.3 Inch Touch Screen Automatic Cable Stripping Machine with Hard Tungsten Steel Blade and 4000-10000PCS/H Capacity
4.3 Inch Touch Screen Automatic Cable Stripping Machine with Hard Tungsten Steel Blade and 4000-10000PCS/H Capacity
4.3 Inch Touch Screen Automatic Cable Stripping Machine with Hard Tungsten Steel Blade and 4000-10000PCS/H Capacity
4.3 Inch Touch Screen Automatic Cable Stripping Machine with Hard Tungsten Steel Blade and 4000-10000PCS/H Capacity
4.3 Inch Touch Screen Automatic Cable Stripping Machine with Hard Tungsten Steel Blade and 4000-10000PCS/H Capacity
4.3 Inch Touch Screen Automatic Cable Stripping Machine with Hard Tungsten Steel Blade and 4000-10000PCS/H Capacity
4.3 Inch Touch Screen Automatic Cable Stripping Machine with Hard Tungsten Steel Blade and 4000-10000PCS/H Capacity
4.3 Inch Touch Screen Automatic Cable Stripping Machine with Hard Tungsten Steel Blade and 4000-10000PCS/H Capacity
4.3 Inch Touch Screen Automatic Cable Stripping Machine with Hard Tungsten Steel Blade and 4000-10000PCS/H Capacity
4.3 Inch Touch Screen Automatic Cable Stripping Machine with Hard Tungsten Steel Blade and 4000-10000PCS/H Capacity
4.3 Inch Touch Screen Automatic Cable Stripping Machine with Hard Tungsten Steel Blade and 4000-10000PCS/H Capacity
4.3 Inch Touch Screen Automatic Cable Stripping Machine with Hard Tungsten Steel Blade and 4000-10000PCS/H Capacity
4.3 Inch Touch Screen Automatic Cable Stripping Machine with Hard Tungsten Steel Blade and 4000-10000PCS/H Capacity
4.3 Inch Touch Screen Automatic Cable Stripping Machine with Hard Tungsten Steel Blade and 4000-10000PCS/H Capacity
Specifications
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Wire Spe :
BVR Four wire 0.1～2.5mm²; BVR Single wire 0.1～10mm²
Driving Mode :
Four-wheel Drive
Voltage :
220V
Capacity :
4000-10000PCS/H(L=100mm)
Model Number :
HR-SDB4S
Power :
500W
Back-end peeling :
1-30mm
MOQ :
1
Delivery Time :
Within 5 Working Days
Rare Strip Length :
1-50mm
Blade Material :
Hard Tungsten Steel
Weight :
37KG
Price :
1100
Applicator :
PVC,PTFE,Braided,Fiberglass wire
Machine Size :
L460*W470*H330MM
Certification :
CE /ISO
Length Accuracy :
± (0.002xL)mm
Supply Ability :
200
Cutting Length :
1-9900mm
Front Strip Length :
1-30mm
Packaging Details :
Carton
Processing Line Length :
1-9999mm
Production capacity :
4000-10000 pieces per hour
Brand Name :
JunSheng
Display :
4.3 inch touch screen
Wire cross-sectional area :
BVR Four wire 0.1～2.5mm²; BVR Single wire 0.1～10mm²
Place of Origin :
China
Intermediate Peeling Times :
16 times
Drive mode :
Four-wheel drive (silent hybrid stepper motor, advancing 0.1mm per step)
Description
Digital Display AVSS Cable (Ultra-Thin Wall) Wire Cut And Stripper Machine
Digital Display AVSS Cable (ultra-thin wall) Wire Cut And Strip Machine
Product Specifications
Download Full Specifications (HR-SDB4S.xlsx)
  • 4.3-inch touchscreen display with Chinese/English language switching
  • Processing line length range: 1-9999mm
  • Front-end peeling: 1-50mm, Back-end peeling: 1-30mm
  • Processing wire cross-sectional area: BVR Four wire 0.1～2.5mm²; BVR Single wire 0.1～10mm²
  • Length accuracy: ±(0.002xL) mm
  • Intermediate peeling times: 16 times
  • Machinable wire types: PVC, PTFE, braided, fiberglass wire, etc.
  • Production capacity: 4000-10000 pieces per hour
  • Drive mode: Four-wheel drive (silent hybrid stepper motor, advancing 0.1mm per step)
