High Speed 5000-10000PCS/H Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade
High Speed 5000-10000PCS/H Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade
High Speed 5000-10000PCS/H Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade
High Speed 5000-10000PCS/H Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade
High Speed 5000-10000PCS/H Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade
High Speed 5000-10000PCS/H Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade
High Speed 5000-10000PCS/H Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade
High Speed 5000-10000PCS/H Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade
High Speed 5000-10000PCS/H Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade
High Speed 5000-10000PCS/H Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade
High Speed 5000-10000PCS/H Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade
High Speed 5000-10000PCS/H Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade
High Speed 5000-10000PCS/H Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade
High Speed 5000-10000PCS/H Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade
Specifications
Power :
300W
Driving Mode :
Four-wheel Drive
Processing Line Length :
1-9999mm
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Weight :
28KG
Cutting Length :
1-9900mm
Maximum Catheter Diameter :
6mm
Model Number :
HR-SDBS
Voltage :
220V
Applicator :
PVC,PTFE,Braided,Fiberglass wire
Wire Cross-sectional Area :
double line 0.1-2.5mm ²; Single wire 0.1-4mm ²
MOQ :
1
Delivery Time :
Within 5 Working Days
Front Strip Length :
1-30mm
Intermediate Peeling Times :
16 times
Price :
650
Display :
4.3 inch touch screen
Certification :
CE /ISO
Rare Strip Length :
1-15mm

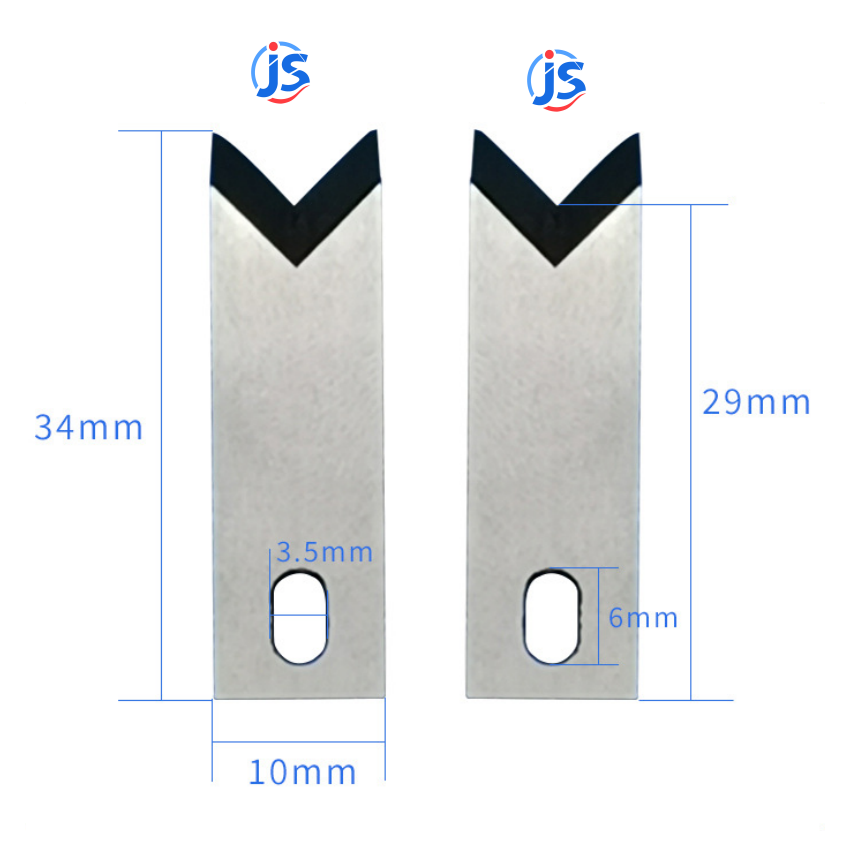

Blade Material :
Hard Tungsten Steel
Supply Ability :
200
Drive Step :
0.1mm per step
Capacity :
5000-10000PCS/H(L=100mm)
Production Rate :
5000-10000 pieces per hour
Brand Name :
JunSheng
Length Accuracy :
± (0.002xL)mm
Packaging Details :
Carton
Machine Size :
L460*W470*H330MM
Back-end Peeling :
1-15mm
Place of Origin :
China
Description
Fast Stripping Speed FLRY Wire (Thin Wall) Cable Cutter and Stripper Machine
Product Overview

High-performance FLRY wire (thin wall) cable cutting and stripping machine designed for precision processing with exceptional speed and accuracy.

Technical Specifications
Download Full Specifications Sheet
  • 4.3-inch touchscreen display with Chinese/English language switching
  • Processing length range: 1-9999mm
  • Front-end peeling: 1-30mm
  • Back-end peeling: 1-15mm
  • Processing wire cross-sectional area: Double line 0.1-2.5mm²; Single wire 0.1-4mm²
  • Length accuracy: ±(0.002×L) mm
  • Intermediate peeling times: 16 times
  • Maximum inner diameter of catheter: 6mm
  • Machinable wire types: PVC, PTFE, braided, fiberglass wire, etc.
  • Production capacity: 5,000-10,000 pieces per hour
  • Drive mode: Four-wheel drive (silent hybrid stepper motor, advancing 0.1mm per step)
Exhibition & Trade Shows
High Speed 5000-10000PCS/H Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade
Our equipment showcased at international trade shows and exhibitions
Packaging & Shipping
High Speed 5000-10000PCS/H Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade
Secure packaging and reliable shipping process for industrial equipment
Quality Certification
High Speed 5000-10000PCS/H Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade
Quality certifications and compliance documentation ensuring industry standards
