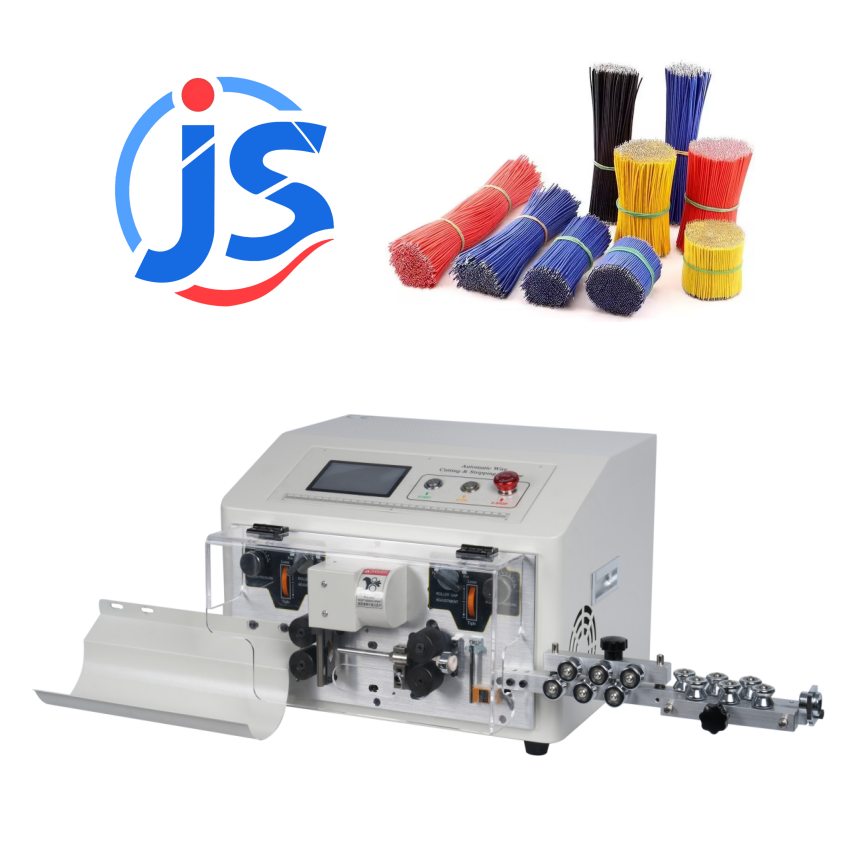

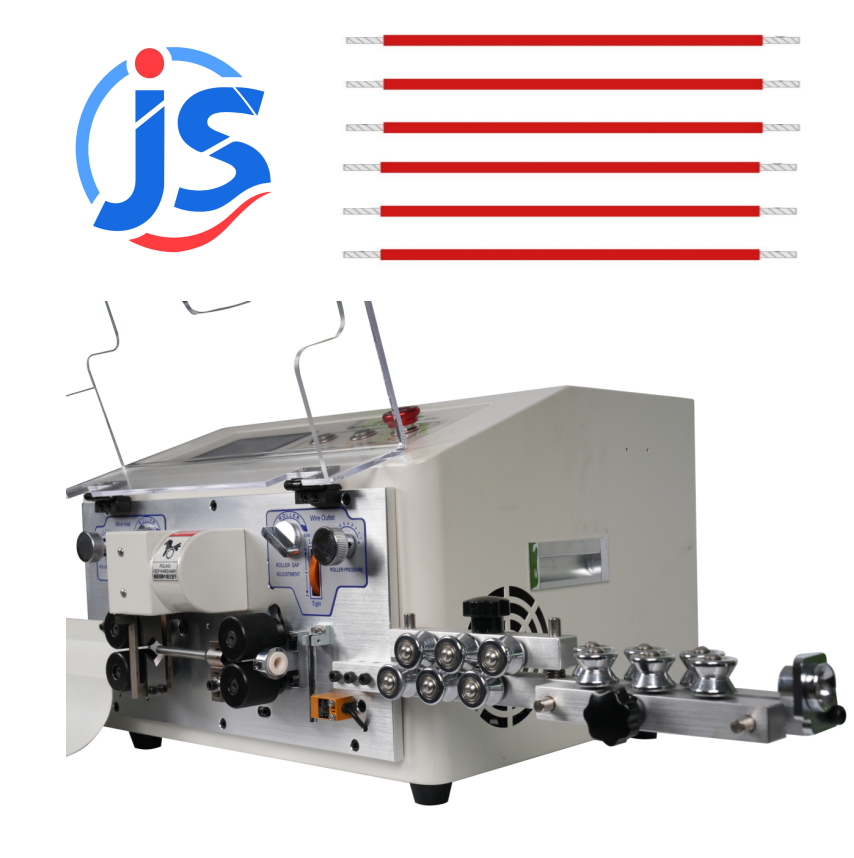

Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade for 3000-4000PCS/H
Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade for 3000-4000PCS/H
Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade for 3000-4000PCS/H
Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade for 3000-4000PCS/H
Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade for 3000-4000PCS/H
Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade for 3000-4000PCS/H
Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade for 3000-4000PCS/H
Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade for 3000-4000PCS/H
Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade for 3000-4000PCS/H
Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade for 3000-4000PCS/H
Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade for 3000-4000PCS/H
Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade for 3000-4000PCS/H
Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade for 3000-4000PCS/H
Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade for 3000-4000PCS/H
Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade for 3000-4000PCS/H
Automatic Cable Stripping Machine with 4.3 Inch Touch Screen and Hard Tungsten Steel Blade for 3000-4000PCS/H
Specifications
Driving Mode :
Four-wheel Drive
Max Conduit Inside Diameter :
10mm
Voltage :
220V
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Capacity :
3000-4000PCS/H(L=100mm)
Power :
450W
Back-end stripping :
1-50mm
Model Number :
HR-JE2S
Wire Spe :
0.1～10mm²
Intermediate Peeling Times :
16 times
Weight :
30KG
MOQ :
1
Delivery Time :
Within 5 Working Days
Front Strip Length :
1-50mm
Machine Size :
L460*W470*H330MM
Price :
950
Cutting Length :
1-9999mm
Certification :
CE /ISO
Blade Material :
Hard Tungsten Steel
Drive mode :
Four-wheel drive (silent hybrid stepper motor, advancing 0.1mm per step)
Place of Origin :
China
Length Accuracy :
± (0.002xL)mm
Applicator :
PVC,PTFE,Braided,Fiberglass wire
Supply Ability :
200
Production capacity :
3000-4000 pieces per hour
Display :
4.3 inch touch screen
Processing wire cross-sectional area :
0.1～10mm²
Brand Name :
JunSheng
Rare Strip Length :
1-50mm
Packaging Details :
Carton
Description
Labor-Saving Plug Wire Harness Cable Harness Cutting And Strip Machine
Stable performance Copper Wire Harness Wire Cut Machine And Wire Strip Machine
Product Specifications
Download Detailed Specifications (HR-JE2S.xlsx)
Display
4.3-inch touchscreen
Processing Length Range
1-9999mm
Front-end Stripping
1-50mm
Back-end Stripping
1-50mm
Wire Cross-sectional Area
0.1～10mm²
Length Accuracy
±(0.002xL) mm
Intermediate Stripping Times
16 times
Machinable Wire Types
PVC, PTFE, braided, fiberglass wire, etc.
Production Capacity
3000-4000 pieces per hour
Drive Mode
Four-wheel drive (silent hybrid stepper motor, advancing 0.1mm per step)
