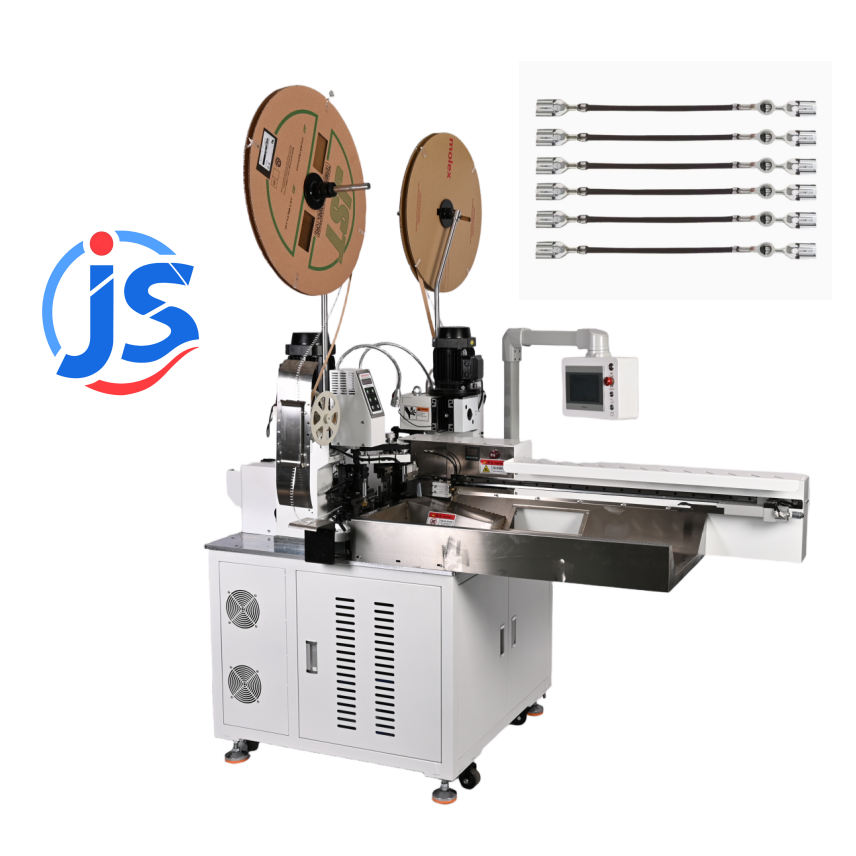

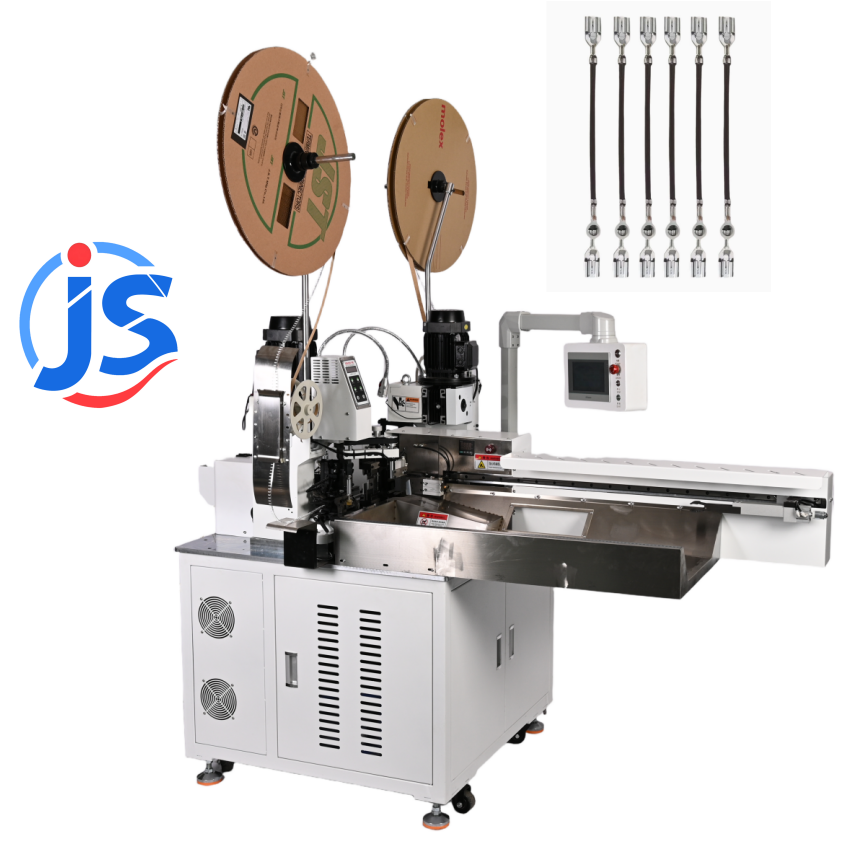

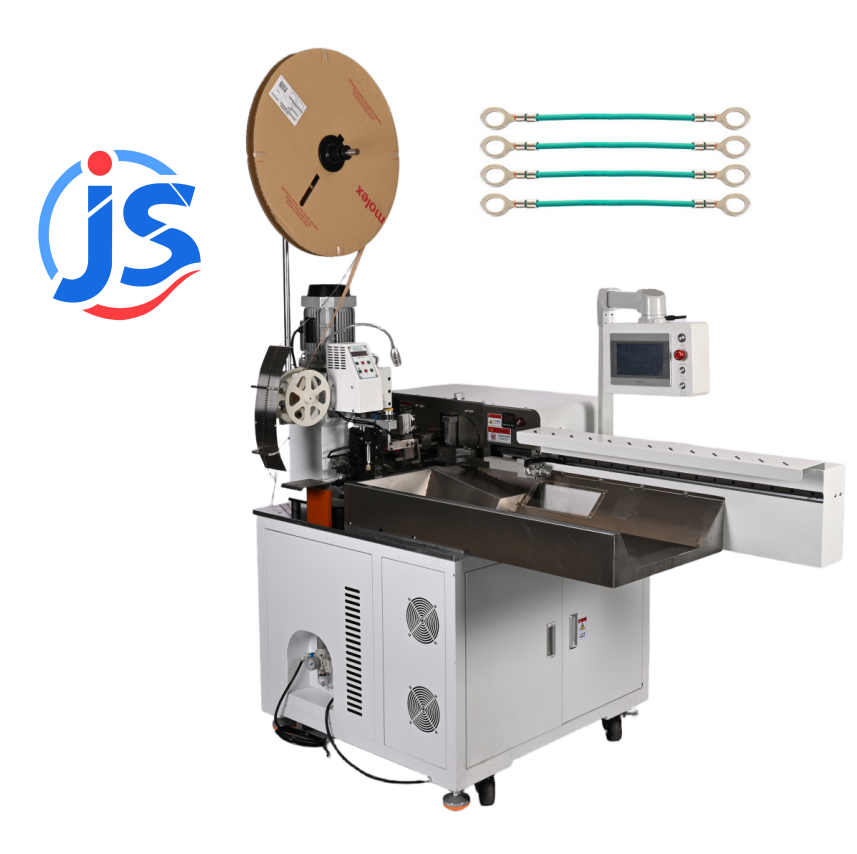

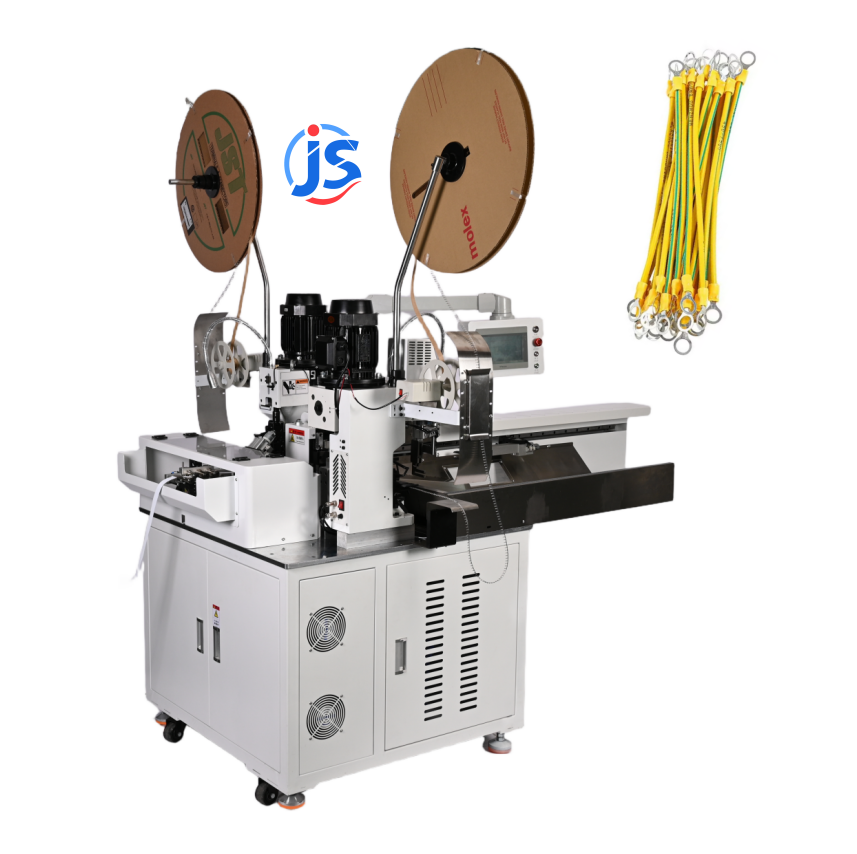

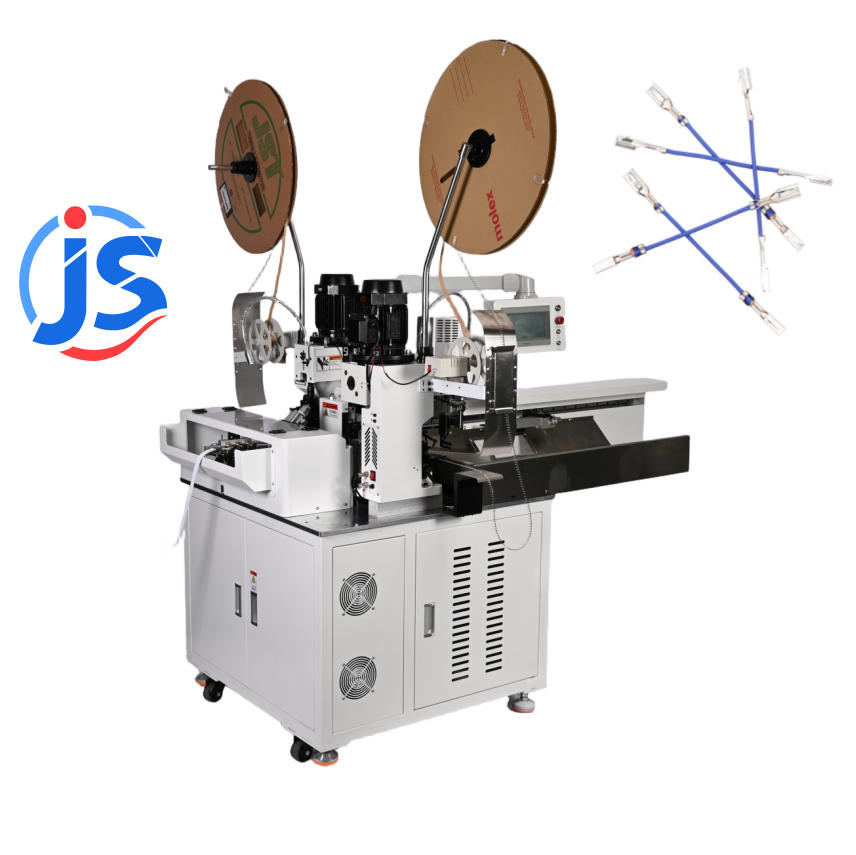

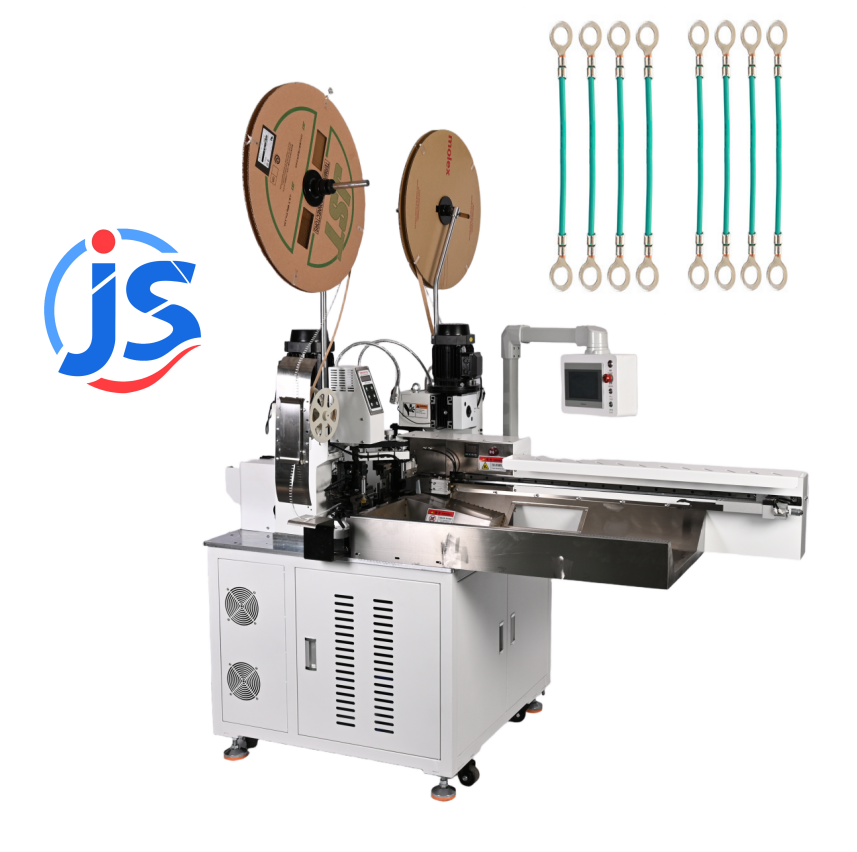

2Ton Wire Stripping And Cutting Machine Cat6 Wire Tinning Machine
2Ton Wire Stripping And Cutting Machine Cat6 Wire Tinning Machine
2Ton Wire Stripping And Cutting Machine Cat6 Wire Tinning Machine
2Ton Wire Stripping And Cutting Machine Cat6 Wire Tinning Machine
2Ton Wire Stripping And Cutting Machine Cat6 Wire Tinning Machine
2Ton Wire Stripping And Cutting Machine Cat6 Wire Tinning Machine
2Ton Wire Stripping And Cutting Machine Cat6 Wire Tinning Machine
2Ton Wire Stripping And Cutting Machine Cat6 Wire Tinning Machine
2Ton Wire Stripping And Cutting Machine Cat6 Wire Tinning Machine
2Ton Wire Stripping And Cutting Machine Cat6 Wire Tinning Machine
2Ton Wire Stripping And Cutting Machine Cat6 Wire Tinning Machine
2Ton Wire Stripping And Cutting Machine Cat6 Wire Tinning Machine
Specifications
Model Number :
HR-602-5
Pressure :
2Ton (Optional: 3T or 4T)
Cylinders :
Airtac cylinders
Servo Motors :
6 Yancon servo motors, Mitsubishi servo optional
Packaging Details :
Wooden Box
Linear Guides :
Brand: HIWIN (Taiwan)
MOQ :
1
Delivery Time :
Within 5 Working Days
Rear Stripping Length :
1-9mm (Customizable beyond range)
Display Screen :
High-definition Screen, Brand: We-con
Screws :
TBI screws
Price :
8700
Cutting Length :
40-1000mm (Customizable beyond range)
Wire Range :
15AWG-32AWG
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Front Stripping Length :
1-12mm (Customizable beyond range)
Ball Screws :
Brand: TBI Motion (Taiwan)
Guides :
HIWIN guides
Supply Ability :
200
Motors & Drives :
6 sets of Servo Motors & Drives
Cylinders Brand :
Brand: Airtac (Taiwan)
Control System :
We-con touch screen & PLC control
Place of Origin :
China
Voltage :
220V
Parameter Memory :
Yes
Certification :
CE /ISO
Production Capacity :
5 wire: Approx. 5,000 pcs/hour 8-wire: Approx. 8,000 pcs/hour
Brand Name :
JunSheng
Weight :
300KG
Molds :
Fengcheng molds
Description
Fully Automatic Cat6 Cable Wire Stripping Machine with 6 Servo Motors for 8,000 pcs/hour and Customizable Stripping Length
Technical Specifications
Download Technical Specifications Sheet
  • Full servo drive with 6 Yancon servo motors (Mitsubishi optional), matched with HIWIN guides, TBI screws, Airtac cylinders and Fengcheng molds for high precision and stable operation
  • Wide applicable wire range: 15AWG-32AWG, cutting length 40-1000mm, adjustable front/rear stripping length, customizable parameters beyond standard range
  • Flexible crimp pressure: standard 2T, optional 3T/4T to accommodate various terminal types
  • Dual production modes: 5-wire (5,000 pcs/hour) and 8-wire (8,000 pcs/hour) for enhanced production efficiency
  • Intelligent We-con touch screen & PLC control with parameter memory function, easy operation for new operators
  • All-in-one cutting, stripping and crimping functionality saves labor, reduces factory space requirements, and minimizes defective rates
