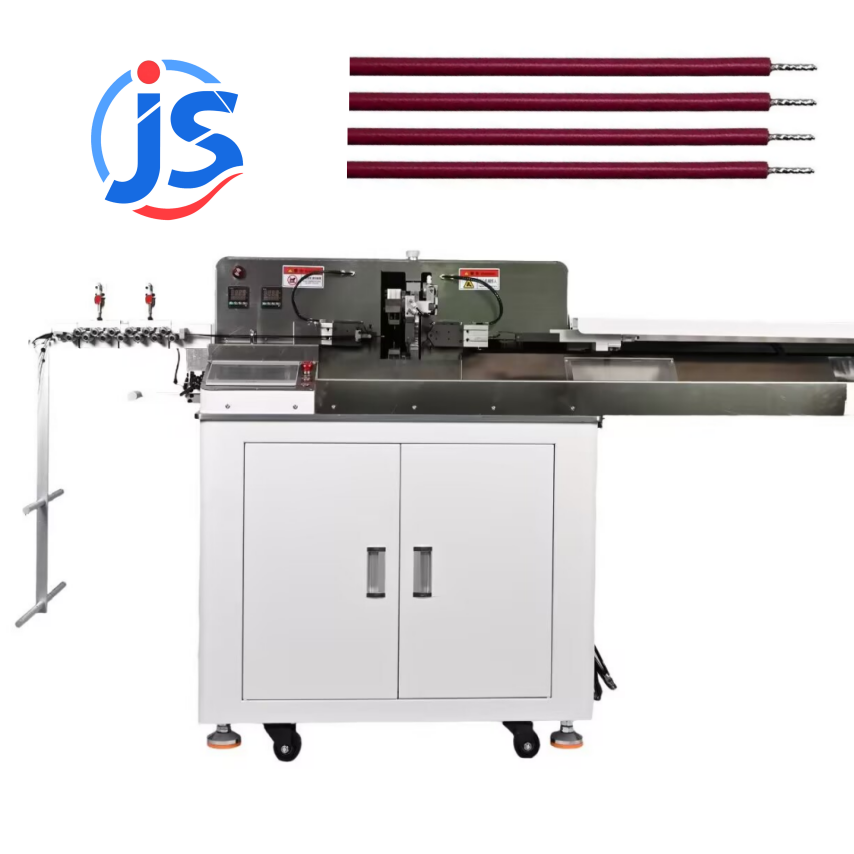

Servo Drive Automatic Soldering Machine High Capacity Wire Harness Crimping Machine
Servo Drive Automatic Soldering Machine High Capacity Wire Harness Crimping Machine
Servo Drive Automatic Soldering Machine High Capacity Wire Harness Crimping Machine
Servo Drive Automatic Soldering Machine High Capacity Wire Harness Crimping Machine
Servo Drive Automatic Soldering Machine High Capacity Wire Harness Crimping Machine
Servo Drive Automatic Soldering Machine High Capacity Wire Harness Crimping Machine
Servo Drive Automatic Soldering Machine High Capacity Wire Harness Crimping Machine
Servo Drive Automatic Soldering Machine High Capacity Wire Harness Crimping Machine
Servo Drive Automatic Soldering Machine High Capacity Wire Harness Crimping Machine
Servo Drive Automatic Soldering Machine High Capacity Wire Harness Crimping Machine
Servo Drive Automatic Soldering Machine High Capacity Wire Harness Crimping Machine
Servo Drive Automatic Soldering Machine High Capacity Wire Harness Crimping Machine
Specifications
Model Number :
HR-02DS
Tinning Length :
1-10mm (Customizable beyond range)
MOQ :
1
Delivery Time :
Within 5 Working Days
Twisting Length :
3-10mm (Customizable beyond range)
Motors & Drives :
6 sets of Servo Motors & Drives
Price :
5900
Display Screen :
High-definition Screen, Brand: We-con
Adjustable Parameters :
Cutting, stripping, twisting, tinning lengths customizable
Hourly Output :
5,000 pcs/hour (5-wire); 8,000 pcs/hour (8-wire)
Packaging Details :
Wooden Box
Stripping Length :
1-10mm (Customizable beyond range)
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Production Capacity :
18AWG-32AWG, 8-wire: Approx. 8,000 pcs/hour; 14AWG-32AWG, 5-wire: Approx. 5,000 pcs/hour
Dual Wire Modes :
5-wire & 8-wire processing
Wire Compatibility :
14AWG-32AWG (5-wire); 18AWG-32AWG (8-wire)
Supply Ability :
200
Linear Guides :
HIWIN (Taiwan)
Wire Range :
18AWG-32AWG (8-wire); 14AWG-32AWG (5-wire)
Certification :
CE /ISO
Ball Screws Brand :
TBI Motion (Taiwan)
Place of Origin :
China
Cylinders Brand :
Airtac (Taiwan)
Brand Name :
JunSheng
Cutting Length :
20-1000mm (Customizable beyond range)
Description
HR-02DS Fully Automatic Wire Harness Cutting Ring Terminal Crimping Machine
Download Product Specifications (XLSX)
Key Features
  • Dual Wire Processing Modes & Wide Wire Compatibility: Supports two working specifications: 5-wire simultaneous processing for 14AWG-32AWG cables and 8-wire processing for 18AWG-32AWG cables, covering most common thin electronic wire sizes to meet diversified wiring production demands.
  • Adjustable Multi-Size Processing Parameters: Fully customizable processing dimensions: cutting length adjustable from 20mm to 1000mm, front & rear stripping length 1-10mm, twisting length 3-10mm, and tinning length 1-10mm. Adapts to different terminal assembly and soldering requirements flexibly.
  • High Efficient Production Capacity: Stable high hourly output: around 5,000 pieces per hour for 5-wire processing and up to 8,000 pieces per hour for 8-wire processing, greatly boosting workshop production efficiency and shortening order delivery cycles.
