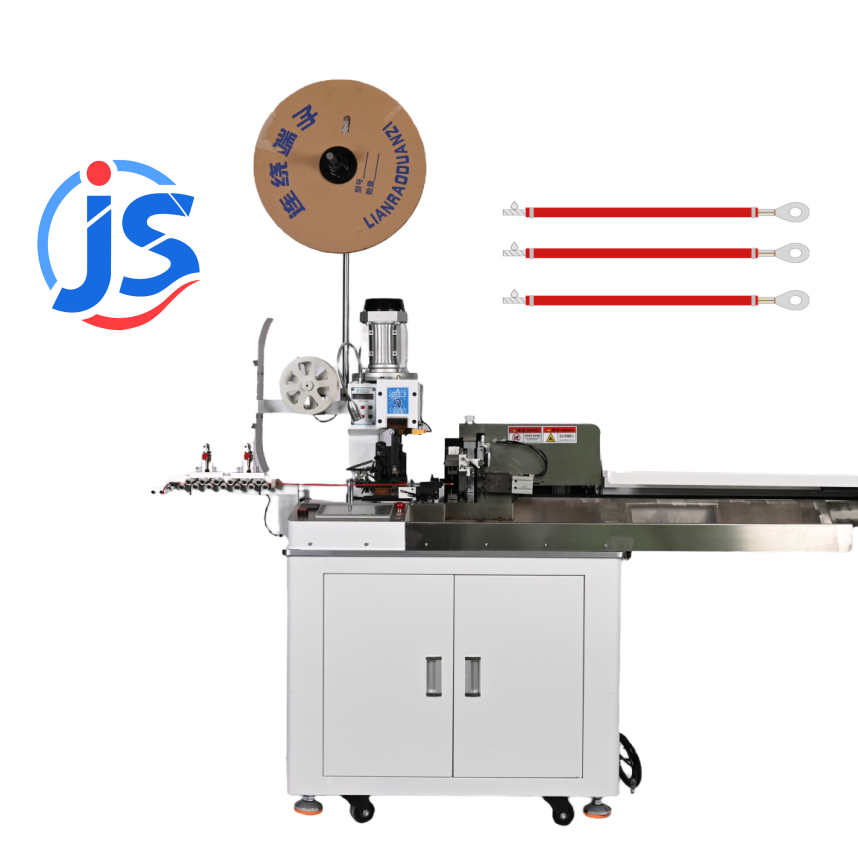

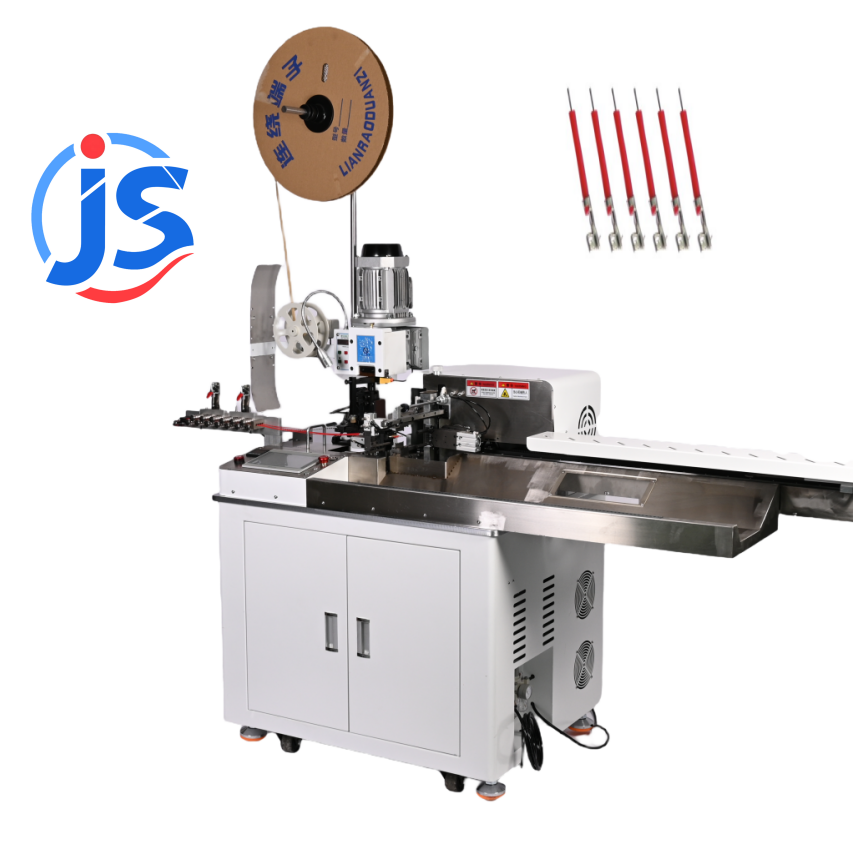

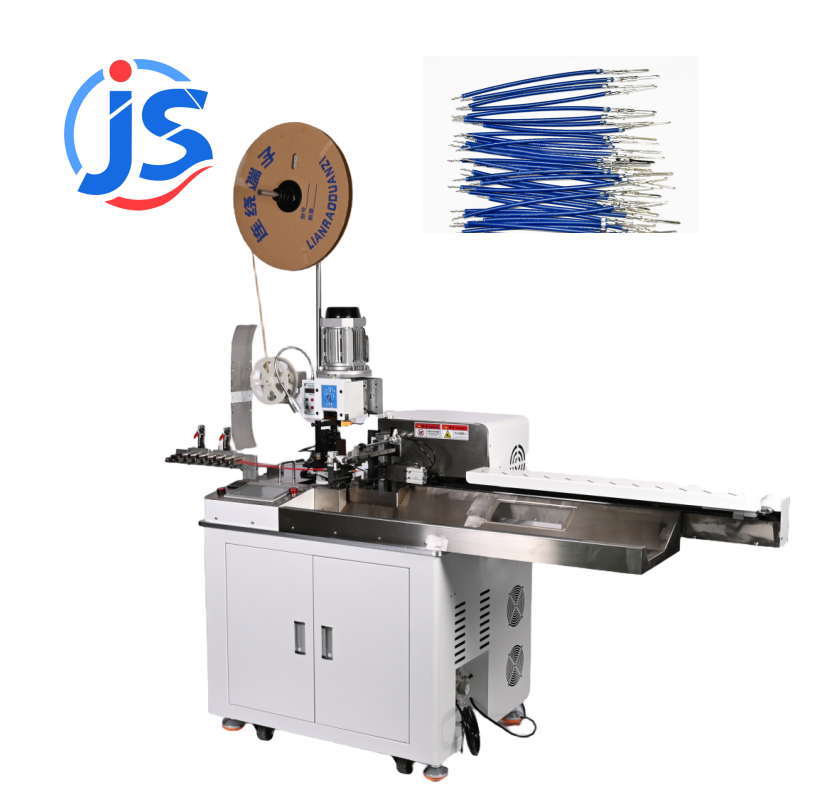

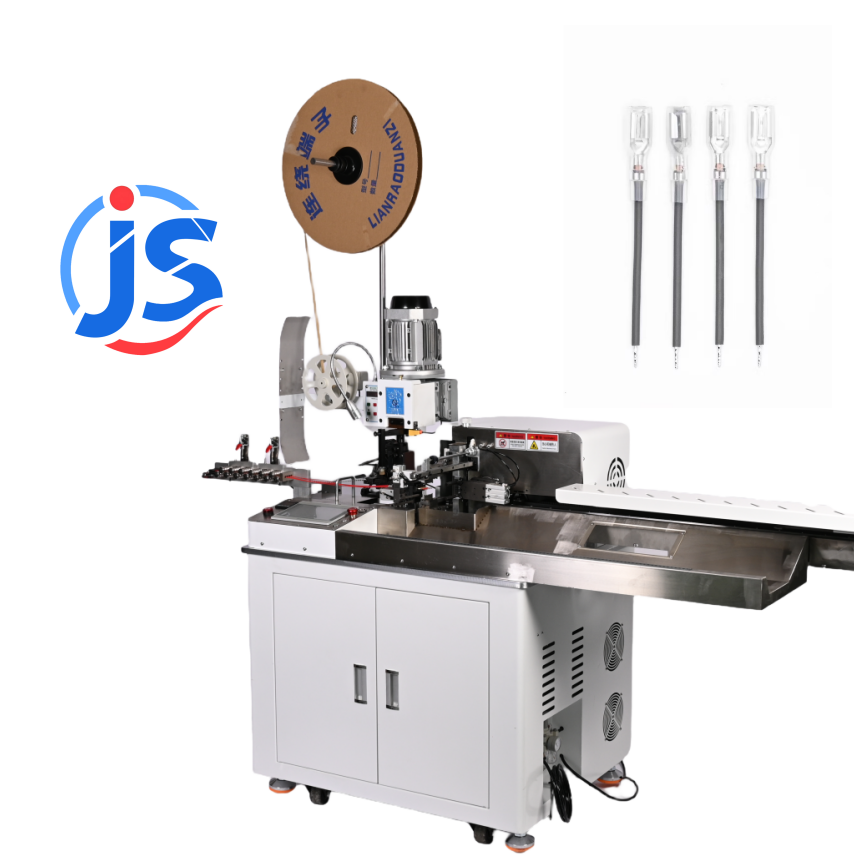

Stranded Wire Processing Machine 220V Wire Processing Equipment
Stranded Wire Processing Machine 220V Wire Processing Equipment
Stranded Wire Processing Machine 220V Wire Processing Equipment
Stranded Wire Processing Machine 220V Wire Processing Equipment
Stranded Wire Processing Machine 220V Wire Processing Equipment
Stranded Wire Processing Machine 220V Wire Processing Equipment
Stranded Wire Processing Machine 220V Wire Processing Equipment
Stranded Wire Processing Machine 220V Wire Processing Equipment
Specifications
Model Number :
HR-BT05E
Front Stripping Length :
1-8mm (Customizable beyond range)
MOQ :
1
Delivery Time :
Within 5 Working Days
Wire Range :
16AWG-32AWG
Tinning Length :
Front/Rear: 1-12mm (Customizable beyond range)
Drives :
5 sets
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Size :
120*90*145cm
Display Screen :
High-definition Screen
Linear Guides Brand :
HIWIN (Taiwan)
Supply Ability :
200
Voltage :
220V
Servo Motors :
5 sets
Price :
6200
Rear Stripping Length :
1-12mm (Customizable beyond range)
Ball Screws Brand :
TBI Motion (Taiwan)
Cylinders Brand :
Airtac (Taiwan)
Packaging Details :
Wooden Box
Cutting Length :
35-1000mm (customizable outside the range)
Brand Name :
JunSheng
Weight :
300KG
Certification :
CE /ISO
Production Capacity :
5 wire: Approx. 5,000 pcs/hour
Place of Origin :
China
Twisting Length :
Front/Rear: 3-12mm (Customizable beyond range)
Description
Fully Automatic Stranded Wire Processing Machine with 5 Servo Motors for 16AWG-32AWG Wire at 5,000 pcs/hour
Technical Specifications
Download Technical Specifications (XLSX)
  • Driven by 5 servo motors with high-definition LCD display screen
  • Wire range: 16AWG-32AWG
  • Cutting length: 35-1000mm (customizable outside range)
  • Front stripping length: 1-8mm (customizable outside range)
  • Rear stripping length: 1-12mm (customizable outside range)
  • Twisting length: 3-12mm (customizable outside range)
  • Tin plating length: 1-12mm (customizable outside range)
  • Production capacity: Approximately 5000 pieces/hour (5 wires)
