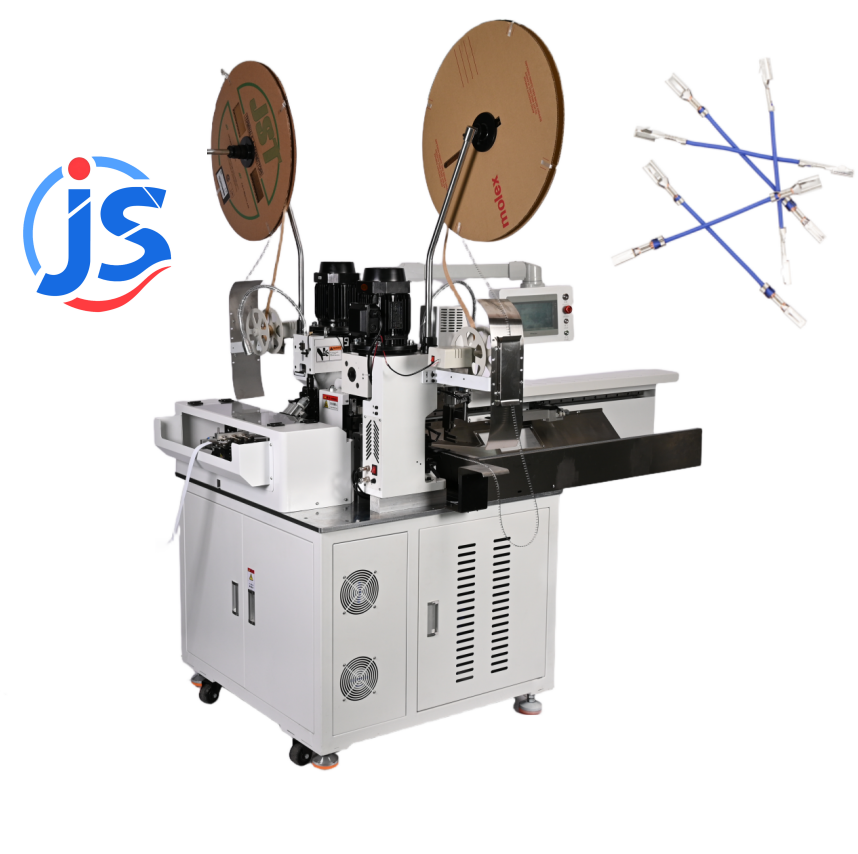

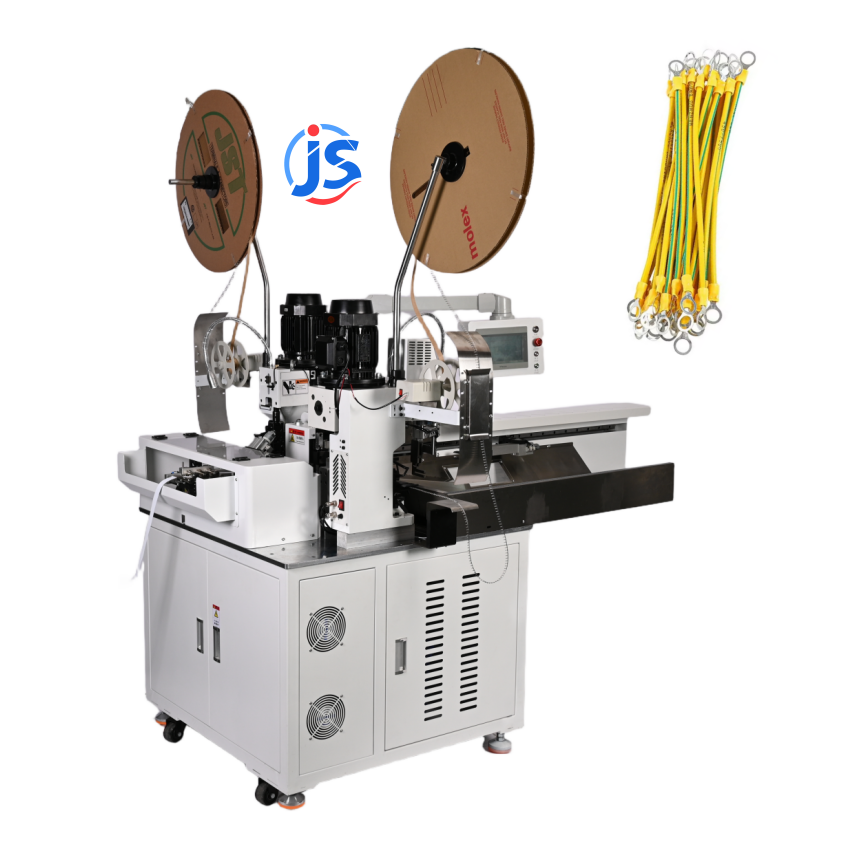

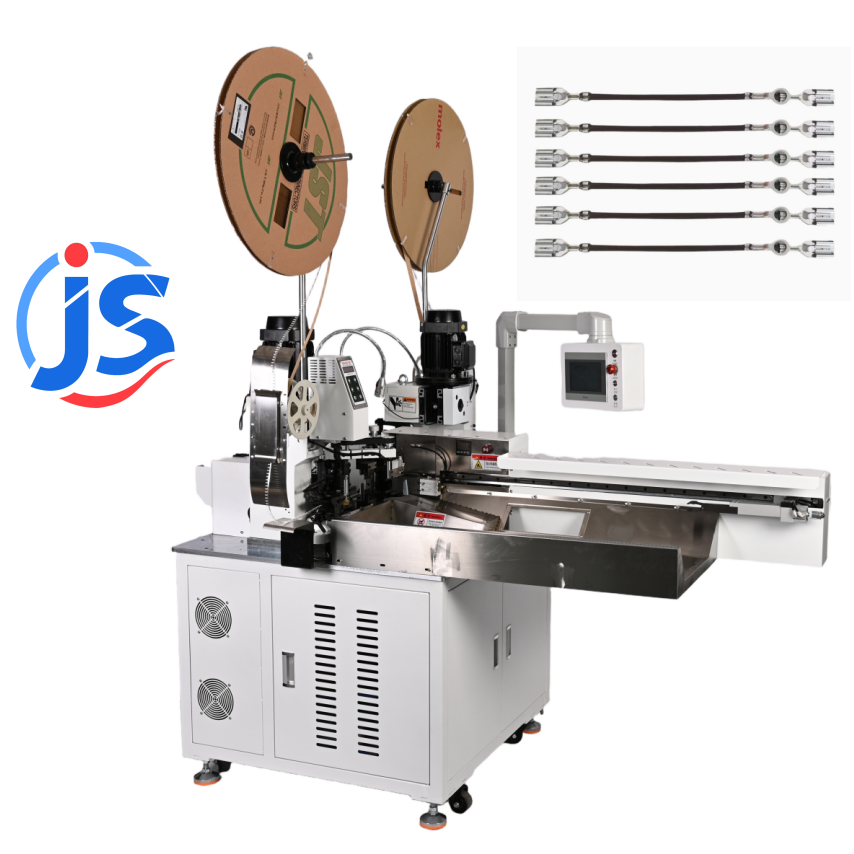

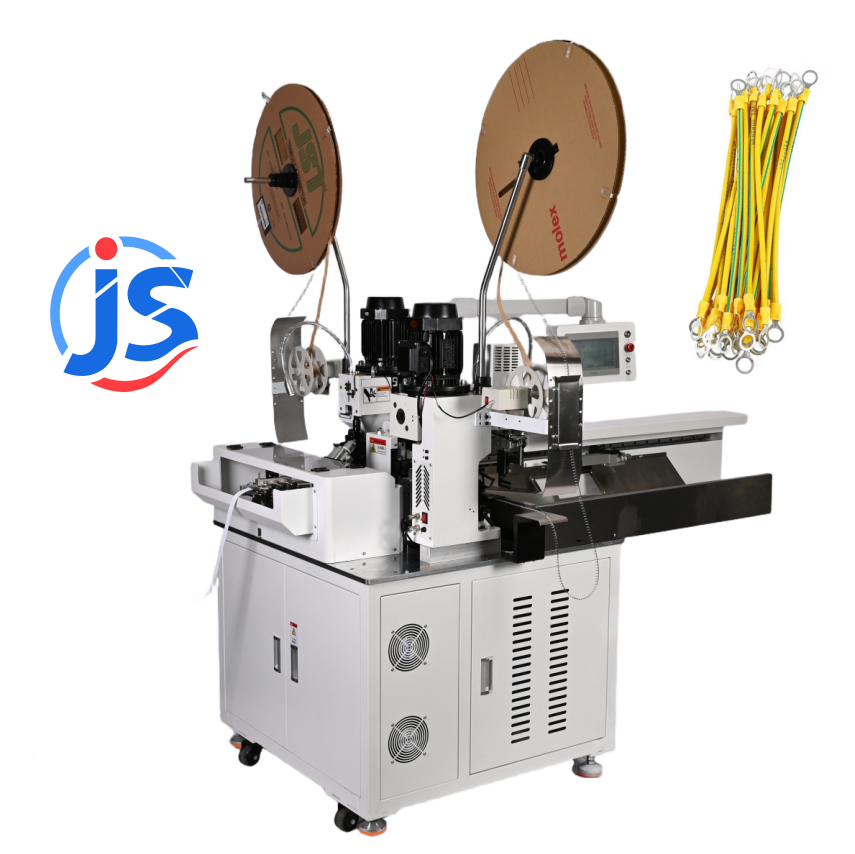

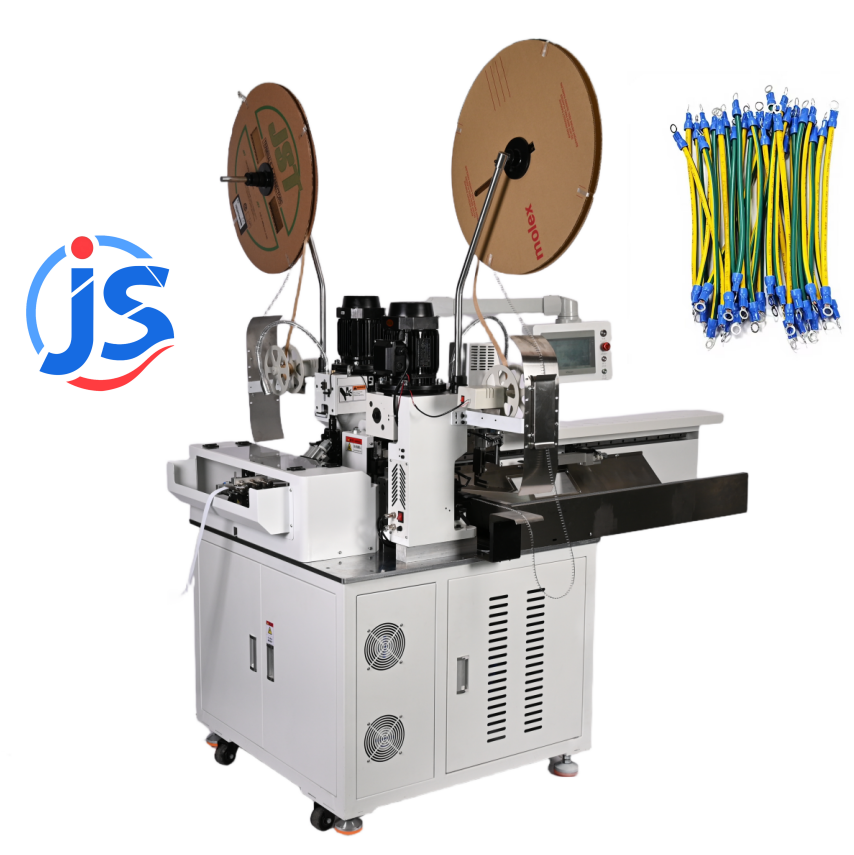

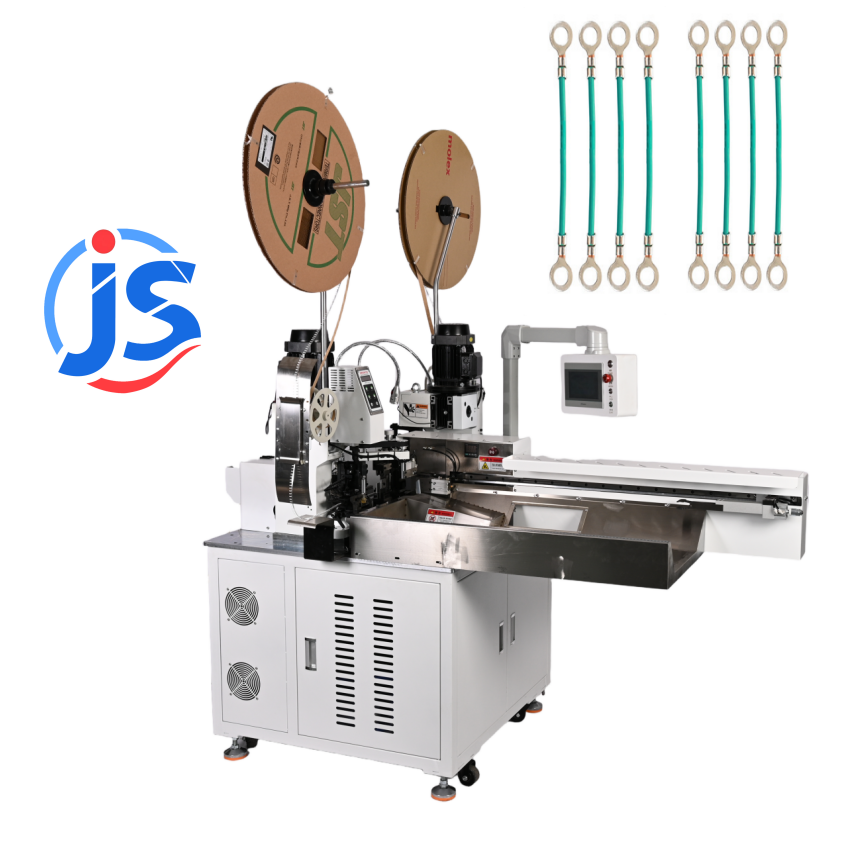

Touch Screen Automatic Soldering Machine Cat6 Cable Cutting And Stripping Machine
Touch Screen Automatic Soldering Machine Cat6 Cable Cutting And Stripping Machine
Touch Screen Automatic Soldering Machine Cat6 Cable Cutting And Stripping Machine
Touch Screen Automatic Soldering Machine Cat6 Cable Cutting And Stripping Machine
Touch Screen Automatic Soldering Machine Cat6 Cable Cutting And Stripping Machine
Touch Screen Automatic Soldering Machine Cat6 Cable Cutting And Stripping Machine
Touch Screen Automatic Soldering Machine Cat6 Cable Cutting And Stripping Machine
Touch Screen Automatic Soldering Machine Cat6 Cable Cutting And Stripping Machine
Touch Screen Automatic Soldering Machine Cat6 Cable Cutting And Stripping Machine
Touch Screen Automatic Soldering Machine Cat6 Cable Cutting And Stripping Machine
Touch Screen Automatic Soldering Machine Cat6 Cable Cutting And Stripping Machine
Touch Screen Automatic Soldering Machine Cat6 Cable Cutting And Stripping Machine
Specifications
Model Number :
HR-602-5
Front Stripping Length :
1-12mm (Customizable beyond range)
Control System :
We-con touch screen & PLC
MOQ :
1
Delivery Time :
Within 5 Working Days
Display Screen :
High-definition Screen, Brand: We-con
Wire Range :
15AWG-32AWG
Molds Brand :
Fengcheng
Price :
9050
Weight :
300KG
Ball Screws :
Brand: TBI Motion (Taiwan)
Cylinders Brand :
Airtac (Taiwan)
Packaging Details :
Wooden Box
Production Capacity 5-wire :
Approx. 5,000 pcs/hour
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Pressure :
2Ton (Optional: 3T or 4T)
Linear Guides :
Brand: HIWIN (Taiwan)
Servo Motors Brand :
Yancon (Mitsubishi optional)
Supply Ability :
200
Voltage :
220V
Production Capacity 8-wire :
Approx. 8,000 pcs/hour
Applicable Wire :
15AWG-32AWG
Place of Origin :
China
Servo Motors :
6 sets
Function :
Cutting, stripping and crimping
Certification :
CE /ISO
Rear Stripping Length :
1-9mm (Customizable beyond range)
Brand Name :
JunSheng
Cutting Length :
40-1000mm (Customizable beyond range)
Parameter Memory :
Yes
Description
Automatic Cat6 Cable Wire Stripping and Soldering Machine with 6 Servo Motors, We-con Touch Screen, and Dual Production Modes up to 8,000 pcs/hour
Technical Specifications
Download Technical Specifications (Excel)
  • Full servo drive with 6 Yancon servo motors (Mitsubishi optional), matched with HIWIN guides, TBI screws, Airtac cylinders and Fengcheng molds for high precision and stable operation
  • Wide applicable wire range: 15AWG-32AWG, cutting length 40-1000mm, front/rear stripping length adjustable, all parameters customizable beyond standard range
  • Flexible crimp pressure: standard 2T, optional 3T/4T to fit various terminal types
  • Dual production modes: 5-wire for 5,000 pcs/hour, 8-wire for 8,000 pcs/hour, greatly boosting production efficiency
  • Intelligent We-con touch screen & PLC control with parameter memory function, low learning cost for new operators
  • All-in-one cutting, stripping and crimping function saves labor and factory space while reducing defective rate
