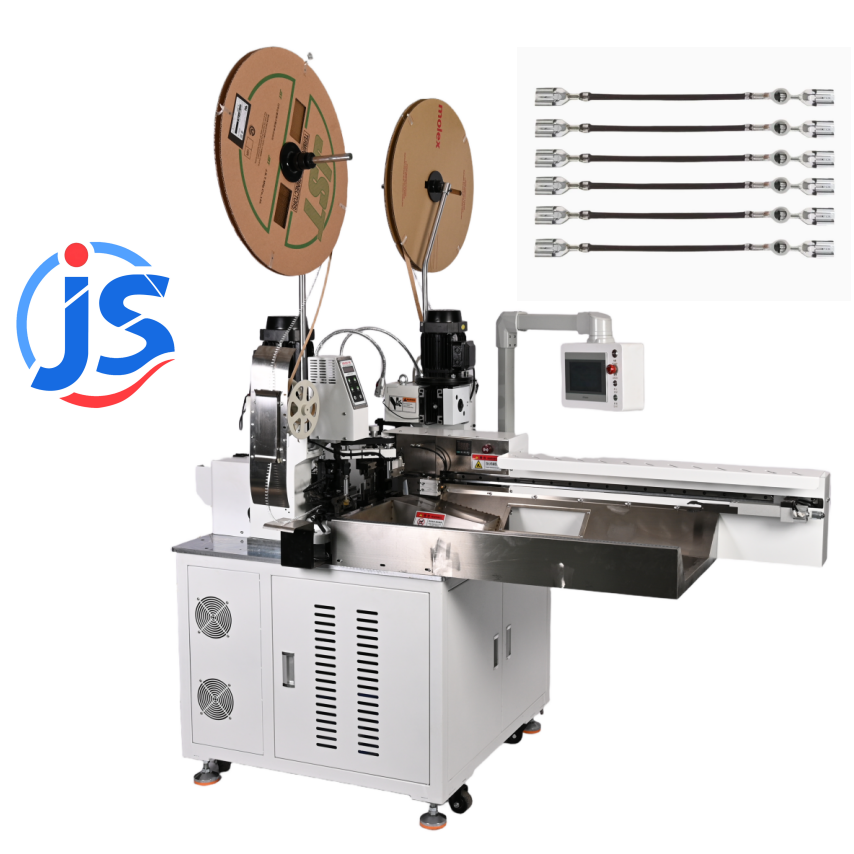

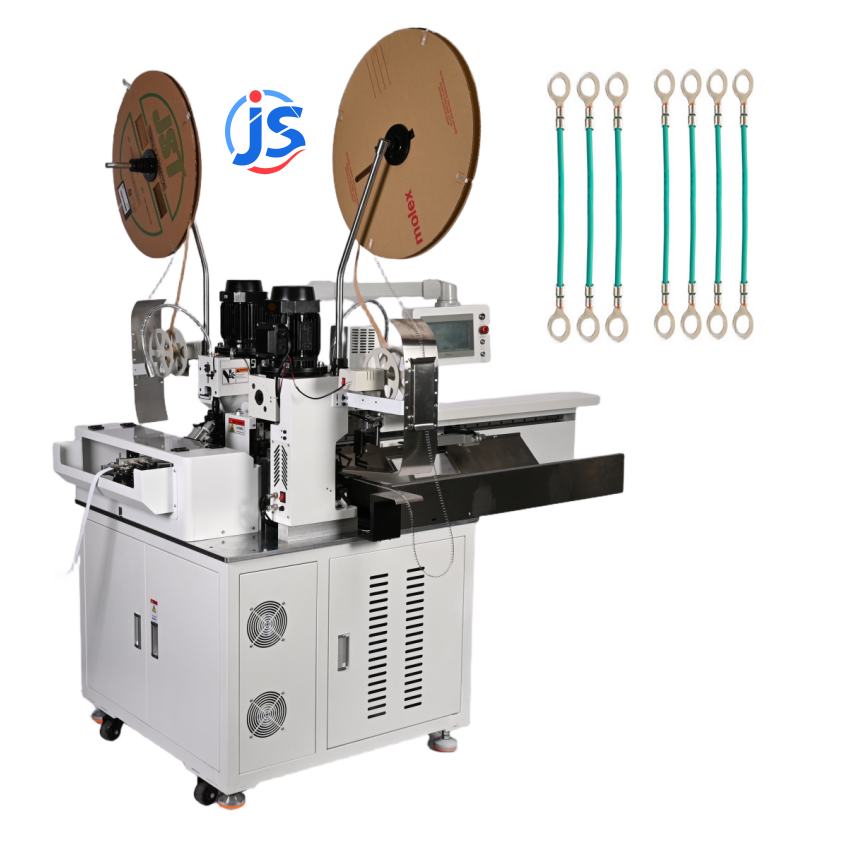

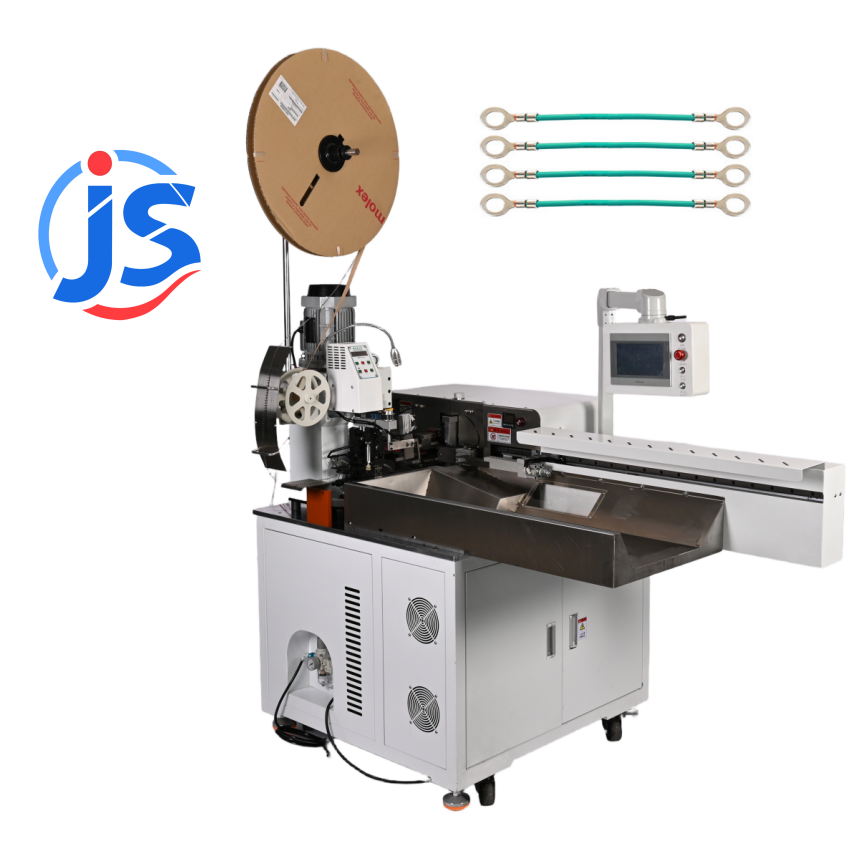

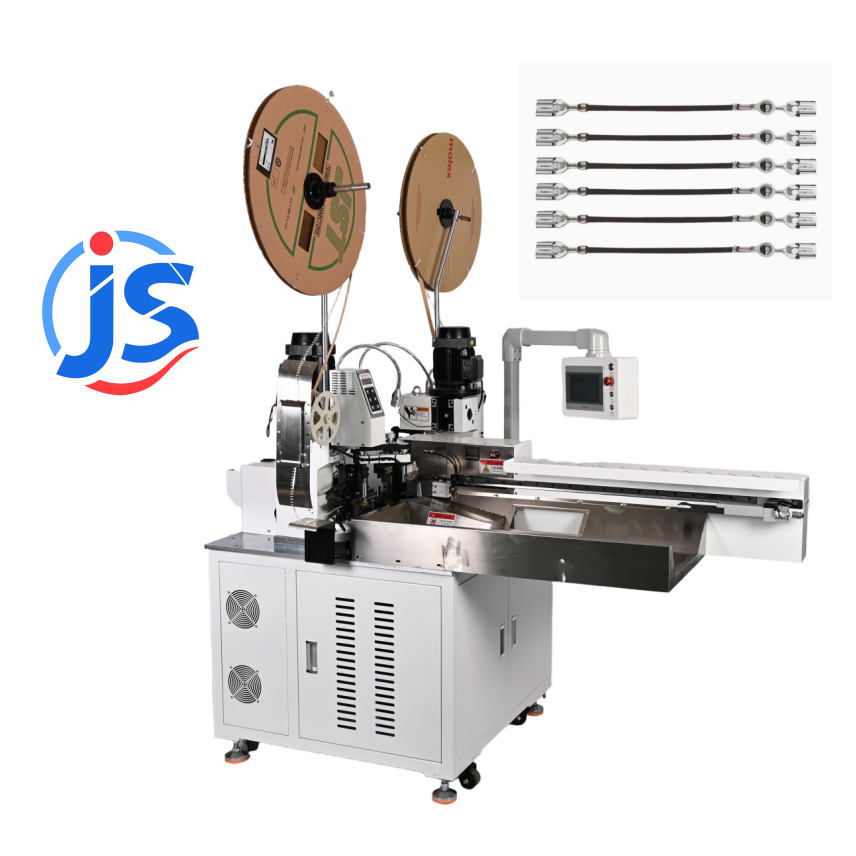

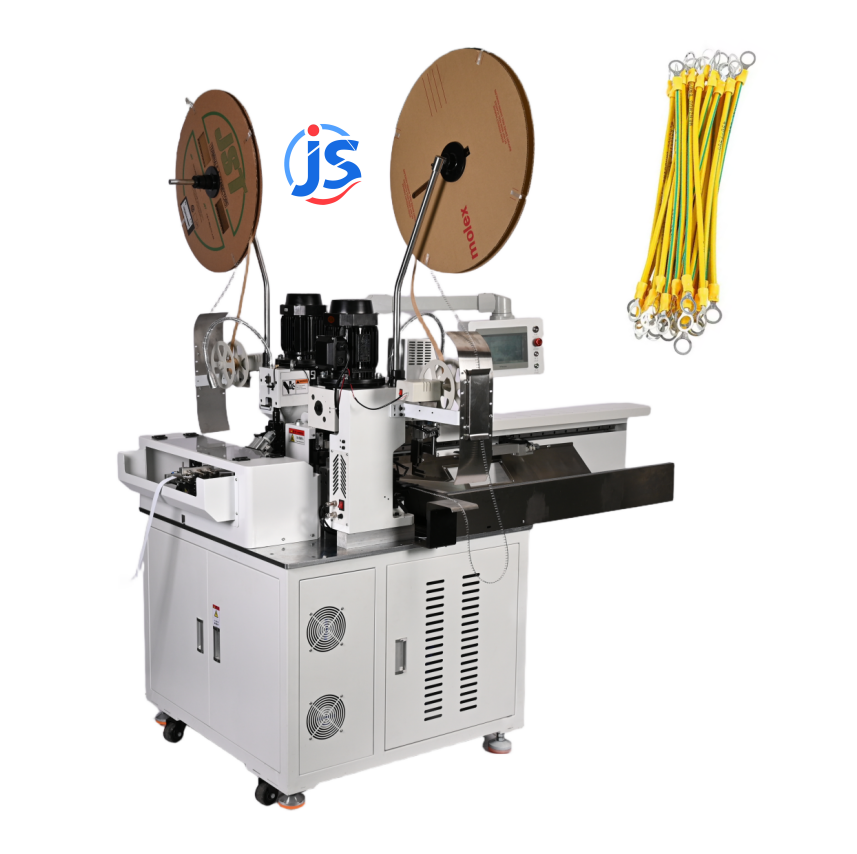

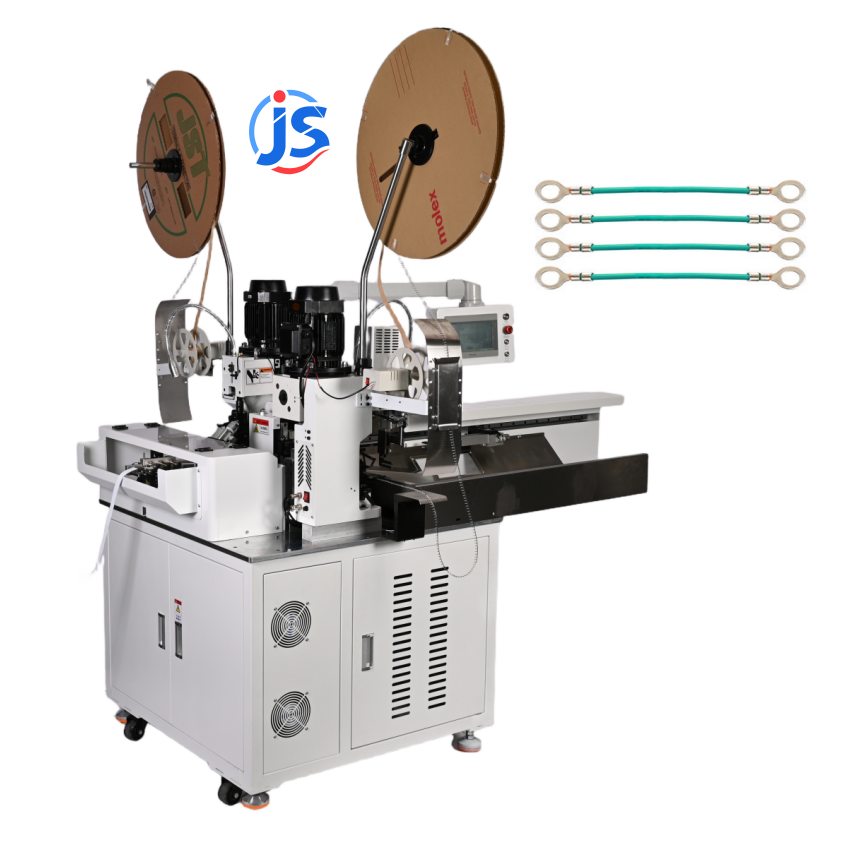

Cat6 Automatic Soldering Machine 2Ton Stripping And Crimping Machine
Cat6 Automatic Soldering Machine 2Ton Stripping And Crimping Machine
Cat6 Automatic Soldering Machine 2Ton Stripping And Crimping Machine
Cat6 Automatic Soldering Machine 2Ton Stripping And Crimping Machine
Cat6 Automatic Soldering Machine 2Ton Stripping And Crimping Machine
Cat6 Automatic Soldering Machine 2Ton Stripping And Crimping Machine
Cat6 Automatic Soldering Machine 2Ton Stripping And Crimping Machine
Cat6 Automatic Soldering Machine 2Ton Stripping And Crimping Machine
Cat6 Automatic Soldering Machine 2Ton Stripping And Crimping Machine
Cat6 Automatic Soldering Machine 2Ton Stripping And Crimping Machine
Cat6 Automatic Soldering Machine 2Ton Stripping And Crimping Machine
Cat6 Automatic Soldering Machine 2Ton Stripping And Crimping Machine
Specifications
Model Number :
HR-602-5
Motors & Drives :
6 sets of Servo Motors & Drives
Learning Cost :
Low
MOQ :
1
Delivery Time :
Within 5 Working Days
Ball Screws :
Brand: TBI Motion (Taiwan)
Pressure :
2Ton (Optional: 3T or 4T)
Function :
Cutting, stripping and crimping
Price :
9000
Production Capacity :
5 wire: Approx. 5,000 pcs/hour, 8-wire: Approx. 8,000 pcs/hour
Servo Motors :
6 Yancon servo motors, Mitsubishi optional
Crimp Pressure :
Standard 2T, optional 3T/4T
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Cylinders Brand :
Brand: Airtac (Taiwan)
Applicable Wire Range :
15AWG-32AWG
Control System :
We-con touch screen & PLC control
Packaging Details :
Wooden Box
Rear Stripping Length :
1-9mm (Customizable beyond range)
Supply Ability :
200
Cutting Length :
40-1000mm (Customizable beyond range)
Linear Guides :
Brand: HIWIN (Taiwan)
Brand Name :
JunSheng
Front Stripping Length :
1-12mm (Customizable beyond range)
Defective Rate :
Reduced
Certification :
CE /ISO
Display Screen :
High-definition Screen, Brand: We-con
Place of Origin :
China
Weight :
300KG
Description
Automatic Cat6 Cable Wire Stripping Twisting and Soldering Machine
Technical Specifications
Specification Details
Drive System Full servo drive with 6 Yancon servo motors (Mitsubishi optional)
Components HIWIN guides, TBI screws, Airtac cylinders, Fengcheng molds
Wire Range 15AWG-32AWG
Cutting Length 40-1000mm
Crimp Pressure Standard 2T, optional 3T/4T
Production Rate 5-wire: 5,000 pcs/hour, 8-wire: 8,000 pcs/hour
Key Features
  • Adjustable front/rear stripping length with customizable parameters
  • Flexible crimp pressure options to fit various terminal types
  • Dual production modes for optimized efficiency
  • Intelligent We-con touch screen & PLC control with parameter memory
  • Low learning curve for new operators
  • All-in-one cutting, stripping and crimping functionality
  • Reduces labor requirements and factory space
  • Minimizes defective rate
Download Technical Specifications (Excel)
Cat6 Automatic Soldering Machine 2Ton Stripping And Crimping Machine
Company Facility and Equipment
Cat6 Automatic Soldering Machine 2Ton Stripping And Crimping Machine
Exhibition and Trade Show Display
Cat6 Automatic Soldering Machine 2Ton Stripping And Crimping Machine
Packaging and Shipping Process
Cat6 Automatic Soldering Machine 2Ton Stripping And Crimping Machine
Product Certification
About Shenzhen Junsheng Automation Equipment Co., Ltd

Founded in 2015, Shenzhen Junsheng Automation Equipment Co., Ltd. is a high-tech automation enterprise engaged in the R & D, manufacturing, sales and service of various types of automation equipment including cable harness processing equipment and automatic cutting equipment. Our main products are as below:Automatic Cable Cutting Machine;Automatic Cable Stripping Machine;Automatic Cable Twisting Machine;Automatic Cable Coiling Machine;Automatic Cable Bundling Machine;Automatic Cable Soldering Machine;Automatic Cable Testing Machine;Automatic Cable Scrap Machine;Automatic Cable Payoff Device;Mainly for the automobile and motorcycle, electronics, home appliances, electrical wiring harness production and harness processing business services. Division I have a complete and scientific quality management system, in strict accordance with the ISO9002 management procedures, the enterprise for the quality and efficiency of the struggle and strive to continue efforts.
