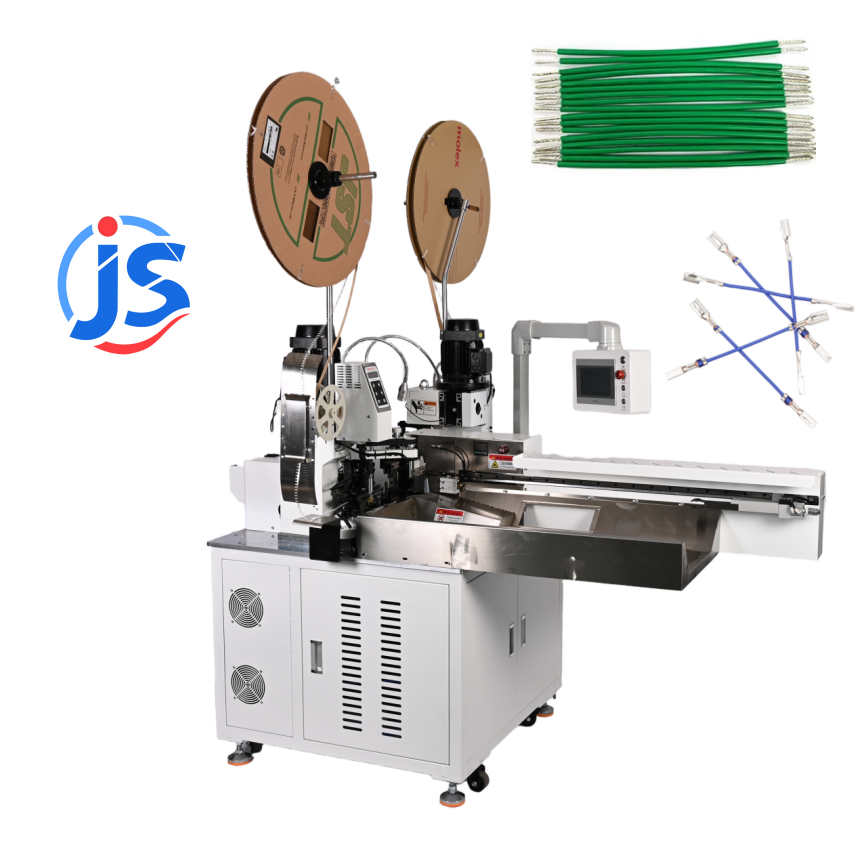

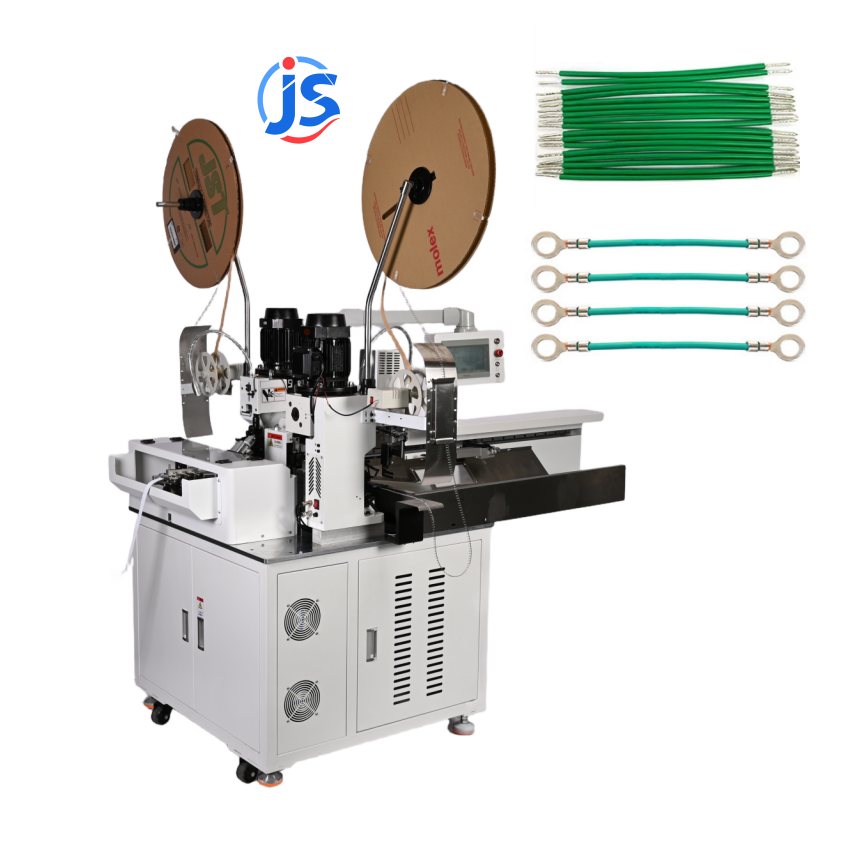

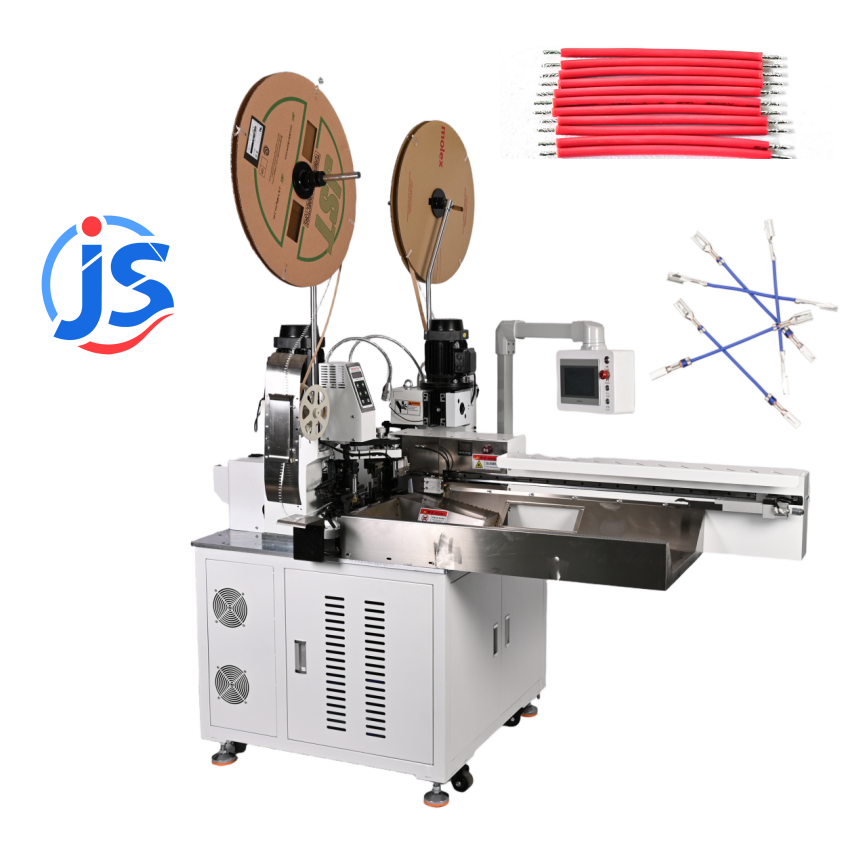

Touch Screen Automatic Soldering Machine Servo Drive Stripping And Crimping Machine
Touch Screen Automatic Soldering Machine Servo Drive Stripping And Crimping Machine
Touch Screen Automatic Soldering Machine Servo Drive Stripping And Crimping Machine
Touch Screen Automatic Soldering Machine Servo Drive Stripping And Crimping Machine
Touch Screen Automatic Soldering Machine Servo Drive Stripping And Crimping Machine
Touch Screen Automatic Soldering Machine Servo Drive Stripping And Crimping Machine
Touch Screen Automatic Soldering Machine Servo Drive Stripping And Crimping Machine
Touch Screen Automatic Soldering Machine Servo Drive Stripping And Crimping Machine
Touch Screen Automatic Soldering Machine Servo Drive Stripping And Crimping Machine
Touch Screen Automatic Soldering Machine Servo Drive Stripping And Crimping Machine
Touch Screen Automatic Soldering Machine Servo Drive Stripping And Crimping Machine
Touch Screen Automatic Soldering Machine Servo Drive Stripping And Crimping Machine
Specifications
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Cutting Length :
20-1000mm (Customizable beyond range)
Twisting Length :
3-12mm (Customizable beyond range)
Supply Ability :
200
Pressure :
2 Ton
Cylinders :
Airtac (Taiwan)
Model Number :
HR-2DSC
Front Stripping Length :
1-7mm (Customizable beyond range)
Price :
10800
Motors & Drives :
6 sets of Servo Motors & Drives
Ribbon Cable :
2P-4P
Rear Stripping Length :
1-12mm (Customizable beyond range)
Packaging Details :
Wooden Box
Tinning Length :
1-12mm (Customizable beyond range)
MOQ :
1
Delivery Time :
Within 5 Working Days
Display Screen :
High-definition Screen, We-con
Electronic Wire :
18AWG-32AWG
Certification :
CE /ISO
Linear Guides :
HIWIN (Taiwan)
Place of Origin :
China
Ball Screws :
TBI Motion (Taiwan)
Brand Name :
JunSheng
Production Capacity :
1×5 wires, Approx. 5,000 pcs/hour Ribbon Cable: 2P, 5 wires: Approx. 4,000 pcs/hour 3P-4P, 3 wires: Approx. 2,400 pcs/hour 6P-12P, 2 wires: Approx. 1,500 pcs/hour 8P-24P, 1 wire: Approx. 700 pcs/hour
Description
Fully Automatic Wire Stripping and Soldering Machine with 5,000 pcs/hour Capacity for 18AWG-32AWG Wires and HIWIN Linear Guides
Download Technical Specifications
Key Features
  • Dual line processing mode and wide line compatibility - Supports two working specifications: 18AWG-32AWG cable handling and 2P-24P cable handling, covering the most common sizes of thin electronic wires to meet diverse wiring production needs.
  • Adjustable multi size machining parameters - Fully customizable processing dimensions: cutting length can be adjusted between 20mm and 1000mm, front and rear peel length 1-10mm, twist length 3-12mm, tin plating length 1-12mm. Flexible adaptation to different terminal assembly and welding requirements.
  • Efficient production capacity - Stable high hourly output with various configurations.
Production Capacity
Configuration Output (per hour)
1×5 wires Approx. 5,000 pcs/hour
Ribbon Cable - 2P, 5 wires Approx. 4,000 pcs/hour
Ribbon Cable - 3P-4P, 3 wires Approx. 2,400 pcs/hour
Ribbon Cable - 6P-12P, 2 wires Approx. 1,500 pcs/hour
Ribbon Cable - 8P-24P, 1 wire Approx. 700 pcs/hour
Facility & Operations
Touch Screen Automatic Soldering Machine Servo Drive Stripping And Crimping Machine
Touch Screen Automatic Soldering Machine Servo Drive Stripping And Crimping Machine
Touch Screen Automatic Soldering Machine Servo Drive Stripping And Crimping Machine
Touch Screen Automatic Soldering Machine Servo Drive Stripping And Crimping Machine
