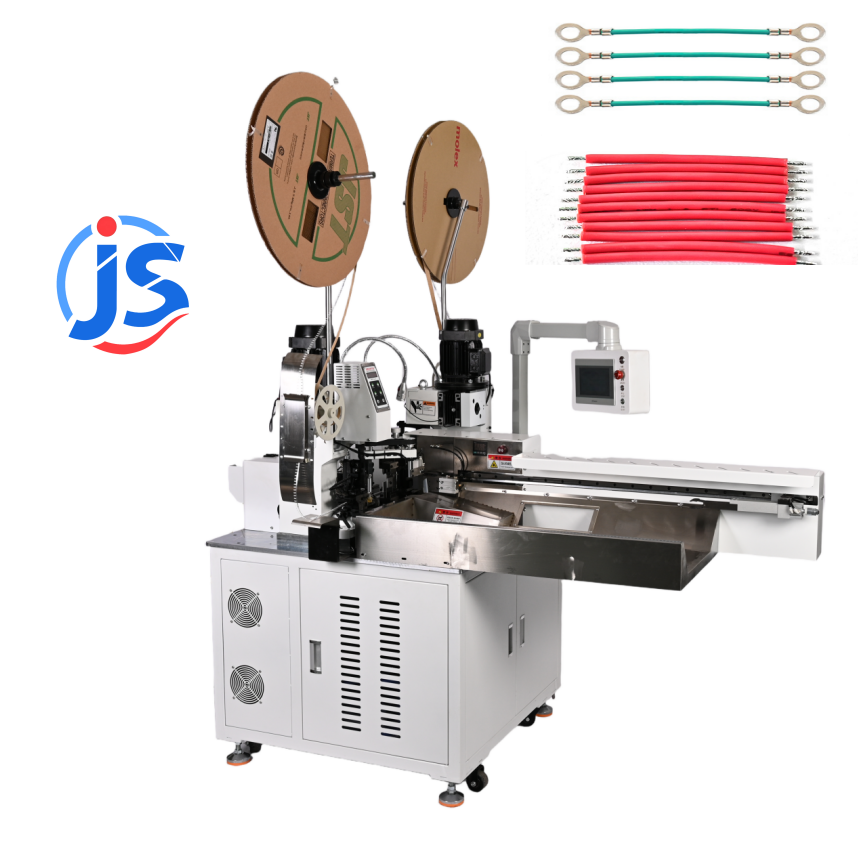

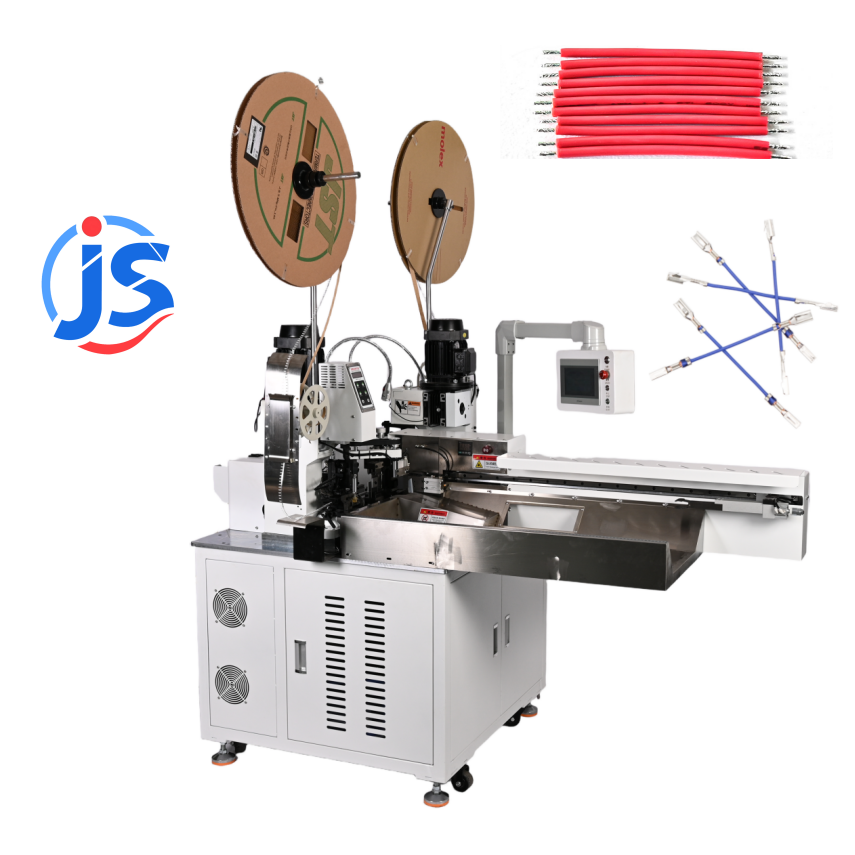

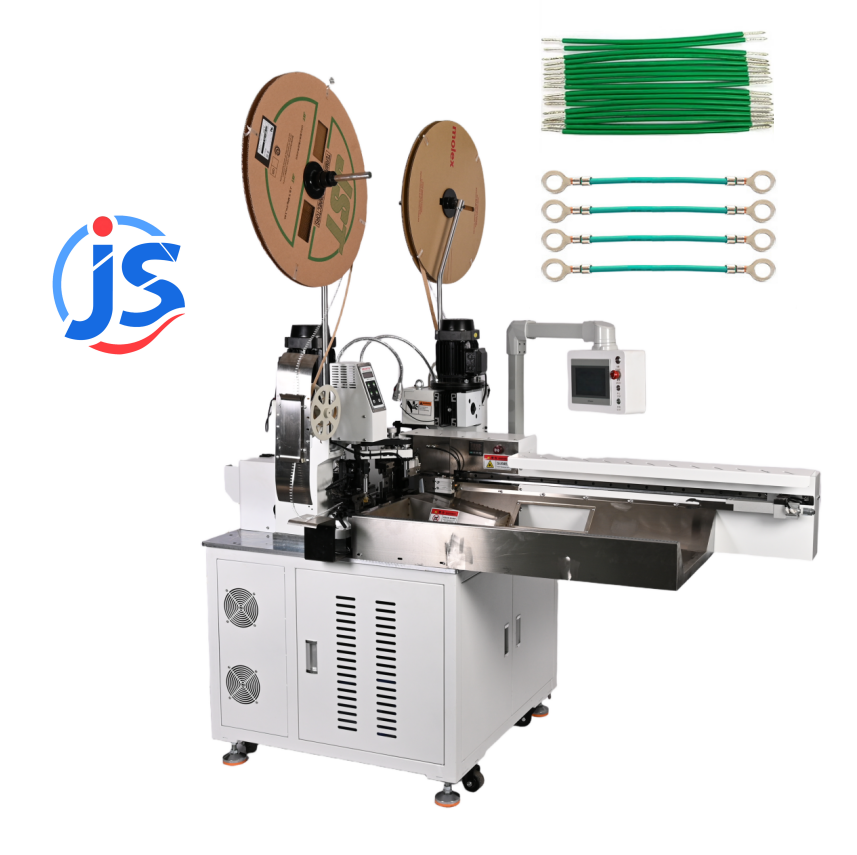

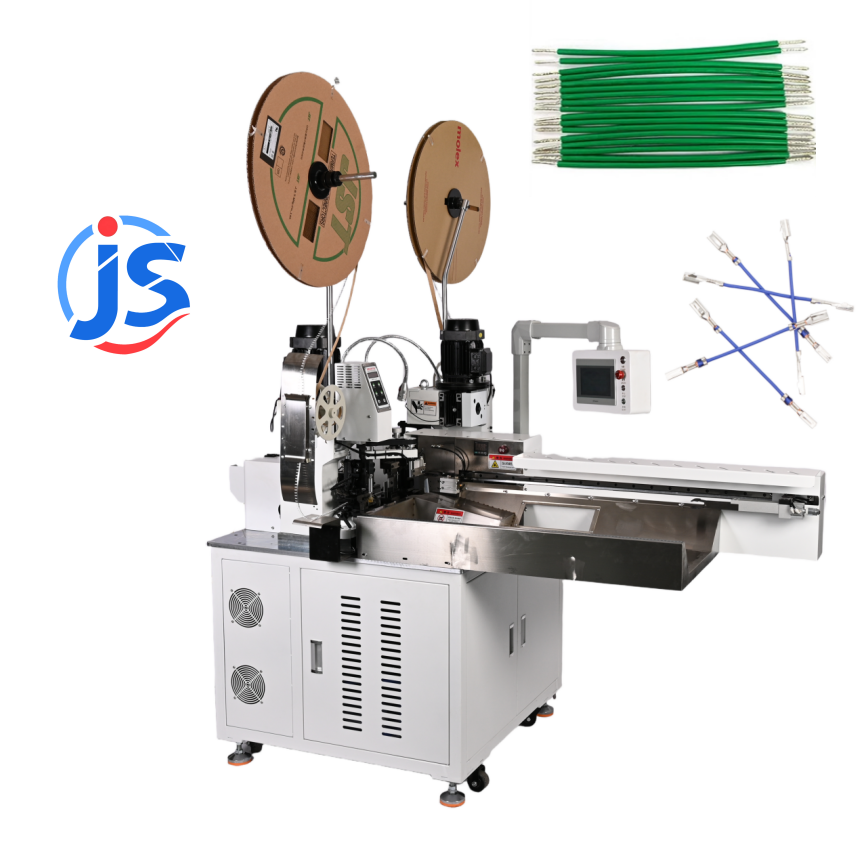

Ribbon Cable Automatic Soldering Machine 2Ton Cut Strip Crimp Machine
Ribbon Cable Automatic Soldering Machine 2Ton Cut Strip Crimp Machine
Ribbon Cable Automatic Soldering Machine 2Ton Cut Strip Crimp Machine
Ribbon Cable Automatic Soldering Machine 2Ton Cut Strip Crimp Machine
Ribbon Cable Automatic Soldering Machine 2Ton Cut Strip Crimp Machine
Ribbon Cable Automatic Soldering Machine 2Ton Cut Strip Crimp Machine
Ribbon Cable Automatic Soldering Machine 2Ton Cut Strip Crimp Machine
Ribbon Cable Automatic Soldering Machine 2Ton Cut Strip Crimp Machine
Specifications
Model Number :
HR-2DSC
Linear Guides :
HIWIN (Taiwan)
Packaging Details :
Wooden Box
Electronic Wire :
18AWG-32AWG
MOQ :
1
Delivery Time :
Within 5 Working Days
Ribbon Cable :
2P-4P
Rear Stripping Length :
1-12mm (Customizable beyond range)
Price :
11000
Twisting Length :
3-12mm (Customizable beyond range)
Display Screen :
High-definition Screen, We-con
Pressure :
2 Ton
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Motors & Drives :
6 sets of Servo Motors & Drives
Tinning Length :
1-12mm (Customizable beyond range)
Supply Ability :
200
Production Capacity :
1×5 wires, Approx. 5,000 pcs/hour Ribbon Cable: 2P, 5 wires: Approx. 4,000 pcs/hour 3P-4P, 3 wires: Approx. 2,400 pcs/hour 6P-12P, 2 wires: Approx. 1,500 pcs/hour 8P-24P, 1 wire: Approx. 700 pcs/hour
Cylinders :
Airtac (Taiwan)
Certification :
CE /ISO
Ball Screws :
TBI Motion (Taiwan)
Place of Origin :
China
Cutting Length :
20-1000mm (Customizable beyond range)
Brand Name :
JunSheng
Front Stripping Length :
1-7mm (Customizable beyond range)
Description
Automatic Wire Stripping and Soldering Machine with Dual Line Processing, Adjustable Multi Size Machining, and Efficient Production Capacity
Product Documentation

Download Technical Specifications (6-HR-2DSC.xlsx)

Key Features
  • Dual Line Processing Mode and Wide Line Compatibility
    Supports two working specifications: 18AWG-32AWG cable handling and 2P-24P cable handling, covering the most common sizes of thin electronic wires to meet diverse wiring production needs.
  • Adjustable Multi-Size Machining Parameters
    Fully customizable processing dimensions: cutting length can be adjusted between 20mm and 1000mm, front and rear peel length 1-10mm, twist length 3-12mm, tin plating length 1-12mm. Flexible adaptation to different terminal assembly and welding requirements.
  • Efficient Production Capacity
    Stable high hourly output with various configurations:
Configuration Production Capacity
1*5 wires Approx. 5,000 pcs/hour
Ribbon Cable 2P, 5 wires Approx. 4,000 pcs/hour
Ribbon Cable 3P-4P, 3 wires Approx. 2,400 pcs/hour
Ribbon Cable 6P-12P, 2 wires Approx. 1,500 pcs/hour
Ribbon Cable 8P-24P, 1 wire Approx. 700 pcs/hour
