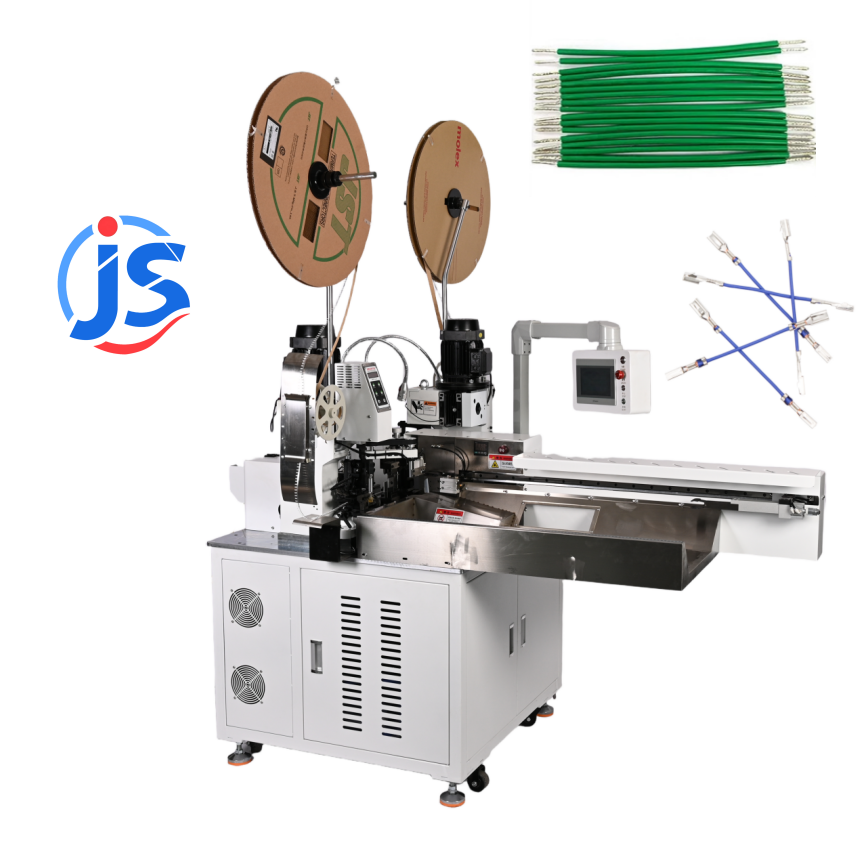

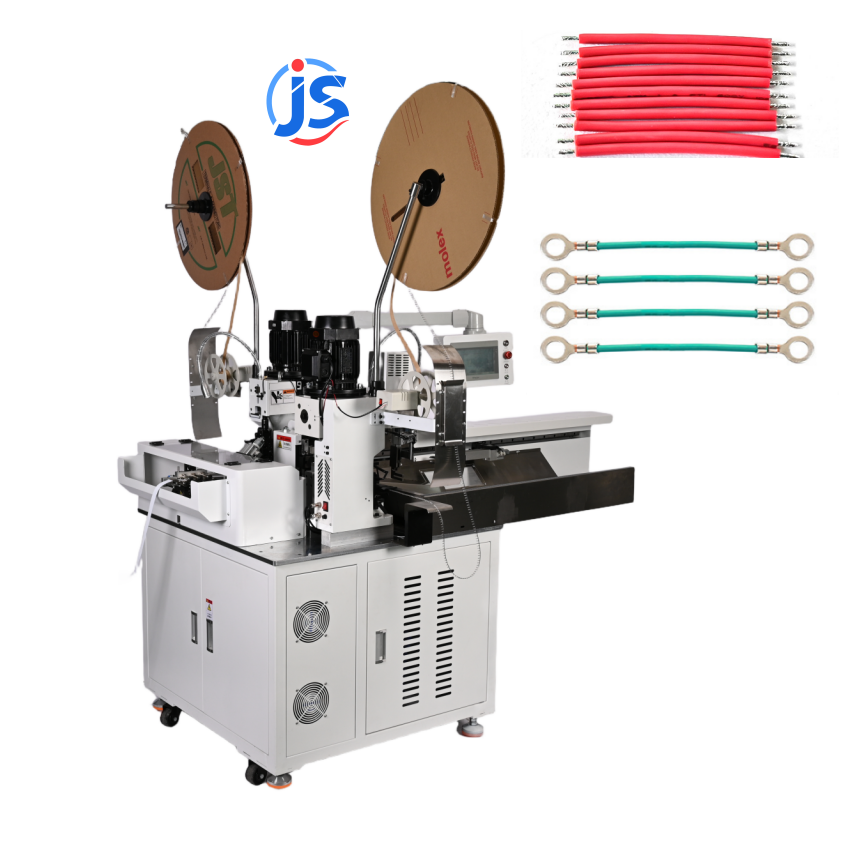

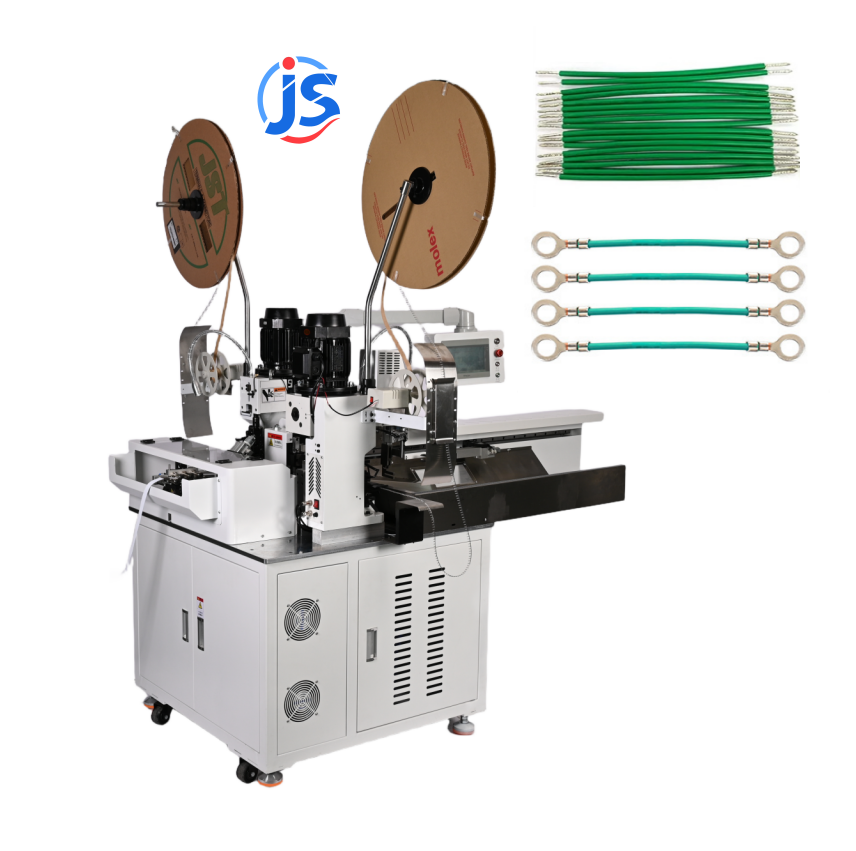

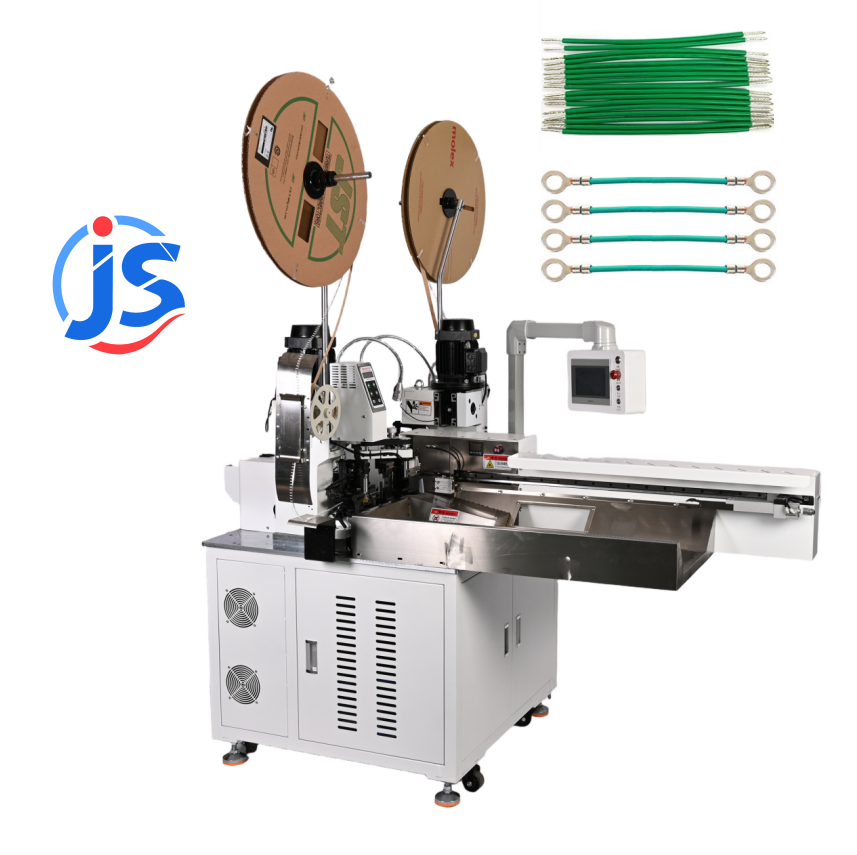

Servo Drive Automatic Soldering Machine Touch Screen Wire Stripping And Twisting Machine
Servo Drive Automatic Soldering Machine Touch Screen Wire Stripping And Twisting Machine
Servo Drive Automatic Soldering Machine Touch Screen Wire Stripping And Twisting Machine
Servo Drive Automatic Soldering Machine Touch Screen Wire Stripping And Twisting Machine
Servo Drive Automatic Soldering Machine Touch Screen Wire Stripping And Twisting Machine
Servo Drive Automatic Soldering Machine Touch Screen Wire Stripping And Twisting Machine
Servo Drive Automatic Soldering Machine Touch Screen Wire Stripping And Twisting Machine
Servo Drive Automatic Soldering Machine Touch Screen Wire Stripping And Twisting Machine
Servo Drive Automatic Soldering Machine Touch Screen Wire Stripping And Twisting Machine
Servo Drive Automatic Soldering Machine Touch Screen Wire Stripping And Twisting Machine
Servo Drive Automatic Soldering Machine Touch Screen Wire Stripping And Twisting Machine
Servo Drive Automatic Soldering Machine Touch Screen Wire Stripping And Twisting Machine
Specifications
Model Number :
HR-2DSC
Pressure :
2 Ton
MOQ :
1
Delivery Time :
Within 5 Working Days
Linear Guides :
Brand: HIWIN (Taiwan)
Electronic Wire :
18AWG-32AWG
Price :
10500
Ball Screws :
Brand: TBI Motion (Taiwan)
Ribbon Cable :
2P-4P
Rear Stripping Length :
1-12mm (Customizable beyond range)
Packaging Details :
Wooden Box
Tinning Length :
1-12mm (Customizable beyond range)
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Display Screen :
High-definition Screen, Brand: We-con
Twisting Length :
3-12mm (Customizable beyond range)
Supply Ability :
200
Motors & Drives :
6 sets of Servo Motors & Drives
Cylinders :
Brand: Airtac (Taiwan)
Certification :
CE /ISO
Production Capacity :
1×5 wires, Approx. 5,000 pcs/hour Ribbon Cable: 2P, 5 wires: Approx. 4,000 pcs/hour 3P-4P, 3 wires: Approx. 2,400 pcs/hour 6P-12P, 2 wires: Approx. 1,500 pcs/hour 8P-24P, 1 wire: Approx. 700 pcs/hour
Place of Origin :
China
Front Stripping Length :
1-7mm (Customizable beyond range)
Brand Name :
JunSheng
Cutting Length :
20-1000mm (Customizable beyond range)
Description
Fully Automatic Wire Stripping and Soldering Machine with Dual Line Processing, Adjustable Sizes, and 5,000 pcs/hour Capacity
Technical Specifications
Download Technical Specifications Sheet
  • Dual Line Processing Mode and Wide Line Compatibility
    Supports two working specifications: 18AWG-32AWG cable handling and 2P-24P cable handling, covering the most common sizes of thin electronic wires to meet diverse wiring production needs.
  • Adjustable Multi-Size Machining Parameters
    Fully customizable processing dimensions: cutting length can be adjusted between 20mm and 1000mm, front and rear peel length 1-10mm, twist length 3-12mm, tin plating length 1-12mm. Flexible adaptation to different terminal assembly and welding requirements.
  • Efficient Production Capacity
    Wire Type Configuration Output (pcs/hour)
    Single Wire 1×5 wires Approx. 5,000
    Ribbon Cable 2P, 5 wires Approx. 4,000
    Ribbon Cable 3P-4P, 3 wires Approx. 2,400
    Ribbon Cable 6P-12P, 2 wires Approx. 1,500
    Ribbon Cable 8P-24P, 1 wire Approx. 700
