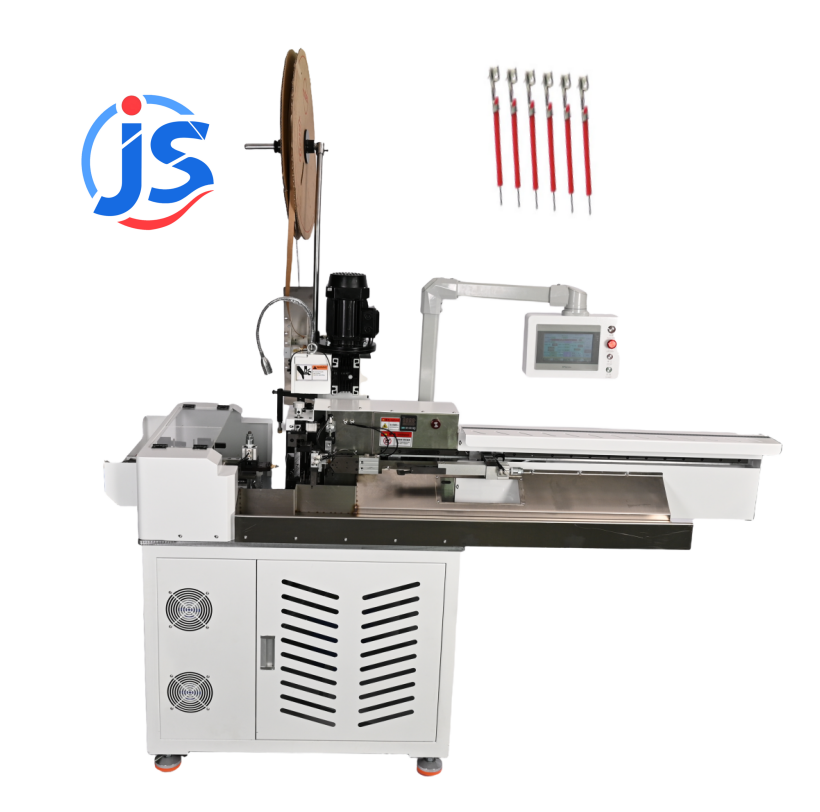

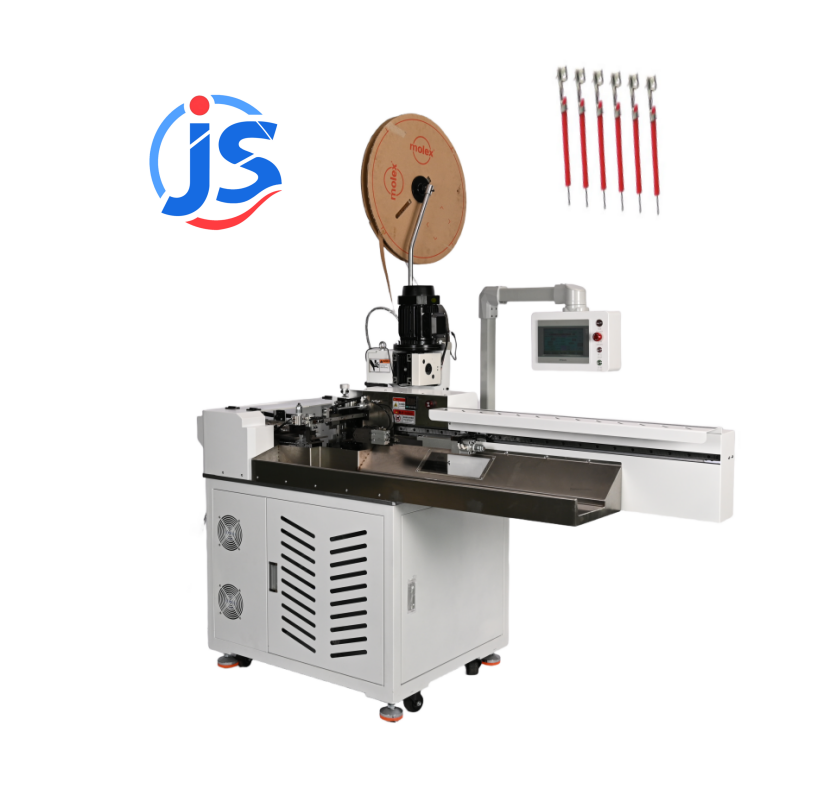

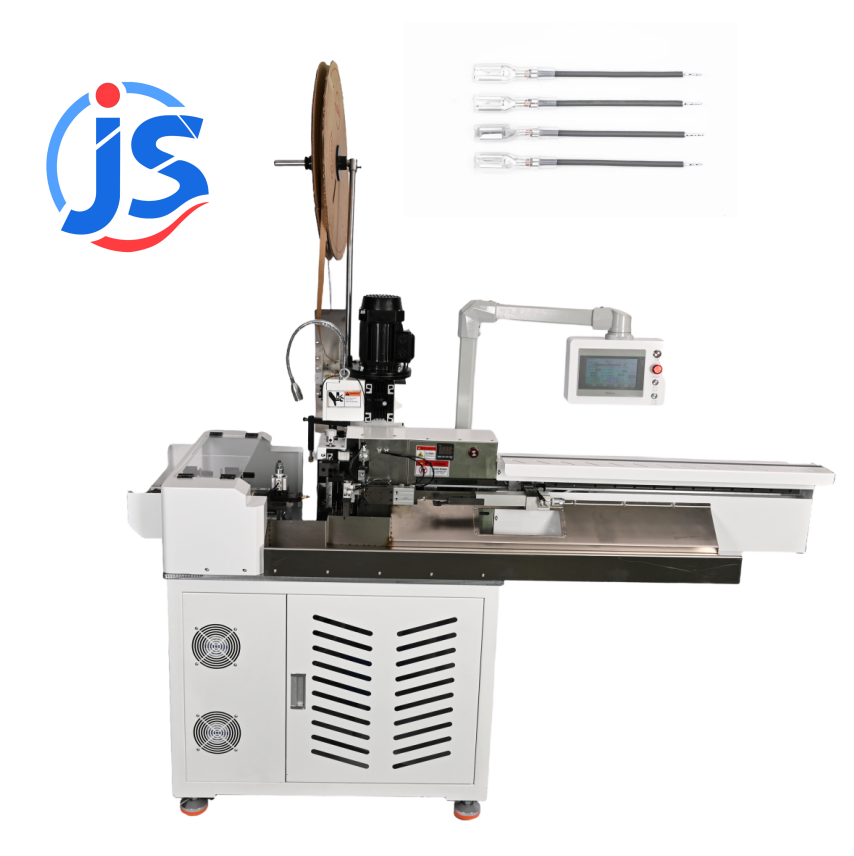

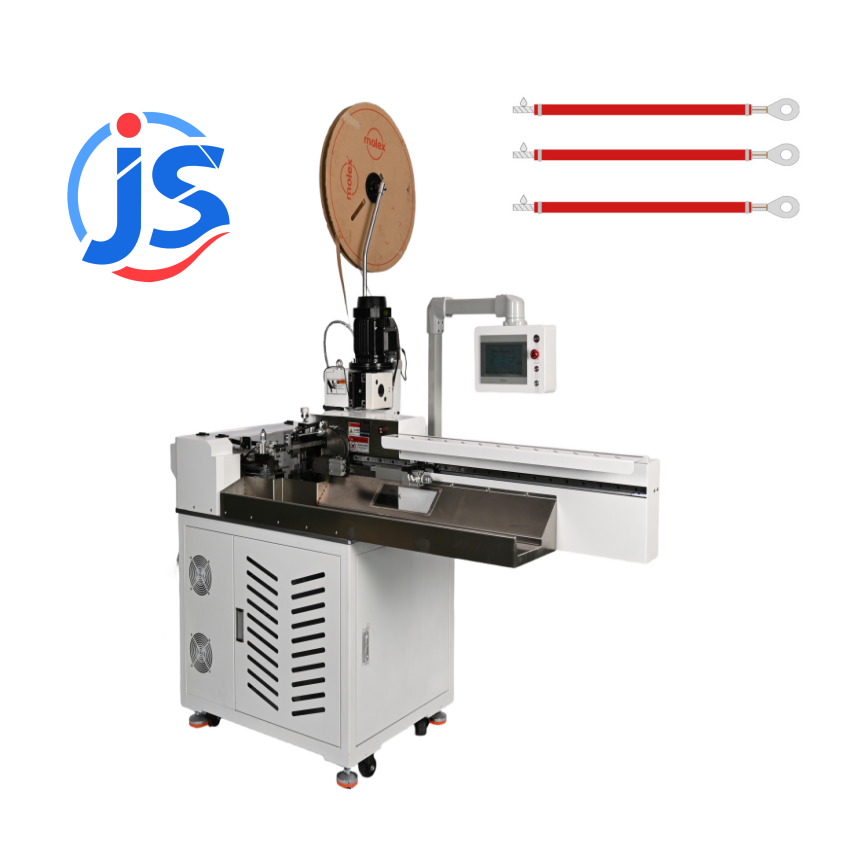

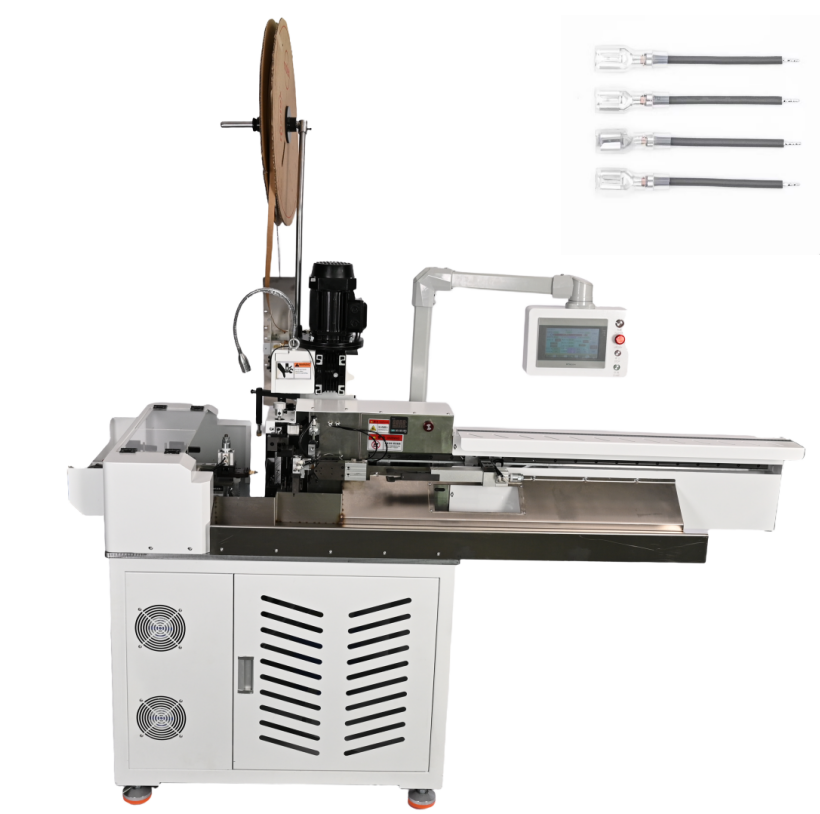

High Capacity Automatic Soldering Machine Wire Crimping Machine
High Capacity Automatic Soldering Machine Wire Crimping Machine
High Capacity Automatic Soldering Machine Wire Crimping Machine
High Capacity Automatic Soldering Machine Wire Crimping Machine
High Capacity Automatic Soldering Machine Wire Crimping Machine
High Capacity Automatic Soldering Machine Wire Crimping Machine
High Capacity Automatic Soldering Machine Wire Crimping Machine
High Capacity Automatic Soldering Machine Wire Crimping Machine
High Capacity Automatic Soldering Machine Wire Crimping Machine
High Capacity Automatic Soldering Machine Wire Crimping Machine
High Capacity Automatic Soldering Machine Wire Crimping Machine
High Capacity Automatic Soldering Machine Wire Crimping Machine
Specifications
Model Number :
HR-PY05E
Production Capacity :
Approx. 5,000 pcs/hour 8-wire: Approx. 8,000 pcs/hour (Optional)
MOQ :
1
Delivery Time :
Within 5 Working Days
Rear Stripping Length :
1-12mm (Customizable beyond range)
Size :
120*90*145cm
Price :
6100
Weight :
300KG
Cylinders Brand :
Airtac (Taiwan)
Ball Screws :
Brand: TBI Motion (Taiwan)
Packaging Details :
Wooden Box
Motors & Drives :
5 sets of Servo Motors & Drives
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Wire Range :
16AWG-32AWG
Display Screen :
High-definition Screen, Brand: We-con
Linear Guides :
Brand: HIWIN (Taiwan)
Supply Ability :
200
Twisting Length :
Front/Rear: 3-12mm (Customizable beyond range)
Cutting Length :
35-1000mm (customizable outside the range)
Certification :
CE /ISO
Voltage :
220V
Place of Origin :
China
Front Stripping Length :
Length: 1-9mm (Customizable beyond range)
Brand Name :
JunSheng
Tinning Length :
Front/Rear: 1-12mm (Customizable beyond range)
Description
Automatic Wire Crimping Machine with 5 Servo Motors for 16AWG-32AWG Wire Range and 5000 pcs/hour Production Capacity
Technical Specifications
Download Technical Specifications Sheet
  • Driven by 5 servo motors with high-definition LCD display screen
  • Wire range: 16AWG-32AWG
  • Cutting length: 35-1000mm (customizable outside this range)
  • Front stripping length: 1-9mm (customizable outside this range)
  • Rear stripping length: 1-12mm (customizable outside this range)
  • Twisting length: 3-12mm (customizable outside this range)
  • Tin plating length: 1-12mm (customizable outside this range)
  • Production capacity: Approximately 5000 pieces/hour for 5 wires
