10.0 kVA Power Automatic Butt Fusion Weld Machine For HDPE PP Pipe
10.0 kVA Power Automatic Butt Fusion Weld Machine For HDPE PP Pipe
10.0 kVA Power Automatic Butt Fusion Weld Machine For HDPE PP Pipe
10.0 kVA Power Automatic Butt Fusion Weld Machine For HDPE PP Pipe
10.0 kVA Power Automatic Butt Fusion Weld Machine For HDPE PP Pipe
10.0 kVA Power Automatic Butt Fusion Weld Machine For HDPE PP Pipe
Specifications
Brand Name :
Cyber Weld
Model Number :
CW 400
Place of Origin :
Kunshan China
MOQ :
1
Price :
contact us
Payment Terms :
T/T,Western Union
Supply Ability :
100
Packaging Details :
carton
Model :
CW 400
Welding Diameter :
200-400 Ø
Warranty :
1 year
Cooling Time :
≤10min
Power :
10.0 kVA
Voltage :
110-220 V
Material :
PP
Weight :
127/133 kg
Heating Time :
≤10min
Frequency :
50-60 Hz
Description

Automatic Butt Fusion Welding Machine CW 400

10.0 kVA Power Automatic Butt Fusion Weld Machine For HDPE PP Pipe

Fully automatic function

1. Assignment sorting

2. Milling and emergence cycles

3. Piping slip check

4. Peak, and dynamic resistance measurements

5. Heating plate temperature control

6. Initial edge distance control

7. The heating board pops up

8. Pressure control of piping, heat absorption, welding and cooling time

9. Warning warning beyond the specification

10.0 kVA Power Automatic Butt Fusion Weld Machine For HDPE PP Pipe

10.0 kVA Power Automatic Butt Fusion Weld Machine For HDPE PP Pipe

Model

CW 400

Pipe Size Range

200-400 Ø

Nominal Input Voltage

110V / 220V

Input Frequency

50-60Hz

Suggested Generator Power (kVA)

10.0

10.0 kVA Power Automatic Butt Fusion Weld Machine For HDPE PP Pipe

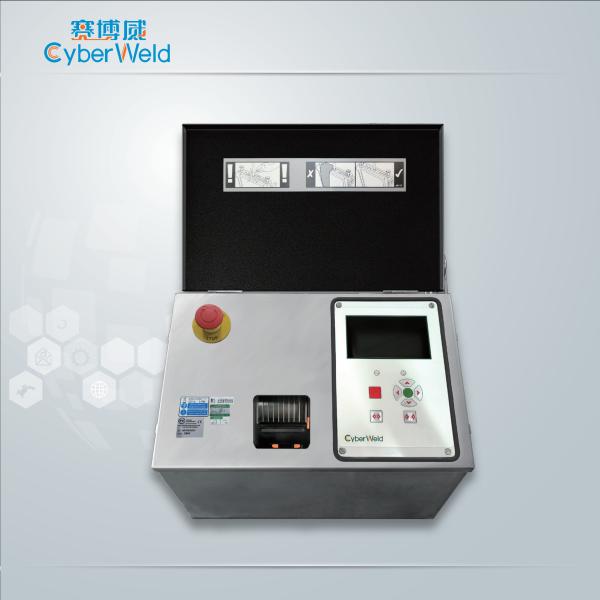

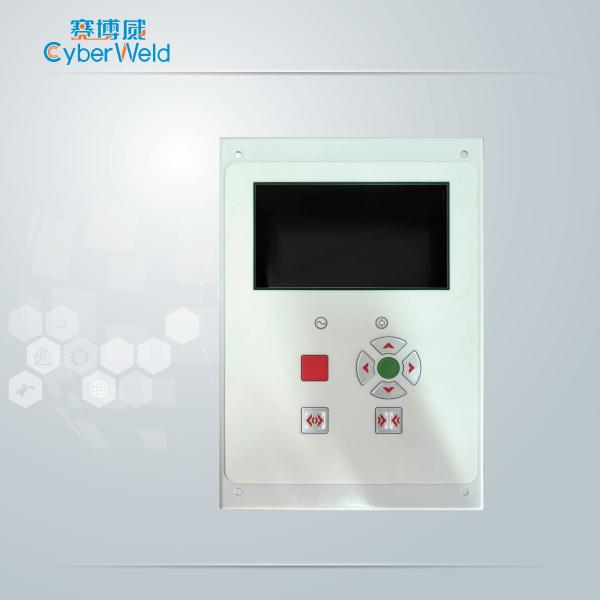

Given the closed design of the hydraulic station, we are equipped with an operating computer,a 16-bit true color touchscreen, and buttons for use. The system includes three languages: Chinese, English, and Japanese, which can help operators better understand the quick start guide. In addition to the above features:

. The screen has the company logo.

. Intuitive menu tabs.

. Supervisors can "lock" the set welding parameters.

. There are service and calibration notification messages.

. Software upgrades can be performed via USB.

. There is a large, bright display with a sturdy polycarbonate protective screen.

. It can be connected to a printer and a scanner, complies with ISO12176 Part 3 and Part 4.

. The power management system automatically "shuts off" machine components that are not in use.

. It has robust military-grade waterproof cable connectors.

10.0 kVA Power Automatic Butt Fusion Weld Machine For HDPE PP Pipe

10.0 kVA Power Automatic Butt Fusion Weld Machine For HDPE PP Pipe

10.0 kVA Power Automatic Butt Fusion Weld Machine For HDPE PP Pipe

10.0 kVA Power Automatic Butt Fusion Weld Machine For HDPE PP Pipe

10.0 kVA Power Automatic Butt Fusion Weld Machine For HDPE PP Pipe

Packing: Up to exportation level plywood case for machines, standard carton for minor parts. Customized metal sheet box optional.

Shipping: Standard Ocean,land and air shipping available. Our professional can help you quickly decide delivery choice.

10.0 kVA Power Automatic Butt Fusion Weld Machine For HDPE PP Pipe

FEI is a leading innovator in the production of high-performance welding equipment,strategically headquartered near Shanghai, China. With proximity to major global shipping hubs, we ensure efficient logistics and seamless delivery to clients worldwide. As a technology-driven enterprise specializing in plastic pipeline welding solutions, the company integrates global advanced technologies to develop and manufacture a comprehensive range of equipment including Automatic Butt Fusion.
