PP PE HDPE Pipe Butt Fusion Welding Machine 10.0 kVA Automatic Butt Fusion Machine
PP PE HDPE Pipe Butt Fusion Welding Machine 10.0 kVA Automatic Butt Fusion Machine
PP PE HDPE Pipe Butt Fusion Welding Machine 10.0 kVA Automatic Butt Fusion Machine
PP PE HDPE Pipe Butt Fusion Welding Machine 10.0 kVA Automatic Butt Fusion Machine
PP PE HDPE Pipe Butt Fusion Welding Machine 10.0 kVA Automatic Butt Fusion Machine
PP PE HDPE Pipe Butt Fusion Welding Machine 10.0 kVA Automatic Butt Fusion Machine
Specifications
Brand Name :
Cyber Weld
Model Number :
CW 250
Place of Origin :
Kunshan China
MOQ :
1
Price :
contact us
Payment Terms :
T/T,Western Union
Supply Ability :
100
Packaging Details :
carton
Model :
CW 400
Welding Diameter :
90-400 Ø
Warranty :
1 year
Cooling Time :
≤10min
Power :
10.0 kVA
Voltage :
110-220 V
Material :
PP PE HDPE
Weight :
190/198 kg
Heating Time :
≤10min
Frequency :
50-60 Hz
Description

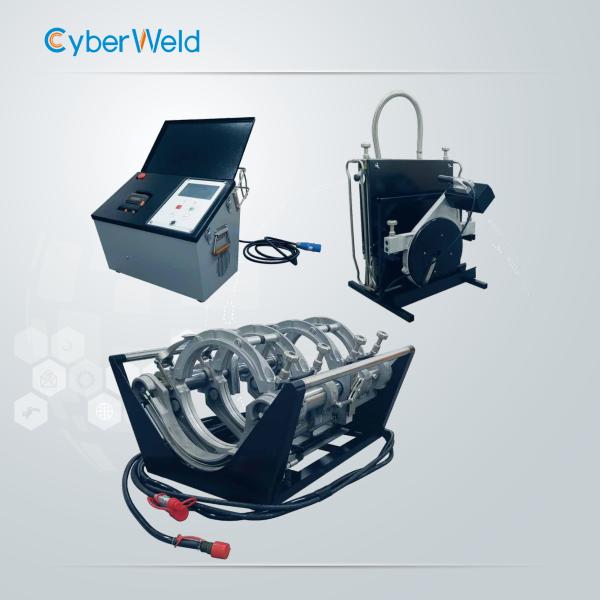

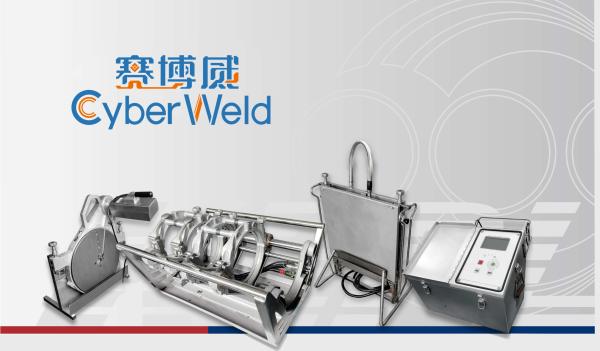

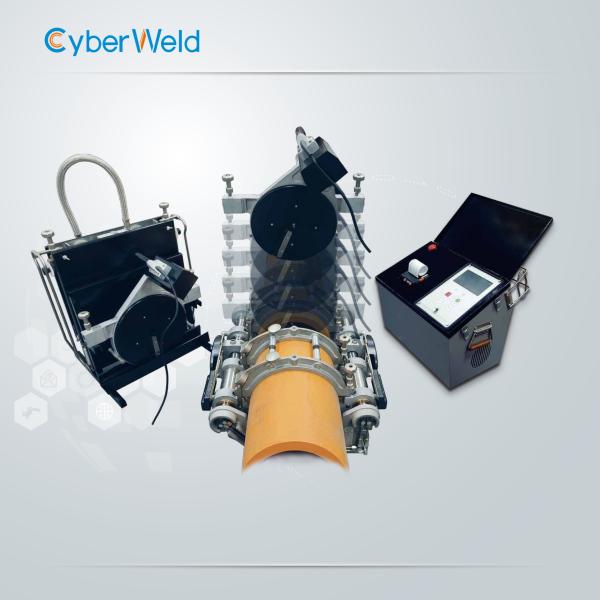

Fully Automatic Butt Fusion Machine CW 400 For PP PE HDPE Plastic Pipe

PP PE HDPE Pipe Butt Fusion Welding Machine 10.0 kVA Automatic Butt Fusion Machine

PP PE HDPE Pipe Butt Fusion Welding Machine 10.0 kVA Automatic Butt Fusion Machine

  • Single-person machine setup

  • Heater automatically ejects

  • Automatic interlock ensures correct heater temperature

  • Chassis can be split into two manageable modules

  • Operable by a single person once in-situ

  • Enhances productivity

  • Faster joint cycle

  • Upgrade available for existing CW 315 (refurbishment of heater and trimmer can be included in the upgrade)

  • Approved by the National Grid

ltem CW 315 Pipeliner CW Pipeliner
Product Code C315110NLE C400110NLE
C315220NLE C400220NLE
Input Supply 110V Units 97-135Vac 97-135Vac
220V Units 195-260Vac 195-260Vac
Diameter Range 90-315mm 160-400mm
Gross Weight 175.5kg 292kg
SDR Range(Typical) 7.25,7.4,9,11,13,17,17.6,26,32
plus capability for special SDR		 7.25,7.4,9,11,13,17,17.6,26,32
plus capability for special SDR
Operating Temperature(Range) -10 to+40℃ -10 to+40℃
Storage Temperature(Range) -15 to+45℃ -15 to+45℃
Data Retrieval YES YES
Environmental Protection IP54 IP54
Unit Weights Insert Module 69kg 250kg
Chassis 64.5kg
Controller 42kg 42kg
Dimensions(mm)
(LxWxH)		 Overall Machine(Parked) 1160×820×660mm including protective carriage 1250×880×780mm
Overall Machine(Unparked) 1160×820×1170mm 1530×880×1450mm
Chassis Only 760×820×470mm N/A
Insert Module Only(Parked) 1100×820×580mm N/A
Controller 470×515×500mm 470x515×500mm
Input Cable(Length) 5m 5m
Hydraulic Hoses (Length) 5m 5m

PP PE HDPE Pipe Butt Fusion Welding Machine 10.0 kVA Automatic Butt Fusion Machine

PP PE HDPE Pipe Butt Fusion Welding Machine 10.0 kVA Automatic Butt Fusion Machine

PP PE HDPE Pipe Butt Fusion Welding Machine 10.0 kVA Automatic Butt Fusion Machine

Model

CW 400

Pipe Size Range

90-400 Ø

Nominal Input Voltage

110V / 220V

Input Frequency

50-60Hz

Suggested Generator Power (kVA)

10.0

PP PE HDPE Pipe Butt Fusion Welding Machine 10.0 kVA Automatic Butt Fusion Machine

Given the closed design of the hydraulic station, we are equipped with an operating computer, a 16-bit true color touchscreen, and buttons for use. The system includes three languages: Chinese, English, and Japanese, which can help operators better understand the quick start guide.

PP PE HDPE Pipe Butt Fusion Welding Machine 10.0 kVA Automatic Butt Fusion Machine

PP PE HDPE Pipe Butt Fusion Welding Machine 10.0 kVA Automatic Butt Fusion Machine

PP PE HDPE Pipe Butt Fusion Welding Machine 10.0 kVA Automatic Butt Fusion Machine

PP PE HDPE Pipe Butt Fusion Welding Machine 10.0 kVA Automatic Butt Fusion Machine

PP PE HDPE Pipe Butt Fusion Welding Machine 10.0 kVA Automatic Butt Fusion Machine

Packing: Up to exportation level plywood case for machines, standard carton for minor parts. Customized metal sheet box optional.

Shipping: Standard Ocean,land and air shipping available. Our professional can help you quickly decide delivery choice.

PP PE HDPE Pipe Butt Fusion Welding Machine 10.0 kVA Automatic Butt Fusion Machine

FEI is a leading innovator in the production of high-performance welding equipment,strategically headquartered near Shanghai, China. With proximity to major global shipping hubs, we ensure efficient logistics and seamless delivery to clients worldwide. As a technology-driven enterprise specializing in plastic pipeline welding solutions, the company integrates global advanced technologies to develop and manufacture a comprehensive range of equipment including Automatic Butt Fusion.
