Reinforced Oil And Gas Camp Flat Pack Accommodation Modular Container
Reinforced Oil And Gas Camp Flat Pack Accommodation Modular Container
Reinforced Oil And Gas Camp Flat Pack Accommodation Modular Container
Reinforced Oil And Gas Camp Flat Pack Accommodation Modular Container
Reinforced Oil And Gas Camp Flat Pack Accommodation Modular Container
Reinforced Oil And Gas Camp Flat Pack Accommodation Modular Container
Specifications
Packaging Details :
By Pallet or As Request
Height :
2.895 M
MOQ :
6 Units
Length :
6.055 M
Interior height :
2.6-meter
Model Number :
YGKL03
Wall panel thickness :
50mm
M2 :
14.74 M2
Certification :
ISO;CE
Window type :
Double-glazed PVC
Payment Terms :
L/C,T/T
Place of Origin :
CHINA
Width :
2.435 M
Delivery Time :
24-45Days
Supply Ability :
1500-2000 Units/Month
Brand Name :
YAGO Industry
Description
Heavy-Duty Oil and Gas Camp Accommodation: Flat Pack Modular Container with Fire-Rated Rock Wool Panels
Industrial-Grade Structure & Exceptional Durability

The YAGO Heavy-Duty Oil and Gas Camp Accommodation is engineered for the most demanding environments. It features a high-strength galvanized steel frame providing superior corrosion resistance and structural integrity for long-term use in remote oil fields. With a generous 2.6-meter interior height, our units ensure a spacious, well-ventilated, and professional living environment for site engineers and personnel.

Advanced Safety & Wall System

Safety is paramount in oil and gas operations. Our wall system utilizes 50mm fire-rated rock wool sandwich panels reinforced with pre-painted Alu-Zinc steel sheets. This configuration delivers industry-leading fire protection, exceptional thermal insulation, and sound reduction, ensuring a secure and quiet habitat amidst active site operations.

High-Performance Flooring & Fenestration
  • Flooring System: Built for heavy foot traffic, the 18mm fiber cement boards finished with premium vinyl leather flooring offer a fire-resistant, easy-to-clean, and highly durable surface.
  • Windows: Double-glazed PVC windows come integrated with mosquito screens and security bars, providing essential safety, energy efficiency, and comfort in harsh, remote climates.
Precision Manufacturing for Oil Field Reliability

Each YAGO modular unit is produced on fully automated production lines. Our structural components undergo an automated powder-coating process to guarantee maximum adhesion and a resilient finish against sand, humidity, and extreme weather. Precision engineering ensures that every unit is "plug-and-play" ready, featuring a fully integrated electrical system (including AC outlets and water heater connections) and a centralized distribution cabinet for safe power management on-site.

Versatile Modular Logic & Rapid Deployment

Designed for the fluid nature of oil and gas projects, the YAGO flat-pack system offers unparalleled flexibility:

  • Scalability: Units can be stacked or linked to create large-scale workforce housing, site offices, or multi-storey facilities.
  • Mobility: The robust flat-pack design allows for fast assembly and easy relocation without compromising structural stability—ideal for projects requiring frequent site transitions.

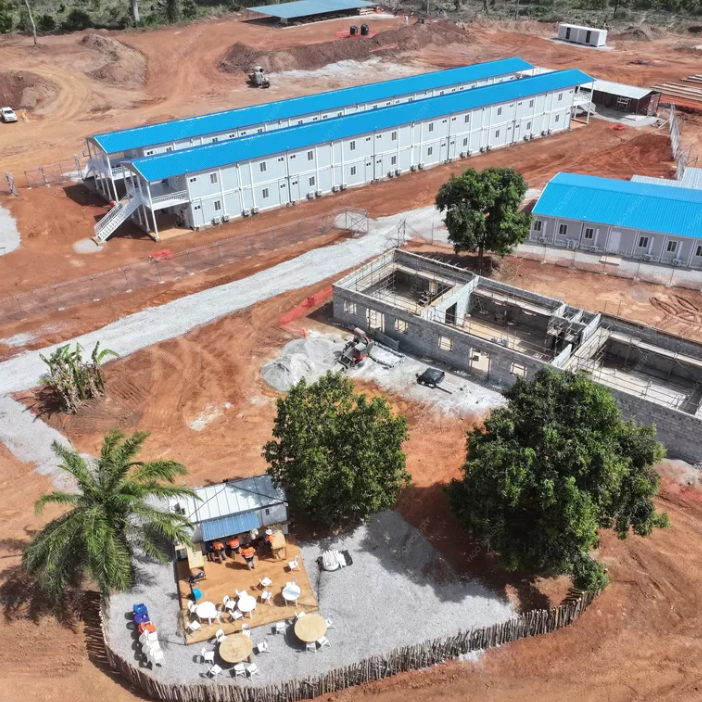

Ideal Applications: Oil & gas remote camps, offshore support housing, mining site accommodations, large-scale workforce retreats, and emergency industrial shelters.

Product Specifications
Steel Structure System
Item Component Unit Qty Specifications
1 Roof structure set 1.00 Main roof frame: Q235 galvanized Steel profile, with Automatic Powder Coated paint. Roof purlin: C Section Steel, galvanized. Q235B steel
2 Floor structure set 1.00 Main floor frame: Q235 galvanized Steel profile, with Automatic Powder Coated paint. Floor purlin: C Section Steel, galvanized. Q235B steel
3 Corner pillar pcs 4.00 Q235 galvanized Steel profile, Galvanized with Automatic Powder Coated paint
Container Roof System
Item Component Unit Qty Specifications
1 Roof covering set 1.00 Galvanized Powder Coated color painting steel Sheet
2 Insulation set 1.00 Fiber glass with aluminum foil
3 Ceiling board set 1.00 Galvanized Powder Coated color painting steel Sheet
Container Floor System
Item Component Unit Qty Specifications
1 PVC flooring set 1.00 Vinyl floor leather with glue
2 Floor board set 0.00 fiber cement board
3 Floor Bottom Cover set 1.00 Pu plastic tile
Container Wall System
Item Component Unit Qty Specifications
1 Wall panel set 1.00 Rockwool sandwich panel with 0.33mm Galvanized Powder Coated color painting steel Sheet on both sides (white color)
2 Door set 2.00 Insulated Steel Door (W850*H2030mm)
3 Window set 3.00 PVC sliding window, double glass, with fly screen and security Net (W800*H1100mm)
Container Electrical System
Item Component Unit Qty Specifications
1 Power distribution cabinet set 1.00 Circuit with air-break switch, leakage protector (Main power supply cable 6m² For industrial Socket, 1.5mm² for lighting, 2.5mm² for common sockets, 4mm² for AC socket)
2 Light set 2.00 LED light, 24W
3 AC & Water heater Socket set 2.00 16A universal, with socket box
4 Common Socket set 3.00 10A, Universal type, with socket box
5 Switch set 2.00 10A, with switch box
Container Accessories
Item Component Unit Qty Specifications
1 Side Flashing set 1.00 2 Pcs Length=5635mm, galvanized, 2pcs Length=2690mm, galvanized
2 Rainspout pipe set 1.00 Dia. 50mm, UPVC, Length=2650mm
3 Pillar trim plate set 1.00 Length=2520mm, 0.3mm color steel plate (with fittings & accessories)
4 Ceiling trim plate set 1.00 Length=5640mm/2630mm, 0.3mm color steel plate (with fittings & accessories)
Plumbing System
Item Component Unit Qty Specifications
1 Washbasin set 1.00 Including the accessory
2 Closetool set 1.00 Including the accessory
3 Shower set 1.00 Shower base, shower head, water mixture
4 Exhaust Fan set 1.00 6 Inch
5 Water pipe set 1.00 Input and output water pipe
Additional Triangle Roof on Top of Each Block (Optional)
Item Component Unit Qty Specifications
1 Roof Structure set 1.00 Fabricated with C section steel, Galvanized Q235 Steel
2 Roof Covering set 1.00 Corrugated Galvanized Powder Coated Roof Tile
