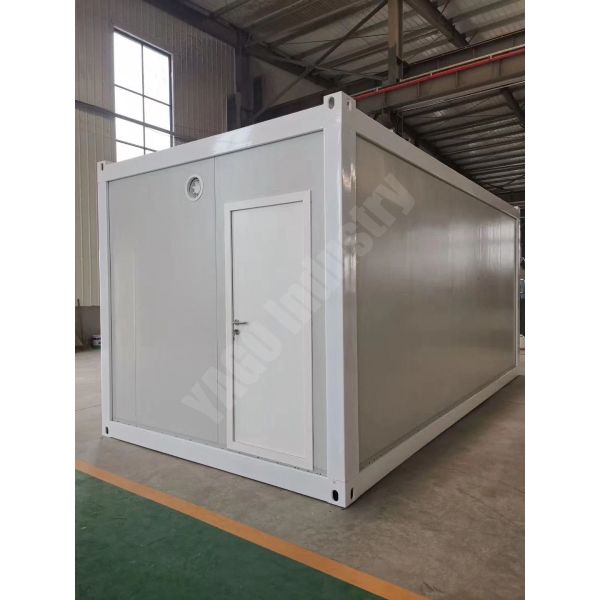

Modular FlatPack Container House Accommodation Galvanized Steel ODM
Modular FlatPack Container House Accommodation Galvanized Steel ODM
Modular FlatPack Container House Accommodation Galvanized Steel ODM
Modular FlatPack Container House Accommodation Galvanized Steel ODM
Modular FlatPack Container House Accommodation Galvanized Steel ODM
Modular FlatPack Container House Accommodation Galvanized Steel ODM
Specifications
M2: :
14.74 M2
Payment Terms :
L/C,T/T
Model Number :
YGST01
Place of Origin :
China
MOQ :
6 Units
Packaging Details :
By Pallet or As Request
Supply Ability :
1500-2000 Units/Month
Width: :
2.435 M
Length: :
6.055 M
Brand Name :
YAGO Industry
Certification :
ISO;CE
Delivery Time :
25-45 Days
Height: :
2.895 M
Description
Robust Structure & High-Quality Materials
YAGO modular container accommodation features a high-strength galvanized steel frame with exceptional corrosion resistance and long-term structural stability. The generous 2.6-meter interior height creates a bright, spacious, and comfortable living environment for site personnel.
Wall System
50mm fire-rated rock wool sandwich panels with pre-painted Alu-Zinc steel sheets provide excellent thermal insulation, sound reduction, and fire protection.
Flooring System
Durable 18mm fiber cement boards finished with high-quality vinyl leather flooring ensure easy cleaning and long service life.
Windows
Double-glazed PVC windows equipped with mosquito screens and security bars deliver comfort, safety, and energy efficiency in demanding environments like mining sites and remote construction camps.
Advanced Manufacturing & Reliable Quality
All YAGO modular container units are manufactured on fully automated production lines with structural components processed through automated powder-coating systems for superior coating adhesion, smooth finishing, and lasting protection against harsh weather conditions.
Precision manufacturing ensures consistent quality across every unit, enabling faster installation and dependable on-site performance. Each container includes a fully integrated electrical system with lighting circuits, air-conditioning outlets, water heater connections, and centralized distribution cabinet for safe, efficient power management.
Flexible Modular Design & Easy Relocation
The YAGO flat-pack container system offers maximum adaptability. Modular units can be easily connected, combined, or stacked to create various building layouts—from single accommodation units to multi-storey camp facilities.
The flat-pack structure enables fast assembly, efficient transportation, and convenient relocation without damaging the main frame, making it ideal for temporary or long-term projects requiring mobility and rapid deployment.
Ideal Applications: Construction camps, mining accommodation, workforce housing, emergency shelters, and commercial modular facilities.
Product Specifications
Steel Structure System
Item Component Unit Qty Specifications
1 Roof structure set 1.00 Main roof frame: Q235 galvanized Steel profile, with Automatic Powder Coated paint. Roof purlin: C Section Steel, galvanized. Q235B steel
2 Floor structure set 1.00 Main floor frame: Q235 galvanized Steel profile, with Automatic Powder Coated paint. Floor purlin: C Section Steel, galvanized. Q235B steel
3 Corner pillar pcs 4.00 Q235 galvanized Steel profile, Galvanized with Automatic Powder Coated paint
Container Roof System
Item Component Unit Qty Specifications
1 Roof covering set 1.00 Galvanized Powder Coated color painting steel Sheet
2 Insulation set 1.00 Fiber glass with aluminum foil
3 Ceiling board set 1.00 Galvanized Powder Coated color painting steel Sheet
Container Floor System
Item Component Unit Qty Specifications
1 PVC flooring set 1.00 Vinyl floor leather with glue
2 Floor board set 0.00 fiber cement board
3 Floor Bottom Cover set 1.00 Pu plastic tile
Container Wall System
Item Component Unit Qty Specifications
1 Wall panel set 1.00 Rockwool sandwich panel with 0.33mm Galvanized Powder Coated color painting steel Sheet on both sides (white color)
2 Door set 2.00 Insulated Steel Door (W850*H2030mm)
3 Window set 3.00 PVC sliding window, double glass, with fly screen and security Net (W800*H1100mm)
Container Electrical System
Item Component Unit Qty Specifications
1 Power distribution cabinet set 1.00 Circuit with air-break switch, leakage protector (Main power supply cable 6m² For industrial Socket, 1.5mm² for lighting, 2.5mm² for common sockets, 4mm² for AC socket)
2 Light set 2.00 LED light, 24W
3 AC & Water heater Socket set 2.00 16A universal, with socket box
4 Common Socket set 3.00 10A, Universal type, with socket box
5 Switch set 2.00 10A, with switch box
Container Accessories
Item Component Unit Qty Specifications
1 Side Flashing set 1.00 2 Pcs Length=5635mm, galvanized, 2pcs Length=2690mm, galvanized
2 Rainspout pipe set 1.00 Dia. 50mm, UPVC, Length=2650mm
3 Pillar trim plate set 1.00 Length=2520mm, 0.3mm color steel plate (with fittings & accessories)
4 Ceiling trim plate set 1.00 Length=5640mm/2630mm, 0.3mm color steel plate (with fittings & accessories)
Plumbing System
Item Component Unit Qty Specifications
1 Washbasin set 1.00 Including the accessory
2 Closetool set 1.00 Including the accessory
3 Shower set 1.00 Shower base, shower head, water mixture
4 Exhaust Fan set 1.00 6 Inch
5 Water pipe set 1.00 Input and output water pipe
Additional Triangle Roof on Top of Each Block (Optional)
Item Component Unit Qty Specifications
1 Roof Structure set 1.00 Fabricated with C section steel, Galvanized Q235 Steel
2 Roof Covering set 1.00 Corrugated Galvanized Powder Coated Roof Tile
