DC-R Series
DC-R Series
Specifications
Model :
P10
Pixel Pitch(mm) :
10
LED Configuration :
SMD3535
Module Resolution(dot) (H x V) :
32 x 16
Module Size(mm) (H x V) :
320x160
Module Maintenance Method :
Rear
Cabinet Resolution(dot) (H x V) :
96x96 / 128x96
Cabinet Size(mm) (H x V) :
960x960x108 / 1280x960x108
Cabinet Material :
Steel or Aluminum
Cabinet Weight (kg/pcs) :
Steel 45kg/sqm, Aluminum 32kg/sqm
IP Standard (Front / Back) :
IP67 / IP54
Density(Pixels / sqm) :
10000
Brightness Range(nits) :
≥5500 or ≥6500
Brightness Adjustment(Levels) :
256
Best View Distance(m) :
10
Working voltage :
110V / 220V
Grey Scale(bits) :
13-16
Refresh Rate(Hz) :
1920-3840
Frame Rate(Hz) :
50 / 60
View Angle(H/V) :
110/110
Max. Consumption (w/sqm) :
750
Ave. Consumption(w/sqm) :
250
Working Humidity :
10% - 95%
Working Temperature :
-20℃ ~ 55℃
Signal Available :
DVI,HDMI,SDI,DP and so on
Life Span(Hours) :
100000
Running Files :
Text , Animation, Image, Video and so on
Description

Product Features

Pixel pitch including 4mm, 5mm, 6.67mm, 8mm and 10mm

Cabinet size 1280x640mm and 960x960mm

Brightness can work as:

  • 5500nits
  • 7500 nits
  • 10000 nits

Low power consumption, saving 25% power than the traditional cabinet

Full front access display, convenient for front installation and maintenance

Technical Specifications

Model P4 P5 P6.67 P8 P10
Pixel Pitch(mm) 4 5 6.67 8 10
LED Configuration SMD1921 SMD1921 SMD3535 SMD3535 SMD3535
Module Resolution(dot) (H x V) 80x40 64 x 32 48 x 24 40 x 20 32 x 16
Module Size(mm) (H x V) 320x160
Module Maintenance Method Rear
Cabinet Resolution(dot) (H x V) 240x240 / 320x240 192x192 / 256x192 144x144 / 192x144 120x120 / 120x160 96x96 / 128x96

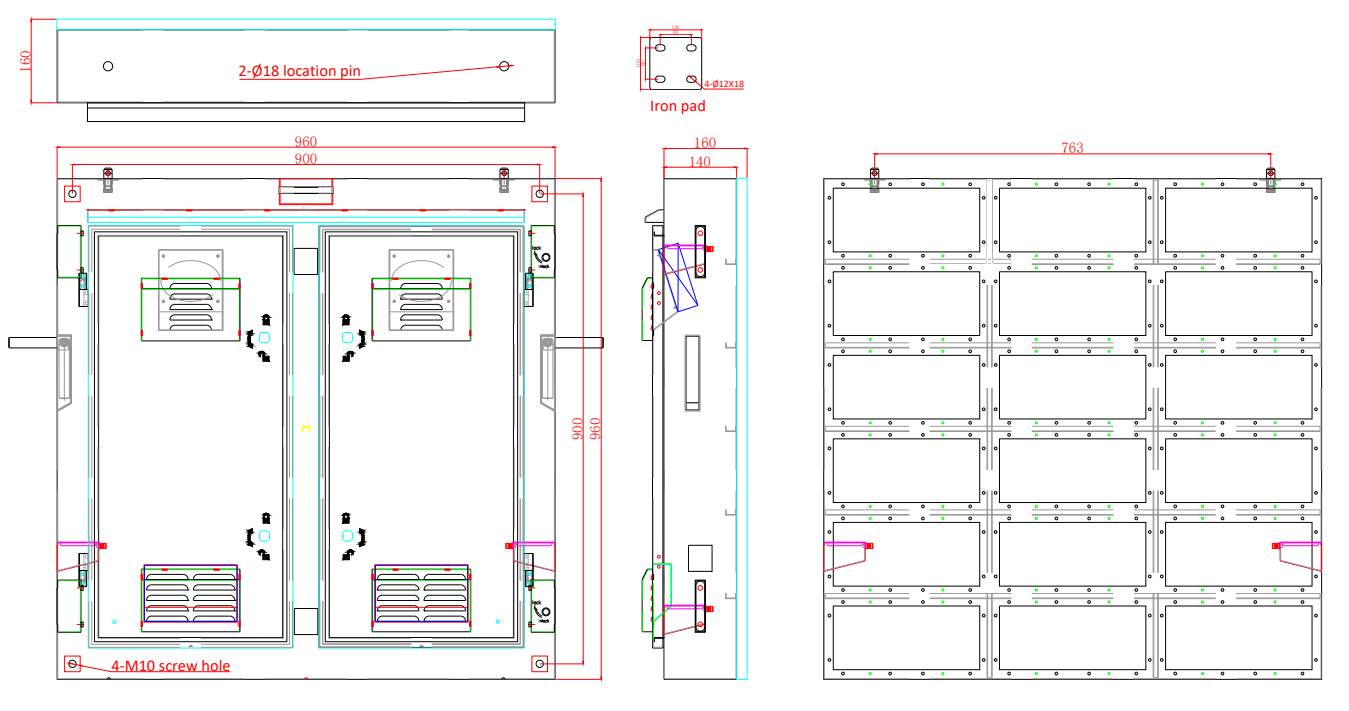

Cabinet Size(mm) (H x V) 960x960x108 / 1280x960x108
Cabinet Material Steel or Aluminum
Cabinet Weight (kg/pcs) Steel 45kg/sqm, Aluminum 32kg/sqm
IP Standard (Front / Back) IP67 / IP54
Density(Pixels / sqm) 62500 40000 22500 15625 10000
Brightness Range(nits) ≥4500 or ≥5500 ≥4500 or ≥5500 ≥5500 or ≥6500 ≥5500 or ≥6500 ≥5500 or ≥6500
Brightness Adjustment(Levels) 256
Best View Distance(m) 4 5 6.5 8 10
Working voltage 110V / 220V
Grey Scale(bits) 13-16
Refresh Rate(Hz) 1920-3840
Frame Rate(Hz) 50 / 60
View Angle(H/V) 110/110
Max. Consumption (w/sqm) 750 750 750 750 750
Ave. Consumption(w/sqm) 250 250 250 250 250
Working Humidity 10% - 94% 10% - 95% 10% - 95% 10% - 95% 10% - 95%
Working Temperature -20℃ ~ 55℃
Signal Available DVI,HDMI,SDI,DP and so on
Life Span(Hours) 100000
Running Files Text , Animation, Image, Video and so on

Applications:

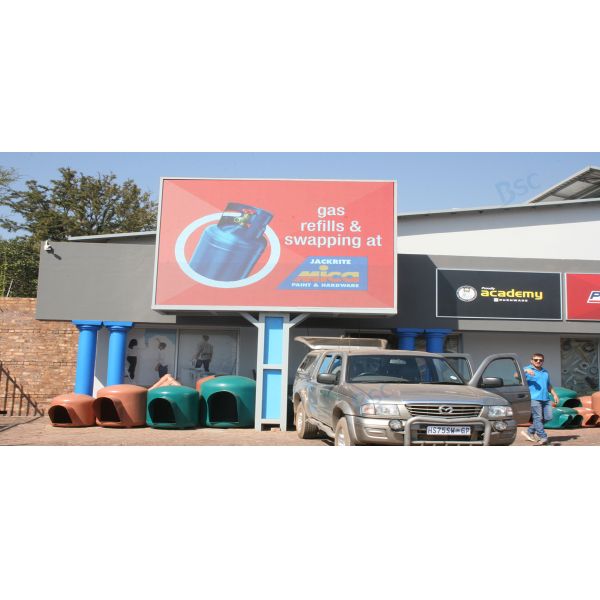

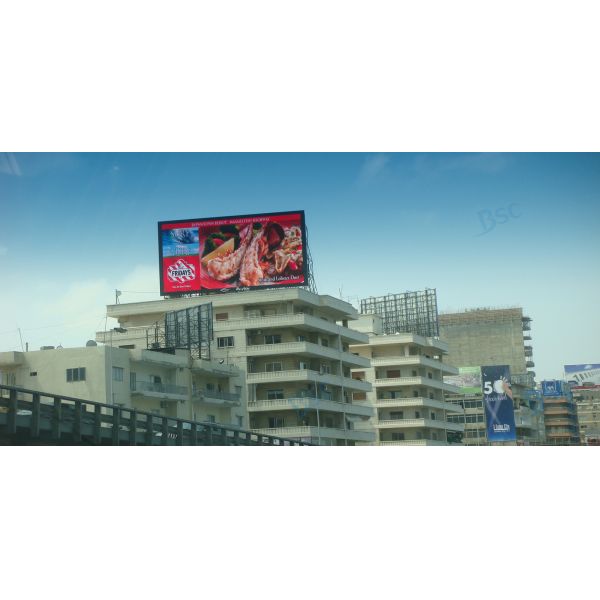

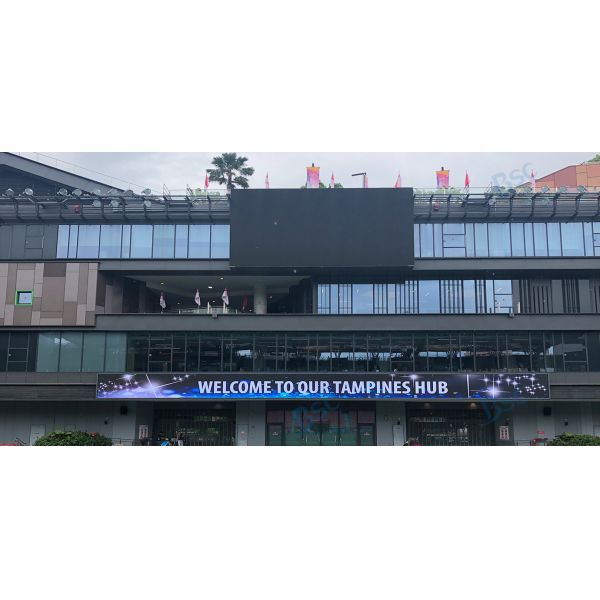

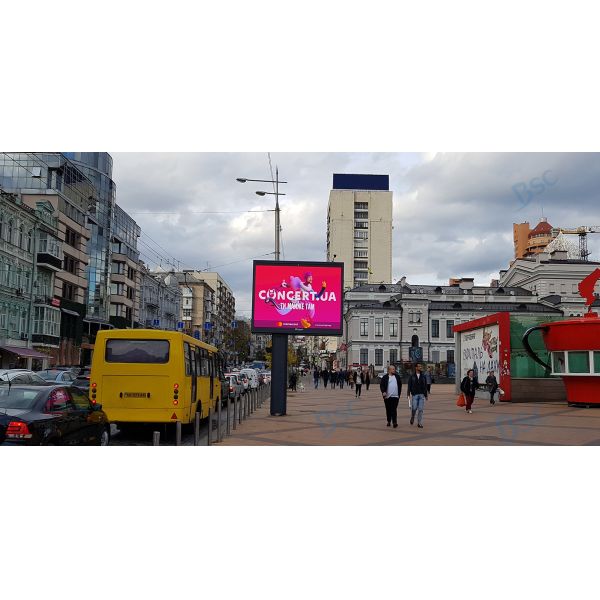

Shopping mall, billboard on high way and in the street, stadium, metro station, airport and so on
