Low-Power Consumption, Fully Front Service for Outdoor Applications
The DC-F Series LED display screen is engineered for superior outdoor performance, combining low power consumption with unparalleled ease of installation and maintenance. Its fully front-serviceable design ensures that access and repairs are straightforward, minimizing downtime and operational costs. This makes it an ideal solution for dynamic visual communication in demanding environments.
| Model | P4 | P5 | P6.67 | P8 | P10 |
| Pixel Pitch(mm) | 4 | 5 | 6.67 | 8 | 10 |
| LED Configuration | SMD1921 | SMD1921 | SMD3535 | ||
| Module Resolution(dot) (H x V) | 80 x 80 | 64 x 64 | 48 x 48 | 40 x 40 | 32 x 32 |

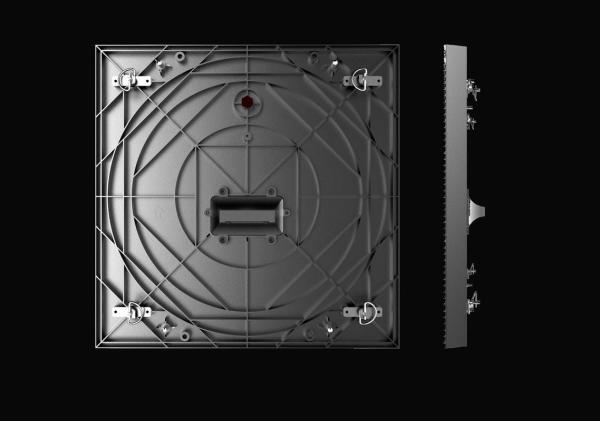

| Module Size(mm) (H x V) | 320x320 | ||||
| Module Maintenance Method | Front and Rear | ||||
| Cabinet Resolution(dot) (H x V) | 240x240 / 320x160 | 192x192 / 256x128 | 144x144 / 192x96 | 120x120 / 120x60 | 96x96 / 128x64 |

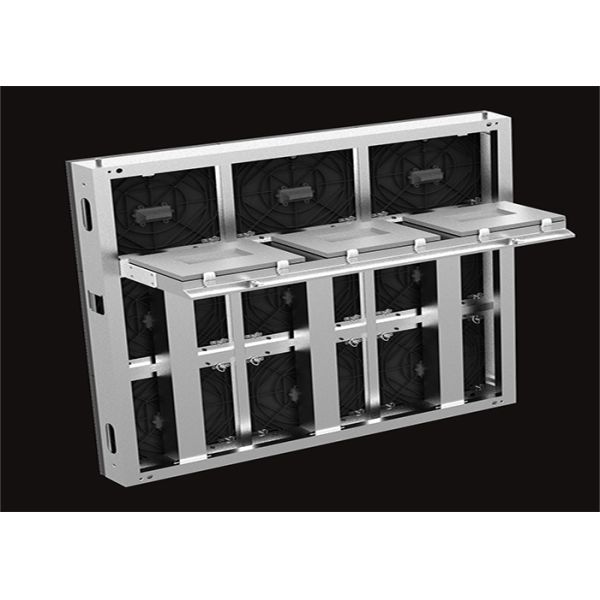

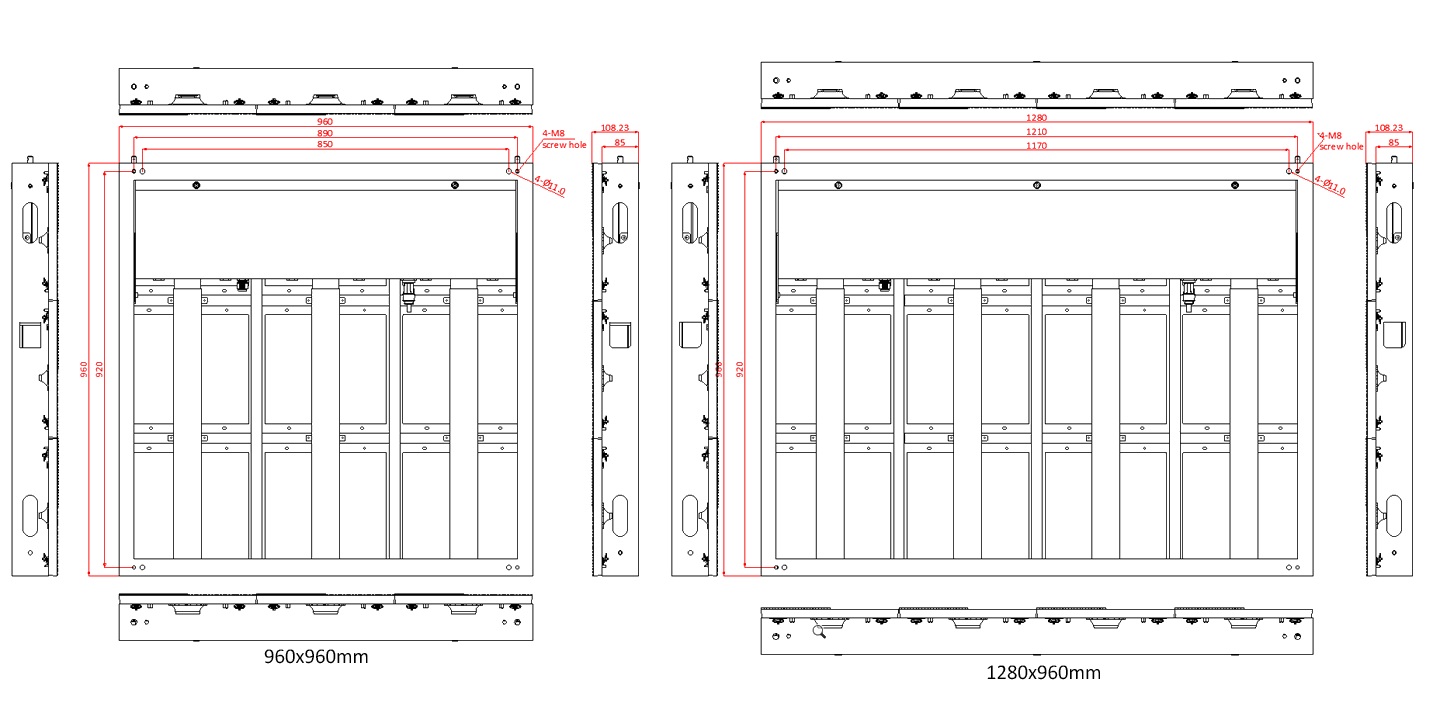

| Cabinet Size(mm) (H x V) | 960x960x108 / 1280x640x108 | ||||
| Cabinet Material | Steel or Aluminum | ||||
| Cabinet Weight (kg/pcs) | Steel 35kg/sqm, Aluminum 27kg/sqm | ||||
| IP Standard (Front / Back) | IP67 / IP54 | ||||
| Density(Pixels / sqm) | 62500 | 40000 | 22500 | 15625 | 10000 |
| Brightness Range(nits) | ≥4500 or ≥5500 | ≥4500 or ≥5500 | ≥5500 or ≥6500 | ≥5500 or ≥6500 | ≥5500 or ≥6500 |
| Brightness Adjustment(Levels) | 256 | ||||
| Best View Distance(m) | 4 | 5 | 6.5 | 8 | 10 |
| Working voltage | 110V / 220V | ||||
| Grey Scale(bits) | 13-16 | ||||
| Refresh Rate(Hz) | 1920-3840 | ||||
| Frame Rate(Hz) | 50 / 60 | ||||
| View Angle(H/V) | 110/110 | ||||
| Max. Consumption (w/sqm) | 750 | 750 | 750 | 750 | 750 |
| Ave. Consumption(w/sqm) | 250 | 250 | 250 | 250 | 250 |
| Working Humidity | 10% - 95% | 10% - 95% | 10% - 95% | 10% - 95% | 10% - 95% |
| Working Temperature | -20℃ ~ 55℃ | ||||
| Signal Available | DVI,HDMI,SDI,DP and so on | ||||
| Life Span(Hours) | 100000 | ||||
| Running Files | Text , Animation, Image, Video and so on | ||||
