Specifications
Model :
Certification
P2.9 :
CE (Class A), FCC (Class A), ETL, CB
P3.9 :
CE (Class A), FCC (Class A), ETL, CB
P6.2 :
CE (Class A), FCC (Class A), ETL, CB
Description

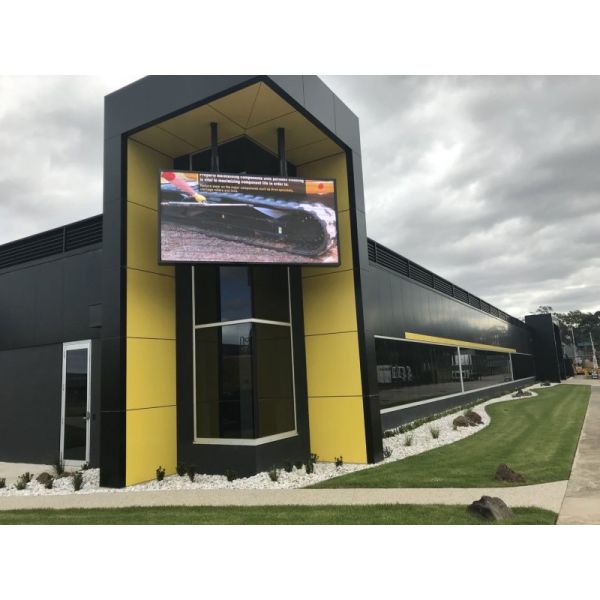

NPP Outdoor LED Display for DOOH

Experience the future of digital out-of-home (DOOH) advertising with our NPP Outdoor LED Display. Designed for vibrant and impactful visual communication, these displays are widely deployed in high-traffic areas such as culture squares, hotels, schools, universities, shopping malls, and sports venues.

Compared to traditional outdoor LED displays, our NPP outdoor products offer superior performance and reliability, ensuring your message stands out in any environment.

  • High-Definition Image Quality
  • High Brightness (4000-6000 nits)
  • IP67 Rated & Moisture-Proof
  • Fast Heat Dissipation
  • Low Power Consumption
  • High Color Saturation
  • Long Lifespan
Target Industries & Applications: Culture Squares, Hotels, Schools, Universities, Shopping Malls, Sports Venues, and general DOOH advertising.

Key Product Attributes


Brand BrightSource

Origin China

Material Die-casting Aluminum Cabinet

Color Options Black/White Face LED

Technical Specifications

Model P2.9 P3.9 P6.2
Pixel Pitch(mm) 2.68mm 2.97mm 3.9mm
Module Size(mm) (H x V) 250x250 250x250 250x250
Installation Floor fixation / Wall mounted Floor fixation / Wall mounted Floor fixation / Wall mounted
Cabinet Size(mm) (H x V) Small cabinet: 500x500x86mm
Large cabinet: 500x750x86mm		 Small cabinet: 500x500x86mm
Large cabinet: 500x750x86mm		 Small cabinet: 500x500x86mm
Large cabinet: 500x750x86mm
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Cabinet Weight (kg/pcs) Small cabinet: 7.8kg/Large cabinet: 11.3kg Small cabinet: 7.8kg/Large cabinet: 11.3kg Small cabinet: 7.8kg/Large cabinet: 11.3kg
IP Rating IP67 IP67 IP67
Brightness 6000 nits (White Face LED)
4000 nits (Black Face LED)		 6000 nits (White Face LED)
4000 nits (Black Face LED)		 6000 nits (White Face LED)
4000 nits (Black Face LED)
Grey Scale(bits) 13-14bit (Adjustable) 13-14bit (Adjustable) 13-14bit (Adjustable)
Refresh Rate(Hz) ≥3840 Hz ≥3840 Hz ≥3840 Hz
Input Voltage 100-240V~, 50/60Hz 100-240V~, 50/60Hz 100-240V~, 50/60Hz
Max. power consumption ≥750W/m² (White Face LED)
≥920W/m² (Black Face LED)		 ≥680W/m² (White Face LED)
≥900W/m² (Black Face LED)		 ≥680W/m² (White Face LED)
Working Humidity 5%-95%RH, no condensing 5%-95%RH, no condensing 5%-95%RH, no condensing
Working Temperature -40℃ ~ +60℃ -40℃ ~ +60℃ -40℃ ~ +60℃
Storage Humidity 5%-95%RH, no condensing 5%-95%RH, no condensing 5%-95%RH, no condensing
Storage Temperature -40℃ ~ +60℃ -40℃ ~ +60℃ -40℃ ~ +60℃
Certification CE (Class A), FCC (Class A), ETL, CB CE (Class A), FCC (Class A), ETL, CB CE (Class A), FCC (Class A), ETL, CB
