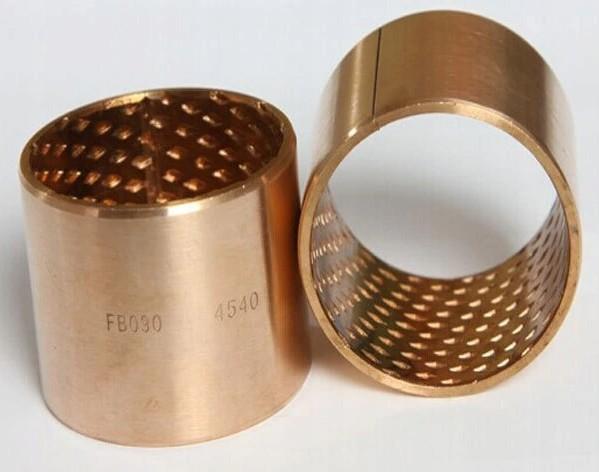

The TIN Bushing Bronze E92F or E90F Sleeve Flange Type is a high-performance component designed for use in various industrial applications where durability and reliability are paramount. Constructed from tin-bronze alloy, it offers excellent corrosion resistance, mechanical strength, and wear resistance, ensuring long-lasting performance even in harsh environments.

The sleeve flange type design provides additional stability and rigidity, allowing the bushing to withstand high loads and pressures. This feature also ensures a secure fit within the housing, minimizing the risk of movement or misalignment during operation.

Wh used in machinery, pumps, or other heavy-duty equipment, the TIN Bushing Bronze E92F or E90F Sleeve Flange Type offers a robust and dependable solution for ensuring smooth and efficient operation. Its precision-engineered construction ensures a precise fit and optimal performance in every application.

Tuleja Z Brazu E92F Lub E90F

Bearing Company, Bushing Company, constantly study new materials and new products development, Flanged Sleeve Bearings - Bushings & Bearings - Metric & Inch Size

All starting from the customer interests, continue to dedicate high-quality products

Tuleja z brązu brązowa łożysko ślizgowe 35x39x40

Bronze Flanged Bushing, wrapped bronze bearing with through holes

E92 is deriving from E90; the difference between E90 & E92 is Indentations on working surface, which substituted by throughholes. Theses holes will allow greater capacity to collect lubricant, which build up a lubrication film at the start of movement and reduce the frication. It is suitable for high load, lower speed application like construction, transport, and agriculture machinery.

Flange bushings are sleeve type bearings with a “flange” or “shoulder” on one end. The flange serves multiple functions.

Basic Features
Bronze cloth hole bearing is based on CuSn6.5P0.1 or CuSn8P0.3 bronze, with uniform and orderly oil injection holes. Add lubricating grease after assembly. The bearing has the advantages of large oil storage, easy installation and small design, and can be used instead of copper sleeves, greatly reducing costs
Main parameters TECHNICAL DATE
Maximum load
static load
120N/mm2
hardness
HB 90-120
dynamic load
40N/mm2
Be
Elongation
40%
Maximum line speed
2m/s
Be
Operating temperature
-100℃~＋200℃
Max PV
2.8N/mm2.m/s
Be
friction coefficient
0.08~0.25
tensile strength
450N/mm2
Be
Thermal Conductivity
60W(m.K)-1
Yield Strength
Be
250N/mm2
Be
Linear expansion coefficient
15x10-6K
Application Features APPLICATION CHARACTER
1. The inner hole of the product is full of diamond-shaped oil pockets and oil pits, which can store a large amount of grease during use and prolong the refueling interval;
2. Less oil lubrication, suitable for occasions where oil or water lubrication is difficult;
3. Good wear resistance, small friction coefficient and long service life;
4. Can be used in the range of -100℃-200℃;
5. Good running-in performance, low noise and no pollution;
6. Thin-walled structure, light weight, can reduce the mechanical volume;
7. The matrix has high density, no air shrinkage cavity and large bearing capacity;
At present, it has been widely used in the sliding parts of various machinery, such as: automatic machinery equipment (telescopic, swing, sliding, bending, swinging, rotating parts) hydraulic cylinder guide bushes, textile machinery, plastic molding machines, die-casting machines, rubber machinery, hydraulic Trucks, automobiles, motorcycles, ports, water conservancy, engineering, agricultural machinery, etc.

Wrapped Bronze Bushing BRONZE WRAPPED BUSHING WITH OIL HOLES.pdf

180 ID 185 OD x 100mm Long wrapped CuSn8 bronze bush with lubrication holes.Contact Us
Special Part Enquiry.Item No. d D L [mm]

Special Offer: Discounts of 15%, 30%, 50% and 55% are available when you order .Bronze Bearings 180100 made of CuSn8 ,Plain CuSn8 Bronze bushing,Alternative part numbers:

Bronze Bushing 180-185-100mm ,Get your bronze bushing bearings price.Perforated,Sliding Flange Bearings Prcies,Metric Size For Containers,Industrial Equipment & Machinery.Flange Bronze Bushing also can manufacture

1.Self lubricating,

2.High speed and high load applications,

3.Can operate at a wide range of temperature ranges,

4.Corrosion resistance,

5.Product range ,flange size available ,Easily customized

Bronze Bushing Mateiral

• CuSn8P (DIN 17662)

• DIN 1494 / ISO 3547

The bronze bearings,bronze gleitlager are produced from phosphor bronze alloy rolled strip which is hard and has an excellent finish.

The material composition is as follows:

Bronze Bearing Dimension

Metric / Imperial: Metric (mm)
Internal Diameter: 180mm
Outside Diameter: 185mm
Length: 100mm

Bronze Bearing Tolerance

Length tolerance: Min: 99.75mm Max: 100.25mm
Recommended shaft tolerance: Min: 179.917mm Max: 179.957mm (f7)
Recommended housing tolerance: Min: 185mm Max: 185.046mm (H7)
ID when fitted: Min: 180mm Max: 180.155mm

Bronze Wrapped Washers
Bronze Wrapped Bearing Strip
Bronze Wrapped Plain Bearings
Bronze Wrapped Flanged Bearings

Feature:

1. Easy of fitting and lubrication
2. High load capacity
3. Excellent wear resistance with lower friction
4. High level thermal conductivity
5. Minimum overall dimensions
6. Chemical resistance
7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving

Wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance Wrapped Bushing Size

The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 or CuSn6.5),which can achieve exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery.

Mateial

• CuSn8P (DIN 17662)

• DIN 1494 / ISO 3547

Specially Manufacturing Bushings

The manufacturing process starts with cutting the sheet to the correct rectangular shape. Then the plate will be rolled and calibrated to the final size and finished with chamfering the edges.

Range Of Application

Agriculture machinery, truck cranes & construction machinery, suitable for impact loads

Tolerances

Bushings are manufactured according to DIN 1494/ ISO 3574 with standard sizes for H7 housing tolerances and f7 or h8 shaft tolerances.

Request:

It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.
It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.

Bushing Types For Sale

Cusn8p bronze bushing fb090 copper bushes groove bushing fb090 brass bushing cusn8 bushing fb090 bearings bearings oil-free bronze bushing self-lubricating bronze bushing bronze bushing, rolled bearings cusn8p graphite bushing high quality sintered brass bearing fb bronze fb090 oilless bushing
Please contact our technical sales for more information.
