High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated
High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated
High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated
High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated
High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated
High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated
High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated
High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated
Specifications
Brand Name :
REPLACEMENT PLAIN BEARINGS
Model Number :
Bronze Bushings CuSn8P (DIN 17662) DIN 1494 / ISO 3547
Certification :
DIN 1494 / ISO 3547
Place of Origin :
gleitlagerbuchsen china
MOQ :
MATE-TO-ORDER CUSTOM BUSHINGS
Price :
Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Payment Terms :
T/T
Supply Ability :
bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing
Delivery Time :
3 - 15 BUSINESS DAYS
Packaging Details :
EXPORT CARTON WOOD PALLET WOODEN CASE
Bushing Material :
TIN BRONZE CUSN8 CUSN6
Feature :
High temperature resistance,Wear resistance,corrosion resistance
Performance :
High load capacity and long life
Type :
Sleeve,Flange,Thrust Washer
Bushings Thinkness :
bushing thickness of 1.0,1.5,2.02.5mm.
Self-lubricating Bushings :
2015 Plain CuSn8 Bronze bushing
Application :
agricultural machinery, brakes and certain construction machinery.
Bushing Size :
Special dimensions and imperial sizes are available on request
Model Number: :
BK-080, BRM 80, COB-092, FB 092, WB 702 BRONZE BUSHINGS
Get A Better Quote :
tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer :
https://www.viiplus.com/
High Light: :
Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing
Gleitalger :
A plain bearing, or more commonly sliding contact bearing and slide bearing, is the simplest type of bearing, comprising just a bearing surface and no rolling elements. Therefore, the journal slides over the bearing surface. The simplest example of a plain
Bush Bearings Manufacturers Suppliers Exporters :
plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/
Description

High Load Capacity Bronze Gleitlager made from CuSn8 material is a superior choice for applications that require excellent wear resistance and load-bearing capabilities. This type of bearing is specifically designed to handle high loads and demands, ensuring reliable and long-lasting performance.

The CuSn8 material, also known as phosphor tin bronze, is renowned for its high strength and corrosion resistance. It is well-suited for use in demanding industrial environments where bearings are subject to heavy loads and frequent operation.

The Gleitlager, measuring 20mm in outer diameter, 23mm in inner diameter, and 15mm in length, features a perforated design that enhances lubrication and heat dissipation. This helps to reduce friction and wear, further extending the bearing's lifespan.

Wh you're looking to replace worn-out bearings or upgrade your existing system, our High Load Capacity Bronze Gleitlager CuSn8 Material is an excellent option. Contact us today to learn more about this product and how it can benefit your application.

Wrapped Bronze Bushing

20 ID 23 OD x 15mm Long, FB092-2015.pdf,Choose from our selection of bronze bushings, including sleeve bearings, flanged sleeve bearings, and more. In stock and ready to ship.Online bronze bushing and bronze bearing catalog.wrapped CuSn8 bronze bush with lubrication holes.Bronze Bearings 2015 made of CuSn8 ,Plain CuSn8 Bronze bushing,Alternative part numbers:

BK-080, BRM 80, COB-092, FB 092, WB 702 BRONZE BUSHINGS Bronze bushing straight F092 ID100 OD105 L50.pdf
High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated

Bronze Bushing 20-23-15mm ,Get your bronze bushing bearings price.Perforated,Sliding Flange Bearings Prcies,Metric Size For Containers,Industrial Equipment & Machinery.Flange Bronze Bushing also can manufacture

• CuSn8P (DIN 17662)

• DIN 1494 / ISO 3547

092 Bornze Gleitlager CuSn8 Chemical Composition

Part No

Material

Cu

Sn

P

Pb

Zn

E92 & E92F

CuSn8

91.3%

8.5%

0.2%

/

/

Our company's expertise is container copper bushing, and the vast possibilities and modern technology used in the production process enable us to meet the expectations of our most demanding customers.

High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated

Bronze Bearing Dimension

Metric / Imperial: Metric (mm)
Internal Diameter: 20mm
Outside Diameter: 23mm
Length: 15mm

Bronze Bearing Tolerance

Length tolerance: Min: 14.75mm Max: 15.25mm
Recommended shaft tolerance: Min: 19.959mm Max: 19.98mm (f7)
Recommended housing tolerance: Min: 23mm Max: 23.021mm (H7)
ID when fitted: Min: 20mm Max: 20.052mm

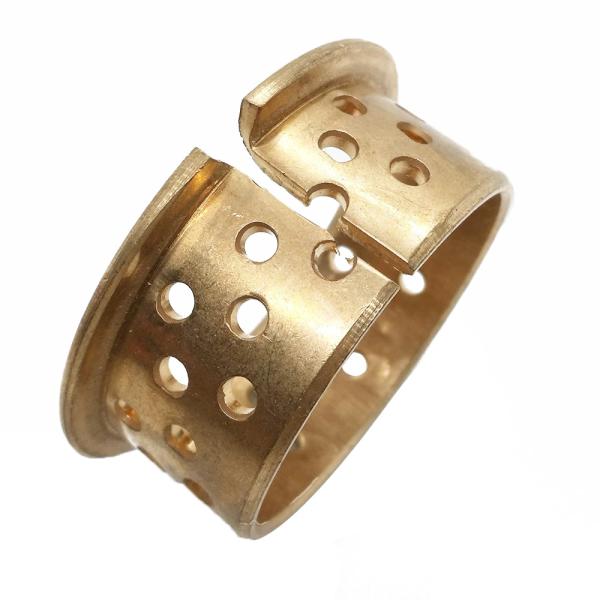

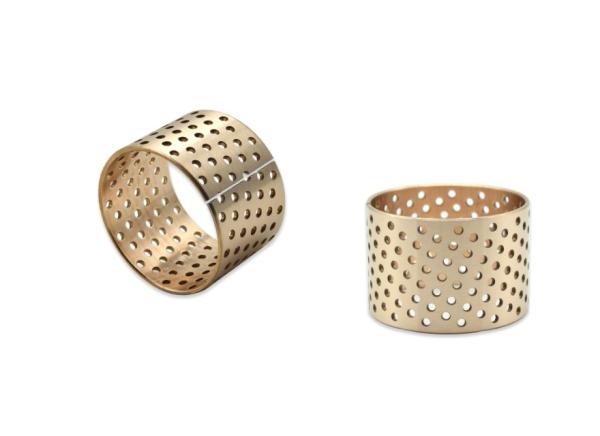

FB092 bronze bushing with holes
Product description:
FB092 bronze bearing, with bronze material as the matrix, is made of evenly and orderly oiling holes.The bearing has the advantages of large oil storage, easy installation and small design machine, and can replace the use of copper sleeve, can greatly reduce the cost.At present, the product has been used in conveyor, elevator, winding machine, leveling machine and other medium load, low speed occasions.

Sliding Bearing China | High Quality, Factory Price‎

MATERIALS

• Support materialCuSn8P (DIN 17662)

• alternative CuSn6P available

Feature:

1. Easy of fitting and lubrication

2. High load capacity

3. Excellent wear resistance with lower friction

4. High level thermal conductivity

5. Minimum overall dimensions

6. Chemical resistance

7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving

wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance Wrapped Bushing Size

The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 or CuSn6.5),which can achieve exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery.

Mateial

High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated

• CuSn8P (DIN 17662)

• DIN 1494 / ISO 3547

Specially Manufacturing Bushings

The manufacturing process starts with cutting the sheet to the correct rectangular shape. Then the plate will be rolled and calibrated to the final size and finished with chamfering the edges.

RANGE OF APPLICATION

Agriculture machinery, truck cranes & construction machinery, suitable for impact loads

Tolerances

Bushings are manufactured according to DIN 1494/ ISO 3574 with standard sizes for H7 housing tolerances and f7 or h8 shaft tolerances.

Request:

It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.

It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.

Bushing Types For Sale

Cusn8p bronze bushing fb090 copper bushes groove bushing fb090 brass bushing cusn8 bushing fb090 bearings bearings oil-free bronze bushing self-lubricating bronze bushing bronze bushing, rolled bearings cusn8p graphite bushing high quality sintered brass bearing fb bronze fb090 oilless bushing

Please contact our technical sales for more information.

High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated

Technical Details

  • Specific load capacity static< 120 [N/mm2]

  • Specific load capacity dynamic< 40 [N/mm2]

  • Sliding speed≤ 2.5 [m/s]

  • Friction value0.05 [µ] to 0.12 [µ] depending on lubrication

  • Temperature strain- 40 [°C] to + 250 [°C]

  • Max. PV-value2.8 [N/mm² x m/s]

  • The percentage of contact area on the ID is > 75%
