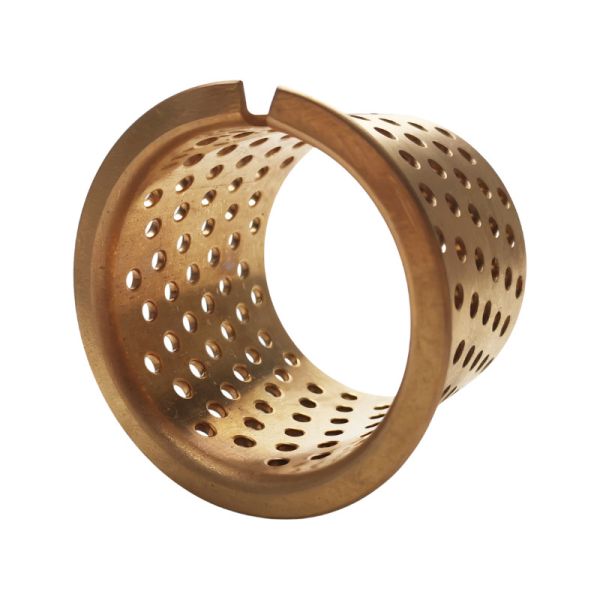

The Pre-Lubricated FB092 Flange Bronze Bushing is a high-performance component designed to offer smooth and reliable operation in a wide range of industrial applications. Constructed from bronze, this bushing is known for its excellent wear resistance and durability, ensuring long-lasting performance even under high-stress conditions.

The pre-lubricated feature of the FB092 bushing significantly reduces the need for regular lubrication, simplifying maintenance and extending the bushing's lifespan. This not only saves time and money but also minimizes the risk of lubricant contamination or leakage.

The flange design of the bushing provides additional stability and support, ensuring a secure fit and preventing unwanted movement during operation. This feature also facilitates easy installation and removal, making maintenance and replacement tasks simpler and more efficient.

Wh used in motors, pumps, gearboxes, or other rotating machinery, the Pre-Lubricated FB092 Flange Bronze Bushing offers a robust and dependable solution for maintaining smooth and efficient operations. Its high-quality materials, pre-lubricated design, and flange construction make it a trusted choice for industrial applications where performance and reliability are paramount.

One of China's suppliers of slide bearings, plain bearings, and roller bearings. World-class logistics! BUSHING Plain Bearing Bushing WB802

FB092 Flange Bronze Bushing Dimension

FB090 & FB092 Bronze Bushing Sliding Bearing Straight Type & Flange Type, BRM-10/80 Pre-Lubricated Bearings
BK-080, BRM 80, COB-092, FB 092

Bronze Bearings are with lubrication holes

Sliding Bearing FB090 & FB092 Bronze Bushing E90/E92 Sleeve Bushing

FB092 Standard Bearing Size

Unit:mm

Bronze Bushing Size

The basic features

With CusN6.5P0.1 or CusN8P0.3 bronze as the matrix, the bronze hole layout bearing is designed with uniform and orderly oil filling holes. Lubricating oil is injected after assembly. The bearing has the advantages of large oil storage, convenient installation, and small design machine, and can replace the copper sleeve to use, greatly reducing the cost
The inner hole of the product is full of and oil pits, which can store a large amount of oil during use and extend the refueling interval.
1. Less oil lubrication, suitable for occasions where it is difficult to add oil or water lubrication;
2. Good wear resistance, low friction coefficient, and long service life;
3. It can be used within the range of -100℃ to 200℃;
4. Good coupling performance, low noise, no pollution;
5. Thin-walled structure, lightweight, can reduce the mechanical volume;
6. The matrix has high density, gas-free shrinkage cavity, and large bearing capacity;
Currently has been widely applied to various mechanical sliding parts, such as automation machinery and equipment (scale, swing, slide, bending, cyclotron, turning parts) of the hydraulic cylinder guide bush, textile machinery, plastic molding machine, die-casting machine, rubber machinery, hydraulic truck, automobile, motorcycle industry, ports, water conservancy, construction, agricultural machinery, etc.

Long service intervals under severe operating circumstances.

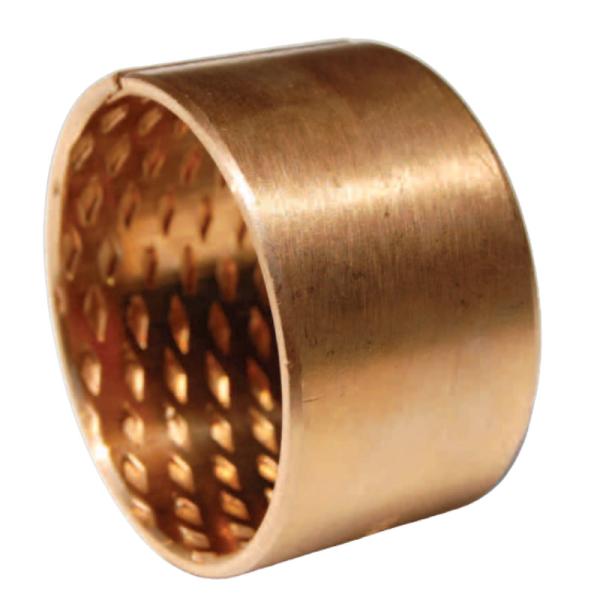

Wrapped bronze bearings are ideal for applications where there are high levels of contamination. Their running surface is provided with diamond-shaped lubrication pockets or a hole pattern. The lubrication pockets must be filled with grease when the bearing is installed. The wrapped bronze bearings are produced according to the ISO 3547.

Materials

Wrapped bronze bearings are made entirely from phosphor bronze CuSn8. CuSn8 is characterized by the purity of the alloy with only a very low level of impurities. Wrapped bronze bearings are produced from strips that are subsequently wrapped and calibrated.

Lubrication

Wrapped bronze bearings must be lubricated with grease or oil on installation. A good quality lubricant is essential as it will reduce friction and wear by forming a film between the plain bearing and the shaft. For heavily contaminated applications, we recommend sealing off the bearing. This will protect both the bearing and the lubricant.

Advantages

The main advantages of wrapped bronze bearings include:

• Long service intervals
• Not affected by impurities
• Suitable for corrosive environments
• Suitable for impact loads and vibrations at low speeds
• Good heat dissipation

Applications

Wrapped bronze bearings are especially suited to severe operating conditions where frequent maintenance is not possible. Common applications are:

• Agricultural vehicles
• Lifting gear
• Offshore
• Excavators
