High Load Capacity Bronze Bushing Without Perforation / Flange
High Load Capacity Bronze Bushing Without Perforation / Flange
High Load Capacity Bronze Bushing Without Perforation / Flange
High Load Capacity Bronze Bushing Without Perforation / Flange
High Load Capacity Bronze Bushing Without Perforation / Flange
High Load Capacity Bronze Bushing Without Perforation / Flange
High Load Capacity Bronze Bushing Without Perforation / Flange
High Load Capacity Bronze Bushing Without Perforation / Flange
High Load Capacity Bronze Bushing Without Perforation / Flange
High Load Capacity Bronze Bushing Without Perforation / Flange
High Load Capacity Bronze Bushing Without Perforation / Flange
High Load Capacity Bronze Bushing Without Perforation / Flange
Specifications
Feature :
High temperature resistance,Wear resistance,corrosion resistance
Gleitalger :
A plain bearing, or more commonly sliding contact bearing and slide bearing, is the simplest type of bearing, comprising just a bearing surface and no rolling elements. Therefore, the journal slides over the bearing surface. The simplest example of a plain
Performance :
High load capacity and long life
Logo :
Customized Logo
Bushings Thinkness :
bushing max. thickness of 2.5mm.
Model Number: :
E90F E92F E90 E92 BUSHINGS
Brand Name :
REPLACEMENT PLAIN BEARINGS
Model Number :
Bronze Bushings CuSn8P (DIN 17662) DIN 1494 / ISO 3547
Certification :
Metric size and inch size bushing
Place of Origin :
gleitlagerbuchsen china
MOQ :
MATE-TO-ORDER CUSTOM BUSHINGS
Price :
Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Payment Terms :
T/T
Supply Ability :
bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing
Delivery Time :
3 - 15 BUSINESS DAYS
Packaging Details :
EXPORT CARTON WOOD PALLET WOODEN CASE
Bushing Size :
Special dimensions and imperial sizes are available on request
Get A Better Quote :
tiffany@viiplus.com
Self-lubricating Bushings :
Bronze Bushing 60-65-60mm, perforated
High Light: :
Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing
Application :
agricultural machinery, brakes and certain construction machinery.
Self-lubricating Bearing Bushing Manufacturer :
https://www.viiplus.com/
Bush Bearings Manufacturers Suppliers Exporters :
plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/
Type :
Sleeve,Flange,Thrust Washer
Bushing Однородная бронза :
(Cu 91,3%, Sn 8,5%, P 0,2%)
Description

Bronze Bushing Without Flange Without Perforation

The high load capacity bronze bushing without perforation or flange is a robust component designed to handle heavy loads and demanding operating conditions. Constructed from high-quality bronze, it offers excellent wear resistance, durability, and corrosion resistance, ensuring reliable performance even in harsh environments. The bushing's smooth surface and precise dimensions minimize friction and ensure a smooth operation, while its solid construction provides maximum stability and support. Ideal for use in heavy machinery, industrial equipment, and other high-load applications, this bronze bushing is a trusted choice for ensuring long-term performance and reliability.

BRONZE SLEEVES WITHOUT FLANGE WITHOUT PERFORATION
PLACE AN ORDER TO ASK A QUESTION
We offer bronze sleeves of different diameters - with notches and surface rifling. Can be used for greasing for a long time without additional maintenance. The grease is applied beforehand and is very economical.
Technical characteristics
Material: Homogeneous Bronze (Cu 91.3%, Sn 8.5%, P 0.2%)
Yield strength: (Rp0.2) Ca 300 N/mm2
Tensile strength: (Rm) Ca 450 N/mm2
Hardness: Ca 125-150 HB
Friction: 0.08-0.25 µ
Maximum speed: 2.5 m/s
Temperature range: -100 / +200 °C

Load Rate
Ca: 280 N/mm2 0 m/s
80 - 120 N/mm2 0.01 m/s
30 - 40 N/mm2 2,0 m/s

High Load Capacity Bronze Bushing Without Perforation / Flange

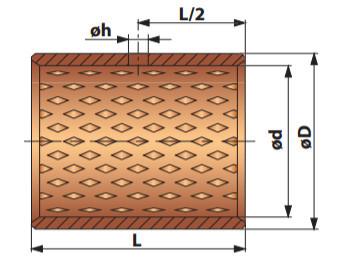

BRONZE SLEEVES WITHOUT FLANGE WITHOUT PERFORATION SIZE

d — внутренний диаметр D — внешний диаметр L — длина втулки
12 14 15
14 16 15
14 16 20
15 17 15
15 17 25
16 18 15
16 18 20
16 18 25
18 21 15
18 21 20
18 21 25
20 23 15
20 23 20
20 23 25
20 23 30
22 25 15
22 25 20
22 25 25
22 25 30
25 28 15
25 28 20
25 28 25
25 28 30
25 28 50
28 31 15
28 31 25
28 31 30
30 32 30
30 34 20
30 34 25
30 34 30
30 34 40
32 36 20
32 36 30
32 36 40
35 39 20
35 39 30
35 39 40
40 44 20
40 44 25
40 44 30
40 44 40
40 44 50
45 50 16
45 50 20
45 50 30
45 50 40
45 50 50
45 50 60
50 55 25
50 55 30
50 55 40
50 55 50
50 55 60
55 60 40
55 60 60
60 65 30
60 65 40
60 65 45
60 65 60
65 70 40
65 70 60
70 75 40
70 75 45
70 75 50
70 75 60
70 75 80
75 80 40
75 80 80
80 85 40
80 85 50
80 85 60
80 85 80
85 90 40
85 90 80
90 95 40
90 95 50
90 95 60
90 95 70
90 95 90
100 105 40
100 105 50
100 105 60
100 105 95
105 110 50
110 115 95
120 125 50
120 125 95
125 130 100
130 135 60
130 135 100
140 145 50
140 145 60
140 145 100
150 155 60
150 155 100
160 165 60
160 165 100
170 175 60
170 175 100
180 185 60
180 185 100
190 195 48
190 195 60
190 195 100
200 205 200

• CuSn8P (DIN 17662)

• DIN 1494 / ISO 3547

High Load Capacity Bronze Bushing Without Perforation / Flange

Bornze Gleitlager CuSn8 Chemical Composition

Part No

Material

Cu

Sn

P

Pb

Zn

E92 & E92F

CuSn8

91.3%

8.5%

0.2%

/

/

Our company's expertise is container copper bushing, and the vast possibilities and modern technology used in the production process enable us to meet the expectations of our most demanding customers.

FB090 bronze bushing with holes


Product description:
FB090 bronze bearing, with bronze material as the matrix, is made of evenly and orderly oiling holes.The bearing has the advantages of large oil storage, easy installation and small design machine, and can replace the use of copper sleeve, can greatly reduce the cost.At present, the product has been used in conveyor, elevator, winding machine, leveling machine and other medium load, low speed occasions.

Sliding Bearing China | High Quality, Factory Price

‎

MATERIALS

• Support materialCuSn8P (DIN 17662)

• alternative CuSn6P available

Feature:

1. Easy of fitting and lubrication

2. High load capacity

3. Excellent wear resistance with lower friction

4. High level thermal conductivity

5. Minimum overall dimensions

6. Chemical resistance

7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving

Wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance Wrapped Bushing Size

The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 or CuSn6.5),which can achieve exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery.

MateialHigh Load Capacity Bronze Bushing Without Perforation / Flange

• CuSn8P (DIN 17662)

• DIN 1494 / ISO 3547

Specially Manufacturing Bushings

The manufacturing process starts with cutting the sheet to the correct rectangular shape. Then the plate will be rolled and calibrated to the final size and finished with chamfering the edges.

Range Of Application

Agriculture machinery, truck cranes & construction machinery, suitable for impact loads

Tolerances

Bushings are manufactured according to DIN 1494/ ISO 3574 with standard sizes for H7 housing tolerances and f7 or h8 shaft tolerances.

Request:

It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.

It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.

Bushing Types For Sale

Cusn8p bronze bushing fb090 copper bushes groove bushing fb090 brass bushing cusn8 bushing fb090 bearings bearings oil-free bronze bushing self-lubricating bronze bushing bronze bushing, rolled bearings cusn8p graphite bushing high quality sintered brass bearing fb bronze fb090 oilless bushing

Please contact our technical sales for more information.

Technical Details

  • Specific load capacity static< 120 [N/mm2]
  • Specific load capacity dynamic< 40 [N/mm2]
  • Sliding speed≤ 2.5 [m/s]
  • Friction value0.05 [µ] to 0.12 [µ] depending on lubrication
  • Temperature strain- 40 [°C] to + 250 [°C]
  • Max. PV-value2.8 [N/mm² x m/s]
  • The percentage of contact area on the ID is > 75%
Plain Bushing Wrapped Bronze Sliding Bearing Dimensions Catalog — Part Number (with Flange Bushing Dimensions)
Item FB090 Series Part No. Material FB092 Series Part No. Material Designation (bore×outer) L (mm) Flange Ø (mm)
Plain Bearing FB090-1010 CuSn8 wrapped bush with grease pockets FB092-1010 CuSn8 wrapped bush with lubricating holes 10×12 10
Plain Bearing FB090-1015 CuSn8 wrapped bush with grease pockets FB092-1015 CuSn8 wrapped bush with lubricating holes 10×12 15
Plain Bearing FB090-1020 CuSn8 wrapped bush with grease pockets FB092-1020 CuSn8 wrapped bush with lubricating holes 10×12 20
Plain Bearing FB090-1210 CuSn8 wrapped bush with grease pockets FB092-1210 CuSn8 wrapped bush with lubricating holes 12×14 10
Plain Bearing FB090-1215 CuSn8 wrapped bush with grease pockets FB092-1215 CuSn8 wrapped bush with lubricating holes 12×14 15
Plain Bearing FB090-1220 CuSn8 wrapped bush with grease pockets FB092-1220 CuSn8 wrapped bush with lubricating holes 12×14 20
Plain Bearing FB090-1410 CuSn8 wrapped bush with grease pockets FB092-1410 CuSn8 wrapped bush with lubricating holes 14×16 10
Plain Bearing FB090-1415 CuSn8 wrapped bush with grease pockets FB092-1415 CuSn8 wrapped bush with lubricating holes 14×16 15
Plain Bearing FB090-1420 CuSn8 wrapped bush with grease pockets FB092-1420 CuSn8 wrapped bush with lubricating holes 14×16 20
Plain Bearing FB090-1425 CuSn8 wrapped bush with grease pockets FB092-1425 CuSn8 wrapped bush with lubricating holes 14×16 25
Plain Bearing FB090-1510 CuSn8 wrapped bush with grease pockets FB092-1510 CuSn8 wrapped bush with lubricating holes 15×17 10
Plain Bearing FB090-1515 CuSn8 wrapped bush with grease pockets FB092-1515 CuSn8 wrapped bush with lubricating holes 15×17 15
Plain Bearing FB090-1520 CuSn8 wrapped bush with grease pockets FB092-1520 CuSn8 wrapped bush with lubricating holes 15×17 20
Plain Bearing FB090-1525 CuSn8 wrapped bush with grease pockets FB092-1525 CuSn8 wrapped bush with lubricating holes 15×17 25
Plain Bearing FB090-1610 CuSn8 wrapped bush with grease pockets FB092-1610 CuSn8 wrapped bush with lubricating holes 16×18 10
Plain Bearing FB090-1615 CuSn8 wrapped bush with grease pockets FB092-1615 CuSn8 wrapped bush with lubricating holes 16×18 15
Plain Bearing FB090-1620 CuSn8 wrapped bush with grease pockets FB092-1620 CuSn8 wrapped bush with lubricating holes 16×18 20
Plain Bearing FB090-1625 CuSn8 wrapped bush with grease pockets FB092-1625 CuSn8 wrapped bush with lubricating holes 16×18 25
Plain Bearing FB090-1810 CuSn8 wrapped bush with grease pockets FB092-1810 CuSn8 wrapped bush with lubricating holes 18×20 10
Plain Bearing FB090-1815 CuSn8 wrapped bush with grease pockets FB092-1815 CuSn8 wrapped bush with lubricating holes 18×20 15
Plain Bearing FB090-1820 CuSn8 wrapped bush with grease pockets FB092-1820 CuSn8 wrapped bush with lubricating holes 18×20 20
Plain Bearing FB090-1825 CuSn8 wrapped bush with grease pockets FB092-1825 CuSn8 wrapped bush with lubricating holes 18×20 25
Plain Bearing FB090-2010 CuSn8 wrapped bush with grease pockets FB092-2010 CuSn8 wrapped bush with lubricating holes 20×23 10
Plain Bearing FB090-2015 CuSn8 wrapped bush with grease pockets FB092-2015 CuSn8 wrapped bush with lubricating holes 20×23 15
Plain Bearing FB090-2020 CuSn8 wrapped bush with grease pockets FB092-2020 CuSn8 wrapped bush with lubricating holes 20×23 20
Plain Bearing FB090-2025 CuSn8 wrapped bush with grease pockets FB092-2025 CuSn8 wrapped bush with lubricating holes 20×23 25
Plain Bearing FB090-2210 CuSn8 wrapped bush with grease pockets FB092-2210 CuSn8 wrapped bush with lubricating holes 22×25 10
Plain Bearing FB090-2215 CuSn8 wrapped bush with grease pockets FB092-2215 CuSn8 wrapped bush with lubricating holes 22×25 15
Plain Bearing FB090-2220 CuSn8 wrapped bush with grease pockets FB092-2220 CuSn8 wrapped bush with lubricating holes 22×25 20
Plain Bearing FB090-2225 CuSn8 wrapped bush with grease pockets FB092-2225 CuSn8 wrapped bush with lubricating holes 22×25 25
Plain Bearing FB090-2230 CuSn8 wrapped bush with grease pockets FB092-2230 CuSn8 wrapped bush with lubricating holes 22×25 30
Plain Bearing FB090-2415 CuSn8 wrapped bush with grease pockets FB092-2415 CuSn8 wrapped bush with lubricating holes 24×27 15
Plain Bearing FB090-2420 CuSn8 wrapped bush with grease pockets FB092-2420 CuSn8 wrapped bush with lubricating holes 24×27 20
Plain Bearing FB090-2425 CuSn8 wrapped bush with grease pockets FB092-2425 CuSn8 wrapped bush with lubricating holes 24×27 25
Plain Bearing FB090-2430 CuSn8 wrapped bush with grease pockets FB092-2430 CuSn8 wrapped bush with lubricating holes 24×27 30
Plain Bearing FB090-2515 CuSn8 wrapped bush with grease pockets FB092-2515 CuSn8 wrapped bush with lubricating holes 25×28 15
Plain Bearing FB090-2520 CuSn8 wrapped bush with grease pockets FB092-2520 CuSn8 wrapped bush with lubricating holes 25×28 20
Plain Bearing FB090-2525 CuSn8 wrapped bush with grease pockets FB092-2525 CuSn8 wrapped bush with lubricating holes 25×28 25
Plain Bearing FB090-2530 CuSn8 wrapped bush with grease pockets FB092-2530 CuSn8 wrapped bush with lubricating holes 25×28 30
Plain Bearing FB090-2815 CuSn8 wrapped bush with grease pockets FB092-2815 CuSn8 wrapped bush with lubricating holes 28×31 15
Plain Bearing FB090-2820 CuSn8 wrapped bush with grease pockets FB092-2820 CuSn8 wrapped bush with lubricating holes 28×31 20
Plain Bearing FB090-2825 CuSn8 wrapped bush with grease pockets FB092-2825 CuSn8 wrapped bush with lubricating holes 28×31 25
Plain Bearing FB090-2830 CuSn8 wrapped bush with grease pockets FB092-2830 CuSn8 wrapped bush with lubricating holes 28×31 30
Plain Bearing FB090-3015 CuSn8 wrapped bush with grease pockets FB092-3015 CuSn8 wrapped bush with lubricating holes 30×34 15
Plain Bearing FB090-3020 CuSn8 wrapped bush with grease pockets FB092-3020 CuSn8 wrapped bush with lubricating holes 30×34 20
Plain Bearing FB090-3025 CuSn8 wrapped bush with grease pockets FB092-3025 CuSn8 wrapped bush with lubricating holes 30×34 25
Plain Bearing FB090-3030 CuSn8 wrapped bush with grease pockets FB092-3030 CuSn8 wrapped bush with lubricating holes 30×34 30
Plain Bearing FB090-3035 CuSn8 wrapped bush with grease pockets FB092-3035 CuSn8 wrapped bush with lubricating holes 30×34 35
Plain Bearing FB090-3040 CuSn8 wrapped bush with grease pockets FB092-3040 CuSn8 wrapped bush with lubricating holes 30×34 40
Plain Bearing FB090-3215 CuSn8 wrapped bush with grease pockets FB092-3215 CuSn8 wrapped bush with lubricating holes 32×36 15
Plain Bearing FB090-3220 CuSn8 wrapped bush with grease pockets FB092-3220 CuSn8 wrapped bush with lubricating holes 32×36 20
Plain Bearing FB090-3225 CuSn8 wrapped bush with grease pockets FB092-3225 CuSn8 wrapped bush with lubricating holes 32×36 25
Plain Bearing FB090-3230 CuSn8 wrapped bush with grease pockets FB092-3230 CuSn8 wrapped bush with lubricating holes 32×36 30
Plain Bearing FB090-3235 CuSn8 wrapped bush with grease pockets FB092-3235 CuSn8 wrapped bush with lubricating holes 32×36 35
Plain Bearing FB090-3240 CuSn8 wrapped bush with grease pockets FB092-3240 CuSn8 wrapped bush with lubricating holes 32×36 40
Plain Bearing FB090-3515 CuSn8 wrapped bush with grease pockets FB092-3515 CuSn8 wrapped bush with lubricating holes 35×39 15
Plain Bearing FB090-3520 CuSn8 wrapped bush with grease pockets FB092-3520 CuSn8 wrapped bush with lubricating holes 35×39 20
Plain Bearing FB090-3525 CuSn8 wrapped bush with grease pockets FB092-3525 CuSn8 wrapped bush with lubricating holes 35×39 25
Plain Bearing FB090-3530 CuSn8 wrapped bush with grease pockets FB092-3530 CuSn8 wrapped bush with lubricating holes 35×39 30
Plain Bearing FB090-3535 CuSn8 wrapped bush with grease pockets FB092-3535 CuSn8 wrapped bush with lubricating holes 35×39 35
Plain Bearing FB090-3540 CuSn8 wrapped bush with grease pockets FB092-3540 CuSn8 wrapped bush with lubricating holes 35×39 40
Plain Bearing FB090-4020 CuSn8 wrapped bush with grease pockets FB092-4020 CuSn8 wrapped bush with lubricating holes 40×44 20
Plain Bearing FB090-4025 CuSn8 wrapped bush with grease pockets FB092-4025 CuSn8 wrapped bush with lubricating holes 40×44 25
Plain Bearing FB090-4030 CuSn8 wrapped bush with grease pockets FB092-4030 CuSn8 wrapped bush with lubricating holes 40×44 30
Plain Bearing FB090-4035 CuSn8 wrapped bush with grease pockets FB092-4035 CuSn8 wrapped bush with lubricating holes 40×44 35
Plain Bearing FB090-4040 CuSn8 wrapped bush with grease pockets FB092-4040 CuSn8 wrapped bush with lubricating holes 40×44 40
Plain Bearing FB090-4050 CuSn8 wrapped bush with grease pockets FB092-4050 CuSn8 wrapped bush with lubricating holes 40×44 50
Plain Bearing FB090-4520 CuSn8 wrapped bush with grease pockets FB092-4520 CuSn8 wrapped bush with lubricating holes 45×50 20
Plain Bearing FB090-4525 CuSn8 wrapped bush with grease pockets FB092-4525 CuSn8 wrapped bush with lubricating holes 45×50 25
Plain Bearing FB090-4530 CuSn8 wrapped bush with grease pockets FB092-4530 CuSn8 wrapped bush with lubricating holes 45×50 30
Plain Bearing FB090-4535 CuSn8 wrapped bush with grease pockets FB092-4535 CuSn8 wrapped bush with lubricating holes 45×50 35
Plain Bearing FB090-4540 CuSn8 wrapped bush with grease pockets FB092-4540 CuSn8 wrapped bush with lubricating holes 45×50 40
Plain Bearing FB090-4550 CuSn8 wrapped bush with grease pockets FB092-4550 CuSn8 wrapped bush with lubricating holes 45×50 50
Plain Bearing FB090-5020 CuSn8 wrapped bush with grease pockets FB092-5020 CuSn8 wrapped bush with lubricating holes 50×55 20
Plain Bearing FB090-5025 CuSn8 wrapped bush with grease pockets FB092-5025 CuSn8 wrapped bush with lubricating holes 50×55 25
Plain Bearing FB090-5030 CuSn8 wrapped bush with grease pockets FB092-5030 CuSn8 wrapped bush with lubricating holes 50×55 30
Plain Bearing FB090-5035 CuSn8 wrapped bush with grease pockets FB092-5035 CuSn8 wrapped bush with lubricating holes 50×55 35
Plain Bearing FB090-5040 CuSn8 wrapped bush with grease pockets FB092-5040 CuSn8 wrapped bush with lubricating holes 50×55 40
Plain Bearing FB090-5050 CuSn8 wrapped bush with grease pockets FB092-5050 CuSn8 wrapped bush with lubricating holes 50×55 50
Plain Bearing FB090-5060 CuSn8 wrapped bush with grease pockets FB092-5060 CuSn8 wrapped bush with lubricating holes 50×55 60
Plain Bearing FB090-5520 CuSn8 wrapped bush with grease pockets FB092-5520 CuSn8 wrapped bush with lubricating holes 55×60 20
Plain Bearing FB090-5525 CuSn8 wrapped bush with grease pockets FB092-5525 CuSn8 wrapped bush with lubricating holes 55×60 25
Plain Bearing FB090-5530 CuSn8 wrapped bush with grease pockets FB092-5530 CuSn8 wrapped bush with lubricating holes 55×60 30
Plain Bearing FB090-5535 CuSn8 wrapped bush with grease pockets FB092-5535 CuSn8 wrapped bush with lubricating holes 55×60 35
Plain Bearing FB090-5540 CuSn8 wrapped bush with grease pockets FB092-5540 CuSn8 wrapped bush with lubricating holes 55×60 40
Plain Bearing FB090-5550 CuSn8 wrapped bush with grease pockets FB092-5550 CuSn8 wrapped bush with lubricating holes 55×60 50
Plain Bearing FB090-5560 CuSn8 wrapped bush with grease pockets FB092-5560 CuSn8 wrapped bush with lubricating holes 55×60 60
Plain Bearing FB090-6025 CuSn8 wrapped bush with grease pockets FB092-6025 CuSn8 wrapped bush with lubricating holes 60×65 25
Plain Bearing FB090-6030 CuSn8 wrapped bush with grease pockets FB092-6030 CuSn8 wrapped bush with lubricating holes 60×65 30
Plain Bearing FB090-6035 CuSn8 wrapped bush with grease pockets FB092-6035 CuSn8 wrapped bush with lubricating holes 60×65 35
Plain Bearing FB090-6040 CuSn8 wrapped bush with grease pockets FB092-6040 CuSn8 wrapped bush with lubricating holes 60×65 40
Plain Bearing FB090-6050 CuSn8 wrapped bush with grease pockets FB092-6050 CuSn8 wrapped bush with lubricating holes 60×65 50
Plain Bearing FB090-6060 CuSn8 wrapped bush with grease pockets FB092-6060 CuSn8 wrapped bush with lubricating holes 60×65 60
Plain Bearing FB090-6070 CuSn8 wrapped bush with grease pockets FB092-6070 CuSn8 wrapped bush with lubricating holes 60×65 70
Plain Bearing FB090-6530 CuSn8 wrapped bush with grease pockets FB092-6530 CuSn8 wrapped bush with lubricating holes 65×70 30
Plain Bearing FB090-6535 CuSn8 wrapped bush with grease pockets FB092-6535 CuSn8 wrapped bush with lubricating holes 65×70 35
Plain Bearing FB090-6540 CuSn8 wrapped bush with grease pockets FB092-6540 CuSn8 wrapped bush with lubricating holes 65×70 40
Plain Bearing FB090-6550 CuSn8 wrapped bush with grease pockets FB092-6550 CuSn8 wrapped bush with lubricating holes 65×70 50
Plain Bearing FB090-6560 CuSn8 wrapped bush with grease pockets FB092-6560 CuSn8 wrapped bush with lubricating holes 65×70 60
Plain Bearing FB090-6570 CuSn8 wrapped bush with grease pockets FB092-6570 CuSn8 wrapped bush with lubricating holes 65×70 70
Plain Bearing FB090-7030 CuSn8 wrapped bush with grease pockets FB092-7030 CuSn8 wrapped bush with lubricating holes 70×75 30
Plain Bearing FB090-7035 CuSn8 wrapped bush with grease pockets FB092-7035 CuSn8 wrapped bush with lubricating holes 70×75 35
Plain Bearing FB090-7040 CuSn8 wrapped bush with grease pockets FB092-7040 CuSn8 wrapped bush with lubricating holes 70×75 40
Plain Bearing FB090-7050 CuSn8 wrapped bush with grease pockets FB092-7050 CuSn8 wrapped bush with lubricating holes 70×75 50
Plain Bearing FB090-7060 CuSn8 wrapped bush with grease pockets FB092-7060 CuSn8 wrapped bush with lubricating holes 70×75 60
Plain Bearing FB090-7070 CuSn8 wrapped bush with grease pockets FB092-7070 CuSn8 wrapped bush with lubricating holes 70×75 70
Plain Bearing FB090-7080 CuSn8 wrapped bush with grease pockets FB092-7080 CuSn8 wrapped bush with lubricating holes 70×75 80
Plain Bearing FB090-7530 CuSn8 wrapped bush with grease pockets FB092-7530 CuSn8 wrapped bush with lubricating holes 75×80 30
Plain Bearing FB090-7535 CuSn8 wrapped bush with grease pockets FB092-7535 CuSn8 wrapped bush with lubricating holes 75×80 35
Plain Bearing FB090-7540 CuSn8 wrapped bush with grease pockets FB092-7540 CuSn8 wrapped bush with lubricating holes 75×80 40
Plain Bearing FB090-7550 CuSn8 wrapped bush with grease pockets FB092-7550 CuSn8 wrapped bush with lubricating holes 75×80 50
Plain Bearing FB090-7560 CuSn8 wrapped bush with grease pockets FB092-7560 CuSn8 wrapped bush with lubricating holes 75×80 60
Plain Bearing FB090-7570 CuSn8 wrapped bush with grease pockets FB092-7570 CuSn8 wrapped bush with lubricating holes 75×80 70
Plain Bearing FB090-7580 CuSn8 wrapped bush with grease pockets FB092-7580 CuSn8 wrapped bush with lubricating holes 75×80 80
Plain Bearing FB090-8030 CuSn8 wrapped bush with grease pockets FB092-8030 CuSn8 wrapped bush with lubricating holes 80×85 30
Plain Bearing FB090-8035 CuSn8 wrapped bush with grease pockets FB092-8035 CuSn8 wrapped bush with lubricating holes 80×85 35
Plain Bearing FB090-8040 CuSn8 wrapped bush with grease pockets FB092-8040 CuSn8 wrapped bush with lubricating holes 80×85 40
Plain Bearing FB090-8050 CuSn8 wrapped bush with grease pockets FB092-8050 CuSn8 wrapped bush with lubricating holes 80×85 50
Plain Bearing FB090-8060 CuSn8 wrapped bush with grease pockets FB092-8060 CuSn8 wrapped bush with lubricating holes 80×85 60
Plain Bearing FB090-8070 CuSn8 wrapped bush with grease pockets FB092-8070 CuSn8 wrapped bush with lubricating holes 80×85 70
Plain Bearing FB090-8080 CuSn8 wrapped bush with grease pockets FB092-8080 CuSn8 wrapped bush with lubricating holes 80×85 80
Plain Bearing FB090-8530 CuSn8 wrapped bush with grease pockets FB092-8530 CuSn8 wrapped bush with lubricating holes 85×90 30
Plain Bearing FB090-8535 CuSn8 wrapped bush with grease pockets FB092-8535 CuSn8 wrapped bush with lubricating holes 85×90 35
Plain Bearing FB090-8540 CuSn8 wrapped bush with grease pockets FB092-8540 CuSn8 wrapped bush with lubricating holes 85×90 40
Plain Bearing FB090-8550 CuSn8 wrapped bush with grease pockets FB092-8550 CuSn8 wrapped bush with lubricating holes 85×90 50
Plain Bearing FB090-8560 CuSn8 wrapped bush with grease pockets FB092-8560 CuSn8 wrapped bush with lubricating holes 85×90 60
Plain Bearing FB090-8570 CuSn8 wrapped bush with grease pockets FB092-8570 CuSn8 wrapped bush with lubricating holes 85×90 70
Plain Bearing FB090-8580 CuSn8 wrapped bush with grease pockets FB092-8580 CuSn8 wrapped bush with lubricating holes 85×90 80
Plain Bearing FB090-8590 CuSn8 wrapped bush with grease pockets FB092-8590 CuSn8 wrapped bush with lubricating holes 85×90 90
Plain Bearing FB090-9030 CuSn8 wrapped bush with grease pockets FB092-9030 CuSn8 wrapped bush with lubricating holes 90×95 30
Plain Bearing FB090-9035 CuSn8 wrapped bush with grease pockets FB092-9035 CuSn8 wrapped bush with lubricating holes 90×95 35
Plain Bearing FB090-9040 CuSn8 wrapped bush with grease pockets FB092-9040 CuSn8 wrapped bush with lubricating holes 90×95 40
Plain Bearing FB090-9050 CuSn8 wrapped bush with grease pockets FB092-9050 CuSn8 wrapped bush with lubricating holes 90×95 50
Plain Bearing FB090-9060 CuSn8 wrapped bush with grease pockets FB092-9060 CuSn8 wrapped bush with lubricating holes 90×95 60
Plain Bearing FB090-9070 CuSn8 wrapped bush with grease pockets FB092-9070 CuSn8 wrapped bush with lubricating holes 90×95 70
Plain Bearing FB090-9080 CuSn8 wrapped bush with grease pockets FB092-9080 CuSn8 wrapped bush with lubricating holes 90×95 80
Plain Bearing FB090-9090 CuSn8 wrapped bush with grease pockets FB092-9090 CuSn8 wrapped bush with lubricating holes 90×95 90
Plain Bearing FB090-95100 CuSn8 wrapped bush with grease pockets FB092-95100 CuSn8 wrapped bush with lubricating holes 95×100 100
Plain Bearing FB090-9540 CuSn8 wrapped bush with grease pockets FB092-9540 CuSn8 wrapped bush with lubricating holes 95×100 40
Plain Bearing FB090-9550 CuSn8 wrapped bush with grease pockets FB092-9550 CuSn8 wrapped bush with lubricating holes 95×100 50
Plain Bearing FB090-9560 CuSn8 wrapped bush with grease pockets FB092-9560 CuSn8 wrapped bush with lubricating holes 95×100 60
Plain Bearing FB090-9570 CuSn8 wrapped bush with grease pockets FB092-9570 CuSn8 wrapped bush with lubricating holes 95×100 70
Plain Bearing FB090-9580 CuSn8 wrapped bush with grease pockets FB092-9580 CuSn8 wrapped bush with lubricating holes 95×100 80
Plain Bearing FB090-9590 CuSn8 wrapped bush with grease pockets FB092-9590 CuSn8 wrapped bush with lubricating holes 95×100 90
Plain Bearing FB090-100100 CuSn8 wrapped bush with grease pockets FB092-100100 CuSn8 wrapped bush with lubricating holes 100×105 100
Plain Bearing FB090-10050 CuSn8 wrapped bush with grease pockets FB092-10050 CuSn8 wrapped bush with lubricating holes 100×105 50
Plain Bearing FB090-10060 CuSn8 wrapped bush with grease pockets FB092-10060 CuSn8 wrapped bush with lubricating holes 100×105 60
Plain Bearing FB090-10070 CuSn8 wrapped bush with grease pockets FB092-10070 CuSn8 wrapped bush with lubricating holes 100×105 70
Plain Bearing FB090-10080 CuSn8 wrapped bush with grease pockets FB092-10080 CuSn8 wrapped bush with lubricating holes 100×105 80
Plain Bearing FB090-10090 CuSn8 wrapped bush with grease pockets FB092-10090 CuSn8 wrapped bush with lubricating holes 100×105 90
Plain Bearing FB090-105100 CuSn8 wrapped bush with grease pockets FB092-105100 CuSn8 wrapped bush with lubricating holes 105×110 100
Plain Bearing FB090-10550 CuSn8 wrapped bush with grease pockets FB092-10550 CuSn8 wrapped bush with lubricating holes 105×110 50
Plain Bearing FB090-10560 CuSn8 wrapped bush with grease pockets FB092-10560 CuSn8 wrapped bush with lubricating holes 105×110 60
Plain Bearing FB090-10570 CuSn8 wrapped bush with grease pockets FB092-10570 CuSn8 wrapped bush with lubricating holes 105×110 70
Plain Bearing FB090-10580 CuSn8 wrapped bush with grease pockets FB092-10580 CuSn8 wrapped bush with lubricating holes 105×110 80
Plain Bearing FB090-10590 CuSn8 wrapped bush with grease pockets FB092-10590 CuSn8 wrapped bush with lubricating holes 105×110 90
Plain Bearing FB090-110100 CuSn8 wrapped bush with grease pockets FB092-110100 CuSn8 wrapped bush with lubricating holes 110×115 100
Plain Bearing FB090-11050 CuSn8 wrapped bush with grease pockets FB092-11050 CuSn8 wrapped bush with lubricating holes 110×115 50
Plain Bearing FB090-11060 CuSn8 wrapped bush with grease pockets FB092-11060 CuSn8 wrapped bush with lubricating holes 110×115 60
Plain Bearing FB090-11070 CuSn8 wrapped bush with grease pockets FB092-11070 CuSn8 wrapped bush with lubricating holes 110×115 70
Plain Bearing FB090-11080 CuSn8 wrapped bush with grease pockets FB092-11080 CuSn8 wrapped bush with lubricating holes 110×115 80
Plain Bearing FB090-11090 CuSn8 wrapped bush with grease pockets FB092-11090 CuSn8 wrapped bush with lubricating holes 110×115 90
Plain Bearing FB090-115100 CuSn8 wrapped bush with grease pockets FB092-115100 CuSn8 wrapped bush with lubricating holes 115×120 100
Plain Bearing FB090-11550 CuSn8 wrapped bush with grease pockets FB092-11550 CuSn8 wrapped bush with lubricating holes 115×120 50
Plain Bearing FB090-11560 CuSn8 wrapped bush with grease pockets FB092-11560 CuSn8 wrapped bush with lubricating holes 115×120 60
Plain Bearing FB090-11570 CuSn8 wrapped bush with grease pockets FB092-11570 CuSn8 wrapped bush with lubricating holes 115×120 70
Plain Bearing FB090-11580 CuSn8 wrapped bush with grease pockets FB092-11580 CuSn8 wrapped bush with lubricating holes 115×120 80
Plain Bearing FB090-11590 CuSn8 wrapped bush with grease pockets FB092-11590 CuSn8 wrapped bush with lubricating holes 115×120 90
Plain Bearing FB090-120100 CuSn8 wrapped bush with grease pockets FB092-120100 CuSn8 wrapped bush with lubricating holes 120×125 100
Plain Bearing FB090-12060 CuSn8 wrapped bush with grease pockets FB092-12060 CuSn8 wrapped bush with lubricating holes 120×125 60
Plain Bearing FB090-12070 CuSn8 wrapped bush with grease pockets FB092-12070 CuSn8 wrapped bush with lubricating holes 120×125 70
Plain Bearing FB090-12080 CuSn8 wrapped bush with grease pockets FB092-12080 CuSn8 wrapped bush with lubricating holes 120×125 80
Plain Bearing FB090-12090 CuSn8 wrapped bush with grease pockets FB092-12090 CuSn8 wrapped bush with lubricating holes 120×125 90
Plain Bearing FB090-125100 CuSn8 wrapped bush with grease pockets FB092-125100 CuSn8 wrapped bush with lubricating holes 125×130 100
Plain Bearing FB090-12560 CuSn8 wrapped bush with grease pockets FB092-12560 CuSn8 wrapped bush with lubricating holes 125×130 60
Plain Bearing FB090-12570 CuSn8 wrapped bush with grease pockets FB092-12570 CuSn8 wrapped bush with lubricating holes 125×130 70
Plain Bearing FB090-12580 CuSn8 wrapped bush with grease pockets FB092-12580 CuSn8 wrapped bush with lubricating holes 125×130 80
Plain Bearing FB090-12590 CuSn8 wrapped bush with grease pockets FB092-12590 CuSn8 wrapped bush with lubricating holes 125×130 90
Plain Bearing FB090-130100 CuSn8 wrapped bush with grease pockets FB092-130100 CuSn8 wrapped bush with lubricating holes 130×135 100
Plain Bearing FB090-13060 CuSn8 wrapped bush with grease pockets FB092-13060 CuSn8 wrapped bush with lubricating holes 130×135 60
Plain Bearing FB090-13070 CuSn8 wrapped bush with grease pockets FB092-13070 CuSn8 wrapped bush with lubricating holes 130×135 70
Plain Bearing FB090-13080 CuSn8 wrapped bush with grease pockets FB092-13080 CuSn8 wrapped bush with lubricating holes 130×135 80
Plain Bearing FB090-13090 CuSn8 wrapped bush with grease pockets FB092-13090 CuSn8 wrapped bush with lubricating holes 130×135 90
Plain Bearing FB090-135100 CuSn8 wrapped bush with grease pockets FB092-135100 CuSn8 wrapped bush with lubricating holes 135×140 100
Plain Bearing FB090-13560 CuSn8 wrapped bush with grease pockets FB092-13560 CuSn8 wrapped bush with lubricating holes 135×140 60
Plain Bearing FB090-13570 CuSn8 wrapped bush with grease pockets FB092-13570 CuSn8 wrapped bush with lubricating holes 135×140 70
Plain Bearing FB090-13580 CuSn8 wrapped bush with grease pockets FB092-13580 CuSn8 wrapped bush with lubricating holes 135×140 80
Plain Bearing FB090-13590 CuSn8 wrapped bush with grease pockets FB092-13590 CuSn8 wrapped bush with lubricating holes 135×140 90
Plain Bearing FB090-140100 CuSn8 wrapped bush with grease pockets FB092-140100 CuSn8 wrapped bush with lubricating holes 140×145 100
Plain Bearing FB090-14060 CuSn8 wrapped bush with grease pockets FB092-14060 CuSn8 wrapped bush with lubricating holes 140×145 60
Plain Bearing FB090-14070 CuSn8 wrapped bush with grease pockets FB092-14070 CuSn8 wrapped bush with lubricating holes 140×145 70
Plain Bearing FB090-14080 CuSn8 wrapped bush with grease pockets FB092-14080 CuSn8 wrapped bush with lubricating holes 140×145 80
Plain Bearing FB090-14090 CuSn8 wrapped bush with grease pockets FB092-14090 CuSn8 wrapped bush with lubricating holes 140×145 90
Plain Bearing FB090-145100 CuSn8 wrapped bush with grease pockets FB092-145100 CuSn8 wrapped bush with lubricating holes 145×150 100
Plain Bearing FB090-14560 CuSn8 wrapped bush with grease pockets FB092-14560 CuSn8 wrapped bush with lubricating holes 145×150 60
Plain Bearing FB090-14570 CuSn8 wrapped bush with grease pockets FB092-14570 CuSn8 wrapped bush with lubricating holes 145×150 70
Plain Bearing FB090-14580 CuSn8 wrapped bush with grease pockets FB092-14580 CuSn8 wrapped bush with lubricating holes 145×150 80
Plain Bearing FB090-14590 CuSn8 wrapped bush with grease pockets FB092-14590 CuSn8 wrapped bush with lubricating holes 145×150 90
Plain Bearing FB090-150100 CuSn8 wrapped bush with grease pockets FB092-150100 CuSn8 wrapped bush with lubricating holes 150×155 100
Plain Bearing FB090-15060 CuSn8 wrapped bush with grease pockets FB092-15060 CuSn8 wrapped bush with lubricating holes 150×155 60
Plain Bearing FB090-15070 CuSn8 wrapped bush with grease pockets FB092-15070 CuSn8 wrapped bush with lubricating holes 150×155 70
Plain Bearing FB090-15080 CuSn8 wrapped bush with grease pockets FB092-15080 CuSn8 wrapped bush with lubricating holes 150×155 80
Plain Bearing FB090-15090 CuSn8 wrapped bush with grease pockets FB092-15090 CuSn8 wrapped bush with lubricating holes 150×155 90
Plain Bearing FB090-155100 CuSn8 wrapped bush with grease pockets FB092-155100 CuSn8 wrapped bush with lubricating holes 155×160 100
Plain Bearing FB090-15560 CuSn8 wrapped bush with grease pockets FB092-15560 CuSn8 wrapped bush with lubricating holes 155×160 60
Plain Bearing FB090-15570 CuSn8 wrapped bush with grease pockets FB092-15570 CuSn8 wrapped bush with lubricating holes 155×160 70
Plain Bearing FB090-15580 CuSn8 wrapped bush with grease pockets FB092-15580 CuSn8 wrapped bush with lubricating holes 155×160 80
Plain Bearing FB090-15590 CuSn8 wrapped bush with grease pockets FB092-15590 CuSn8 wrapped bush with lubricating holes 155×160 90
Plain Bearing FB090-160100 CuSn8 wrapped bush with grease pockets FB092-160100 CuSn8 wrapped bush with lubricating holes 160×165 100
Plain Bearing FB090-16060 CuSn8 wrapped bush with grease pockets FB092-16060 CuSn8 wrapped bush with lubricating holes 160×165 60
Plain Bearing FB090-16070 CuSn8 wrapped bush with grease pockets FB092-16070 CuSn8 wrapped bush with lubricating holes 160×165 70
Plain Bearing FB090-16080 CuSn8 wrapped bush with grease pockets FB092-16080 CuSn8 wrapped bush with lubricating holes 160×165 80
Plain Bearing FB090-16090 CuSn8 wrapped bush with grease pockets FB092-16090 CuSn8 wrapped bush with lubricating holes 160×165 90
Plain Bearing FB090-165100 CuSn8 wrapped bush with grease pockets FB092-165100 CuSn8 wrapped bush with lubricating holes 165×170 100
Plain Bearing FB090-16560 CuSn8 wrapped bush with grease pockets FB092-16560 CuSn8 wrapped bush with lubricating holes 165×170 60
Plain Bearing FB090-16570 CuSn8 wrapped bush with grease pockets FB092-16570 CuSn8 wrapped bush with lubricating holes 165×170 70
Plain Bearing FB090-16580 CuSn8 wrapped bush with grease pockets FB092-16580 CuSn8 wrapped bush with lubricating holes 165×170 80
Plain Bearing FB090-16590 CuSn8 wrapped bush with grease pockets FB092-16590 CuSn8 wrapped bush with lubricating holes 165×170 90
Plain Bearing FB090-170100 CuSn8 wrapped bush with grease pockets FB092-170100 CuSn8 wrapped bush with lubricating holes 170×175 100
Plain Bearing FB090-17060 CuSn8 wrapped bush with grease pockets FB092-17060 CuSn8 wrapped bush with lubricating holes 170×175 60
Plain Bearing FB090-17070 CuSn8 wrapped bush with grease pockets FB092-17070 CuSn8 wrapped bush with lubricating holes 170×175 70
Plain Bearing FB090-17080 CuSn8 wrapped bush with grease pockets FB092-17080 CuSn8 wrapped bush with lubricating holes 170×175 80
Plain Bearing FB090-17090 CuSn8 wrapped bush with grease pockets FB092-17090 CuSn8 wrapped bush with lubricating holes 170×175 90
Plain Bearing FB090-175100 CuSn8 wrapped bush with grease pockets FB092-175100 CuSn8 wrapped bush with lubricating holes 175×180 100
Plain Bearing FB090-17560 CuSn8 wrapped bush with grease pockets FB092-17560 CuSn8 wrapped bush with lubricating holes 175×180 60
Plain Bearing FB090-17570 CuSn8 wrapped bush with grease pockets FB092-17570 CuSn8 wrapped bush with lubricating holes 175×180 70
Plain Bearing FB090-17580 CuSn8 wrapped bush with grease pockets FB092-17580 CuSn8 wrapped bush with lubricating holes 175×180 80
Plain Bearing FB090-17590 CuSn8 wrapped bush with grease pockets FB092-17590 CuSn8 wrapped bush with lubricating holes 175×180 90
Plain Bearing FB090-180100 CuSn8 wrapped bush with grease pockets FB092-180100 CuSn8 wrapped bush with lubricating holes 180×185 100
Plain Bearing FB090-18060 CuSn8 wrapped bush with grease pockets FB092-18060 CuSn8 wrapped bush with lubricating holes 180×185 60
Plain Bearing FB090-18070 CuSn8 wrapped bush with grease pockets FB092-18070 CuSn8 wrapped bush with lubricating holes 180×185 70
Plain Bearing FB090-18080 CuSn8 wrapped bush with grease pockets FB092-18080 CuSn8 wrapped bush with lubricating holes 180×185 80
Plain Bearing FB090-18090 CuSn8 wrapped bush with grease pockets FB092-18090 CuSn8 wrapped bush with lubricating holes 180×185 90
Plain Bearing FB090-185100 CuSn8 wrapped bush with grease pockets FB092-185100 CuSn8 wrapped bush with lubricating holes 185×190 100
Plain Bearing FB090-18560 CuSn8 wrapped bush with grease pockets FB092-18560 CuSn8 wrapped bush with lubricating holes 185×190 60
Plain Bearing FB090-18570 CuSn8 wrapped bush with grease pockets FB092-18570 CuSn8 wrapped bush with lubricating holes 185×190 70
Plain Bearing FB090-18580 CuSn8 wrapped bush with grease pockets FB092-18580 CuSn8 wrapped bush with lubricating holes 185×190 80
Plain Bearing FB090-18590 CuSn8 wrapped bush with grease pockets FB092-18590 CuSn8 wrapped bush with lubricating holes 185×190 90
Plain Bearing FB090-190100 CuSn8 wrapped bush with grease pockets FB092-190100 CuSn8 wrapped bush with lubricating holes 190×195 100
Plain Bearing FB090-19060 CuSn8 wrapped bush with grease pockets FB092-19060 CuSn8 wrapped bush with lubricating holes 190×195 60
Plain Bearing FB090-19070 CuSn8 wrapped bush with grease pockets FB092-19070 CuSn8 wrapped bush with lubricating holes 190×195 70
Plain Bearing FB090-19080 CuSn8 wrapped bush with grease pockets FB092-19080 CuSn8 wrapped bush with lubricating holes 190×195 80
Plain Bearing FB090-19090 CuSn8 wrapped bush with grease pockets FB092-19090 CuSn8 wrapped bush with lubricating holes 190×195 90
Plain Bearing FB090-195100 CuSn8 wrapped bush with grease pockets FB092-195100 CuSn8 wrapped bush with lubricating holes 195×200 100
Plain Bearing FB090-19560 CuSn8 wrapped bush with grease pockets FB092-19560 CuSn8 wrapped bush with lubricating holes 195×200 60
Plain Bearing FB090-19570 CuSn8 wrapped bush with grease pockets FB092-19570 CuSn8 wrapped bush with lubricating holes 195×200 70
Plain Bearing FB090-19580 CuSn8 wrapped bush with grease pockets FB092-19580 CuSn8 wrapped bush with lubricating holes 195×200 80
Plain Bearing FB090-19590 CuSn8 wrapped bush with grease pockets FB092-19590 CuSn8 wrapped bush with lubricating holes 195×200 90
Plain Bearing FB090-200100 CuSn8 wrapped bush with grease pockets FB092-200100 CuSn8 wrapped bush with lubricating holes 200×205 100
Plain Bearing FB090-20060 CuSn8 wrapped bush with grease pockets FB092-20060 CuSn8 wrapped bush with lubricating holes 200×205 60
Plain Bearing FB090-20070 CuSn8 wrapped bush with grease pockets FB092-20070 CuSn8 wrapped bush with lubricating holes 200×205 70
Plain Bearing FB090-20080 CuSn8 wrapped bush with grease pockets FB092-20080 CuSn8 wrapped bush with lubricating holes 200×205 80
Plain Bearing FB090-20090 CuSn8 wrapped bush with grease pockets FB092-20090 CuSn8 wrapped bush with lubricating holes 200×205 90
Plain Bearing FB090-205100 CuSn8 wrapped bush with grease pockets FB092-205100 CuSn8 wrapped bush with lubricating holes 205×210 100
Plain Bearing FB090-20560 CuSn8 wrapped bush with grease pockets FB092-20560 CuSn8 wrapped bush with lubricating holes 205×210 60
Plain Bearing FB090-20570 CuSn8 wrapped bush with grease pockets FB092-20570 CuSn8 wrapped bush with lubricating holes 205×210 70
Plain Bearing FB090-20580 CuSn8 wrapped bush with grease pockets FB092-20580 CuSn8 wrapped bush with lubricating holes 205×210 80
Plain Bearing FB090-20590 CuSn8 wrapped bush with grease pockets FB092-20590 CuSn8 wrapped bush with lubricating holes 205×210 90
Plain Bearing FB090-215100 CuSn8 wrapped bush with grease pockets FB092-215100 CuSn8 wrapped bush with lubricating holes 215×220 100
Plain Bearing FB090-21560 CuSn8 wrapped bush with grease pockets FB092-21560 CuSn8 wrapped bush with lubricating holes 215×220 60
Plain Bearing FB090-21570 CuSn8 wrapped bush with grease pockets FB092-21570 CuSn8 wrapped bush with lubricating holes 215×220 70
Plain Bearing FB090-21580 CuSn8 wrapped bush with grease pockets FB092-21580 CuSn8 wrapped bush with lubricating holes 215×220 80
Plain Bearing FB090-21590 CuSn8 wrapped bush with grease pockets FB092-21590 CuSn8 wrapped bush with lubricating holes 215×220 90
Plain Bearing FB090-225100 CuSn8 wrapped bush with grease pockets FB092-225100 CuSn8 wrapped bush with lubricating holes 225×230 100
Plain Bearing FB090-22560 CuSn8 wrapped bush with grease pockets FB092-22560 CuSn8 wrapped bush with lubricating holes 225×230 60
Plain Bearing FB090-22570 CuSn8 wrapped bush with grease pockets FB092-22570 CuSn8 wrapped bush with lubricating holes 225×230 70
Plain Bearing FB090-22580 CuSn8 wrapped bush with grease pockets FB092-22580 CuSn8 wrapped bush with lubricating holes 225×230 80
Plain Bearing FB090-22590 CuSn8 wrapped bush with grease pockets FB092-22590 CuSn8 wrapped bush with lubricating holes 225×230 90
Plain Bearing FB090-230100 CuSn8 wrapped bush with grease pockets FB092-230100 CuSn8 wrapped bush with lubricating holes 230×235 100
Plain Bearing FB090-23060 CuSn8 wrapped bush with grease pockets FB092-23060 CuSn8 wrapped bush with lubricating holes 230×235 60
Plain Bearing FB090-23070 CuSn8 wrapped bush with grease pockets FB092-23070 CuSn8 wrapped bush with lubricating holes 230×235 70
Plain Bearing FB090-23080 CuSn8 wrapped bush with grease pockets FB092-23080 CuSn8 wrapped bush with lubricating holes 230×235 80
Plain Bearing FB090-23090 CuSn8 wrapped bush with grease pockets FB092-23090 CuSn8 wrapped bush with lubricating holes 230×235 90
Plain Bearing FB090-240100 CuSn8 wrapped bush with grease pockets FB092-240100 CuSn8 wrapped bush with lubricating holes 240×245 100
Plain Bearing FB090-24060 CuSn8 wrapped bush with grease pockets FB092-24060 CuSn8 wrapped bush with lubricating holes 240×245 60
Plain Bearing FB090-24070 CuSn8 wrapped bush with grease pockets FB092-24070 CuSn8 wrapped bush with lubricating holes 240×245 70
Plain Bearing FB090-24080 CuSn8 wrapped bush with grease pockets FB092-24080 CuSn8 wrapped bush with lubricating holes 240×245 80
Plain Bearing FB090-24090 CuSn8 wrapped bush with grease pockets FB092-24090 CuSn8 wrapped bush with lubricating holes 240×245 90
Plain Bearing FB090-250100 CuSn8 wrapped bush with grease pockets FB092-250100 CuSn8 wrapped bush with lubricating holes 250×255 100
Plain Bearing FB090-25060 CuSn8 wrapped bush with grease pockets FB092-25060 CuSn8 wrapped bush with lubricating holes 250×255 60
Plain Bearing FB090-25070 CuSn8 wrapped bush with grease pockets FB092-25070 CuSn8 wrapped bush with lubricating holes 250×255 70
Plain Bearing FB090-25080 CuSn8 wrapped bush with grease pockets FB092-25080 CuSn8 wrapped bush with lubricating holes 250×255 80
Plain Bearing FB090-25090 CuSn8 wrapped bush with grease pockets FB092-25090 CuSn8 wrapped bush with lubricating holes 250×255 90
Plain Bearing FB090-260100 CuSn8 wrapped bush with grease pockets FB092-260100 CuSn8 wrapped bush with lubricating holes 260×265 100
Plain Bearing FB090-26060 CuSn8 wrapped bush with grease pockets FB092-26060 CuSn8 wrapped bush with lubricating holes 260×265 60
Plain Bearing FB090-26070 CuSn8 wrapped bush with grease pockets FB092-26070 CuSn8 wrapped bush with lubricating holes 260×265 70
Plain Bearing FB090-26080 CuSn8 wrapped bush with grease pockets FB092-26080 CuSn8 wrapped bush with lubricating holes 260×265 80
Plain Bearing FB090-26090 CuSn8 wrapped bush with grease pockets FB092-26090 CuSn8 wrapped bush with lubricating holes 260×265 90
Plain Bearing FB090-270100 CuSn8 wrapped bush with grease pockets FB092-270100 CuSn8 wrapped bush with lubricating holes 270×275 100
Plain Bearing FB090-27060 CuSn8 wrapped bush with grease pockets FB092-27060 CuSn8 wrapped bush with lubricating holes 270×275 60
Plain Bearing FB090-27070 CuSn8 wrapped bush with grease pockets FB092-27070 CuSn8 wrapped bush with lubricating holes 270×275 70
Plain Bearing FB090-27080 CuSn8 wrapped bush with grease pockets FB092-27080 CuSn8 wrapped bush with lubricating holes 270×275 80
Plain Bearing FB090-27090 CuSn8 wrapped bush with grease pockets FB092-27090 CuSn8 wrapped bush with lubricating holes 270×275 90
Plain Bearing FB090-280100 CuSn8 wrapped bush with grease pockets FB092-280100 CuSn8 wrapped bush with lubricating holes 280×285 100
Plain Bearing FB090-28060 CuSn8 wrapped bush with grease pockets FB092-28060 CuSn8 wrapped bush with lubricating holes 280×285 60
Plain Bearing FB090-28070 CuSn8 wrapped bush with grease pockets FB092-28070 CuSn8 wrapped bush with lubricating holes 280×285 70
Plain Bearing FB090-28080 CuSn8 wrapped bush with grease pockets FB092-28080 CuSn8 wrapped bush with lubricating holes 280×285 80
Plain Bearing FB090-28090 CuSn8 wrapped bush with grease pockets FB092-28090 CuSn8 wrapped bush with lubricating holes 280×285 90
Plain Bearing FB090-290100 CuSn8 wrapped bush with grease pockets FB092-290100 CuSn8 wrapped bush with lubricating holes 290×295 100
Plain Bearing FB090-29060 CuSn8 wrapped bush with grease pockets FB092-29060 CuSn8 wrapped bush with lubricating holes 290×295 60
Plain Bearing FB090-29070 CuSn8 wrapped bush with grease pockets FB092-29070 CuSn8 wrapped bush with lubricating holes 290×295 70
Plain Bearing FB090-29080 CuSn8 wrapped bush with grease pockets FB092-29080 CuSn8 wrapped bush with lubricating holes 290×295 80
Plain Bearing FB090-29090 CuSn8 wrapped bush with grease pockets FB092-29090 CuSn8 wrapped bush with lubricating holes 290×295 90
Plain Bearing FB090-300100 CuSn8 wrapped bush with grease pockets FB092-300100 CuSn8 wrapped bush with lubricating holes 300×305 100
Plain Bearing FB090-30060 CuSn8 wrapped bush with grease pockets FB092-30060 CuSn8 wrapped bush with lubricating holes 300×305 60
Plain Bearing FB090-30070 CuSn8 wrapped bush with grease pockets FB092-30070 CuSn8 wrapped bush with lubricating holes 300×305 70
Plain Bearing FB090-30080 CuSn8 wrapped bush with grease pockets FB092-30080 CuSn8 wrapped bush with lubricating holes 300×305 80
Plain Bearing FB090-30090 CuSn8 wrapped bush with grease pockets FB092-30090 CuSn8 wrapped bush with lubricating holes 300×305 90
Item FB090F Series Part No. Material FB092F Series Part No. Material Designation (bore×outer) L (mm) Flange Ø (mm)

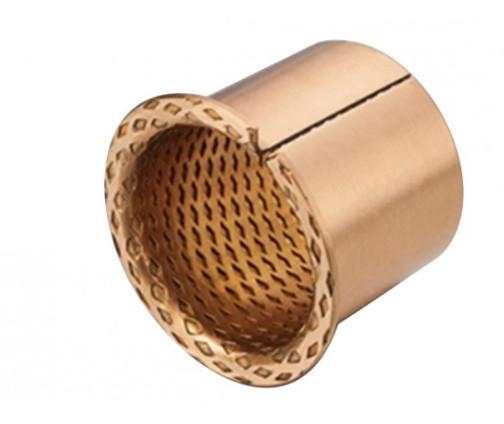

Flange Bushing FB090F-2515 CuSn8 wrapped bush with grease pockets FB092F-2515 CuSn8 wrapped bush with lubricating holes 25×28 15 35
Flange Bushing FB090F-2520 CuSn8 wrapped bush with grease pockets FB092F-2520 CuSn8 wrapped bush with lubricating holes 25×28 20 35
Flange Bushing FB090F-2525 CuSn8 wrapped bush with grease pockets FB092F-2525 CuSn8 wrapped bush with lubricating holes 25×28 25 35
Flange Bushing FB090F-3020 CuSn8 wrapped bush with grease pockets FB092F-3020 CuSn8 wrapped bush with lubricating holes 30×34 20 45
Flange Bushing FB090F-3025 CuSn8 wrapped bush with grease pockets FB092F-3025 CuSn8 wrapped bush with lubricating holes 30×34 25 45
Flange Bushing FB090F-3030 CuSn8 wrapped bush with grease pockets FB092F-3030 CuSn8 wrapped bush with lubricating holes 30×34 30 45
Flange Bushing FB090F-3520 CuSn8 wrapped bush with grease pockets FB092F-3520 CuSn8 wrapped bush with lubricating holes 35×39 20 50
Flange Bushing FB090F-3525 CuSn8 wrapped bush with grease pockets FB092F-3525 CuSn8 wrapped bush with lubricating holes 35×39 25 50
Flange Bushing FB090F-3530 CuSn8 wrapped bush with grease pockets FB092F-3530 CuSn8 wrapped bush with lubricating holes 35×39 30 50
Flange Bushing FB090F-3535 CuSn8 wrapped bush with grease pockets FB092F-3535 CuSn8 wrapped bush with lubricating holes 35×39 35 50
Flange Bushing FB090F-4025 CuSn8 wrapped bush with grease pockets FB092F-4025 CuSn8 wrapped bush with lubricating holes 40×44 25 55
Flange Bushing FB090F-4030 CuSn8 wrapped bush with grease pockets FB092F-4030 CuSn8 wrapped bush with lubricating holes 40×44 30 55
Flange Bushing FB090F-4035 CuSn8 wrapped bush with grease pockets FB092F-4035 CuSn8 wrapped bush with lubricating holes 40×44 35 55
Flange Bushing FB090F-4040 CuSn8 wrapped bush with grease pockets FB092F-4040 CuSn8 wrapped bush with lubricating holes 40×44 40 55
Flange Bushing FB090F-4530 CuSn8 wrapped bush with grease pockets FB092F-4530 CuSn8 wrapped bush with lubricating holes 45×50 30 60
Flange Bushing FB090F-4535 CuSn8 wrapped bush with grease pockets FB092F-4535 CuSn8 wrapped bush with lubricating holes 45×50 35 60
Flange Bushing FB090F-4540 CuSn8 wrapped bush with grease pockets FB092F-4540 CuSn8 wrapped bush with lubricating holes 45×50 40 60
Flange Bushing FB090F-4550 CuSn8 wrapped bush with grease pockets FB092F-4550 CuSn8 wrapped bush with lubricating holes 45×50 50 60
Flange Bushing FB090F-5030 CuSn8 wrapped bush with grease pockets FB092F-5030 CuSn8 wrapped bush with lubricating holes 50×55 30 65
Flange Bushing FB090F-5035 CuSn8 wrapped bush with grease pockets FB092F-5035 CuSn8 wrapped bush with lubricating holes 50×55 35 65
Flange Bushing FB090F-5040 CuSn8 wrapped bush with grease pockets FB092F-5040 CuSn8 wrapped bush with lubricating holes 50×55 40 65
Flange Bushing FB090F-5050 CuSn8 wrapped bush with grease pockets FB092F-5050 CuSn8 wrapped bush with lubricating holes 50×55 50 65
Flange Bushing FB090F-5530 CuSn8 wrapped bush with grease pockets FB092F-5530 CuSn8 wrapped bush with lubricating holes 55×60 30 70
Flange Bushing FB090F-5535 CuSn8 wrapped bush with grease pockets FB092F-5535 CuSn8 wrapped bush with lubricating holes 55×60 35 70
Flange Bushing FB090F-5540 CuSn8 wrapped bush with grease pockets FB092F-5540 CuSn8 wrapped bush with lubricating holes 55×60 40 70
Flange Bushing FB090F-5550 CuSn8 wrapped bush with grease pockets FB092F-5550 CuSn8 wrapped bush with lubricating holes 55×60 50 70
Flange Bushing FB090F-6030 CuSn8 wrapped bush with grease pockets FB092F-6030 CuSn8 wrapped bush with lubricating holes 60×65 30 75
Flange Bushing FB090F-6035 CuSn8 wrapped bush with grease pockets FB092F-6035 CuSn8 wrapped bush with lubricating holes 60×65 35 75
Flange Bushing FB090F-6040 CuSn8 wrapped bush with grease pockets FB092F-6040 CuSn8 wrapped bush with lubricating holes 60×65 40 75
Flange Bushing FB090F-6050 CuSn8 wrapped bush with grease pockets FB092F-6050 CuSn8 wrapped bush with lubricating holes 60×65 50 75
Flange Bushing FB090F-6060 CuSn8 wrapped bush with grease pockets FB092F-6060 CuSn8 wrapped bush with lubricating holes 60×65 60 75
Flange Bushing FB090F-6530 CuSn8 wrapped bush with grease pockets FB092F-6530 CuSn8 wrapped bush with lubricating holes 65×70 30 80
Flange Bushing FB090F-6535 CuSn8 wrapped bush with grease pockets FB092F-6535 CuSn8 wrapped bush with lubricating holes 65×70 35 80
Flange Bushing FB090F-6540 CuSn8 wrapped bush with grease pockets FB092F-6540 CuSn8 wrapped bush with lubricating holes 65×70 40 80
Flange Bushing FB090F-6550 CuSn8 wrapped bush with grease pockets FB092F-6550 CuSn8 wrapped bush with lubricating holes 65×70 50 80
Flange Bushing FB090F-6560 CuSn8 wrapped bush with grease pockets FB092F-6560 CuSn8 wrapped bush with lubricating holes 65×70 60 80
Flange Bushing FB090F-7035 CuSn8 wrapped bush with grease pockets FB092F-7035 CuSn8 wrapped bush with lubricating holes 70×75 35 85
Flange Bushing FB090F-7040 CuSn8 wrapped bush with grease pockets FB092F-7040 CuSn8 wrapped bush with lubricating holes 70×75 40 85
Flange Bushing FB090F-7050 CuSn8 wrapped bush with grease pockets FB092F-7050 CuSn8 wrapped bush with lubricating holes 70×75 50 85
Flange Bushing FB090F-7060 CuSn8 wrapped bush with grease pockets FB092F-7060 CuSn8 wrapped bush with lubricating holes 70×75 60 85
Flange Bushing FB090F-7070 CuSn8 wrapped bush with grease pockets FB092F-7070 CuSn8 wrapped bush with lubricating holes 70×75 70 85
Flange Bushing FB090F-7535 CuSn8 wrapped bush with grease pockets FB092F-7535 CuSn8 wrapped bush with lubricating holes 75×80 35 90
Flange Bushing FB090F-7540 CuSn8 wrapped bush with grease pockets FB092F-7540 CuSn8 wrapped bush with lubricating holes 75×80 40 90
Flange Bushing FB090F-7550 CuSn8 wrapped bush with grease pockets FB092F-7550 CuSn8 wrapped bush with lubricating holes 75×80 50 90
Flange Bushing FB090F-7560 CuSn8 wrapped bush with grease pockets FB092F-7560 CuSn8 wrapped bush with lubricating holes 75×80 60 90
Flange Bushing FB090F-7570 CuSn8 wrapped bush with grease pockets FB092F-7570 CuSn8 wrapped bush with lubricating holes 75×80 70 90
Flange Bushing FB090F-8035 CuSn8 wrapped bush with grease pockets FB092F-8035 CuSn8 wrapped bush with lubricating holes 80×85 35 100
Flange Bushing FB090F-8040 CuSn8 wrapped bush with grease pockets FB092F-8040 CuSn8 wrapped bush with lubricating holes 80×85 40 100
Flange Bushing FB090F-8050 CuSn8 wrapped bush with grease pockets FB092F-8050 CuSn8 wrapped bush with lubricating holes 80×85 50 100
Flange Bushing FB090F-8060 CuSn8 wrapped bush with grease pockets FB092F-8060 CuSn8 wrapped bush with lubricating holes 80×85 60 100
Flange Bushing FB090F-8070 CuSn8 wrapped bush with grease pockets FB092F-8070 CuSn8 wrapped bush with lubricating holes 80×85 70 100
Flange Bushing FB090F-8080 CuSn8 wrapped bush with grease pockets FB092F-8080 CuSn8 wrapped bush with lubricating holes 80×85 80 100
Flange Bushing FB090F-9040 CuSn8 wrapped bush with grease pockets FB092F-9040 CuSn8 wrapped bush with lubricating holes 90×95 40 110
Flange Bushing FB090F-9050 CuSn8 wrapped bush with grease pockets FB092F-9050 CuSn8 wrapped bush with lubricating holes 90×95 50 110
Flange Bushing FB090F-9060 CuSn8 wrapped bush with grease pockets FB092F-9060 CuSn8 wrapped bush with lubricating holes 90×95 60 110
Flange Bushing FB090F-9070 CuSn8 wrapped bush with grease pockets FB092F-9070 CuSn8 wrapped bush with lubricating holes 90×95 70 110
Flange Bushing FB090F-9080 CuSn8 wrapped bush with grease pockets FB092F-9080 CuSn8 wrapped bush with lubricating holes 90×95 80 110
Flange Bushing FB090F-9090 CuSn8 wrapped bush with grease pockets FB092F-9090 CuSn8 wrapped bush with lubricating holes 90×95 90 110
Flange Bushing FB090F-10050 CuSn8 wrapped bush with grease pockets FB092F-10050 CuSn8 wrapped bush with lubricating holes 100×105 50 120
Flange Bushing FB090F-10060 CuSn8 wrapped bush with grease pockets FB092F-10060 CuSn8 wrapped bush with lubricating holes 100×105 60 120
Flange Bushing FB090F-10070 CuSn8 wrapped bush with grease pockets FB092F-10070 CuSn8 wrapped bush with lubricating holes 100×105 70 120
Flange Bushing FB090F-10080 CuSn8 wrapped bush with grease pockets FB092F-10080 CuSn8 wrapped bush with lubricating holes 100×105 80 120
Flange Bushing FB090F-10090 CuSn8 wrapped bush with grease pockets FB092F-10090 CuSn8 wrapped bush with lubricating holes 100×105 90 120
Flange Bushing FB090F-11050 CuSn8 wrapped bush with grease pockets FB092F-11050 CuSn8 wrapped bush with lubricating holes 110×115 50 130
Flange Bushing FB090F-11060 CuSn8 wrapped bush with grease pockets FB092F-11060 CuSn8 wrapped bush with lubricating holes 110×115 60 130
Flange Bushing FB090F-11070 CuSn8 wrapped bush with grease pockets FB092F-11070 CuSn8 wrapped bush with lubricating holes 110×115 70 130
Flange Bushing FB090F-11080 CuSn8 wrapped bush with grease pockets FB092F-11080 CuSn8 wrapped bush with lubricating holes 110×115 80 130
Flange Bushing FB090F-11090 CuSn8 wrapped bush with grease pockets FB092F-11090 CuSn8 wrapped bush with lubricating holes 110×115 90 130
Flange Bushing FB090F-12050 CuSn8 wrapped bush with grease pockets FB092F-12050 CuSn8 wrapped bush with lubricating holes 120×125 50 140
Flange Bushing FB090F-12060 CuSn8 wrapped bush with grease pockets FB092F-12060 CuSn8 wrapped bush with lubricating holes 120×125 60 140
Flange Bushing FB090F-12070 CuSn8 wrapped bush with grease pockets FB092F-12070 CuSn8 wrapped bush with lubricating holes 120×125 70 140
Flange Bushing FB090F-12080 CuSn8 wrapped bush with grease pockets FB092F-12080 CuSn8 wrapped bush with lubricating holes 120×125 80 140
Flange Bushing FB090F-12090 CuSn8 wrapped bush with grease pockets FB092F-12090 CuSn8 wrapped bush with lubricating holes 120×125 90 140
Flange Bushing FB090F-13060 CuSn8 wrapped bush with grease pockets FB092F-13060 CuSn8 wrapped bush with lubricating holes 130×135 60 155
Flange Bushing FB090F-13070 CuSn8 wrapped bush with grease pockets FB092F-13070 CuSn8 wrapped bush with lubricating holes 130×135 70 155
Flange Bushing FB090F-13080 CuSn8 wrapped bush with grease pockets FB092F-13080 CuSn8 wrapped bush with lubricating holes 130×135 80 155
Flange Bushing FB090F-13090 CuSn8 wrapped bush with grease pockets FB092F-13090 CuSn8 wrapped bush with lubricating holes 130×135 90 155
Flange Bushing FB090F-14060 CuSn8 wrapped bush with grease pockets FB092F-14060 CuSn8 wrapped bush with lubricating holes 140×145 60 165
Flange Bushing FB090F-14070 CuSn8 wrapped bush with grease pockets FB092F-14070 CuSn8 wrapped bush with lubricating holes 140×145 70 165
Flange Bushing FB090F-14080 CuSn8 wrapped bush with grease pockets FB092F-14080 CuSn8 wrapped bush with lubricating holes 140×145 80 165
Flange Bushing FB090F-14090 CuSn8 wrapped bush with grease pockets FB092F-14090 CuSn8 wrapped bush with lubricating holes 140×145 90 165
Flange Bushing FB090F-15060 CuSn8 wrapped bush with grease pockets FB092F-15060 CuSn8 wrapped bush with lubricating holes 150×155 60 180
Flange Bushing FB090F-15070 CuSn8 wrapped bush with grease pockets FB092F-15070 CuSn8 wrapped bush with lubricating holes 150×155 70 180
Flange Bushing FB090F-15080 CuSn8 wrapped bush with grease pockets FB092F-15080 CuSn8 wrapped bush with lubricating holes 150×155 80 180
Flange Bushing FB090F-15090 CuSn8 wrapped bush with grease pockets FB092F-15090 CuSn8 wrapped bush with lubricating holes 150×155 90 180
Flange Bushing FB090F-16060 CuSn8 wrapped bush with grease pockets FB092F-16060 CuSn8 wrapped bush with lubricating holes 160×165 60 190
Flange Bushing FB090F-16070 CuSn8 wrapped bush with grease pockets FB092F-16070 CuSn8 wrapped bush with lubricating holes 160×165 70 190
Flange Bushing FB090F-16080 CuSn8 wrapped bush with grease pockets FB092F-16080 CuSn8 wrapped bush with lubricating holes 160×165 80 190
Flange Bushing FB090F-16090 CuSn8 wrapped bush with grease pockets FB092F-16090 CuSn8 wrapped bush with lubricating holes 160×165 90 190
Flange Bushing FB090F-17060 CuSn8 wrapped bush with grease pockets FB092F-17060 CuSn8 wrapped bush with lubricating holes 170×175 60 200
Flange Bushing FB090F-17070 CuSn8 wrapped bush with grease pockets FB092F-17070 CuSn8 wrapped bush with lubricating holes 170×175 70 200
Flange Bushing FB090F-17080 CuSn8 wrapped bush with grease pockets FB092F-17080 CuSn8 wrapped bush with lubricating holes 170×175 80 200
Flange Bushing FB090F-17090 CuSn8 wrapped bush with grease pockets FB092F-17090 CuSn8 wrapped bush with lubricating holes 170×175 90 200
Flange Bushing FB090F-18060 CuSn8 wrapped bush with grease pockets FB092F-18060 CuSn8 wrapped bush with lubricating holes 180×185 60 215
Flange Bushing FB090F-18070 CuSn8 wrapped bush with grease pockets FB092F-18070 CuSn8 wrapped bush with lubricating holes 180×185 70 215
Flange Bushing FB090F-18080 CuSn8 wrapped bush with grease pockets FB092F-18080 CuSn8 wrapped bush with lubricating holes 180×185 80 215
Flange Bushing FB090F-18090 CuSn8 wrapped bush with grease pockets FB092F-18090 CuSn8 wrapped bush with lubricating holes 180×185 90 215
Flange Bushing FB090F-19060 CuSn8 wrapped bush with grease pockets FB092F-19060 CuSn8 wrapped bush with lubricating holes 190×195 60 225
Flange Bushing FB090F-19070 CuSn8 wrapped bush with grease pockets FB092F-19070 CuSn8 wrapped bush with lubricating holes 190×195 70 225
Flange Bushing FB090F-19080 CuSn8 wrapped bush with grease pockets FB092F-19080 CuSn8 wrapped bush with lubricating holes 190×195 80 225
Flange Bushing FB090F-19090 CuSn8 wrapped bush with grease pockets FB092F-19090 CuSn8 wrapped bush with lubricating holes 190×195 90 225
Flange Bushing FB090F-20060 CuSn8 wrapped bush with grease pockets FB092F-20060 CuSn8 wrapped bush with lubricating holes 200×205 60 235
Flange Bushing FB090F-20070 CuSn8 wrapped bush with grease pockets FB092F-20070 CuSn8 wrapped bush with lubricating holes 200×205 70 235
Flange Bushing FB090F-20080 CuSn8 wrapped bush with grease pockets FB092F-20080 CuSn8 wrapped bush with lubricating holes 200×205 80 235
Flange Bushing FB090F-20090 CuSn8 wrapped bush with grease pockets FB092F-20090 CuSn8 wrapped bush with lubricating holes 200×205 90 235
Flange Bushing FB090F-22560 CuSn8 wrapped bush with grease pockets FB092F-22560 CuSn8 wrapped bush with lubricating holes 225×230 60 260
Flange Bushing FB090F-22570 CuSn8 wrapped bush with grease pockets FB092F-22570 CuSn8 wrapped bush with lubricating holes 225×230 70 260
Flange Bushing FB090F-22580 CuSn8 wrapped bush with grease pockets FB092F-22580 CuSn8 wrapped bush with lubricating holes 225×230 80 260
Flange Bushing FB090F-22590 CuSn8 wrapped bush with grease pockets FB092F-22590 CuSn8 wrapped bush with lubricating holes 225×230 90 260
Flange Bushing FB090F-25060 CuSn8 wrapped bush with grease pockets FB092F-25060 CuSn8 wrapped bush with lubricating holes 250×255 60 290
Flange Bushing FB090F-25070 CuSn8 wrapped bush with grease pockets FB092F-25070 CuSn8 wrapped bush with lubricating holes 250×255 70 290
Flange Bushing FB090F-25080 CuSn8 wrapped bush with grease pockets FB092F-25080 CuSn8 wrapped bush with lubricating holes 250×255 80 290
Flange Bushing FB090F-25090 CuSn8 wrapped bush with grease pockets FB092F-25090 CuSn8 wrapped bush with lubricating holes 250×255 90 290
Flange Bushing FB090F-26560 CuSn8 wrapped bush with grease pockets FB092F-26560 CuSn8 wrapped bush with lubricating holes 265×270 60 305
Flange Bushing FB090F-26570 CuSn8 wrapped bush with grease pockets FB092F-26570 CuSn8 wrapped bush with lubricating holes 265×270 70 305
Flange Bushing FB090F-26580 CuSn8 wrapped bush with grease pockets FB092F-26580 CuSn8 wrapped bush with lubricating holes 265×270 80 305
Flange Bushing FB090F-26590 CuSn8 wrapped bush with grease pockets FB092F-26590 CuSn8 wrapped bush with lubricating holes 265×270 90 305
Flange Bushing FB090F-28560 CuSn8 wrapped bush with grease pockets FB092F-28560 CuSn8 wrapped bush with lubricating holes 285×290 60 325
Flange Bushing FB090F-28570 CuSn8 wrapped bush with grease pockets FB092F-28570 CuSn8 wrapped bush with lubricating holes 285×290 70 325
Flange Bushing FB090F-28580 CuSn8 wrapped bush with grease pockets FB092F-28580 CuSn8 wrapped bush with lubricating holes 285×290 80 325
Flange Bushing FB090F-28590 CuSn8 wrapped bush with grease pockets FB092F-28590 CuSn8 wrapped bush with lubricating holes 285×290 90 325
Flange Bushing FB090F-30060 CuSn8 wrapped bush with grease pockets FB092F-30060 CuSn8 wrapped bush with lubricating holes 300×305 60 340
Flange Bushing FB090F-30070 CuSn8 wrapped bush with grease pockets FB092F-30070 CuSn8 wrapped bush with lubricating holes 300×305 70 340
Flange Bushing FB090F-30080 CuSn8 wrapped bush with grease pockets FB092F-30080 CuSn8 wrapped bush with lubricating holes 300×305 80 340
Flange Bushing FB090F-30090 CuSn8 wrapped bush with grease pockets FB092F-30090 CuSn8 wrapped bush with lubricating holes 300×305 90 340

FOLLOW US ON

High Load Capacity Bronze Bushing Without Perforation / Flange

https://www.viiplus.com

Send your message to this supplier
Send Now

High Load Capacity Bronze Bushing Without Perforation / Flange

Ask Latest Price
Product Detail
Feature :
High temperature resistance,Wear resistance,corrosion resistance
Gleitalger :
A plain bearing, or more commonly sliding contact bearing and slide bearing, is the simplest type of bearing, comprising just a bearing surface and no rolling elements. Therefore, the journal slides over the bearing surface. The simplest example of a plain
Performance :
High load capacity and long life
Logo :
Customized Logo
Bushings Thinkness :
bushing max. thickness of 2.5mm.
Model Number: :
E90F E92F E90 E92 BUSHINGS
Contact Supplier
High Load Capacity Bronze Bushing Without Perforation / Flange
High Load Capacity Bronze Bushing Without Perforation / Flange
High Load Capacity Bronze Bushing Without Perforation / Flange
High Load Capacity Bronze Bushing Without Perforation / Flange
High Load Capacity Bronze Bushing Without Perforation / Flange
High Load Capacity Bronze Bushing Without Perforation / Flange

JIAXING VIIPLUS INTERNATIO NAL CO.,LTD

Site Member
9 Years
zhejiang
Business Type :
Importer, Exporter, Seller, Other
Main Products :
Oilless Bushes, Solid Bronze Bearing, Wrapped Bronze Bearings
Certification Level :
Site Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Bronze Gleitlager
MachineU China Products Machinery Machine Tool Equipment Machine Tools Accessories Other Machine Tools Accessories
Contact Supplier
Submit Requirement
