Pillow Blocks Matching Graphite Self Lubricating Bronze Bushings

Specifications

Application field :

Automobile production line, hydraulic engineering, reservoir gate, injection molding machine, continuous casting machine, metallurgical machinery, mining machinery

Gleitalger :

A plain bearing, or more commonly sliding contact bearing and slide bearing, is the simplest type of bearing, comprising just a bearing surface and no rolling elements. Therefore, the journal slides over the bearing surface. The simplest example of a plain

Lubrication :

graphite

Get A Better Quote :

tiffany@viiplus.com

Bush Bearings Manufacturers Suppliers Exporters :

plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/

Type :

sleeve

High Light: :

Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing

Size :

It can be designed according to the standard or according to the customer's requirements

Features :

can be used for a long time without maintenance

Brand Name :

viiplus Graphite self-lubricating bearings

Model Number :

Graphite self-lubricating bearings

Certification :

Metric size and inch size bushing

Place of Origin :

gleitlagerbuchsen china

MOQ :

negotiable

Price :

negotiable

Payment Terms :

MoneyGram, Western Union, T/T

Supply Ability :

bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Delivery Time :

7-25 work days

Packaging Details :

Export Carton Wood Pallet Wooden Case

Material :

C86300+graphite

Self-lubricating Bearing Bushing Manufacturer :

https://www.viiplus.com/

Description

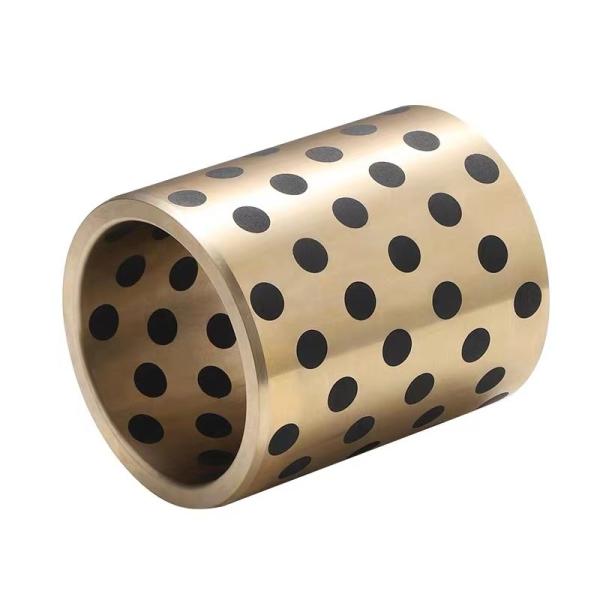

Pillow Blocks Matching Graphite Self-Lubricating Bronze Bushings are mechanical components that are designed to provide smooth and reliable rotational movement while supporting a rotating shaft. These pillow blocks are specifically paired with graphite self-lubricating bronze bushings, which offer several advantages over traditional lubrication methods.

Graphite self-lubricating bronze bushings are made from a bronze alloy that contains graphite particles embedded within the material. These graphite particles act as natural lubricants, reducing friction and wear between the rotating shaft and the bushing surface. This eliminates the need for external lubrication, making the pillow block system more maintenance-free and reliable.

The pillow block housing is typically made from cast iron or steel and is designed to securely mount the bronze bushing in place. The housing also provides protection for the bushing, keeping it free from dirt, debris, and other contaminants that could potentially damage the surface.

The combination of the pillow block housing and the graphite self-lubricating bronze bushing creates a robust and reliable bearing system. These pillow blocks are commonly used in a wide range of industrial applications, including machinery, conveyors, pumps, and other rotating equipment.

In summary, pillow blocks matching graphite self-lubricating bronze bushings offer a maintenance-free and reliable bearing solution for rotating equipment. The graphite particles embedded in the bronze bushing provide natural lubrication, reducing friction and wear, while the pillow block housing securely mounts and protects the bushing.

Oilless Bushing | Self-lubricating bearings, Maintenance-free Graphite Plugged Bronze Bearing

Name: Pillow Blocks Matching Graphite Self Lubricating Bronze Bushings
Brand: viiplus Graphite self-lubricating bearings
Price: 1 USD

Choose from our selection of pillow block bushings, including mounted sleeve bearings, graphite plugged sleeve bearings, and more.

Pillow block bearing, self lubricating

Pillow block bearing Properties

Base Material:	Special Brass (pillow block bearing)
Self-lubricating:	Yes
Lubricant:	Graphite
Surface Pressure P:	100 N/mm²
Sliding speed v:	30 m/min
P*v-value:	200 N/mm² x m/min
Operating temperature:	-50°C / +200°C (max. 300°C)
Friction coefficient:	0,07

Pillow - Blocks graphite self-lubricating bearing introduction

Graphite self-lubricating bearing, high-performance maintenance-free bearing, graphite bearing sleeve has high wear resistance and corrosion resistance. Graphite particles generated in graphite work can lubricate the bearing well, but it is not suitable for the working environment with environmental requirements.

You can choose the bearing structure

Type:-Flanged
-Solid Bronze
-Welded Joint
-Split Joint
-Clench Lock
-Sintered / Powder Metal
-Graphite Impregnated

Pillow Blocks Matching Graphite Self Lubricating Bronze Bushings

You can choose from graphite self-lubricating bearing materials there

GCr15(GB/T18254-2016)=52100(ASTM/UNS)=100Cr6(DIN)Chemical composition quality/%

C	Si	Mn	Mo	Cr
0.95-1.05	0.15-0.35	0.25-0.45	≤0.10	1.40-1.65

ZCuSn6Zn6Pb3(GB1776-87)=ZQSn6-6-3(GB 1176-74)=GB-CuSn5Zn5Pb5(DIN)=C83600(ASTM) Chemical composition quality/%
Cu	Sn	Al	Fe	Mn	Ni	Pb	Si	P	Zn
84.0-86.0	4.0-6.0	ma'x 0.005	max 0.3	-	max 1	max 4.0-6.0	max 0.005	max 0.05	max 4.0-6.0

CuZn25A16Fe3Mn3(GB/T 1176-1987)=G-CuZn25Al5(DIN)=C86300(ASTM) Chemical composition quality/%
Chemical composition quality/%
Cu	Sn	Al	Fe	Mn	Ni	Pb	Si	P	Zn
60-66	0.2	5.0-7.5	2.0-4.0	2.5-5.0	1	0.2	_	_	_

VSB-JDB-1	VSB-JDB-2			VSB-JDB-3	VSB-JDB-4	VSB-JDB-5
VSB-JDB-1	VSB-JDB-2	VSB-JDB-22	VSB-JDB-23	VSB-JDB-3	VSB-JDB-4	VSB-JDB-5
GB1776-87	ZCuZn25 Al6Fe3Mn3	ZCuSn6Zn6Pb3	ZCuAl10Fe3	ZCuSu10P1	Steel+ ZCuSn6Zn6Pb3	HT250	GCr15
ISO1338	GCuZn25 Al6Fe3Mn3	GCuSn6Zn6Pb3	GCuAl10Fe3	-	Steel+ CuSn6Zn6Pb3 Fe3Ni5	-	B1
DIN	G-CuZn25 Al5	GB-CuSn5Zn5Pb5	GB-CuAl10Ni	GB-CuSn10	Steel+ CuSn6Zn6Pb3Ni	-	100Cr6
JIS	HBsC4	BC6	AIBC3	BC3	BC6	FC250	SUJ2
ASTM/UNS	C86300	C83600	C95500	C90500	C83600	Class40	52100
(BS)	HTB2	LG2	AB1	PB4	LG2	-	-

Pillow Blocks Matching Graphite Self Lubricating Bronze Bushings

You need to know more about the products you can choose

The following PDF is about the product information of CuZn25A16Fe3Mn3 (C86300) in our company. You can choose different product types or raw materials, or you can customize the size and arrangement of graphite. In general, our company produces products according to ISO 4379 standard.

Graphite self-lubricating bearing.pdf

haft		housing		ID	OD	Wall thickness	Oil hole	L 0 -0.40
h8		H7		d	D	T	h-	10	12	15	20	25	30
10	0 -0.022	12	+0.018 0	10	12	0.980 0.955	4	1010	1012	1015	1020
12	0 -0.027	14	"	12	14	"	"	1210	1212	1215	1220	1225
14	"	16	"	14	16	"	"			1415	1420	1425
15	"	17	"	15	17	"	"	1510	1512	1515		1525
16	"	18	"	16	18	"	"			1615	1620	1625
18	"	20	+0.021 0	18	20	"	"			1815	1820	1825
20	0 -0.033	23	"	20	23	1.475 1.445	"			2015	2020	2025	2030
22	"	25	"	22	25	"	6			2215	2220	2225	2230
24	"	27	"	24	27	"	"			2415	2420	2425	2430
25	"	28	"	25	28	"	"			2515	2520	2525	2530
28	"	32	+0.025 0	28	32	1.970 1.935	"				2820	2825	2830
30	"	34	"	30	34	"					3020		3030
32	0 -0.039	36	"	32	36	"	"				3220		3230
35	"	39	"	35	39	"	"				3520		3530
36	"	40	"	36	40	"	"
37	"	41	"	37	41	"	"				3720
40	"	44	"	40	44	"	8				4020		4030
45	"	50	"	45	50	2.460 2.415	"				4520		4530
50	"	55	+0.030 0	50	55	"	"
55	0 -0.046	60	"	55	60	"	"				5520
60	"	65	"	60	65	"	"

he advantages of our company

Pillow Blocks Matching Graphite Self Lubricating Bronze Bushings

Universities accurate fast global on time fast transport

So contact us We have many ways to transport it

Pillow Blocks Matching Graphite Self Lubricating Bronze Bushings

JDB · Solid Self-Lubricating Inlaid Bearing · L tol. -0.10/-0.30 · Unit: mm
No.	Part No.	Unique Key	d Bore (mm)	D OD (mm)	L Length (mm)	L Tol.	d Tol. (F7)	D Tol. (m6)	Remarks
1	81208	JDB-08-12-8	8	12	8	-0.10/-0.30	+0.028/+0.013	+0.018/+0.007
2	81210	JDB-08-12-10	8	12	10	-0.10/-0.30	+0.028/+0.013	+0.018/+0.007
3	81212	JDB-08-12-12	8	12	12	-0.10/-0.30	+0.028/+0.013	+0.018/+0.007
4	81215	JDB-08-12-15	8	12	15	-0.10/-0.30	+0.028/+0.013	+0.018/+0.007
5	101408	JDB-10-14-8	10	14	8	-0.10/-0.30	+0.028/+0.013	+0.018/+0.007
6	101410	JDB-10-14-10	10	14	10	-0.10/-0.30	+0.028/+0.013	+0.018/+0.007
7	101412	JDB-10-14-12	10	14	12	-0.10/-0.30	+0.028/+0.013	+0.018/+0.007
8	101415	JDB-10-14-15	10	14	15	-0.10/-0.30	+0.028/+0.013	+0.018/+0.007
9	101416	JDB-10-14-16	10	14	16	-0.10/-0.30	+0.028/+0.013	+0.018/+0.007
10	101420	JDB-10-14-20	10	14	20	-0.10/-0.30	+0.028/+0.013	+0.018/+0.007
11	121810	JDB-12-18-10	12	18	10	-0.10/-0.30	+0.034/+0.016	+0.018/+0.007
12	121812	JDB-12-18-12	12	18	12	-0.10/-0.30	+0.034/+0.016	+0.018/+0.007
13	121815	JDB-12-18-15	12	18	15	-0.10/-0.30	+0.034/+0.016	+0.018/+0.007
14	121816	JDB-12-18-16	12	18	16	-0.10/-0.30	+0.034/+0.016	+0.018/+0.007
15	121820	JDB-12-18-20	12	18	20	-0.10/-0.30	+0.034/+0.016	+0.018/+0.007
16	121825	JDB-12-18-25	12	18	25	-0.10/-0.30	+0.034/+0.016	+0.018/+0.007
17	121830	JDB-12-18-30	12	18	30	-0.10/-0.30	+0.034/+0.016	+0.018/+0.007
18	131910	JDB-13-19-10	13	19	10	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
19	131912	JDB-13-19-12	13	19	12	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
20	131915	JDB-13-19-15	13	19	15	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
21	131916	JDB-13-19-16	13	19	16	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
22	131920	JDB-13-19-20	13	19	20	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
23	131925	JDB-13-19-25	13	19	25	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
24	131930	JDB-13-19-30	13	19	30	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
25	142010	JDB-14-20-10	14	20	10	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
26	142012	JDB-14-20-12	14	20	12	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
27	142015	JDB-14-20-15	14	20	15	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
28	142016	JDB-14-20-16	14	20	16	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
29	142020	JDB-14-20-20	14	20	20	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
30	142025	JDB-14-20-25	14	20	25	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
31	142030	JDB-14-20-30	14	20	30	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
32	152110	JDB-15-21-10	15	21	10	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
33	152112	JDB-15-21-12	15	21	12	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
34	152115	JDB-15-21-15	15	21	15	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
35	152116	JDB-15-21-16	15	21	16	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
36	152120	JDB-15-21-20	15	21	20	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
37	152125	JDB-15-21-25	15	21	25	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
38	152130	JDB-15-21-30	15	21	30	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
39	152135	JDB-15-21-35	15	21	35	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
40	162210	JDB-16-22-10	16	22	10	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
41	162212	JDB-16-22-12	16	22	12	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
42	162215	JDB-16-22-15	16	22	15	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
43	162216	JDB-16-22-16	16	22	16	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
44	162220	JDB-16-22-20	16	22	20	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
45	162225	JDB-16-22-25	16	22	25	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
46	162230	JDB-16-22-30	16	22	30	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
47	162235	JDB-16-22-35	16	22	35	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
48	162240	JDB-16-22-40	16	22	40	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
49	182410	JDB-18-24-10	18	24	10	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
50	182412	JDB-18-24-12	18	24	12	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
51	182415	JDB-18-24-15	18	24	15	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
52	182416	JDB-18-24-16	18	24	16	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
53	182420	JDB-18-24-20	18	24	20	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
54	182425	JDB-18-24-25	18	24	25	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
55	182430	JDB-18-24-30	18	24	30	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
56	182435	JDB-18-24-35	18	24	35	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
57	182440	JDB-18-24-40	18	24	40	-0.10/-0.30	+0.034/+0.016	+0.021/+0.008
58	202810	JDB-20-28-10	20	28	10	-0.10/-0.30	+0.041/+0.020	+0.021/+0.008
59	202812	JDB-20-28-12	20	28	12	-0.10/-0.30	+0.041/+0.020	+0.021/+0.008
60	202815	JDB-20-28-15	20	28	15	-0.10/-0.30	+0.041/+0.020	+0.021/+0.008
61	202816	JDB-20-28-16	20	28	16	-0.10/-0.30	+0.041/+0.020	+0.021/+0.008
62	202820	JDB-20-28-20	20	28	20	-0.10/-0.30	+0.041/+0.020	+0.021/+0.008
63	202825	JDB-20-28-25	20	28	25	-0.10/-0.30	+0.041/+0.020	+0.021/+0.008
64	202830	JDB-20-28-30	20	28	30	-0.10/-0.30	+0.041/+0.020	+0.021/+0.008
65	202835	JDB-20-28-35	20	28	35	-0.10/-0.30	+0.041/+0.020	+0.021/+0.008
66	202840	JDB-20-28-40	20	28	40	-0.10/-0.30	+0.041/+0.020	+0.021/+0.008
67	202850	JDB-20-28-50	20	28	50	-0.10/-0.30	+0.041/+0.020	+0.021/+0.008
68	223212	JDB-22-32-12	22	32	12	-0.10/-0.30	+0.041/+0.020	+0.021/+0.008
69	223215	JDB-22-32-15	22	32	15	-0.10/-0.30	+0.041/+0.020	+0.021/+0.008
70	223216	JDB-22-32-16	22	32	16	-0.10/-0.30	+0.041/+0.020	+0.021/+0.008
71	223220	JDB-22-32-20	22	32	20	-0.10/-0.30	+0.041/+0.020	+0.021/+0.008
72	223225	JDB-22-32-25	22	32	25	-0.10/-0.30	+0.041/+0.020	+0.021/+0.008
73	223230	JDB-22-32-30	22	32	30	-0.10/-0.30	+0.041/+0.020	+0.021/+0.008
74	223235	JDB-22-32-35	22	32	35	-0.10/-0.30	+0.041/+0.020	+0.021/+0.008
75	223240	JDB-22-32-40	22	32	40	-0.10/-0.30	+0.041/+0.020	+0.021/+0.008
76	223250	JDB-22-32-50	22	32	50	-0.10/-0.30	+0.041/+0.020	+0.021/+0.008
77	253312	JDB-25-33-12	25	33	12	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
78	253315	JDB-25-33-15	25	33	15	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
79	253316	JDB-25-33-16	25	33	16	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
80	253320	JDB-25-33-20	25	33	20	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
81	253325	JDB-25-33-25	25	33	25	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
82	253330	JDB-25-33-30	25	33	30	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
83	253335	JDB-25-33-35	25	33	35	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
84	253340	JDB-25-33-40	25	33	40	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
85	253350	JDB-25-33-50	25	33	50	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
86	253360	JDB-25-33-60	25	33	60	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
87	303812	JDB-30-38-12	30	38	12	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
88	303815	JDB-30-38-15	30	38	15	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
89	303816	JDB-30-38-16	30	38	16	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
90	303820	JDB-30-38-20	30	38	20	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
91	303825	JDB-30-38-25	30	38	25	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
92	303830	JDB-30-38-30	30	38	30	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
93	303835	JDB-30-38-35	30	38	35	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
94	303840	JDB-30-38-40	30	38	40	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
95	303850	JDB-30-38-50	30	38	50	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
96	303860	JDB-30-38-60	30	38	60	-0.10/-0.30	+0.041/+0.020	+0.025/+0.009
97	354520	JDB-35-45-20	35	45	20	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
98	354525	JDB-35-45-25	35	45	25	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
99	354530	JDB-35-45-30	35	45	30	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
100	354535	JDB-35-45-35	35	45	35	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
101	354540	JDB-35-45-40	35	45	40	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
102	354550	JDB-35-45-50	35	45	50	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
103	354560	JDB-35-45-60	35	45	60	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
104	354570	JDB-35-45-70	35	45	70	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
105	405020	JDB-40-50-20	40	50	20	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
106	405025	JDB-40-50-25	40	50	25	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
107	405030	JDB-40-50-30	40	50	30	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
108	405035	JDB-40-50-35	40	50	35	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
109	405040	JDB-40-50-40	40	50	40	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
110	405050	JDB-40-50-50	40	50	50	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
111	405060	JDB-40-50-60	40	50	60	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
112	405070	JDB-40-50-70	40	50	70	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
113	405080	JDB-40-50-80	40	50	80	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
114	455530	JDB-45-55-30	45	55	30	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
115	455535	JDB-45-55-35	45	55	35	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
116	455540	JDB-45-55-40	45	55	40	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
117	455550	JDB-45-55-50	45	55	50	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
118	455560	JDB-45-55-60	45	55	60	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
119	455570	JDB-45-55-70	45	55	70	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
120	455580	JDB-45-55-80	45	55	80	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
121	506030	JDB-50-60-30	50	60	30	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
122	506035	JDB-50-60-35	50	60	35	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
123	506040	JDB-50-60-40	50	60	40	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
124	506050	JDB-50-60-50	50	60	50	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
125	506060	JDB-50-60-60	50	60	60	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
126	506070	JDB-50-60-70	50	60	70	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
127	506080	JDB-50-60-80	50	60	80	-0.10/-0.30	+0.050/+0.025	+0.025/+0.009
128	506230	JDB-50-62-30	50	62	30	-0.10/-0.30	+0.050/+0.025	+0.030/+0.011
129	506235	JDB-50-62-35	50	62	35	-0.10/-0.30	+0.050/+0.025	+0.030/+0.011
130	506240	JDB-50-62-40	50	62	40	-0.10/-0.30	+0.050/+0.025	+0.030/+0.011
131	506250	JDB-50-62-50	50	62	50	-0.10/-0.30	+0.050/+0.025	+0.030/+0.011
132	506260	JDB-50-62-60	50	62	60	-0.10/-0.30	+0.050/+0.025	+0.030/+0.011
133	506270	JDB-50-62-70	50	62	70	-0.10/-0.30	+0.050/+0.025	+0.030/+0.011
134	506530	JDB-50-65-30	50	65	30	-0.10/-0.30	+0.050/+0.025	+0.030/+0.011
135	506535	JDB-50-65-35	50	65	35	-0.10/-0.30	+0.050/+0.025	+0.030/+0.011
136	506540	JDB-50-65-40	50	65	40	-0.10/-0.30	+0.050/+0.025	+0.030/+0.011
137	506550	JDB-50-65-50	50	65	50	-0.10/-0.30	+0.050/+0.025	+0.030/+0.011
138	506560	JDB-50-65-60	50	65	60	-0.10/-0.30	+0.050/+0.025	+0.030/+0.011
139	506570	JDB-50-65-70	50	65	70	-0.10/-0.30	+0.050/+0.025	+0.030/+0.011
140	506580	JDB-50-65-80	50	65	80	-0.10/-0.30	+0.050/+0.025	+0.030/+0.011
141	5065100	JDB-50-65-100	50	65	100	-0.10/-0.30	+0.050/+0.025	+0.030/+0.011
142	557030	JDB-55-70-30	55	70	30	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
143	557035	JDB-55-70-35	55	70	35	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
144	557040	JDB-55-70-40	55	70	40	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
145	557050	JDB-55-70-50	55	70	50	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
146	557060	JDB-55-70-60	55	70	60	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
147	557070	JDB-55-70-70	55	70	70	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
148	557080	JDB-55-70-80	55	70	80	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
149	5570100	JDB-55-70-100	55	70	100	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
150	607430	JDB-60-74-30	60	74	30	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
151	607435	JDB-60-74-35	60	74	35	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
152	607440	JDB-60-74-40	60	74	40	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
153	607450	JDB-60-74-50	60	74	50	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
154	607460	JDB-60-74-60	60	74	60	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
155	607470	JDB-60-74-70	60	74	70	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
156	607480	JDB-60-74-80	60	74	80	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
157	6074100	JDB-60-74-100	60	74	100	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
158	607530	JDB-60-75-30	60	75	30	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
159	607535	JDB-60-75-35	60	75	35	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
160	607540	JDB-60-75-40	60	75	40	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
161	607550	JDB-60-75-50	60	75	50	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
162	607560	JDB-60-75-60	60	75	60	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
163	607570	JDB-60-75-70	60	75	70	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
164	607580	JDB-60-75-80	60	75	80	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
165	6075100	JDB-60-75-100	60	75	100	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
166	637535	JDB-63-75-35	63	75	35	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
167	637540	JDB-63-75-40	63	75	40	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
168	637550	JDB-63-75-50	63	75	50	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
169	637560	JDB-63-75-60	63	75	60	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
170	637570	JDB-63-75-70	63	75	70	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
171	637580	JDB-63-75-80	63	75	80	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
172	6375100	JDB-63-75-100	63	75	100	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
173	658035	JDB-65-80-35	65	80	35	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
174	658040	JDB-65-80-40	65	80	40	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
175	658050	JDB-65-80-50	65	80	50	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
176	658060	JDB-65-80-60	65	80	60	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
177	658070	JDB-65-80-70	65	80	70	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
178	658080	JDB-65-80-80	65	80	80	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
179	6580100	JDB-65-80-100	65	80	100	-0.10/-0.30	+0.060/+0.030	+0.030/+0.011
180	708535	JDB-70-85-35	70	85	35	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
181	708540	JDB-70-85-40	70	85	40	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
182	708550	JDB-70-85-50	70	85	50	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
183	708560	JDB-70-85-60	70	85	60	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
184	708570	JDB-70-85-70	70	85	70	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
185	708580	JDB-70-85-80	70	85	80	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
186	7085100	JDB-70-85-100	70	85	100	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
187	709035	JDB-70-90-35	70	90	35	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
188	709040	JDB-70-90-40	70	90	40	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
189	709050	JDB-70-90-50	70	90	50	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
190	709060	JDB-70-90-60	70	90	60	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
191	709070	JDB-70-90-70	70	90	70	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
192	709080	JDB-70-90-80	70	90	80	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
193	7090100	JDB-70-90-100	70	90	100	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
194	759040	JDB-75-90-40	75	90	40	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
195	759050	JDB-75-90-50	75	90	50	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
196	759060	JDB-75-90-60	75	90	60	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
197	759070	JDB-75-90-70	75	90	70	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
198	759080	JDB-75-90-80	75	90	80	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
199	7590100	JDB-75-90-100	75	90	100	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
200	759540	JDB-75-95-40	75	95	40	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
201	759550	JDB-75-95-50	75	95	50	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
202	759560	JDB-75-95-60	75	95	60	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
203	759570	JDB-75-95-70	75	95	70	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
204	759580	JDB-75-95-80	75	95	80	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
205	7595100	JDB-75-95-100	75	95	100	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
206	7595120	JDB-75-95-120	75	95	120	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
207	809640	JDB-80-96-40	80	96	40	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
208	809650	JDB-80-96-50	80	96	50	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
209	809660	JDB-80-96-60	80	96	60	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
210	809670	JDB-80-96-70	80	96	70	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
211	809680	JDB-80-96-80	80	96	80	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
212	8096100	JDB-80-96-100	80	96	100	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
213	8096120	JDB-80-96-120	80	96	120	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
214	8096130	JDB-80-96-130	80	96	130	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
215	8010040	JDB-80-100-40	80	100	40	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
216	8010050	JDB-80-100-50	80	100	50	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
217	8010060	JDB-80-100-60	80	100	60	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
218	8010070	JDB-80-100-70	80	100	70	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
219	8010080	JDB-80-100-80	80	100	80	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
220	80100100	JDB-80-100-100	80	100	100	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
221	80100120	JDB-80-100-120	80	100	120	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
222	80100130	JDB-80-100-130	80	100	130	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
223	80100140	JDB-80-100-140	80	100	140	-0.10/-0.30	+0.060/+0.030	+0.035/+0.013
224	9011050	JDB-90-110-50	90	110	50	-0.10/-0.30	+0.071/+0.036	+0.035/+0.013
225	9011060	JDB-90-110-60	90	110	60	-0.10/-0.30	+0.071/+0.036	+0.035/+0.013
226	9011070	JDB-90-110-70	90	110	70	-0.10/-0.30	+0.071/+0.036	+0.035/+0.013
227	9011080	JDB-90-110-80	90	110	80	-0.10/-0.30	+0.071/+0.036	+0.035/+0.013
228	90110100	JDB-90-110-100	90	110	100	-0.10/-0.30	+0.071/+0.036	+0.035/+0.013
229	90110120	JDB-90-110-120	90	110	120	-0.10/-0.30	+0.071/+0.036	+0.035/+0.013
230	90110130	JDB-90-110-130	90	110	130	-0.10/-0.30	+0.071/+0.036	+0.035/+0.013
231	90110140	JDB-90-110-140	90	110	140	-0.10/-0.30	+0.071/+0.036	+0.035/+0.013
232	10012060	JDB-100-120-60	100	120	60	-0.10/-0.30	+0.071/+0.036	+0.035/+0.013
233	10012070	JDB-100-120-70	100	120	70	-0.10/-0.30	+0.071/+0.036	+0.035/+0.013
234	10012080	JDB-100-120-80	100	120	80	-0.10/-0.30	+0.071/+0.036	+0.035/+0.013
235	100120100	JDB-100-120-100	100	120	100	-0.10/-0.30	+0.071/+0.036	+0.035/+0.013
236	100120120	JDB-100-120-120	100	120	120	-0.10/-0.30	+0.071/+0.036	+0.035/+0.013
237	100120130	JDB-100-120-130	100	120	130	-0.10/-0.30	+0.071/+0.036	+0.035/+0.013
238	100120140	JDB-100-120-140	100	120	140	-0.10/-0.30	+0.071/+0.036	+0.035/+0.013
239	11013080	JDB-110-130-80	110	130	80	-0.10/-0.30	+0.071/+0.036	+0.040/+0.015
240	110130100	JDB-110-130-100	110	130	100	-0.10/-0.30	+0.071/+0.036	+0.040/+0.015
241	110130120	JDB-110-130-120	110	130	120	-0.10/-0.30	+0.071/+0.036	+0.040/+0.015
242	110130130	JDB-110-130-130	110	130	130	-0.10/-0.30	+0.071/+0.036	+0.040/+0.015
243	110130140	JDB-110-130-140	110	130	140	-0.10/-0.30	+0.071/+0.036	+0.040/+0.015
244	12014080	JDB-120-140-80	120	140	80	-0.10/-0.30	+0.071/+0.036	+0.040/+0.015
245	120140100	JDB-120-140-100	120	140	100	-0.10/-0.30	+0.071/+0.036	+0.040/+0.015
246	120140120	JDB-120-140-120	120	140	120	-0.10/-0.30	+0.071/+0.036	+0.040/+0.015
247	120140130	JDB-120-140-130	120	140	130	-0.10/-0.30	+0.071/+0.036	+0.040/+0.015
248	120140140	JDB-120-140-140	120	140	140	-0.10/-0.30	+0.071/+0.036	+0.040/+0.015
249	125145100	JDB-125-145-100	125	145	100	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
250	125145120	JDB-125-145-120	125	145	120	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
251	125145130	JDB-125-145-130	125	145	130	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
252	125145140	JDB-125-145-140	125	145	140	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
253	130150100	JDB-130-150-100	130	150	100	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
254	130150120	JDB-130-150-120	130	150	120	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
255	130150130	JDB-130-150-130	130	150	130	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
256	130150140	JDB-130-150-140	130	150	140	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
257	130150150	JDB-130-150-150	130	150	150	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
258	140160100	JDB-140-160-100	140	160	100	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
259	140160120	JDB-140-160-120	140	160	120	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
260	140160130	JDB-140-160-130	140	160	130	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
261	140160140	JDB-140-160-140	140	160	140	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
262	140160150	JDB-140-160-150	140	160	150	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
263	150170100	JDB-150-170-100	150	170	100	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
264	150170120	JDB-150-170-120	150	170	120	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
265	150170130	JDB-150-170-130	150	170	130	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
266	150170140	JDB-150-170-140	150	170	140	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
267	150170150	JDB-150-170-150	150	170	150	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
268	160180100	JDB-160-180-100	160	180	100	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
269	160180120	JDB-160-180-120	160	180	120	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
270	160180130	JDB-160-180-130	160	180	130	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
271	160180140	JDB-160-180-140	160	180	140	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015
272	160180150	JDB-160-180-150	160	180	150	-0.10/-0.30	+0.083/+0.043	+0.040/+0.015

Send your message to this supplier

Message*

Email*

Phone or WhatsApp*

Name

Company

Please reply me within 24 hours.

Yes! I would like your verified suppliers matching service!

Send Now

Submission successful!

Pillow Blocks Matching Graphite Self Lubricating Bronze Bushings

Ask Latest Price

Product Detail

Application field :

Automobile production line, hydraulic engineering, reservoir gate, injection molding machine, continuous casting machine, metallurgical machinery, mining machinery

Gleitalger :

Lubrication :

graphite

Get A Better Quote :

tiffany@viiplus.com

Bush Bearings Manufacturers Suppliers Exporters :

Type :

sleeve

Contact Supplier

JIAXING VIIPLUS INTERNATIO NAL CO.,LTD

Site Member

9 Years

zhejiang

Business Type :

Importer, Exporter, Seller, Other

Main Products :

Oilless Bushes, Solid Bronze Bearing, Wrapped Bronze Bearings

Certification Level :

Site Member

Discover similar products

Pre Lubricated FB092 Flange Bronze Bushing

Contact Now
Slit Oilless Bronze Bushings For Hydraumatic CuSn8P 40x44x40 BMZ 4040 Size

Contact Now
Engine Main Bearing & Con Rod Bearing

Contact Now
Metal-Polymer Composite Bearings | Hydrodynamic Water Lubricated Sintered Bronze

Contact Now
Collar Bearing Sinter Graphite Bronze | bronze gleitlager

Contact Now
Turned Brass Bronze Bearings & Copper Alloys Graphite & Aluminium Bronze

Contact Now
High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated

Contact Now
Metallic Marginal Lubricated Bronze Sleeve Bearings CuSn5Pb5Zn5

Contact Now
CuZn25AI5Mn4Fe3 Bush 62*50*50mm ASTM C86300

Contact Now
C86300 SAE430B Manganese Bronze Flange Bushings With Solid Lubricant Plugs

Contact Now

Find Similar Products By Category:

Supplier Homepage Products Bronze Gleitlager

MachineU China Products Chemicals Inorganic Chemicals Graphite Products Other Graphite Products

Oilless Bushing | Self-lubricating bearings, Maintenance-free Graphite Plugged Bronze Bearing

Choose from our selection of pillow block bushings, including mounted sleeve bearings, graphite plugged sleeve bearings, and more.

Pillow block bearing, self lubricating

Pillow block bearing Properties

Pillow - Blocks graphite self-lubricating bearing introduction

You can choose the bearing structure

You can choose from graphite self-lubricating bearing materials there

You need to know more about the products you can choose

he advantages of our company

Universities accurate fast global on time fast transport

So contact us We have many ways to transport it

Pillow Blocks Matching Graphite Self Lubricating Bronze Bushings

JIAXING VIIPLUS INTERNATIO NAL CO.,LTD

Pre Lubricated FB092 Flange Bronze Bushing

Slit Oilless Bronze Bushings For Hydraumatic CuSn8P 40x44x40 BMZ 4040 Size

Engine Main Bearing & Con Rod Bearing

Metal-Polymer Composite Bearings | Hydrodynamic Water Lubricated Sintered Bronze

Collar Bearing Sinter Graphite Bronze | bronze gleitlager

Turned Brass Bronze Bearings & Copper Alloys Graphite & Aluminium Bronze

High Load Capacity Bronze Gleitlager CuSn8 Material 20-23-15mm Perforated

Metallic Marginal Lubricated Bronze Sleeve Bearings CuSn5Pb5Zn5

CuZn25AI5Mn4Fe3 Bush 62*50*50mm ASTM C86300

C86300 SAE430B Manganese Bronze Flange Bushings With Solid Lubricant Plugs

Find Similar Products By Category:

CuZn25AI5Mn4Fe3 Bush 625050mm ASTM C86300
