Specifications
Self-lubricating Bushings :
Bronze Bushing 160 ID 165 OD x 60MM, perforated
Bushing Size :
Special dimensions and imperial sizes are available on request
Gleitalger :
A plain bearing, or more commonly sliding contact bearing and slide bearing, is the simplest type of bearing, comprising just a bearing surface and no rolling elements. Therefore, the journal slides over the bearing surface. The simplest example of a plain
Bushing Material :
TIN BRONZE CUSN8 CUSN6
Performance :
High load capacity and long life
Application :
agricultural machinery, brakes and certain construction machinery.
Self-lubricating Bearing Bushing Manufacturer :
https://www.viiplus.com/
Bushings Thinkness :
bushing max. thickness of 2.5mm.
Feature :
High temperature resistance,Wear resistance,corrosion resistance
Get A Better Quote :
tiffany@viiplus.com
High Light: :
Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing
Type :
Sleeve,Flange,Thrust Washer
Model Number: :
E90F E92F E90 E92 BUSHINGS
Bush Bearings Manufacturers Suppliers Exporters :
plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/
Brand Name :
REPLACEMENT PLAIN BEARINGS
Model Number :
Bronze Bushings CuSn8P (DIN 17662) DIN 1494 / ISO 3547
Certification :
Metric size and inch size bushing
Place of Origin :
gleitlagerbuchsen china
MOQ :
MATE-TO-ORDER CUSTOM BUSHINGS
Price :
Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Payment Terms :
T/T
Supply Ability :
bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing
Delivery Time :
3 - 15 BUSINESS DAYS
Packaging Details :
EXPORT CARTON WOOD PALLET WOODEN CASE
Description

DIN 1494 specifies the standards for plain bushings made from CuSn8 bronze, which is a copper-tin alloy with 8% tin content. These bushings are self-lubricating, meaning they have properties that allow them to operate without the need for external lubrication. The dimensions you provided (160-165-60mm) indicate the inner diameter (ID), outer diameter (OD), and length of the bushing, respectively. The term "perforated" suggests that the bushing has holes or channels to facilitate the distribution of lubricant or to reduce weight.

Here’s a breakdown of the specifications:

Material: CuSn8 (Copper-Tin alloy with 8% tin)

Standard: DIN 1494 (German Institute for Standardization)

Type: Plain, self-lubricating bronze bushings

Dimensions:

Inner Diameter (ID): 160 mm

Outer Diameter (OD): 165 mm

Length: 60 mm

Feature: Perforated (holes or channels for lubrication or weight reduction)

These bushings are typically used in applications where low friction, wear resistance, and self-lubrication are required, such as in heavy machinery, automotive components, or industrial equipment.

If you need further details or specific applications, feel free to ask!

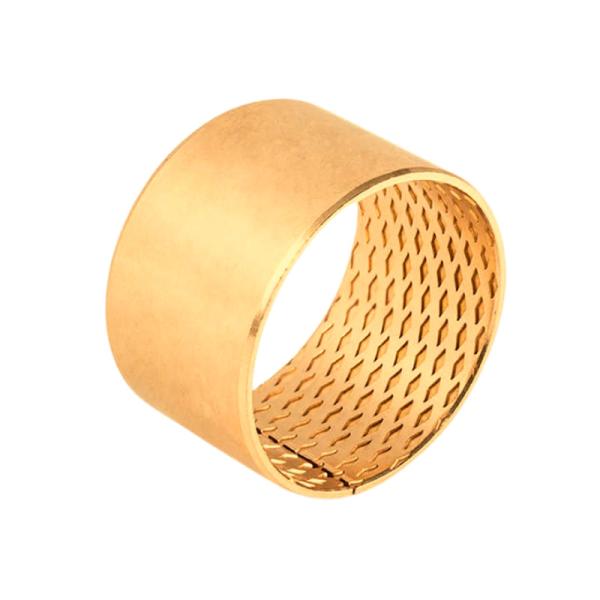

DIN 1494 Plain CuSn8 Self-Lubricating Bronze Bushings are precision-manufactured components designed to provide smooth and efficient operation in various mechanical systems. These bushings are made from CuSn8, a high-quality phosphor bronze alloy that offers excellent wear resistance, corrosion resistance, and self-lubricating properties.

The bushings measure 160-165-60mm in size and feature a perforated design, which enhances their lubricating ability and helps dissipate heat generated during operation. This design also allows for the distribution of lubrication oil or grease, ensuring consistent and reliable lubrication throughout the bushing's surface.

The CuSn8 alloy composition of these bushings ensures high mechanical strength and ductility, making them suitable for use in high-load and high-speed applications. The self-lubricating properties of the material further reduce friction and wear, extending the service life of the bushings and the overall mechanical system.

DIN 1494 is a standard that specifies the dimensions, tolerances, and material requirements for bronze bushings. By adhering to this standard, the bushings ensure compatibility and interchangeability with other components in the system.

In summary, DIN 1494 Plain CuSn8 Self-Lubricating Bronze Bushings 160-165-60mm Perforated are high-performance components that provide reliable and efficient operation in various mechanical systems. Their self-lubricating properties, combined with the excellent mechanical properties of CuSn8 alloy, make them an ideal choice for reducing friction and wear in rotating or sliding applications.

Wrapped Bronze Bearing, CuSn8 Bronze Wrapped Plain Bearing

Bronze coated bearings are made entirely of CuSn8 phosphor bronze.

CuSn8 is characterized by the purity of the alloy with a very low level of impurities.

BIMETAL WRAPPED STEEL WITH BRONZE SERIES - METRIC ...

Matching Bearings. Material, Part Number, Inner Diameter, Outer Diameter, Length, Surface Style.


Check out our online wrapped bronze bushing product catalog with more than 10,00 products with full specifications & Models available for download - all free of charge!

  • Straight Wrapped Bronze Bushings
  • Flanged Wrapped Bronze Bushings


Wrapped Bronze Bushing Typical Application



Wrapped bronze bushings are widely used in lifting and other construction machines, automobiles, tractors, trucks, machine tools and some mining engines.
It can be used to make bushings, half bushings, flange bushings, thrust washers, spherical bushings, and more.

Wrapped Bronze Bushing

Bronze Bearings 16060 made of CuSn8 ,Plain CuSn8 Bronze bushing,Alternative part numbers:
FB092-16060.pdf BK-080, BRM 80, COB-092, FB 092, WB 702 BRONZE BUSHINGS
Bronze Bushing 160-165-60mm ,Get your bronze bushing bearings price.Perforated,Sliding Flange Bearings Prcies,Metric Size For Containers,Industrial Equipment & Machinery,160 ID 165 OD x 60MM Long wrapped CuSn8 bronze bush with lubrication holes.Flange Bronze Bushing also can manufacture


DIN 1494 Plain CuSn8 Self Lubricating Bronze Bushings 160-165-60mm Perforated

  • CuSn8P (DIN 17662)

  • DIN 1494 / ISO 3547

092 Bornze Gleitlager CuSn8 Chemical Composition

Part No

Material

Cu

Sn

P

Pb

Zn

E92 & E92F

CuSn8

91.3%

8.5%

0.2%

/

/



Our company's expertise is container copper bushing, and the vast possibilities and modern technology used in the production process enable us to meet the expectations of our most demanding customers.

DIN 1494 Plain CuSn8 Self Lubricating Bronze Bushings 160-165-60mm Perforated

Technical Information

Bronze Bearing Dimension
Metric / Imperial: Metric (mm)
Internal Diameter: 160mm
Outside Diameter: 165mm
Length: 60mm

Bronze Bearing Tolerance

Length: 60mm
Length tolerance: Min: 59.75mm Max: 60.25mm
Recommended shaft tolerance: Min: 159.917mm Max: 159.957mm (f7)
Recommended housing tolerance: Min: 165mm Max: 165.04mm (H7)
ID when fitted: Min: 160mm Max: 160.14mm

FB092 bronze bushing with holes


Product description:
FB092 bronze bearing, with bronze material as the matrix, is made of evenly and orderly oiling holes.The bearing has the advantages of large oil storage, easy installation and small design machine, and can replace the use of copper sleeve, can greatly reduce the cost.At present, the product has been used in conveyor, elevator, winding machine, leveling machine and other medium load, low speed occasions.

Sliding Bearing China | High Quality, Factory Price‎

Materials

  • Support materialCuSn8P (DIN 17662)

  • alternative CuSn6P available

Feature:


1. Easy of fitting and lubrication
2. High load capacity
3. Excellent wear resistance with lower friction
4. High level thermal conductivity
5. Minimum overall dimensions
6. Chemical resistance
7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving

Wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance Wrapped Bushing Size


The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 or CuSn6.5),which can achieve exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery.

Mateial


DIN 1494 Plain CuSn8 Self Lubricating Bronze Bushings 160-165-60mm Perforated

  • CuSn8P (DIN 17662)

  • DIN 1494 / ISO 3547

Specially Manufacturing Bushings


The manufacturing process starts with cutting the sheet to the correct rectangular shape. Then the plate will be rolled and calibrated to the final size and finished with chamfering the edges.

Range Of Application


Agriculture machinery, truck cranes & construction machinery, suitable for impact loads
Tolerances
Bushings are manufactured according to DIN 1494/ ISO 3574 with standard sizes for H7 housing tolerances and f7 or h8 shaft tolerances.
Request:
It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.
It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.

Bushing Types For Sale


Cusn8p bronze bushing fb090 copper bushes groove bushing fb090 brass bushing cusn8 bushing fb090 bearings bearings oil-free bronze bushing self-lubricating bronze bushing bronze bushing, rolled bearings cusn8p graphite bushing high quality sintered brass bearing fb bronze fb090 oilless bushing
Please contact our technical sales for more information.

Plain Bushing Catalog — Part Number Index (with Flange Dimensions)
No. Series Designation (bore × outer) Bore d (mm) Outer D (mm) Length L (mm) Part No. Flange Ø (mm)
1 JDB-S 8×12 8 12 8 081208
2 JDB-S 8×12 8 12 10 081210
3 JDB-S 8×12 8 12 12 081212
4 JDB-S 8×12 8 12 15 081215
5 JDB-S 10×14 10 14 8 101408
6 JDB-S 10×14 10 14 10 101410
7 JDB-S 10×14 10 14 12 101412
8 JDB-S 10×14 10 14 15 101415
9 JDB-S 10×14 10 14 16 101416
10 JDB-S 10×14 10 14 20 101420
11 JDB-S 12×18 12 18 10 121810
12 JDB-S 12×18 12 18 12 121812
13 JDB-S 12×18 12 18 15 121815
14 JDB-S 12×18 12 18 16 121816
15 JDB-S 12×18 12 18 20 121820
16 JDB-S 12×18 12 18 25 121825
17 JDB-S 12×18 12 18 30 121830
18 JDB-S 13×19 13 19 10 131910
19 JDB-S 13×19 13 19 12 131912
20 JDB-S 13×19 13 19 15 131915
21 JDB-S 13×19 13 19 16 131916
22 JDB-S 13×19 13 19 20 131920
23 JDB-S 13×19 13 19 25 131925
24 JDB-S 13×19 13 19 30 131930
25 JDB-S 14×20 14 20 10 142010
26 JDB-S 14×20 14 20 12 142012
27 JDB-S 14×20 14 20 15 142015
28 JDB-S 14×20 14 20 16 142016
29 JDB-S 14×20 14 20 20 142020
30 JDB-S 14×20 14 20 25 142025
31 JDB-S 14×20 14 20 30 142030
32 JDB-S 15×21 15 21 10 152110
33 JDB-S 15×21 15 21 12 152112
34 JDB-S 15×21 15 21 15 152115
35 JDB-S 15×21 15 21 16 152116
36 JDB-S 15×21 15 21 20 152120
37 JDB-S 15×21 15 21 25 152125
38 JDB-S 15×21 15 21 30 152130
39 JDB-S 15×21 15 21 35 152135
40 JDB-S 16×22 16 22 10 162210
41 JDB-S 16×22 16 22 12 162212
42 JDB-S 16×22 16 22 15 162215
43 JDB-S 16×22 16 22 16 162216
44 JDB-S 16×22 16 22 20 162220
45 JDB-S 16×22 16 22 25 162225
46 JDB-S 16×22 16 22 30 162230
47 JDB-S 16×22 16 22 35 162235
48 JDB-S 16×22 16 22 40 162240
49 JDB-S 18×24 18 24 10 182410
50 JDB-S 18×24 18 24 12 182412
51 JDB-S 18×24 18 24 15 182415
52 JDB-S 18×24 18 24 16 182416
53 JDB-S 18×24 18 24 20 182420
54 JDB-S 18×24 18 24 25 182425
55 JDB-S 18×24 18 24 30 182430
56 JDB-S 18×24 18 24 35 182435
57 JDB-S 18×24 18 24 40 182440
58 JDB-S 20×28 20 28 10 202810
59 JDB-S 20×28 20 28 12 202812
60 JDB-S 20×28 20 28 15 202815
61 JDB-S 20×28 20 28 16 202816
62 JDB-S 20×28 20 28 20 202820
63 JDB-S 20×28 20 28 25 202825
64 JDB-S 20×28 20 28 30 202830
65 JDB-S 20×28 20 28 35 202835
66 JDB-S 20×28 20 28 40 202840
67 JDB-S 20×28 20 28 50 202850
68 JDB-S 22×32 22 32 12 223212
69 JDB-S 22×32 22 32 15 223215
70 JDB-S 22×32 22 32 16 223216
71 JDB-S 22×32 22 32 20 223220
72 JDB-S 22×32 22 32 25 223225
73 JDB-S 22×32 22 32 30 223230
74 JDB-S 22×32 22 32 35 223235
75 JDB-S 22×32 22 32 40 223240
76 JDB-S 22×32 22 32 50 223250
77 JDB-S 25×33 25 33 12 253312
78 JDB-S 25×33 25 33 15 253315
79 JDB-S 25×33 25 33 16 253316
80 JDB-S 25×33 25 33 20 253320
81 JDB-S 25×33 25 33 25 253325
82 JDB-S 25×33 25 33 30 253330
83 JDB-S 25×33 25 33 35 253335
84 JDB-S 25×33 25 33 40 253340
85 JDB-S 25×33 25 33 50 253350
86 JDB-S 25×33 25 33 60 253360
87 JDB-S 30×38 30 38 12 303812
88 JDB-S 30×38 30 38 15 303815
89 JDB-S 30×38 30 38 16 303816
90 JDB-S 30×38 30 38 20 303820
91 JDB-S 30×38 30 38 25 303825
92 JDB-S 30×38 30 38 30 303830
93 JDB-S 30×38 30 38 35 303835
94 JDB-S 30×38 30 38 40 303840
95 JDB-S 30×38 30 38 50 303850
96 JDB-S 30×38 30 38 60 303860
97 JDB-S 35×45 35 45 20 354520
98 JDB-S 35×45 35 45 25 354525
99 JDB-S 35×45 35 45 30 354530
100 JDB-S 35×45 35 45 35 354535
101 JDB-S 35×45 35 45 40 354540
102 JDB-S 35×45 35 45 50 354550
103 JDB-S 35×45 35 45 60 354560
104 JDB-S 35×45 35 45 70 354570
105 JDB-S 40×50 40 50 20 405020
106 JDB-S 40×50 40 50 25 405025
107 JDB-S 40×50 40 50 30 405030
108 JDB-S 40×50 40 50 35 405035
109 JDB-S 40×50 40 50 40 405040
110 JDB-S 40×50 40 50 50 405050
111 JDB-S 40×50 40 50 60 405060
112 JDB-S 40×50 40 50 70 405070
113 JDB-S 40×50 40 50 80 405080
114 JDB-S 45×55 45 55 30 455530
115 JDB-S 45×55 45 55 35 455535
116 JDB-S 45×55 45 55 40 455540
117 JDB-S 45×55 45 55 50 455550
118 JDB-S 45×55 45 55 60 455560
119 JDB-S 45×55 45 55 70 455570
120 JDB-S 45×55 45 55 80 455580
121 JDB-S 50×60 50 60 30 506030
122 JDB-S 50×60 50 60 35 506035
123 JDB-S 50×60 50 60 40 506040
124 JDB-S 50×60 50 60 50 506050
125 JDB-S 50×60 50 60 60 506060
126 JDB-S 50×60 50 60 70 506070
127 JDB-S 50×60 50 60 80 506080
128 JDB-L 50×62 50 62 30 506230
129 JDB-L 50×62 50 62 35 506235
130 JDB-L 50×62 50 62 40 506240
131 JDB-L 50×62 50 62 50 506250
132 JDB-L 50×62 50 62 60 506260
133 JDB-L 50×62 50 62 70 506270
134 JDB-L 50×65 50 65 100 5065100
135 JDB-L 50×65 50 65 30 506530
136 JDB-L 50×65 50 65 35 506535
137 JDB-L 50×65 50 65 40 506540
138 JDB-L 50×65 50 65 50 506550
139 JDB-L 50×65 50 65 60 506560
140 JDB-L 50×65 50 65 70 506570
141 JDB-L 50×65 50 65 80 506580
142 JDB-L 55×70 55 70 100 5570100
143 JDB-L 55×70 55 70 30 557030
144 JDB-L 55×70 55 70 35 557035
145 JDB-L 55×70 55 70 40 557040
146 JDB-L 55×70 55 70 50 557050
147 JDB-L 55×70 55 70 60 557060
148 JDB-L 55×70 55 70 70 557070
149 JDB-L 55×70 55 70 80 557080
150 JDB-L 60×74 60 74 100 6074100
151 JDB-L 60×74 60 74 30 607430
152 JDB-L 60×74 60 74 35 607435
153 JDB-L 60×74 60 74 40 607440
154 JDB-L 60×74 60 74 50 607450
155 JDB-L 60×74 60 74 60 607460
156 JDB-L 60×74 60 74 70 607470
157 JDB-L 60×74 60 74 80 607480
158 JDB-L 60×75 60 75 100 6075100
159 JDB-L 60×75 60 75 30 607530
160 JDB-L 60×75 60 75 35 607535
161 JDB-L 60×75 60 75 40 607540
162 JDB-L 60×75 60 75 50 607550
163 JDB-L 60×75 60 75 60 607560
164 JDB-L 60×75 60 75 70 607570
165 JDB-L 60×75 60 75 80 607580
166 JDB-L 63×75 63 75 100 6375100
167 JDB-L 63×75 63 75 35 637535
168 JDB-L 63×75 63 75 40 637540
169 JDB-L 63×75 63 75 50 637550
170 JDB-L 63×75 63 75 60 637560
171 JDB-L 63×75 63 75 70 637570
172 JDB-L 63×75 63 75 80 637580
173 JDB-L 65×80 65 80 100 6580100
174 JDB-L 65×80 65 80 35 658035
175 JDB-L 65×80 65 80 40 658040
176 JDB-L 65×80 65 80 50 658050
177 JDB-L 65×80 65 80 60 658060
178 JDB-L 65×80 65 80 70 658070
179 JDB-L 65×80 65 80 80 658080
180 JDB-L 70×85 70 85 100 7085100
181 JDB-L 70×85 70 85 35 708535
182 JDB-L 70×85 70 85 40 708540
183 JDB-L 70×85 70 85 50 708550
184 JDB-L 70×85 70 85 60 708560
185 JDB-L 70×85 70 85 70 708570
186 JDB-L 70×85 70 85 80 708580
187 JDB-L 70×90 70 90 100 7090100
188 JDB-L 70×90 70 90 35 709035
189 JDB-L 70×90 70 90 40 709040
190 JDB-L 70×90 70 90 50 709050
191 JDB-L 70×90 70 90 60 709060
192 JDB-L 70×90 70 90 70 709070
193 JDB-L 70×90 70 90 80 709080
194 JDB-L 75×90 75 90 100 7590100
195 JDB-L 75×90 75 90 40 759040
196 JDB-L 75×90 75 90 50 759050
197 JDB-L 75×90 75 90 60 759060
198 JDB-L 75×90 75 90 70 759070
199 JDB-L 75×90 75 90 80 759080
200 JDB-L 75×95 75 95 100 7595100
201 JDB-L 75×95 75 95 120 7595120
202 JDB-L 75×95 75 95 40 759540
203 JDB-L 75×95 75 95 50 759550
204 JDB-L 75×95 75 95 60 759560
205 JDB-L 75×95 75 95 70 759570
206 JDB-L 75×95 75 95 80 759580
207 JDB-L 80×100 80 100 100 80100100
208 JDB-L 80×100 80 100 120 80100120
209 JDB-L 80×100 80 100 130 80100130
210 JDB-L 80×100 80 100 140 80100140
211 JDB-L 80×100 80 100 40 8010040
212 JDB-L 80×100 80 100 50 8010050
213 JDB-L 80×100 80 100 60 8010060
214 JDB-L 80×100 80 100 70 8010070
215 JDB-L 80×100 80 100 80 8010080
216 JDB-L 80×96 80 96 100 8096100
217 JDB-L 80×96 80 96 120 8096120
218 JDB-L 80×96 80 96 130 8096130
219 JDB-L 80×96 80 96 40 809640
220 JDB-L 80×96 80 96 50 809650
221 JDB-L 80×96 80 96 60 809660
222 JDB-L 80×96 80 96 70 809670
223 JDB-L 80×96 80 96 80 809680
224 JDB-L 90×110 90 110 100 90110100
225 JDB-L 90×110 90 110 120 90110120
226 JDB-L 90×110 90 110 130 90110130
227 JDB-L 90×110 90 110 140 90110140
228 JDB-L 90×110 90 110 50 9011050
229 JDB-L 90×110 90 110 60 9011060
230 JDB-L 90×110 90 110 70 9011070
231 JDB-L 90×110 90 110 80 9011080
232 JDB-L 100×120 100 120 100 100120100
233 JDB-L 100×120 100 120 120 100120120
234 JDB-L 100×120 100 120 130 100120130
235 JDB-L 100×120 100 120 140 100120140
236 JDB-L 100×120 100 120 60 10012060
237 JDB-L 100×120 100 120 70 10012070
238 JDB-L 100×120 100 120 80 10012080
239 JDB-L 110×130 110 130 100 110130100
240 JDB-L 110×130 110 130 120 110130120
241 JDB-L 110×130 110 130 130 110130130
242 JDB-L 110×130 110 130 140 110130140
243 JDB-L 110×130 110 130 80 11013080
244 JDB-L 120×140 120 140 100 120140100
245 JDB-L 120×140 120 140 120 120140120
246 JDB-L 120×140 120 140 130 120140130
247 JDB-L 120×140 120 140 140 120140140
248 JDB-L 120×140 120 140 80 12014080
249 JDB-L 125×145 125 145 100 125145100
250 JDB-L 125×145 125 145 120 125145120
251 JDB-L 125×145 125 145 130 125145130
252 JDB-L 125×145 125 145 140 125145140
253 JDB-L 130×150 130 150 100 130150100
254 JDB-L 130×150 130 150 120 130150120
255 JDB-L 130×150 130 150 130 130150130
256 JDB-L 130×150 130 150 140 130150140
257 JDB-L 130×150 130 150 150 130150150
258 JDB-L 140×160 140 160 100 140160100
259 JDB-L 140×160 140 160 120 140160120
260 JDB-L 140×160 140 160 130 140160130
261 JDB-L 140×160 140 160 140 140160140
262 JDB-L 140×160 140 160 150 140160150
263 JFB 10×14 10 14 15 1015 22
264 JFB 10×14 10 14 20 1020 22
265 JFB 12×18 12 18 15 1215 25
266 JFB 12×18 12 18 20 1220 25
267 JFB 13×19 13 19 15 1315 26
268 JFB 13×19 13 19 20 1320 26
269 JFB 14×20 14 20 15 1415 27
270 JFB 14×20 14 20 20 1420 27
271 JFB 14×20 14 20 25 1425 27
272 JFB 15×21 15 21 15 1515 28
273 JFB 15×21 15 21 20 1520 28
274 JFB 15×21 15 21 25 1525 28
275 JFB 15×21 15 21 30 1530 28
276 JFB 16×22 16 22 15 1615 29
277 JFB 16×22 16 22 20 1620 29
278 JFB 16×22 16 22 25 1625 29
279 JFB 16×22 16 22 30 1630 29
280 JFB 20×30 20 30 20 2020 40
281 JFB 20×30 20 30 25 2025 40
282 JFB 20×30 20 30 30 2030 40
283 JFB 20×30 20 30 35 2035 40
284 JFB 25×35 25 35 20 2520 45
285 JFB 25×35 25 35 25 2525 45
286 JFB 25×35 25 35 30 2530 45
287 JFB 25×35 25 35 35 2535 45
288 JFB 25×35 25 35 40 2540 45
289 JFB 30×40 30 40 20 3020 50
290 JFB 30×40 30 40 25 3025 50
291 JFB 30×40 30 40 30 3030 50
292 JFB 30×40 30 40 35 3035 50
293 JFB 30×40 30 40 40 3040 50
294 JFB 30×40 30 40 50 3050 50
295 JFB 35×45 35 45 25 3525 60
296 JFB 35×45 35 45 30 3530 60
297 JFB 35×45 35 45 35 3535 60
298 JFB 35×45 35 45 40 3540 60
299 JFB 35×45 35 45 50 3550 60
300 JFB 40×50 40 50 30 4030 65
301 JFB 40×50 40 50 35 4035 65
302 JFB 40×50 40 50 40 4040 65
303 JFB 40×50 40 50 50 4050 65
304 JFB 45×55 45 55 30 4530 70
305 JFB 45×55 45 55 35 4535 70
306 JFB 45×55 45 55 40 4540 70
307 JFB 45×55 45 55 50 4550 70
308 JFB 45×55 45 55 60 4560 70
309 JFB 50×60 50 60 35 5035 75
310 JFB 50×60 50 60 40 5040 75
311 JFB 50×60 50 60 50 5050 75
312 JFB 50×60 50 60 60 5060 75
313 JFB 55×65 55 65 40 5540 80
314 JFB 55×65 55 65 50 5550 80
315 JFB 55×65 55 65 60 5560 80
316 JFB 60×75 60 75 40 6040 90
317 JFB 60×75 60 75 50 6050 90
318 JFB 60×75 60 75 60 6060 90
319 JFB 60×75 60 75 80 6080 90
320 JFB 70×85 70 85 50 7050 105
321 JFB 70×85 70 85 60 7060 105
322 JFB 70×85 70 85 80 7080 105
323 JFB 75×90 75 90 100 75100 110
324 JFB 75×90 75 90 50 7550 110
325 JFB 75×90 75 90 60 7560 110
326 JFB 75×90 75 90 80 7580 110
327 JFB 80×100 80 100 100 80100 120
328 JFB 80×100 80 100 60 8060 120
329 JFB 80×100 80 100 80 8080 120
330 JFB 90×110 90 110 100 90100 130
331 JFB 90×110 90 110 60 9060 130
332 JFB 90×110 90 110 80 9080 130
333 JFB 100×120 100 120 100 100100 150
334 JFB 100×120 100 120 60 10060 150
335 JFB 100×120 100 120 80 10080 150
336 JFB 120×140 120 140 100 120100 170
337 JFB 120×140 120 140 60 12060 170
338 JFB 120×140 120 140 80 12080 170
339 SF-1 6×8 6 8 6 606
340 SF-1 6×8 6 8 8 608
341 SF-1 6×8 6 8 10 610
342 SF-1 8×10 8 10 6 806
343 SF-1 8×10 8 10 8 808
344 SF-1 8×10 8 10 10 810
345 SF-1 8×10 8 10 12 812
346 SF-1 8×10 8 10 15 815
347 SF-1 10×12 10 12 6 1006
348 SF-1 10×12 10 12 8 1008
349 SF-1 10×12 10 12 10 1010
350 SF-1 10×12 10 12 12 1012
351 SF-1 10×12 10 12 15 1015
352 SF-1 10×12 10 12 20 1020
353 SF-1 12×14 12 14 6 1206
354 SF-1 12×14 12 14 8 1208
355 SF-1 12×14 12 14 10 1210
356 SF-1 12×14 12 14 12 1212
357 SF-1 12×14 12 14 15 1215
358 SF-1 12×14 12 14 20 1220
359 SF-1 12×14 12 14 25 1225
360 SF-1 13×15 13 15 10 1310
361 SF-1 13×15 13 15 12 1312
362 SF-1 13×15 13 15 15 1315
363 SF-1 13×15 13 15 20 1320
364 SF-1 13×15 13 15 25 1325
365 SF-1 14×16 14 16 10 1410
366 SF-1 14×16 14 16 12 1412
367 SF-1 14×16 14 16 15 1415
368 SF-1 14×16 14 16 20 1420
369 SF-1 14×16 14 16 25 1425
370 SF-1 15×17 15 17 10 1510
371 SF-1 15×17 15 17 12 1512
372 SF-1 15×17 15 17 15 1515
373 SF-1 15×17 15 17 20 1520
374 SF-1 15×17 15 17 25 1525
375 SF-1 16×18 16 18 10 1610
376 SF-1 16×18 16 18 12 1612
377 SF-1 16×18 16 18 15 1615
378 SF-1 16×18 16 18 20 1620
379 SF-1 16×18 16 18 25 1625
380 SF-1 17×19 17 19 10 1710
381 SF-1 17×19 17 19 12 1712
382 SF-1 17×19 17 19 15 1715
383 SF-1 17×19 17 19 20 1720
384 SF-1 17×19 17 19 25 1725
385 SF-1 18×20 18 20 10 1810
386 SF-1 18×20 18 20 12 1812
387 SF-1 18×20 18 20 15 1815
388 SF-1 18×20 18 20 20 1820
389 SF-1 18×20 18 20 25 1825
390 SF-1 20×23 20 23 10 2010
391 SF-1 20×23 20 23 12 2012
392 SF-1 20×23 20 23 15 2015
393 SF-1 20×23 20 23 20 2020
394 SF-1 20×23 20 23 25 2025
395 SF-1 20×23 20 23 30 2030
396 SF-1 22×25 22 25 10 2210
397 SF-1 22×25 22 25 12 2212
398 SF-1 22×25 22 25 15 2215
399 SF-1 22×25 22 25 20 2220
400 SF-1 22×25 22 25 25 2225
401 SF-1 22×25 22 25 30 2230
402 SF-1 24×27 24 27 10 2410
403 SF-1 24×27 24 27 12 2412
404 SF-1 24×27 24 27 15 2415
405 SF-1 24×27 24 27 20 2420
406 SF-1 24×27 24 27 25 2425
407 SF-1 24×27 24 27 30 2430
408 SF-1 25×28 25 28 10 2510
409 SF-1 25×28 25 28 12 2512
410 SF-1 25×28 25 28 15 2515
411 SF-1 25×28 25 28 20 2520
412 SF-1 25×28 25 28 25 2525
413 SF-1 25×28 25 28 30 2530
414 SF-1 25×28 25 28 40 2540
415 SF-1 25×28 25 28 50 2550
416 SF-1 28×32 28 32 12 2812
417 SF-1 28×32 28 32 15 2815
418 SF-1 28×32 28 32 20 2820
419 SF-1 28×32 28 32 25 2825
420 SF-1 28×32 28 32 30 2830
421 SF-1 28×32 28 32 40 2840
422 SF-1 28×32 28 32 50 2850
423 SF-1 30×34 30 34 12 3012
424 SF-1 30×34 30 34 15 3015
425 SF-1 30×34 30 34 20 3020
426 SF-1 30×34 30 34 25 3025
427 SF-1 30×34 30 34 30 3030
428 SF-1 30×34 30 34 40 3040
429 SF-1 30×34 30 34 50 3050
430 SF-1 32×36 32 36 12 3212
431 SF-1 32×36 32 36 15 3215
432 SF-1 32×36 32 36 20 3220
433 SF-1 32×36 32 36 25 3225
434 SF-1 32×36 32 36 30 3230
435 SF-1 32×36 32 36 40 3240
436 SF-1 32×36 32 36 50 3250
437 SF-1 35×39 35 39 12 3512
438 SF-1 35×39 35 39 15 3515
439 SF-1 35×39 35 39 20 3520
440 SF-1 35×39 35 39 25 3525
441 SF-1 35×39 35 39 30 3530
442 SF-1 35×39 35 39 40 3540
443 SF-1 35×39 35 39 50 3550
444 SF-1 38×42 38 42 12 3812
445 SF-1 38×42 38 42 15 3815
446 SF-1 38×42 38 42 20 3820
447 SF-1 38×42 38 42 25 3825
448 SF-1 38×42 38 42 30 3830
449 SF-1 38×42 38 42 40 3840
450 SF-1 38×42 38 42 50 3850
451 SF-1 40×44 40 44 12 4012
452 SF-1 40×44 40 44 15 4015
453 SF-1 40×44 40 44 20 4020
454 SF-1 40×44 40 44 25 4025
455 SF-1 40×44 40 44 30 4030
456 SF-1 40×44 40 44 40 4040
457 SF-1 40×44 40 44 50 4050
458 SF-1 45×50 45 50 20 4520
459 SF-1 45×50 45 50 25 4525
460 SF-1 45×50 45 50 30 4530
461 SF-1 45×50 45 50 40 4540
462 SF-1 45×50 45 50 50 4550
463 SF-1 50×55 50 55 20 5020
464 SF-1 50×55 50 55 25 5025
465 SF-1 50×55 50 55 30 5030
466 SF-1 50×55 50 55 40 5040
467 SF-1 50×55 50 55 50 5050
468 SF-1 50×55 50 55 60 5060
469 SF-1 55×60 55 60 30 5530
470 SF-1 55×60 55 60 40 5540
471 SF-1 55×60 55 60 50 5550
472 SF-1 55×60 55 60 60 5560
473 SF-1 60×65 60 65 30 6030
474 SF-1 60×65 60 65 40 6040
475 SF-1 60×65 60 65 50 6050
476 SF-1 60×65 60 65 60 6060
477 SF-1 60×65 60 65 70 6070
478 SF-1 65×70 65 70 30 6530
479 SF-1 65×70 65 70 40 6540
480 SF-1 65×70 65 70 50 6550
481 SF-1 65×70 65 70 60 6560
482 SF-1 65×70 65 70 70 6570
483 SF-1 70×75 70 75 30 7030
484 SF-1 70×75 70 75 40 7040
485 SF-1 70×75 70 75 50 7050
486 SF-1 70×75 70 75 60 7060
487 SF-1 70×75 70 75 70 7070
488 SF-1 70×75 70 75 80 7080
489 SF-1 75×80 75 80 30 7530
490 SF-1 75×80 75 80 40 7540
491 SF-1 75×80 75 80 50 7550
492 SF-1 75×80 75 80 60 7560
493 SF-1 75×80 75 80 70 7570
494 SF-1 75×80 75 80 80 7580
495 SF-1 80×85 80 85 100 80100
496 SF-1 80×85 80 85 40 8040
497 SF-1 80×85 80 85 50 8050
498 SF-1 80×85 80 85 60 8060
499 SF-1 80×85 80 85 70 8070
500 SF-1 80×85 80 85 80 8080
501 SF-1 85×90 85 90 100 85100
502 SF-1 85×90 85 90 40 8540
503 SF-1 85×90 85 90 50 8550
504 SF-1 85×90 85 90 60 8560
505 SF-1 85×90 85 90 70 8570
506 SF-1 85×90 85 90 80 8580
507 SF-1 90×95 90 95 100 90100
508 SF-1 90×95 90 95 40 9040
509 SF-1 90×95 90 95 50 9050
510 SF-1 90×95 90 95 60 9060
511 SF-1 90×95 90 95 70 9070
512 SF-1 90×95 90 95 80 9080
513 SF-1 95×100 95 100 100 95100
514 SF-1 95×100 95 100 50 9550
515 SF-1 95×100 95 100 60 9560
516 SF-1 95×100 95 100 70 9570
517 SF-1 95×100 95 100 80 9580
518 SF-1 100×105 100 105 100 100100
519 SF-1 100×105 100 105 115 100115
520 SF-1 100×105 100 105 50 10050
521 SF-1 100×105 100 105 60 10060
522 SF-1 100×105 100 105 70 10070
523 SF-1 100×105 100 105 80 10080
524 SF-1 105×110 105 110 100 105100
525 SF-1 105×110 105 110 115 105115
526 SF-1 105×110 105 110 60 10560
527 SF-1 105×110 105 110 70 10570
528 SF-1 105×110 105 110 80 10580
529 SF-1 110×115 110 115 100 110100
530 SF-1 110×115 110 115 115 110115
531 SF-1 110×115 110 115 60 11060
532 SF-1 110×115 110 115 70 11070
533 SF-1 110×115 110 115 80 11080
534 SF-1 120×125 120 125 100 120100
535 SF-1 120×125 120 125 115 120115
536 SF-1 120×125 120 125 60 12060
537 SF-1 120×125 120 125 70 12070
538 SF-1 120×125 120 125 80 12080
539 SF-1 125×130 125 130 100 125100
540 SF-1 125×130 125 130 115 125115
541 SF-1 125×130 125 130 60 12560
542 SF-1 125×130 125 130 70 12570
543 SF-1 125×130 125 130 80 12580
544 SF-1 130×135 130 135 100 130100
545 SF-1 130×135 130 135 115 130115
546 SF-1 130×135 130 135 60 13060
547 SF-1 130×135 130 135 70 13070
548 SF-1 130×135 130 135 80 13080
549 SF-1 140×145 140 145 100 140100
550 SF-1 140×145 140 145 115 140115
551 SF-1 140×145 140 145 60 14060
552 SF-1 140×145 140 145 70 14070
553 SF-1 140×145 140 145 80 14080
554 SF-1 150×155 150 155 100 150100
555 SF-1 150×155 150 155 115 150115
556 SF-1 150×155 150 155 60 15060
557 SF-1 150×155 150 155 70 15070
558 SF-1 150×155 150 155 80 15080
559 SF-1 160×165 160 165 100 160100
560 SF-1 160×165 160 165 115 160115
561 SF-1 160×165 160 165 60 16060
562 SF-1 160×165 160 165 70 16070
563 SF-1 160×165 160 165 80 16080
564 SF-1 180×185 180 185 100 180100
565 SF-1 180×185 180 185 60 18060
566 SF-1 180×185 180 185 70 18070
567 SF-1 180×185 180 185 80 18080
568 SF-1 190×195 190 195 100 190100
569 SF-1 190×195 190 195 60 19060
570 SF-1 190×195 190 195 70 19070
571 SF-1 190×195 190 195 80 19080
572 SF-1 200×205 200 205 100 200100
573 SF-1 200×205 200 205 60 20060
574 SF-1 200×205 200 205 70 20070
575 SF-1 200×205 200 205 80 20080
576 SF-1 220×225 220 225 100 220100
577 SF-1 220×225 220 225 60 22060
578 SF-1 220×225 220 225 70 22070
579 SF-1 220×225 220 225 80 22080
580 SF-1 250×255 250 255 100 250100
581 SF-1 250×255 250 255 80 25080
582 SF-1 260×265 260 265 100 260100
583 SF-1 260×265 260 265 80 26080
584 SF-1 280×285 280 285 100 280100
585 SF-1 280×285 280 285 80 28080
586 SF-1 300×305 300 305 100 300100
587 SF-1 300×305 300 305 80 30080
588 SF-2 10×12 10 12 10 1010
589 SF-2 10×12 10 12 15 1015
590 SF-2 10×12 10 12 20 1020
591 SF-2 12×14 12 14 10 1210
592 SF-2 12×14 12 14 15 1215
593 SF-2 12×14 12 14 20 1220
594 SF-2 14×16 14 16 15 1415
595 SF-2 14×16 14 16 20 1420
596 SF-2 15×17 15 17 15 1515
597 SF-2 15×17 15 17 20 1520
598 SF-2 15×17 15 17 25 1525
599 SF-2 16×18 16 18 15 1615
600 SF-2 16×18 16 18 20 1620
601 SF-2 16×18 16 18 25 1625
602 SF-2 18×20 18 20 15 1815
603 SF-2 18×20 18 20 20 1820
604 SF-2 18×20 18 20 25 1825
605 SF-2 20×23 20 23 15 2015
606 SF-2 20×23 20 23 20 2020
607 SF-2 20×23 20 23 25 2025
608 SF-2 20×23 20 23 30 2030
609 SF-2 22×25 22 25 15 2215
610 SF-2 22×25 22 25 20 2220
611 SF-2 22×25 22 25 25 2225
612 SF-2 22×25 22 25 30 2230
613 SF-2 25×28 25 28 15 2515
614 SF-2 25×28 25 28 20 2520
615 SF-2 25×28 25 28 25 2525
616 SF-2 25×28 25 28 30 2530
617 SF-2 28×32 28 32 20 2820
618 SF-2 28×32 28 32 25 2825
619 SF-2 28×32 28 32 30 2830
620 SF-2 30×34 30 34 20 3020
621 SF-2 30×34 30 34 25 3025
622 SF-2 30×34 30 34 30 3030
623 SF-2 30×34 30 34 35 3035
624 SF-2 30×34 30 34 40 3040
625 SF-2 35×39 35 39 20 3520
626 SF-2 35×39 35 39 25 3525
627 SF-2 35×39 35 39 30 3530
628 SF-2 35×39 35 39 35 3535
629 SF-2 35×39 35 39 40 3540
630 SF-2 40×44 40 44 20 4020
631 SF-2 40×44 40 44 25 4025
632 SF-2 40×44 40 44 30 4030
633 SF-2 40×44 40 44 35 4035
634 SF-2 40×44 40 44 40 4040
635 SF-2 40×44 40 44 45 4045
636 SF-2 40×44 40 44 50 4050
637 SF-2 45×50 45 50 20 4520
638 SF-2 45×50 45 50 25 4525
639 SF-2 45×50 45 50 30 4530
640 SF-2 45×50 45 50 35 4535
641 SF-2 45×50 45 50 40 4540
642 SF-2 45×50 45 50 45 4545
643 SF-2 45×50 45 50 50 4550
644 SF-2 50×55 50 55 25 5025
645 SF-2 50×55 50 55 30 5030
646 SF-2 50×55 50 55 35 5035
647 SF-2 50×55 50 55 40 5040
648 SF-2 50×55 50 55 45 5045
649 SF-2 50×55 50 55 50 5050
650 SF-2 50×55 50 55 60 5060
651 SF-2 55×60 55 60 30 5530
652 SF-2 55×60 55 60 35 5535
653 SF-2 55×60 55 60 40 5540
654 SF-2 55×60 55 60 45 5545
655 SF-2 55×60 55 60 50 5550
656 SF-2 55×60 55 60 60 5560
657 SF-2 60×65 60 65 30 6030
658 SF-2 60×65 60 65 35 6035
659 SF-2 60×65 60 65 40 6040
660 SF-2 60×65 60 65 45 6045
661 SF-2 60×65 60 65 50 6050
662 SF-2 60×65 60 65 60 6060
663 SF-2 65×70 65 70 40 6540
664 SF-2 65×70 65 70 50 6550
665 SF-2 65×70 65 70 60 6560
666 SF-2 70×75 70 75 40 7040
667 SF-2 70×75 70 75 50 7050
668 SF-2 70×75 70 75 60 7060
669 SF-2 70×75 70 75 80 7080
670 SF-2 75×80 75 80 40 7540
671 SF-2 75×80 75 80 50 7550
672 SF-2 75×80 75 80 60 7560
673 SF-2 75×80 75 80 80 7580
674 SF-2 80×85 80 85 40 8040
675 SF-2 80×85 80 85 50 8050
676 SF-2 80×85 80 85 60 8060
677 SF-2 80×85 80 85 80 8080
678 SF-2 85×90 85 90 40 8540
679 SF-2 85×90 85 90 50 8550
680 SF-2 85×90 85 90 60 8560
681 SF-2 85×90 85 90 80 8580
682 SF-2 90×95 90 95 40 9040
683 SF-2 90×95 90 95 50 9050
684 SF-2 90×95 90 95 60 9060
685 SF-2 90×95 90 95 80 9080
686 SF-2 90×95 90 95 90 9090
687 SF-2 100×105 100 105 50 10050
688 SF-2 100×105 100 105 60 10060
689 SF-2 100×105 100 105 80 10080
690 SF-2 100×105 100 105 90 10090
691 SF-2 100×105 100 105 95 10095
692 SF-2 105×110 105 110 100 105100
693 SF-2 105×110 105 110 110 105110
694 SF-2 105×110 105 110 50 10550
695 SF-2 105×110 105 110 60 10560
696 SF-2 105×110 105 110 80 10580
697 SF-2 105×110 105 110 90 10590
698 SF-2 105×110 105 110 95 10595
699 SF-2 110×115 110 115 100 110100
700 SF-2 110×115 110 115 110 110110
701 SF-2 110×115 110 115 50 11050
702 SF-2 110×115 110 115 60 11060
703 SF-2 110×115 110 115 80 11080
704 SF-2 110×115 110 115 90 11090
705 SF-2 110×115 110 115 95 11095
706 SF-2 120×125 120 125 100 120100
707 SF-2 120×125 120 125 110 120110
708 SF-2 120×125 120 125 50 12050
709 SF-2 120×125 120 125 60 12060
710 SF-2 120×125 120 125 80 12080
711 SF-2 120×125 120 125 90 12090
712 SF-2 120×125 120 125 95 12095
713 SF-2 125×130 125 130 100 125100
714 SF-2 125×130 125 130 110 125110
715 SF-2 125×130 125 130 50 12550
716 SF-2 125×130 125 130 60 12560
717 SF-2 125×130 125 130 80 12580
718 SF-2 125×130 125 130 90 12590
719 SF-2 125×130 125 130 95 12595
720 SF-2 130×135 130 135 100 130100
721 SF-2 130×135 130 135 110 130110
722 SF-2 130×135 130 135 50 13050
723 SF-2 130×135 130 135 60 13060
724 SF-2 130×135 130 135 80 13080
725 SF-2 130×135 130 135 90 13090
726 SF-2 130×135 130 135 95 13095
727 SF-2 140×145 140 145 100 140100
728 SF-2 140×145 140 145 110 140110
729 SF-2 140×145 140 145 50 14050
730 SF-2 140×145 140 145 60 14060
731 SF-2 140×145 140 145 80 14080
732 SF-2 140×145 140 145 90 14090
733 SF-2 140×145 140 145 95 14095
734 SF-2 150×155 150 155 100 150100
735 SF-2 150×155 150 155 110 150110
736 SF-2 150×155 150 155 50 15050
737 SF-2 150×155 150 155 60 15060
738 SF-2 150×155 150 155 80 15080
739 SF-2 150×155 150 155 90 15090
740 SF-2 150×155 150 155 95 15095
741 SF-2 160×165 160 165 100 160100
742 SF-2 160×165 160 165 110 160110
743 SF-2 160×165 160 165 50 16050
744 SF-2 160×165 160 165 60 16060
745 SF-2 160×165 160 165 80 16080
746 SF-2 160×165 160 165 90 16090
747 SF-2 160×165 160 165 95 16095
748 SF-2 170×175 170 175 100 170100
749 SF-2 170×175 170 175 110 170110
750 SF-2 170×175 170 175 50 17050
751 SF-2 170×175 170 175 60 17060
752 SF-2 170×175 170 175 80 17080
753 SF-2 170×175 170 175 90 17090
754 SF-2 170×175 170 175 95 17095
755 SF-2 180×185 180 185 100 180100
756 SF-2 180×185 180 185 110 180110
757 SF-2 180×185 180 185 50 18050
758 SF-2 180×185 180 185 60 18060
759 SF-2 180×185 180 185 80 18080
760 SF-2 180×185 180 185 90 18090
761 SF-2 180×185 180 185 95 18095
762 SF-2 190×195 190 195 100 190100
763 SF-2 190×195 190 195 110 190110
764 SF-2 190×195 190 195 120 190120
765 SF-2 190×195 190 195 50 19050
766 SF-2 190×195 190 195 60 19060
767 SF-2 190×195 190 195 80 19080
768 SF-2 190×195 190 195 90 19090
769 SF-2 190×195 190 195 95 19095
770 SF-2 200×205 200 205 100 200100
771 SF-2 200×205 200 205 110 200110
772 SF-2 200×205 200 205 120 200120
773 SF-2 200×205 200 205 50 20050
774 SF-2 200×205 200 205 60 20060
775 SF-2 200×205 200 205 80 20080
776 SF-2 200×205 200 205 90 20090
777 SF-2 200×205 200 205 95 20095
778 SF-2 220×225 220 225 100 220100
779 SF-2 220×225 220 225 110 220110
780 SF-2 220×225 220 225 120 220120
781 SF-2 220×225 220 225 50 22050
782 SF-2 220×225 220 225 60 22060
783 SF-2 220×225 220 225 80 22080
784 SF-2 220×225 220 225 90 22090
785 SF-2 220×225 220 225 95 22095
786 SF-2 240×245 240 245 100 240100
787 SF-2 240×245 240 245 110 240110
788 SF-2 240×245 240 245 120 240120
789 SF-2 240×245 240 245 50 24050
790 SF-2 240×245 240 245 60 24060
791 SF-2 240×245 240 245 80 24080
792 SF-2 240×245 240 245 90 24090
793 SF-2 240×245 240 245 95 24095
794 SF-2 250×255 250 255 100 250100
795 SF-2 250×255 250 255 110 250110
796 SF-2 250×255 250 255 120 250120
797 SF-2 250×255 250 255 50 25050
798 SF-2 250×255 250 255 60 25060
799 SF-2 250×255 250 255 80 25080
800 SF-2 250×255 250 255 90 25090
801 SF-2 250×255 250 255 95 25095
802 SF-2 260×265 260 265 100 260100
803 SF-2 260×265 260 265 110 260110
804 SF-2 260×265 260 265 120 260120
805 SF-2 260×265 260 265 50 26050
806 SF-2 260×265 260 265 60 26060
807 SF-2 260×265 260 265 80 26080
808 SF-2 260×265 260 265 90 26090
809 SF-2 260×265 260 265 95 26095
810 SF-2 280×285 280 285 100 280100
811 SF-2 280×285 280 285 110 280110
812 SF-2 280×285 280 285 120 280120
813 SF-2 280×285 280 285 50 28050
814 SF-2 280×285 280 285 60 28060
815 SF-2 280×285 280 285 80 28080
816 SF-2 280×285 280 285 90 28090
817 SF-2 280×285 280 285 95 28095
818 SF-2 300×305 300 305 100 300100
819 SF-2 300×305 300 305 110 300110
820 SF-2 300×305 300 305 120 300120
821 SF-2 300×305 300 305 50 30050
822 SF-2 300×305 300 305 60 30060
823 SF-2 300×305 300 305 80 30080
824 SF-2 300×305 300 305 90 30090
825 SF-2 300×305 300 305 95 30095
826 JF-800 10×12 10 12 10 1010
827 JF-800 10×12 10 12 15 1015
828 JF-800 10×12 10 12 20 1020
829 JF-800 12×14 12 14 10 1210
830 JF-800 12×14 12 14 15 1215
831 JF-800 12×14 12 14 20 1220
832 JF-800 14×16 14 16 10 1410
833 JF-800 14×16 14 16 15 1415
834 JF-800 14×16 14 16 20 1420
835 JF-800 15×17 15 17 10 1510
836 JF-800 15×17 15 17 15 1515
837 JF-800 15×17 15 17 20 1520
838 JF-800 16×18 16 18 10 1610
839 JF-800 16×18 16 18 15 1615
840 JF-800 16×18 16 18 20 1620
841 JF-800 18×20 18 20 10 1810
842 JF-800 18×20 18 20 15 1815
843 JF-800 18×20 18 20 20 1820
844 JF-800 18×20 18 20 25 1825
845 JF-800 20×23 20 23 10 2010
846 JF-800 20×23 20 23 15 2015
847 JF-800 20×23 20 23 20 2020
848 JF-800 20×23 20 23 25 2025
849 JF-800 22×25 22 25 10 2210
850 JF-800 22×25 22 25 15 2215
851 JF-800 22×25 22 25 20 2220
852 JF-800 22×25 22 25 25 2225
853 JF-800 24×27 24 27 10 2410
854 JF-800 24×27 24 27 15 2415
855 JF-800 24×27 24 27 20 2420
856 JF-800 24×27 24 27 25 2425
857 JF-800 24×27 24 27 30 2430
858 JF-800 25×28 25 28 15 2515
859 JF-800 25×28 25 28 20 2520
860 JF-800 25×28 25 28 25 2525
861 JF-800 25×28 25 28 30 2530
862 JF-800 26×30 26 30 15 2615
863 JF-800 26×30 26 30 20 2620
864 JF-800 26×30 26 30 25 2625
865 JF-800 26×30 26 30 30 2630
866 JF-800 28×32 28 32 15 2815
867 JF-800 28×32 28 32 20 2820
868 JF-800 28×32 28 32 25 2825
869 JF-800 28×32 28 32 30 2830
870 JF-800 28×32 28 32 40 2840
871 JF-800 30×34 30 34 15 3015
872 JF-800 30×34 30 34 20 3020
873 JF-800 30×34 30 34 25 3025
874 JF-800 30×34 30 34 30 3030
875 JF-800 30×34 30 34 40 3040
876 JF-800 32×36 32 36 15 3215
877 JF-800 32×36 32 36 20 3220
878 JF-800 32×36 32 36 25 3225
879 JF-800 32×36 32 36 30 3230
880 JF-800 32×36 32 36 40 3240
881 JF-800 35×39 35 39 20 3520
882 JF-800 35×39 35 39 25 3525
883 JF-800 35×39 35 39 30 3530
884 JF-800 35×39 35 39 40 3540
885 JF-800 35×39 35 39 50 3550
886 JF-800 38×42 38 42 20 3820
887 JF-800 38×42 38 42 25 3825
888 JF-800 38×42 38 42 30 3830
889 JF-800 38×42 38 42 40 3840
890 JF-800 38×42 38 42 50 3850
891 JF-800 40×44 40 44 20 4020
892 JF-800 40×44 40 44 25 4025
893 JF-800 40×44 40 44 30 4030
894 JF-800 40×44 40 44 40 4040
895 JF-800 40×44 40 44 50 4050
896 JF-800 45×50 45 50 25 4525
897 JF-800 45×50 45 50 30 4530
898 JF-800 45×50 45 50 40 4540
899 JF-800 45×50 45 50 50 4550
900 JF-800 50×55 50 55 30 5030
901 JF-800 50×55 50 55 40 5040
902 JF-800 50×55 50 55 50 5050
903 JF-800 50×55 50 55 60 5060
904 JF-800 55×60 55 60 30 5530
905 JF-800 55×60 55 60 40 5540
906 JF-800 55×60 55 60 50 5550
907 JF-800 55×60 55 60 60 5560
908 JF-800 60×65 60 65 30 6030
909 JF-800 60×65 60 65 40 6040
910 JF-800 60×65 60 65 50 6050
911 JF-800 60×65 60 65 60 6060
912 JF-800 65×70 65 70 30 6530
913 JF-800 65×70 65 70 40 6540
914 JF-800 65×70 65 70 50 6550
915 JF-800 65×70 65 70 60 6560
916 JF-800 70×75 70 75 30 7030
917 JF-800 70×75 70 75 40 7040
918 JF-800 70×75 70 75 50 7050
919 JF-800 70×75 70 75 60 7060
920 JF-800 70×75 70 75 80 7080
921 JF-800 75×80 75 80 30 7530
922 JF-800 75×80 75 80 40 7540
923 JF-800 75×80 75 80 50 7550
924 JF-800 75×80 75 80 60 7560
925 JF-800 75×80 75 80 80 7580
926 JF-800 80×85 80 85 30 8030
927 JF-800 80×85 80 85 40 8040
928 JF-800 80×85 80 85 50 8050
929 JF-800 80×85 80 85 60 8060
930 JF-800 80×85 80 85 80 8080
931 JF-800 80×85 80 85 90 8090
932 JF-800 85×90 85 90 100 85100
933 JF-800 85×90 85 90 30 8530
934 JF-800 85×90 85 90 40 8540
935 JF-800 85×90 85 90 50 8550
936 JF-800 85×90 85 90 60 8560
937 JF-800 85×90 85 90 80 8580
938 JF-800 85×90 85 90 90 8590
939 JF-800 90×95 90 95 100 90100
940 JF-800 90×95 90 95 40 9040
941 JF-800 90×95 90 95 50 9050
942 JF-800 90×95 90 95 60 9060
943 JF-800 90×95 90 95 80 9080
944 JF-800 90×95 90 95 90 9090
945 JF-800 95×100 95 100 100 95100
946 JF-800 95×100 95 100 50 9550
947 JF-800 95×100 95 100 60 9560
948 JF-800 95×100 95 100 80 9580
949 JF-800 95×100 95 100 90 9590
950 JF-800 100×105 100 105 100 100100
951 JF-800 100×105 100 105 50 10050
952 JF-800 100×105 100 105 60 10060
953 JF-800 100×105 100 105 80 10080
954 JF-800 100×105 100 105 90 10090
955 JF-800 105×110 105 110 100 105100
956 JF-800 105×110 105 110 50 10550
957 JF-800 105×110 105 110 60 10560
958 JF-800 105×110 105 110 80 10580
959 JF-800 105×110 105 110 90 10590
960 JF-800 110×115 110 115 100 110100
961 JF-800 110×115 110 115 50 11050
962 JF-800 110×115 110 115 60 11060
963 JF-800 110×115 110 115 80 11080
964 JF-800 110×115 110 115 90 11090
965 JF-800 115×120 115 120 100 115100
966 JF-800 115×120 115 120 50 11550
967 JF-800 115×120 115 120 60 11560
968 JF-800 115×120 115 120 80 11580
969 JF-800 115×120 115 120 90 11590
970 JF-800 120×125 120 125 100 120100
971 JF-800 120×125 120 125 50 12050
972 JF-800 120×125 120 125 60 12060
973 JF-800 120×125 120 125 80 12080
974 JF-800 120×125 120 125 90 12090
975 JF-800 125×130 125 130 100 125100
976 JF-800 125×130 125 130 60 12560
977 JF-800 125×130 125 130 80 12580
978 JF-800 125×130 125 130 90 12590
979 JF-800 130×135 130 135 100 130100
980 JF-800 130×135 130 135 60 13060
981 JF-800 130×135 130 135 80 13080
982 JF-800 130×135 130 135 90 13090
983 JF-800 135×140 135 140 100 135100
984 JF-800 135×140 135 140 60 13560
985 JF-800 135×140 135 140 80 13580
986 JF-800 135×140 135 140 90 13590
987 JF-800 140×145 140 145 100 140100
988 JF-800 140×145 140 145 60 14060
989 JF-800 140×145 140 145 80 14080
990 JF-800 140×145 140 145 90 14090
991 JF-800 150×155 150 155 100 150100
992 JF-800 150×155 150 155 60 15060
993 JF-800 150×155 150 155 80 15080
994 JF-800 150×155 150 155 90 15090
995 FB-090-092 10×12 10 12 10 1010
996 FB-090-092 10×12 10 12 15 1015
997 FB-090-092 10×12 10 12 20 1020
998 FB-090-092 12×14 12 14 10 1210
999 FB-090-092 12×14 12 14 15 1215
1000 FB-090-092 12×14 12 14 20 1220
1001 FB-090-092 14×16 14 16 10 1410
1002 FB-090-092 14×16 14 16 15 1415
1003 FB-090-092 14×16 14 16 20 1420
1004 FB-090-092 14×16 14 16 25 1425
1005 FB-090-092 15×17 15 17 10 1510
1006 FB-090-092 15×17 15 17 15 1515
1007 FB-090-092 15×17 15 17 20 1520
1008 FB-090-092 15×17 15 17 25 1525
1009 FB-090-092 16×18 16 18 10 1610
1010 FB-090-092 16×18 16 18 15 1615
1011 FB-090-092 16×18 16 18 20 1620
1012 FB-090-092 16×18 16 18 25 1625
1013 FB-090-092 18×20 18 20 10 1810
1014 FB-090-092 18×20 18 20 15 1815
1015 FB-090-092 18×20 18 20 20 1820
1016 FB-090-092 18×20 18 20 25 1825
1017 FB-090-092 20×23 20 23 10 2010
1018 FB-090-092 20×23 20 23 15 2015
1019 FB-090-092 20×23 20 23 20 2020
1020 FB-090-092 20×23 20 23 25 2025
1021 FB-090-092 22×25 22 25 10 2210
1022 FB-090-092 22×25 22 25 15 2215
1023 FB-090-092 22×25 22 25 20 2220
1024 FB-090-092 22×25 22 25 25 2225
1025 FB-090-092 22×25 22 25 30 2230
1026 FB-090-092 24×27 24 27 15 2415
1027 FB-090-092 24×27 24 27 20 2420
1028 FB-090-092 24×27 24 27 25 2425
1029 FB-090-092 24×27 24 27 30 2430
1030 FB-090-092 25×28 25 28 15 2515
1031 FB-090-092 25×28 25 28 20 2520
1032 FB-090-092 25×28 25 28 25 2525
1033 FB-090-092 25×28 25 28 30 2530
1034 FB-090-092 28×31 28 31 15 2815
1035 FB-090-092 28×31 28 31 20 2820
1036 FB-090-092 28×31 28 31 25 2825
1037 FB-090-092 28×31 28 31 30 2830
1038 FB-090-092 30×34 30 34 15 3015
1039 FB-090-092 30×34 30 34 20 3020
1040 FB-090-092 30×34 30 34 25 3025
1041 FB-090-092 30×34 30 34 30 3030
1042 FB-090-092 30×34 30 34 35 3035
1043 FB-090-092 30×34 30 34 40 3040
1044 FB-090-092 32×36 32 36 15 3215
1045 FB-090-092 32×36 32 36 20 3220
1046 FB-090-092 32×36 32 36 25 3225
1047 FB-090-092 32×36 32 36 30 3230
1048 FB-090-092 32×36 32 36 35 3235
1049 FB-090-092 32×36 32 36 40 3240
1050 FB-090-092 35×39 35 39 15 3515
1051 FB-090-092 35×39 35 39 20 3520
1052 FB-090-092 35×39 35 39 25 3525
1053 FB-090-092 35×39 35 39 30 3530
1054 FB-090-092 35×39 35 39 35 3535
1055 FB-090-092 35×39 35 39 40 3540
1056 FB-090-092 40×44 40 44 20 4020
1057 FB-090-092 40×44 40 44 25 4025
1058 FB-090-092 40×44 40 44 30 4030
1059 FB-090-092 40×44 40 44 35 4035
1060 FB-090-092 40×44 40 44 40 4040
1061 FB-090-092 40×44 40 44 50 4050
1062 FB-090-092 45×50 45 50 20 4520
1063 FB-090-092 45×50 45 50 25 4525
1064 FB-090-092 45×50 45 50 30 4530
1065 FB-090-092 45×50 45 50 35 4535
1066 FB-090-092 45×50 45 50 40 4540
1067 FB-090-092 45×50 45 50 50 4550
1068 FB-090-092 50×55 50 55 20 5020
1069 FB-090-092 50×55 50 55 25 5025
1070 FB-090-092 50×55 50 55 30 5030
1071 FB-090-092 50×55 50 55 35 5035
1072 FB-090-092 50×55 50 55 40 5040
1073 FB-090-092 50×55 50 55 50 5050
1074 FB-090-092 50×55 50 55 60 5060
1075 FB-090-092 55×60 55 60 20 5520
1076 FB-090-092 55×60 55 60 25 5525
1077 FB-090-092 55×60 55 60 30 5530
1078 FB-090-092 55×60 55 60 35 5535
1079 FB-090-092 55×60 55 60 40 5540
1080 FB-090-092 55×60 55 60 50 5550
1081 FB-090-092 55×60 55 60 60 5560
1082 FB-090-092 60×65 60 65 25 6025
1083 FB-090-092 60×65 60 65 30 6030
1084 FB-090-092 60×65 60 65 35 6035
1085 FB-090-092 60×65 60 65 40 6040
1086 FB-090-092 60×65 60 65 50 6050
1087 FB-090-092 60×65 60 65 60 6060
1088 FB-090-092 60×65 60 65 70 6070
1089 FB-090-092 65×70 65 70 30 6530
1090 FB-090-092 65×70 65 70 35 6535
1091 FB-090-092 65×70 65 70 40 6540
1092 FB-090-092 65×70 65 70 50 6550
1093 FB-090-092 65×70 65 70 60 6560
1094 FB-090-092 65×70 65 70 70 6570
1095 FB-090-092 70×75 70 75 30 7030
1096 FB-090-092 70×75 70 75 35 7035
1097 FB-090-092 70×75 70 75 40 7040
1098 FB-090-092 70×75 70 75 50 7050
1099 FB-090-092 70×75 70 75 60 7060
1100 FB-090-092 70×75 70 75 70 7070
1101 FB-090-092 70×75 70 75 80 7080
1102 FB-090-092 75×80 75 80 30 7530
1103 FB-090-092 75×80 75 80 35 7535
1104 FB-090-092 75×80 75 80 40 7540
1105 FB-090-092 75×80 75 80 50 7550
1106 FB-090-092 75×80 75 80 60 7560
1107 FB-090-092 75×80 75 80 70 7570
1108 FB-090-092 75×80 75 80 80 7580
1109 FB-090-092 80×85 80 85 30 8030
1110 FB-090-092 80×85 80 85 35 8035
1111 FB-090-092 80×85 80 85 40 8040
1112 FB-090-092 80×85 80 85 50 8050
1113 FB-090-092 80×85 80 85 60 8060
1114 FB-090-092 80×85 80 85 70 8070
1115 FB-090-092 80×85 80 85 80 8080
1116 FB-090-092 85×90 85 90 30 8530
1117 FB-090-092 85×90 85 90 35 8535
1118 FB-090-092 85×90 85 90 40 8540
1119 FB-090-092 85×90 85 90 50 8550
1120 FB-090-092 85×90 85 90 60 8560
1121 FB-090-092 85×90 85 90 70 8570
1122 FB-090-092 85×90 85 90 80 8580
1123 FB-090-092 85×90 85 90 90 8590
1124 FB-090-092 90×95 90 95 30 9030
1125 FB-090-092 90×95 90 95 35 9035
1126 FB-090-092 90×95 90 95 40 9040
1127 FB-090-092 90×95 90 95 50 9050
1128 FB-090-092 90×95 90 95 60 9060
1129 FB-090-092 90×95 90 95 70 9070
1130 FB-090-092 90×95 90 95 80 9080
1131 FB-090-092 90×95 90 95 90 9090
1132 FB-090-092 95×100 95 100 100 95100
1133 FB-090-092 95×100 95 100 40 9540
1134 FB-090-092 95×100 95 100 50 9550
1135 FB-090-092 95×100 95 100 60 9560
1136 FB-090-092 95×100 95 100 70 9570
1137 FB-090-092 95×100 95 100 80 9580
1138 FB-090-092 95×100 95 100 90 9590
1139 FB-090-092 100×105 100 105 100 100100
1140 FB-090-092 100×105 100 105 50 10050
1141 FB-090-092 100×105 100 105 60 10060
1142 FB-090-092 100×105 100 105 70 10070
1143 FB-090-092 100×105 100 105 80 10080
1144 FB-090-092 100×105 100 105 90 10090
1145 FB-090-092 105×110 105 110 100 105100
1146 FB-090-092 105×110 105 110 50 10550
1147 FB-090-092 105×110 105 110 60 10560
1148 FB-090-092 105×110 105 110 70 10570
1149 FB-090-092 105×110 105 110 80 10580
1150 FB-090-092 105×110 105 110 90 10590
1151 FB-090-092 110×115 110 115 100 110100
1152 FB-090-092 110×115 110 115 50 11050
1153 FB-090-092 110×115 110 115 60 11060
1154 FB-090-092 110×115 110 115 70 11070
1155 FB-090-092 110×115 110 115 80 11080
1156 FB-090-092 110×115 110 115 90 11090
1157 FB-090-092 115×120 115 120 100 115100
1158 FB-090-092 115×120 115 120 50 11550
1159 FB-090-092 115×120 115 120 60 11560
1160 FB-090-092 115×120 115 120 70 11570
1161 FB-090-092 115×120 115 120 80 11580
1162 FB-090-092 115×120 115 120 90 11590
1163 FB-090-092 120×125 120 125 100 120100
1164 FB-090-092 120×125 120 125 60 12060
1165 FB-090-092 120×125 120 125 70 12070
1166 FB-090-092 120×125 120 125 80 12080
1167 FB-090-092 120×125 120 125 90 12090
1168 FB-090-092 125×130 125 130 100 125100
1169 FB-090-092 125×130 125 130 60 12560
1170 FB-090-092 125×130 125 130 70 12570
1171 FB-090-092 125×130 125 130 80 12580
1172 FB-090-092 125×130 125 130 90 12590
1173 FB-090-092 130×135 130 135 100 130100
1174 FB-090-092 130×135 130 135 60 13060
1175 FB-090-092 130×135 130 135 70 13070
1176 FB-090-092 130×135 130 135 80 13080
1177 FB-090-092 130×135 130 135 90 13090
1178 FB-090-092 135×140 135 140 100 135100
1179 FB-090-092 135×140 135 140 60 13560
1180 FB-090-092 135×140 135 140 70 13570
1181 FB-090-092 135×140 135 140 80 13580
1182 FB-090-092 135×140 135 140 90 13590
1183 FB-090-092 140×145 140 145 100 140100
1184 FB-090-092 140×145 140 145 60 14060
1185 FB-090-092 140×145 140 145 70 14070
1186 FB-090-092 140×145 140 145 80 14080
1187 FB-090-092 140×145 140 145 90 14090
1188 FB-090-092 145×150 145 150 100 145100
1189 FB-090-092 145×150 145 150 60 14560
1190 FB-090-092 145×150 145 150 70 14570
1191 FB-090-092 145×150 145 150 80 14580
1192 FB-090-092 145×150 145 150 90 14590
1193 FB-090-092 150×155 150 155 100 150100
1194 FB-090-092 150×155 150 155 60 15060
1195 FB-090-092 150×155 150 155 70 15070
1196 FB-090-092 150×155 150 155 80 15080
1197 FB-090-092 150×155 150 155 90 15090
1198 FB-090-092 155×160 155 160 100 155100
1199 FB-090-092 155×160 155 160 60 15560
1200 FB-090-092 155×160 155 160 70 15570
1201 FB-090-092 155×160 155 160 80 15580
1202 FB-090-092 155×160 155 160 90 15590
1203 FB-090-092 160×165 160 165 100 160100
1204 FB-090-092 160×165 160 165 60 16060
1205 FB-090-092 160×165 160 165 70 16070
1206 FB-090-092 160×165 160 165 80 16080
1207 FB-090-092 160×165 160 165 90 16090
1208 FB-090-092 165×170 165 170 100 165100
1209 FB-090-092 165×170 165 170 60 16560
1210 FB-090-092 165×170 165 170 70 16570
1211 FB-090-092 165×170 165 170 80 16580
1212 FB-090-092 165×170 165 170 90 16590
1213 FB-090-092 170×175 170 175 100 170100
1214 FB-090-092 170×175 170 175 60 17060
1215 FB-090-092 170×175 170 175 70 17070
1216 FB-090-092 170×175 170 175 80 17080
1217 FB-090-092 170×175 170 175 90 17090
1218 FB-090-092 175×180 175 180 100 175100
1219 FB-090-092 175×180 175 180 60 17560
1220 FB-090-092 175×180 175 180 70 17570
1221 FB-090-092 175×180 175 180 80 17580
1222 FB-090-092 175×180 175 180 90 17590
1223 FB-090-092 180×185 180 185 100 180100
1224 FB-090-092 180×185 180 185 60 18060
1225 FB-090-092 180×185 180 185 70 18070
1226 FB-090-092 180×185 180 185 80 18080
1227 FB-090-092 180×185 180 185 90 18090
1228 FB-090-092 185×190 185 190 100 185100
1229 FB-090-092 185×190 185 190 60 18560
1230 FB-090-092 185×190 185 190 70 18570
1231 FB-090-092 185×190 185 190 80 18580
1232 FB-090-092 185×190 185 190 90 18590
1233 FB-090-092 190×195 190 195 100 190100
1234 FB-090-092 190×195 190 195 60 19060
1235 FB-090-092 190×195 190 195 70 19070
1236 FB-090-092 190×195 190 195 80 19080
1237 FB-090-092 190×195 190 195 90 19090
1238 FB-090-092 195×200 195 200 100 195100
1239 FB-090-092 195×200 195 200 60 19560
1240 FB-090-092 195×200 195 200 70 19570
1241 FB-090-092 195×200 195 200 80 19580
1242 FB-090-092 195×200 195 200 90 19590
1243 FB-090-092 200×205 200 205 100 200100
1244 FB-090-092 200×205 200 205 60 20060
1245 FB-090-092 200×205 200 205 70 20070
1246 FB-090-092 200×205 200 205 80 20080
1247 FB-090-092 200×205 200 205 90 20090
1248 FB-090-092 205×210 205 210 100 205100
1249 FB-090-092 205×210 205 210 60 20560
1250 FB-090-092 205×210 205 210 70 20570
1251 FB-090-092 205×210 205 210 80 20580
1252 FB-090-092 205×210 205 210 90 20590
1253 FB-090-092 215×220 215 220 100 215100
1254 FB-090-092 215×220 215 220 60 21560
1255 FB-090-092 215×220 215 220 70 21570
1256 FB-090-092 215×220 215 220 80 21580
1257 FB-090-092 215×220 215 220 90 21590
1258 FB-090-092 225×230 225 230 100 225100
1259 FB-090-092 225×230 225 230 60 22560
1260 FB-090-092 225×230 225 230 70 22570
1261 FB-090-092 225×230 225 230 80 22580
1262 FB-090-092 225×230 225 230 90 22590
1263 FB-090-092 230×235 230 235 100 230100
1264 FB-090-092 230×235 230 235 60 23060
1265 FB-090-092 230×235 230 235 70 23070
1266 FB-090-092 230×235 230 235 80 23080
1267 FB-090-092 230×235 230 235 90 23090
1268 FB-090-092 240×245 240 245 100 240100
1269 FB-090-092 240×245 240 245 60 24060
1270 FB-090-092 240×245 240 245 70 24070
1271 FB-090-092 240×245 240 245 80 24080
1272 FB-090-092 240×245 240 245 90 24090
1273 FB-090-092 250×255 250 255 100 250100
1274 FB-090-092 250×255 250 255 60 25060
1275 FB-090-092 250×255 250 255 70 25070
1276 FB-090-092 250×255 250 255 80 25080
1277 FB-090-092 250×255 250 255 90 25090
1278 FB-090-092 260×265 260 265 100 260100
1279 FB-090-092 260×265 260 265 60 26060
1280 FB-090-092 260×265 260 265 70 26070
1281 FB-090-092 260×265 260 265 80 26080
1282 FB-090-092 260×265 260 265 90 26090
1283 FB-090-092 270×275 270 275 100 270100
1284 FB-090-092 270×275 270 275 60 27060
1285 FB-090-092 270×275 270 275 70 27070
1286 FB-090-092 270×275 270 275 80 27080
1287 FB-090-092 270×275 270 275 90 27090
1288 FB-090-092 280×285 280 285 100 280100
1289 FB-090-092 280×285 280 285 60 28060
1290 FB-090-092 280×285 280 285 70 28070
1291 FB-090-092 280×285 280 285 80 28080
1292 FB-090-092 280×285 280 285 90 28090
1293 FB-090-092 290×295 290 295 100 290100
1294 FB-090-092 290×295 290 295 60 29060
1295 FB-090-092 290×295 290 295 70 29070
1296 FB-090-092 290×295 290 295 80 29080
1297 FB-090-092 290×295 290 295 90 29090
1298 FB-090-092 300×305 300 305 100 300100
1299 FB-090-092 300×305 300 305 60 30060
1300 FB-090-092 300×305 300 305 70 30070
1301 FB-090-092 300×305 300 305 80 30080
1302 FB-090-092 300×305 300 305 90 30090
1303 FB-090F-092F 25×28 25 28 15 2515 35
1304 FB-090F-092F 25×28 25 28 20 2520 35
1305 FB-090F-092F 25×28 25 28 25 2525 35
1306 FB-090F-092F 30×34 30 34 20 3020 45
1307 FB-090F-092F 30×34 30 34 25 3025 45
1308 FB-090F-092F 30×34 30 34 30 3030 45
1309 FB-090F-092F 35×39 35 39 20 3520 50
1310 FB-090F-092F 35×39 35 39 25 3525 50
1311 FB-090F-092F 35×39 35 39 30 3530 50
1312 FB-090F-092F 35×39 35 39 35 3535 50
1313 FB-090F-092F 40×44 40 44 25 4025 55
1314 FB-090F-092F 40×44 40 44 30 4030 55
1315 FB-090F-092F 40×44 40 44 35 4035 55
1316 FB-090F-092F 40×44 40 44 40 4040 55
1317 FB-090F-092F 45×50 45 50 30 4530 60
1318 FB-090F-092F 45×50 45 50 35 4535 60
1319 FB-090F-092F 45×50 45 50 40 4540 60
1320 FB-090F-092F 45×50 45 50 50 4550 60
1321 FB-090F-092F 50×55 50 55 30 5030 65
1322 FB-090F-092F 50×55 50 55 35 5035 65
1323 FB-090F-092F 50×55 50 55 40 5040 65
1324 FB-090F-092F 50×55 50 55 50 5050 65
1325 FB-090F-092F 55×60 55 60 30 5530 70
1326 FB-090F-092F 55×60 55 60 35 5535 70
1327 FB-090F-092F 55×60 55 60 40 5540 70
1328 FB-090F-092F 55×60 55 60 50 5550 70
1329 FB-090F-092F 60×65 60 65 30 6030 75
1330 FB-090F-092F 60×65 60 65 35 6035 75
1331 FB-090F-092F 60×65 60 65 40 6040 75
1332 FB-090F-092F 60×65 60 65 50 6050 75
1333 FB-090F-092F 60×65 60 65 60 6060 75
1334 FB-090F-092F 65×70 65 70 30 6530 80
1335 FB-090F-092F 65×70 65 70 35 6535 80
1336 FB-090F-092F 65×70 65 70 40 6540 80
1337 FB-090F-092F 65×70 65 70 50 6550 80
1338 FB-090F-092F 65×70 65 70 60 6560 80
1339 FB-090F-092F 70×75 70 75 35 7035 85
1340 FB-090F-092F 70×75 70 75 40 7040 85
1341 FB-090F-092F 70×75 70 75 50 7050 85
1342 FB-090F-092F 70×75 70 75 60 7060 85
1343 FB-090F-092F 70×75 70 75 70 7070 85
1344 FB-090F-092F 75×80 75 80 35 7535 90
1345 FB-090F-092F 75×80 75 80 40 7540 90
1346 FB-090F-092F 75×80 75 80 50 7550 90
1347 FB-090F-092F 75×80 75 80 60 7560 90
1348 FB-090F-092F 75×80 75 80 70 7570 90
1349 FB-090F-092F 80×85 80 85 35 8035 100
1350 FB-090F-092F 80×85 80 85 40 8040 100
1351 FB-090F-092F 80×85 80 85 50 8050 100
1352 FB-090F-092F 80×85 80 85 60 8060 100
1353 FB-090F-092F 80×85 80 85 70 8070 100
1354 FB-090F-092F 80×85 80 85 80 8080 100
1355 FB-090F-092F 90×95 90 95 40 9040 110
1356 FB-090F-092F 90×95 90 95 50 9050 110
1357 FB-090F-092F 90×95 90 95 60 9060 110
1358 FB-090F-092F 90×95 90 95 70 9070 110
1359 FB-090F-092F 90×95 90 95 80 9080 110
1360 FB-090F-092F 90×95 90 95 90 9090 110
1361 FB-090F-092F 100×105 100 105 50 10050 120
1362 FB-090F-092F 100×105 100 105 60 10060 120
1363 FB-090F-092F 100×105 100 105 70 10070 120
1364 FB-090F-092F 100×105 100 105 80 10080 120
1365 FB-090F-092F 100×105 100 105 90 10090 120
1366 FB-090F-092F 110×115 110 115 50 11050 130
1367 FB-090F-092F 110×115 110 115 60 11060 130
1368 FB-090F-092F 110×115 110 115 70 11070 130
1369 FB-090F-092F 110×115 110 115 80 11080 130
1370 FB-090F-092F 110×115 110 115 90 11090 130
1371 FB-090F-092F 120×125 120 125 50 12050 140
1372 FB-090F-092F 120×125 120 125 60 12060 140
1373 FB-090F-092F 120×125 120 125 70 12070 140
1374 FB-090F-092F 120×125 120 125 80 12080 140
1375 FB-090F-092F 120×125 120 125 90 12090 140
1376 FB-090F-092F 130×135 130 135 60 13060 155
1377 FB-090F-092F 130×135 130 135 70 13070 155
1378 FB-090F-092F 130×135 130 135 80 13080 155
1379 FB-090F-092F 130×135 130 135 90 13090 155
1380 FB-090F-092F 140×145 140 145 60 14060 165
1381 FB-090F-092F 140×145 140 145 70 14070 165
1382 FB-090F-092F 140×145 140 145 80 14080 165
1383 FB-090F-092F 140×145 140 145 90 14090 165
1384 FB-090F-092F 150×155 150 155 60 15060 180
1385 FB-090F-092F 150×155 150 155 70 15070 180
1386 FB-090F-092F 150×155 150 155 80 15080 180
1387 FB-090F-092F 150×155 150 155 90 15090 180
1388 FB-090F-092F 160×165 160 165 60 16060 190
1389 FB-090F-092F 160×165 160 165 70 16070 190
1390 FB-090F-092F 160×165 160 165 80 16080 190
1391 FB-090F-092F 160×165 160 165 90 16090 190
1392 FB-090F-092F 170×175 170 175 60 17060 200
1393 FB-090F-092F 170×175 170 175 70 17070 200
1394 FB-090F-092F 170×175 170 175 80 17080 200
1395 FB-090F-092F 170×175 170 175 90 17090 200
1396 FB-090F-092F 180×185 180 185 60 18060 215
1397 FB-090F-092F 180×185 180 185 70 18070 215
1398 FB-090F-092F 180×185 180 185 80 18080 215
1399 FB-090F-092F 180×185 180 185 90 18090 215
1400 FB-090F-092F 190×195 190 195 60 19060 225
1401 FB-090F-092F 190×195 190 195 70 19070 225
1402 FB-090F-092F 190×195 190 195 80 19080 225
1403 FB-090F-092F 190×195 190 195 90 19090 225
1404 FB-090F-092F 200×205 200 205 60 20060 235
1405 FB-090F-092F 200×205 200 205 70 20070 235
1406 FB-090F-092F 200×205 200 205 80 20080 235
1407 FB-090F-092F 200×205 200 205 90 20090 235
1408 FB-090F-092F 225×230 225 230 60 22560 260
1409 FB-090F-092F 225×230 225 230 70 22570 260
1410 FB-090F-092F 225×230 225 230 80 22580 260
1411 FB-090F-092F 225×230 225 230 90 22590 260
1412 FB-090F-092F 250×255 250 255 60 25060 290
1413 FB-090F-092F 250×255 250 255 70 25070 290
1414 FB-090F-092F 250×255 250 255 80 25080 290
1415 FB-090F-092F 250×255 250 255 90 25090 290
1416 FB-090F-092F 265×270 265 270 60 26560 305
1417 FB-090F-092F 265×270 265 270 70 26570 305
1418 FB-090F-092F 265×270 265 270 80 26580 305
1419 FB-090F-092F 265×270 265 270 90 26590 305
1420 FB-090F-092F 285×290 285 290 60 28560 325
1421 FB-090F-092F 285×290 285 290 70 28570 325
1422 FB-090F-092F 285×290 285 290 80 28580 325
1423 FB-090F-092F 285×290 285 290 90 28590 325
1424 FB-090F-092F 300×305 300 305 60 30060 340
1425 FB-090F-092F 300×305 300 305 70 30070 340
1426 FB-090F-092F 300×305 300 305 80 30080 340
1427 FB-090F-092F 300×305 300 305 90 30090 340

Technical Details

  • Specific load capacity static< 120 [N/mm2]

  • Specific load capacity dynamic< 40 [N/mm2]

  • Sliding speed≤ 2.5 [m/s]

  • Friction value0.05 [µ] to 0.12 [µ] depending on lubrication

  • Temperature strain- 40 [°C] to + 250 [°C]

  • Max. PV-value2.8 [N/mm² x m/s]

  • The percentage of contact area on the ID is > 75%

FOLLOW US ON

DIN 1494 Plain CuSn8 Self Lubricating Bronze Bushings 160-165-60mm Perforated

https://www.viiplus.com

Send your message to this supplier
Send Now

DIN 1494 Plain CuSn8 Self Lubricating Bronze Bushings 160-165-60mm Perforated

Ask Latest Price
Product Detail
Self-lubricating Bushings :
Bronze Bushing 160 ID 165 OD x 60MM, perforated
Bushing Size :
Special dimensions and imperial sizes are available on request
Gleitalger :
A plain bearing, or more commonly sliding contact bearing and slide bearing, is the simplest type of bearing, comprising just a bearing surface and no rolling elements. Therefore, the journal slides over the bearing surface. The simplest example of a plain
Bushing Material :
TIN BRONZE CUSN8 CUSN6
Performance :
High load capacity and long life
Application :
agricultural machinery, brakes and certain construction machinery.
Contact Supplier
DIN 1494 Plain CuSn8 Self Lubricating Bronze Bushings 160-165-60mm Perforated
DIN 1494 Plain CuSn8 Self Lubricating Bronze Bushings 160-165-60mm Perforated
DIN 1494 Plain CuSn8 Self Lubricating Bronze Bushings 160-165-60mm Perforated
DIN 1494 Plain CuSn8 Self Lubricating Bronze Bushings 160-165-60mm Perforated
DIN 1494 Plain CuSn8 Self Lubricating Bronze Bushings 160-165-60mm Perforated
DIN 1494 Plain CuSn8 Self Lubricating Bronze Bushings 160-165-60mm Perforated
DIN 1494 Plain CuSn8 Self Lubricating Bronze Bushings 160-165-60mm Perforated
DIN 1494 Plain CuSn8 Self Lubricating Bronze Bushings 160-165-60mm Perforated
DIN 1494 Plain CuSn8 Self Lubricating Bronze Bushings 160-165-60mm Perforated
DIN 1494 Plain CuSn8 Self Lubricating Bronze Bushings 160-165-60mm Perforated
DIN 1494 Plain CuSn8 Self Lubricating Bronze Bushings 160-165-60mm Perforated
DIN 1494 Plain CuSn8 Self Lubricating Bronze Bushings 160-165-60mm Perforated

JIAXING VIIPLUS INTERNATIO NAL CO.,LTD

Site Member
9 Years
zhejiang
Business Type :
Importer, Exporter, Seller, Other
Main Products :
Oilless Bushes, Solid Bronze Bearing, Wrapped Bronze Bearings
Certification Level :
Site Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Bronze Gleitlager
MachineU China Products Beauty & Personal Care Makeup & Tools Face Bronzers & Highlighters
Contact Supplier
Submit Requirement
