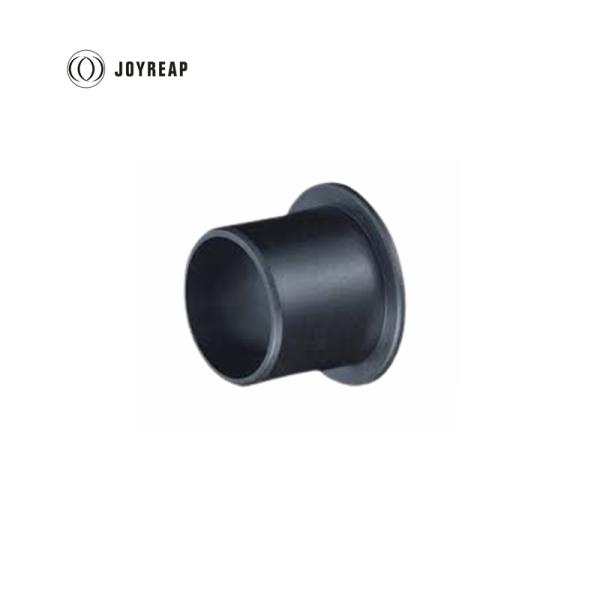

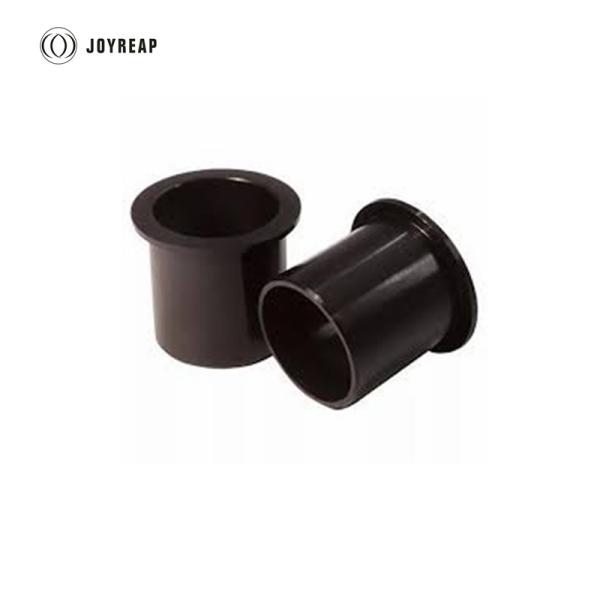

Linear Plain Bearings Polymer Self lubricating Plastic Flanged bushing
Linear Plain Bearings Polymer Self lubricating Plastic Flanged bushing
Linear Plain Bearings Polymer Self lubricating Plastic Flanged bushing
Linear Plain Bearings Polymer Self lubricating Plastic Flanged bushing
Specifications
Brand Name :
Joyreap
Model Number :
P101
Certification :
ISO 9001; IATF16949
Place of Origin :
China
Material :
Plastic
Type :
Straight
Specification :
Standard Metric
Advantage :
Low weight,long service life
Application :
Automotive, Agriculture
Other Type :
Straight, Thrust Washer
Description

P101 Linear Plain Bearings Polymer Self lubricating Plastic Flanged bushing​

P101 flanged plastic bushing is type of self-lubricating bushing.It's specifically to offer a balance of low friction, high wear resistance, and high load capacity. These bushings are designed to operate without external lubrication, making them maintenance-free and a cost-effective alternative to metal or bronze bearings.

Material:

Dark Grey Plastic

Feature:

Self-Lubricating:It contains solid lubricants embedded within the material, eliminating the need for external lubrication and preventing contamination

High load capacity:It can handle significant loads, making them suitable for various applications, including those with edge loads or vibrations.

Wear-resistant: It is designed to withstand wear, even in demanding applications involving high loads and continuous movement, with negligible wear.

Chemical resistance:It exhibits resistance to various chemicals, including some acids, greases, and oils.

Easy installation: It is designed for press-fit installation into a housing bore.

Cost-effective: They offer a cost-effective solution compared to metal or bronze bearings, especially when considering maintenance and lubrication costs.

Environmentally friendly: They require no lubrication, contributing to a cleaner environment by avoiding the release of contaminants.

Application

  • Pneumatic rotary drives
  • Steam pipelines
  • Automotive engine compartments
  • Conveyor chains
  • Pneumatic cylinders
  • Control levers and pedals in vehicles
  • Exhaust valves in milling machines
  • Track rollers in mini excavators

Technical Data


Material performance Table
Units
P101 series
Test standard

General properties

Density		 g /cm3 1.48 ISO1183

color
Dark Gray

Max. moisture absorption at 23℃, 50% RH		 weight 0.6 ISO62

Max. moisture absorption		 weight 4 ISO62

MechanicaI properties

Flexural modulus		 MPa 7500 ISO178

FIexu raI strength at 20℃		 MPa 210 ISO178

Max . recommended surface pressure (20℃)		 MPa 80

shore Hardness (D-type)		 85 ISO868

physicaI and ther maI properties

Max . application temperature long-term		 ℃ 135

Max . application temperature short-term		 ℃ 220

Min . application temperature		 ℃ - 40

Thermal conductivity		 W/(m·k) 0.24 ISO22007

coefic ient of thermal expansion (23℃)		 -1 -5
K ·10		 9 ISO11359

Electrical properties

specific contact resistance		 Ω cm 1E13Min ICE60093

surface resistance		 Ω 1E11Min ICE60093

Friction performance

coeficient of friction, dynamic, against steel shaft		 μ 0.08-0.15

Max . rotational speed		 m/s 1

Max . pv value (dry operation)		 MPa · m/s 0.45
