10% Carbon Filled PTFE Bushing For Self Lubrication Durable Sliding Bearings
10% Carbon Filled PTFE Bushing For Self Lubrication Durable Sliding Bearings
10% Carbon Filled PTFE Bushing For Self Lubrication Durable Sliding Bearings
10% Carbon Filled PTFE Bushing For Self Lubrication Durable Sliding Bearings
10% Carbon Filled PTFE Bushing For Self Lubrication Durable Sliding Bearings
10% Carbon Filled PTFE Bushing For Self Lubrication Durable Sliding Bearings
Specifications
Brand Name :
Joyreap
Model Number :
ZR-PC9010
Certification :
ISO,IATF16949
Place of Origin :
China
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500,000PCS/Month
Delivery Time :
30 days
Packaging Details :
Cartons+Wooden Pallets
Description :
ZR-PC9010 Peek filled PTFE Bushing
Precision :
CNC machined high precision
Feature :
Self lubircating, long service life
Type :

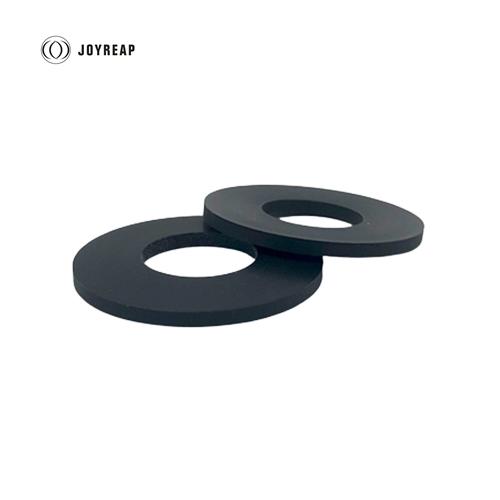

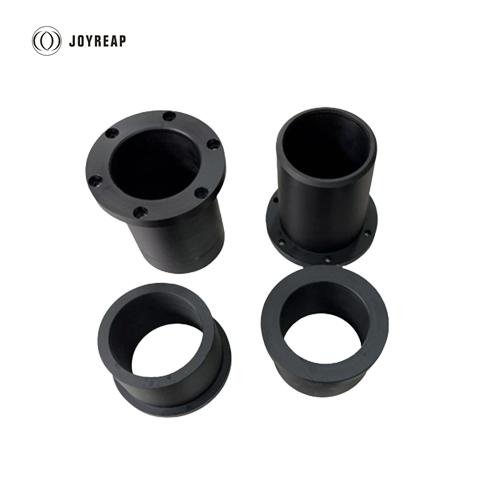

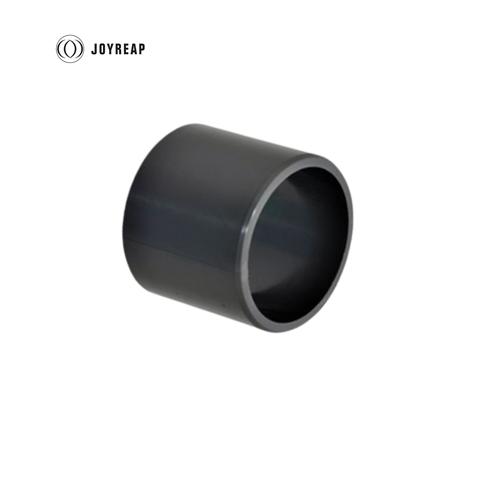

Sleeve, Flange, Thrust Washers
Description

10% Carbon Filled PTFE Bushing PTFE Self lubricating Bush Sliding Bearing

ZR-PC9010 is made of 90% virgin PTFE with 10 carbon filled. This type of bush has less thermal expansion, higher wear resistance, less deformation under load properties compared to virgin PTFE.

Material:

90% PTFE+10% Carbon

Advantages:

Improved thermal dimensional stability

Better creep resistance

Good compression strength

Good cold flow reduction

Excellent chemical stability

Excellent wear resistance

Excellent resistance to abrasion

Technical Data

Properties Test Unit Typical Value Test Methods
Density g/cm3 2.19 ASTM D792
Hardness shore D Sh.D 62 ASTM D2240
Tensile strength Mpa 15 ASTM D638
Elongation at break 23°C % 230 ASTM D4894
Coefficient of dynamic friction - 0.13 ASTM D1894
Dielectric strength Kv/mm - ASTM D149
Water absorption Max % 0 ASTM D570
Working temperature °C -200 to 260 -
