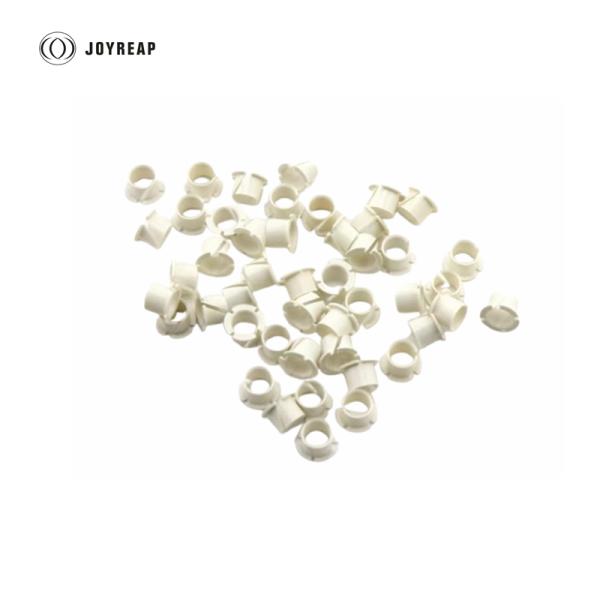

Single Flange Clip Bearings Maintenance-free Plastic Bushing Linear Plain Bearing
Single Flange Clip Bearings Maintenance-free Plastic Bushing Linear Plain Bearing
Single Flange Clip Bearings Maintenance-free Plastic Bushing Linear Plain Bearing
Single Flange Clip Bearings Maintenance-free Plastic Bushing Linear Plain Bearing
Specifications
Brand Name :
Joyreap
Model Number :
P104-YM
Certification :
ISO 9001; IATF16949
Place of Origin :
China
Material :
Plastic
Type :
Straight
Specification :
Standard Metric
Advantage :
Low weight,long service life
Application :
Automotive, Agriculture
Other Type :
Straight, Thrust Washer
Description

P104-YM Single Flange Clip Bearings Maintenance-free Plastic Bushing Linear Plain Bearing

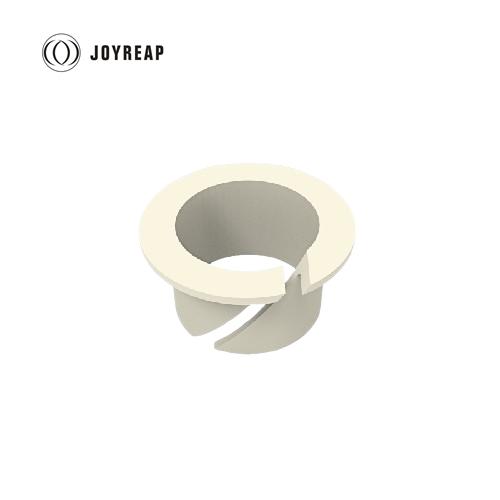

P104-YM clip bearings have a single flange, where the flange is located on one end of the bearing, allowing the bearing to be secured to one side of sheet metal after installation.

Material:

Plastic

Feature:

• Low noise

• Very easy installation

• Good wear resistance

• Smooth operation

• Maintenance-free and self-lubricating

• Used for both rotational and linear movements

• Expansion possible due to slot design

• Secured with the double flange design

• Special dimensions are possible

How it works

  1. Insertion: The angled slit allows the bearing to be easily inserted into a bore hole (a pre-drilled opening) in the sheet metal from one side.
  2. Expansion: After insertion, the bearing expands, creating a snug fit within the bore hole and forming a lining.
  3. Securing the shaft: The shaft is then inserted through the bearing, which prevents it from detaching, even during axial movement.
  4. Compensation for Expansion: The angled slit also provides space to compensate for bearing expansion that might occur due to temperature or moisture fluctuations.

Standard Size


one single flange clip bearing

Single Flange Clip Bearings Maintenance-free Plastic Bushing Linear Plain Bearing

Single Flange Clip Bearings Maintenance-free Plastic Bushing Linear Plain Bearing
