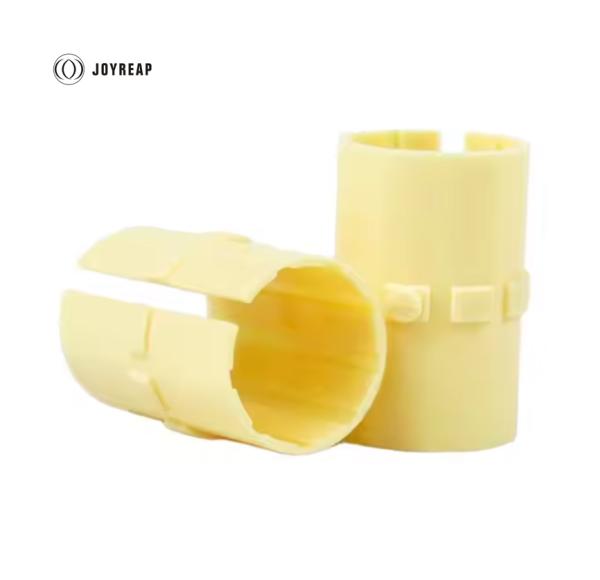

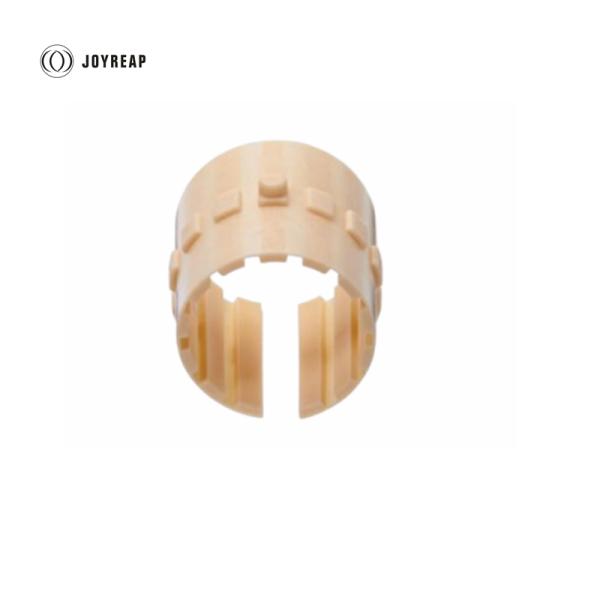

J102 JUM-C Liner Plastic Bushing Short Design liner Self Lubricating Liner Bearing
J102 JUM-C Liner Plastic Bushing Short Design liner Self Lubricating Liner Bearing
J102 JUM-C Liner Plastic Bushing Short Design liner Self Lubricating Liner Bearing
J102 JUM-C Liner Plastic Bushing Short Design liner Self Lubricating Liner Bearing
Specifications
Brand Name :
Joyreap
Model Number :
J102 JUM-C
Code :
P102 JUMC
Material :
Plastic
Type :
Short and Long, Closed
Application :
Indoor, Outdoor
Description

J102 JUM-C Liner Plastic Linear Bearings Liners Short Design Liner bushing

J102 JUM-C is made of Engineering Plastic Material. JUM-C plastic linear bearings are with the surface contacting structure which ensures a lower operation noise level at high speed operation. The straight grooves design of LIN-11 allows the bearing to be used in the extremely conditions such as in sands and dusts.

Material:

Yellow Plastic

Type:

Enclosed housing, short design

Standard Size

J102 JUM-C Liner Plastic Bushing Short Design liner Self Lubricating Liner BearingJ102 JUM-C Liner Plastic Bushing Short Design liner Self Lubricating Liner Bearing

Part No. d Tolerance D1 L1 L2 h D2 Weight
[mm] [mm] [mm] [mm] [mm] [mm] [mm] (g)
J102 JUM-C 01-10 10 +0.030 +0.070 12 25 3.0 0.8 2.5 1.02
J102 JUM-C 01-12 12 +0.030 +0.070 14 27 3.0 0.8 3.0 1.27
J102 JUM-C 01-16 16 +0.030 +0.070 18 29 3.5 0.8 3.5 1.82
J102 JUM-C 01-20 20 +0.030 +0.070 23 29 5.0 0.8 3.5 3.27
J102 JUM-C 01-25 25 +0.030 +0.070 28 39 5.0 0.8 4.0 5.75
J102 JUM-C 01-30 30 +0.040 +0.085 34 49 5.0 0.8 4.0 11.28
J102 JUM-C 01-40 40 +0.040 +0.085 44 59 6.0 1.3 5.0 17.94
J102 JUM-C 01-45 45 +0.040 +0.085 50 59 7.0 1.3 6.0 27.00
J102 JUM-C 01-50 50 +0.050 +0.150 55 69 7.0 1.3 6.0 32.56

Installation Size:

J102 JUM-C Liner Plastic Bushing Short Design liner Self Lubricating Liner Bearing

Part No. Shaft Bd BL BW Bh1 Bh2 BD
H7 h10 +0.05 +0.1 +0.5 +0.2
J102 JUM-C 01-10 10 12 26 3.0 1.0 1.0 2.6
J102 JUM-C 01-12 12 14 28 3.0 1.0 1.5 3.1
J102 JUM-C 01-16 16 18 30 3.5 1.0 1.7 3.6
J102 JUM-C 01-20 20 23 30 5.0 1.0 2.0 3.6
J102 JUM-C 01-25 25 28 40 5.0 1.0 2.0 4.1
J102 JUM-C 01-30 30 34 50 5.0 1.0 2.0 4.1
J102 JUM-C 01-40 40 44 60 6.0 1.5 2.5 5.1
J102 JUM-C 01-45 45 50 60 7.0 1.5 2.5 6.1
J102 JUM-C 01-50 50 55 70 8.0 1.5 2.5 6.1
