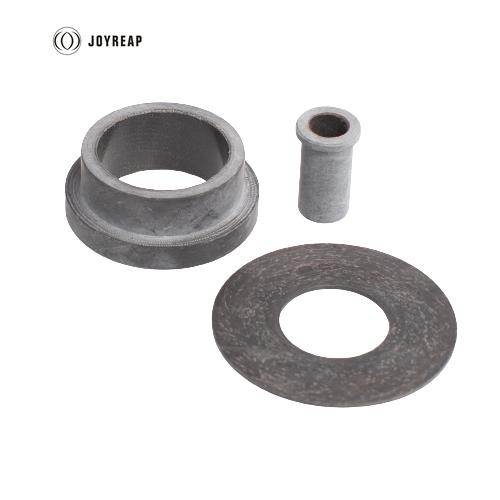

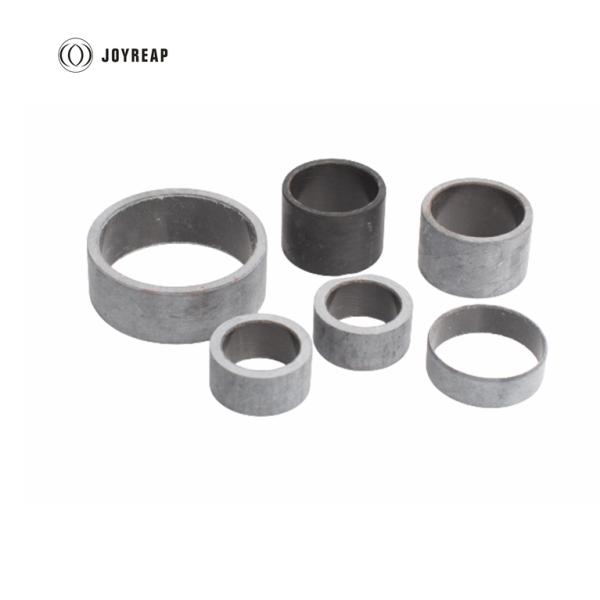

0440248 PTFE Composite Bushing 123188GT Garmax Bearing PTFE Glass Fiber Bushes
0440248 PTFE Composite Bushing 123188GT Garmax Bearing PTFE Glass Fiber Bushes
0440248 PTFE Composite Bushing 123188GT Garmax Bearing PTFE Glass Fiber Bushes
0440248 PTFE Composite Bushing 123188GT Garmax Bearing PTFE Glass Fiber Bushes
0440248 PTFE Composite Bushing 123188GT Garmax Bearing PTFE Glass Fiber Bushes
0440248 PTFE Composite Bushing 123188GT Garmax Bearing PTFE Glass Fiber Bushes
Specifications
Brand Name :
Joyreap
Model Number :
GM-1
Certification :
ISO,IATF16949
Place of Origin :
China
MOQ :
20pcs
Payment Terms :
D/A, D/P, T/T, L/C
Supply Ability :
300,000PCS/Month
Delivery Time :
15 days
Packaging Details :
Cartons+Wooden Pallets
Description :
Filament Wound Bearings
Material :
PTFE+Glass Fiber
Feature :
High Load,Corrosion Resistant
Application :
Aerial Lifts,Agriculture, Construction
Name :
Plastic Bushing
Brand :
Joyreap
Description

0440248 PTFE Composite Bushing 123188GT Garmax Bearing PTFE Glass Fiber Bushes

Filament wound self lubricating bearing is high strength glass fiber with epoxy resin and the lubricating layer of it is PTFE wound fiber or special lubricating fiber. Therefore, this special structure performs an outstanding anti-wear feature and low friction coefficient under high load and low speed condition. Furthermore, this absolutely new idea gives better solution for high load and excellent wear resistance under dry condition possibility.

Material Structure

High Strength Glass Fiber+PTFE Liner

Characteristics

  • Special structure performs an outstanding anti-wear feature.
  • Low friction coefficient under high load and low speed condition.
  • Better solution for high load and wear resistance under dry condition.

Application

Filament wound composite bearings is widely used to the frequently start and stop positions with rotating, oscillating and linear motions.

Standard Size

GM202415 GM303630 GM455360 GM657550 GM809080
GM202420 GM303640 GM505840 GM657560 GM8090100
GM202430 GM354130 GM505850 GM657580 GM859560
GM253020 GM354140 GM505860 GM708050 GM859580
GM253030 GM354150 GM556340 GM708070 GM8595100
GM253040 GM404830 GM556350 GM708090
GM283420 GM404840 GM556370 GM758550
GM283430 GM404860 GM607040 GM758570
GM283440 GM455330 GM607060 GM758590
GM303620 GM455340 GM607080 GM809060
