Engineering Plastic Linear Bearing Plastic Self Lubricating Bearing Closed
Engineering Plastic Linear Bearing Plastic Self Lubricating Bearing Closed
Engineering Plastic Linear Bearing Plastic Self Lubricating Bearing Closed
Engineering Plastic Linear Bearing Plastic Self Lubricating Bearing Closed
Specifications
Brand Name :
Joyreap
Model Number :
JRR102UM
Certification :
ISO 9001; IATF16949
Place of Origin :
China
Code :
JR102UM
Material :
Anodized aluminum adapter+Plastic
Type :
Closed type
Feature :
Self lubircating, long service life
Description

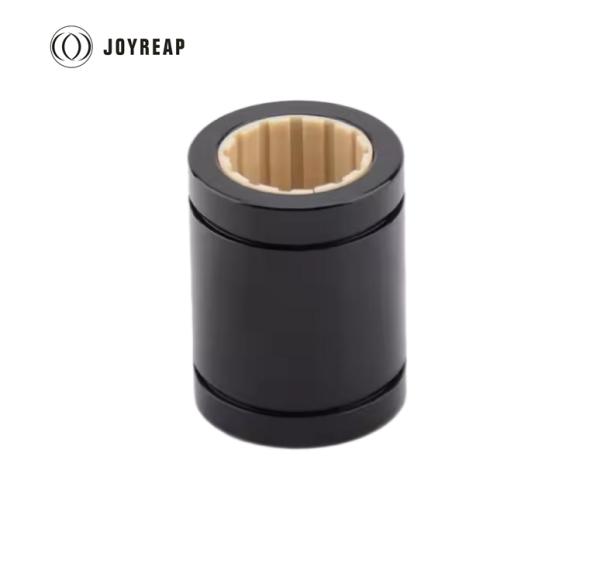

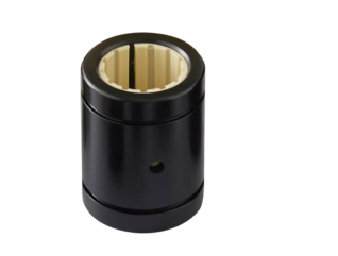

JR102UM Engineering Plastic Linear Bearing Plastic Self Lubricating Bearing

JR102UM is made of outside Anodized aluminum adapter and inside plastic linear. This liner bearing shows an specifically a self-lubricating type often used in applications requiring smooth, precise, and low-maintenance linear motion

Material:

Anodized aluminum adapter+plastic linear

Type:

Closed design

Feature:

● Closed design
● Anodized aluminum adapter
● Axial secured by circlips
● Maintenance-free and low noise
● Resistant to dirt and dust
● Operation temperature -50℃/+90℃

Application

Food, Beverage, Packaging, Camera and Film Equipment, Marine, Medical Technology, Home Office, Gaming Furniture

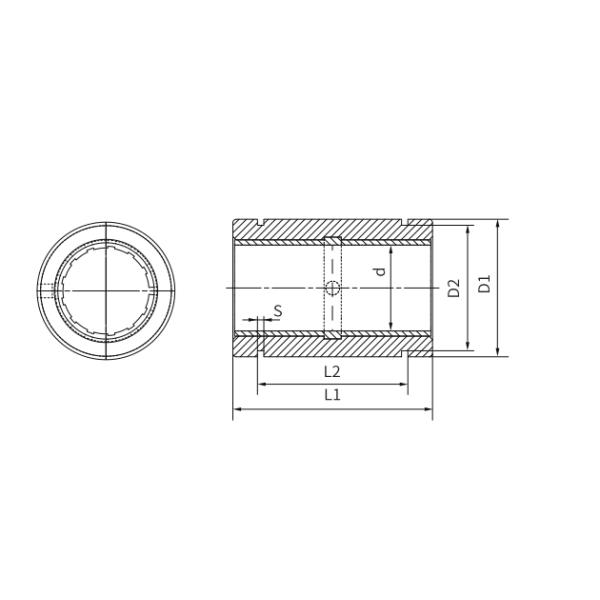

Standard Size

Engineering Plastic Linear Bearing Plastic Self Lubricating Bearing Closed Engineering Plastic Linear Bearing Plastic Self Lubricating Bearing Closed

Part No. d Tolerance D1 L1 L2 s D2 Dynamic Load P=5MPa Static Load P=35MPa Weight
[mm] [mm] h7 h10 H10 H10 h10 F max. [N] F max. [N] (g)
JR102ZM-01-05 5 +0.025/+0.060 12 22 14.2 1.10 11.50 525 3675 5
JR102ZM-01-06 6 +0.025/+0.060 12 22 14.2 1.10 11.50 525 3675 5
JR102ZM-01-08 8 +0.032/+0.070 16 25 16.2 1.10 15.20 960 672 9
JR102UM-01-10 10 +0.030/+0.088 19 29 21.6 1.30 17.50 725 5075 14
JR102UM-01-12 12 +0.030/+0.088 22 32 22.6 1.30 20.50 960 6720 21
JR102UM-01-16 16 +0.030/+0.088 26 36 24.6 1.30 24.20 1440 10080 28
JR102UM-01-20 20 +0.030/+0.091 32 45 31.2 1.60 29.60 2250 15750 49
JR102UM-01-25 25 +0.030/+0.091 40 58 43.7 1.85 36.50 3625 25375 108
JR102UM-01-30 30 +0.040/+0.110 47 68 51.7 1.85 43.50 5100 35700 162
JR102UM-01-40 40 +0.040/+0.115 62 80 60.3 2.15 57.80 8000 56000 334
JR102UM-01-50 50 +0.050/+0.130 75 100 77.3 2.65 70.50 9000 87500 579
JR102UM-01-60 60 +0.050/+0.140 90 125 101.7 3.15 86.50 12000 120000 1070
