Plastic Linear Bearing Plastic Self Lubricating Bearing linear slide bearing
Plastic Linear Bearing Plastic Self Lubricating Bearing linear slide bearing
Plastic Linear Bearing Plastic Self Lubricating Bearing linear slide bearing
Plastic Linear Bearing Plastic Self Lubricating Bearing linear slide bearing
Plastic Linear Bearing Plastic Self Lubricating Bearing linear slide bearing
Plastic Linear Bearing Plastic Self Lubricating Bearing linear slide bearing
Specifications
Brand Name :
Joyreap
Model Number :
JR102M
Certification :
ISO 9001; IATF16949
Place of Origin :
China
Code :
JR102M
Material :
Plastic
Type :
Openning and closed
Feature :
Self lubircating, long service life
Description

JR102M Plastic Linear Bearing Plastic Self Lubricating Bearing linear slide bearing


JR102M plastic linear bearing is made of high-performance polymers.It's designed for effortless assembly with a transition fit. This innovative bearing features reduced clearance for enhanced performance and is secured by reliable circlips. Crafted from high-quality plastic material, it ensures durability and longevity. Experience smooth and efficient motion with this exceptional linear slide bearing, perfect for a variety of applications.

Material:

Plastic


Type:

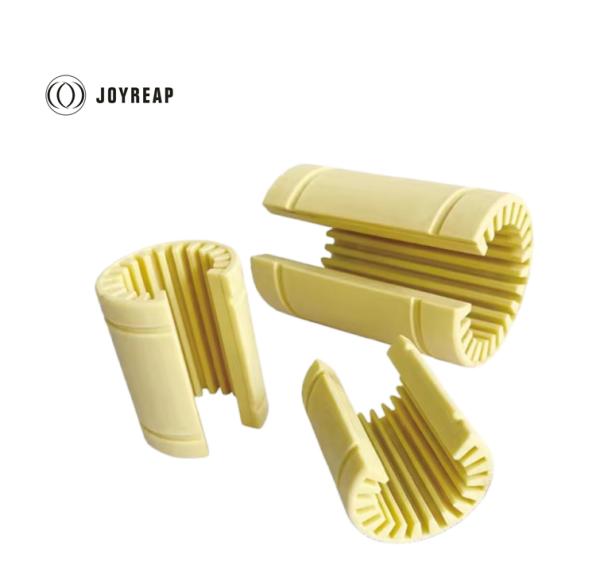

Openning design and closed design


Feature:


● Assembly by press fitting
● Axial secured by circlips
● Resistant to dirt and dust
● Operation temperature -20℃/+60℃

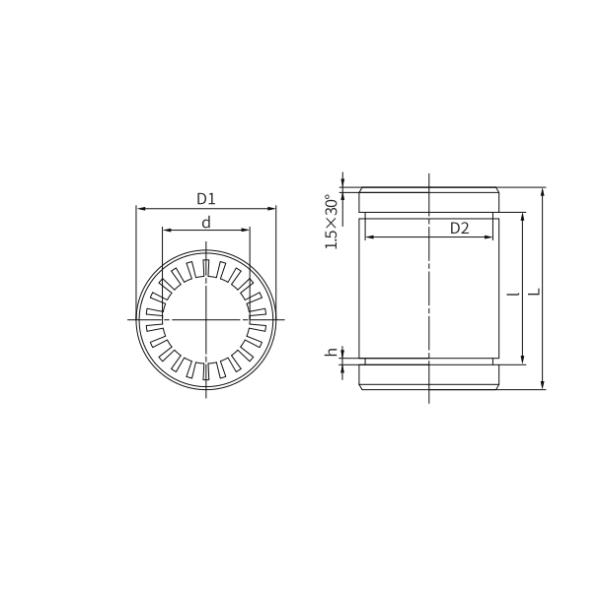

Standard Size Table


Plastic Linear Bearing Plastic Self Lubricating Bearing linear slide bearing Plastic Linear Bearing Plastic Self Lubricating Bearing linear slide bearing

Part No.dToleranceD1LIhD2Dynamic Load P=5MPaStatic Load P=35MPaWeightFit Press
[mm][mm]h7h10H10H10h10F max. [N]F max. [N](g)(N)
JR102M-01-088+0.025/+0.061162516.201.1015.2025017504400
JR102M-01-1010+0.025/+0.061192921.601.3017.5036325387700
JR102M-01-1212+0.032/+0.075223222.601.3020.50480336091300
JR102M-01-1616+0.032/+0.075263624.601.3024.207205040131100
JR102M-01-2020+0.040/+0.092324531.201.6029.6011257875241500
JR102M-01-2525+0.040/+0.092405843.701.8536.50181312688473500
JR102M-01-3030+0.040/+0.092476851.701.8543.50255017850724500
JR102M-01-4040+0.050/+0.112628060.302.1557.804000280001274200
