304SS Cap Slitting And Folding Machine 600 Pieces/Minute Bottle Flanging Machine
304SS Cap Slitting And Folding Machine 600 Pieces/Minute Bottle Flanging Machine
Specifications
Brand Name :
PINCHI
Place of Origin :
FOSHAN
MOQ :
1SET
Price :
10000-20000USD
Payment Terms :
T/T
Supply Ability :
20SETS
Delivery Time :
30WORKDAYS
Packaging Details :
WOODEN BOX
Scope of Application :
Anti-theft measures for various plastic caps, including mineral water caps, beverage caps, and pharmaceutical caps.
Features :
Compact structure, high automation, simple operation, compliant with hygiene and safety standards.
Automatic Grade :
Automatic
Capacity :
Greater than 500 liters
Material :
Stainless Steel
Warranty :
1 Year
Packing details :
export standerd wooden case
Delivery time :
40 days
Description

Equipment Specifications:

Plastic Bottle Cap Flanging and Ring Cutting Integrated Molding Machine this machine is a high-speed cutting, ring forming, and folding integrated system custom-designed for the distinct appearance and varying dimensions of each type of plastic bottle cap.

The ring cutting machine and edge bending machine are integrated onto a single frame and interconnected via the spindle, enabling the edge bending process to be completed before ring cutting to enhance production efficiency.

he ring cutting machine combines mechanical transmission with pneumatic or motor control to achieve automated ring cutting operations, suitable for the mass production of plastic bottle caps.To accommodate the processing requirements of bottle caps of different specifications.



Equipment Operating Principle:

1.Feeding: Bottle caps enter the ring cutter through the feeding system, typically fed continuously at a specific speed and spacing.

2.Positioning: After entering the ring cutter, bottle caps are first precisely positioned by the positioning device to ensure each cap remains accurately aligned at the cutting position.

3.Cutting: The cutting mechanism is the core component of the bottle cap ring cutter, typically consisting of high-speed rotating blades. Once the bottle cap is positioned, the cutting mechanism swiftly moves to perform precise cutting, removing the excess ring-shaped material.

4.Collection: After cutting, bottle caps are collected by a collection device for subsequent processing or packaging.



Technical Specifications:

Primary Material: Aluminum, 304 stainless steel
Housing Material: Features a PC plastic dust cover
Other Materials: Stainless steel/white painted panel
Compatible Dimensions: 5300x1200x2800 (mm)
Production Capacity: 600 pieces/minute (standard)
Cap Type: 3025, 2925, 2622, 28, 1881...
Maximum Cap Cutting Height: Adjustable
Number of Cutting Rings and Folding Stators: 12 or 16
Cap Hopper Capacity: Greater than 500L
Total Installed Power: Less than 3.5kW
Compressed Air Requirements: Less than 6 kg/cm
Air Consumption: Less than 1 m/min

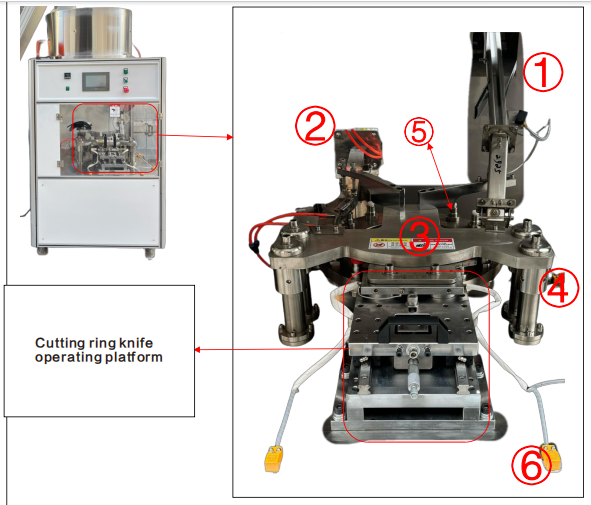

Equipment Detail Diagram Description:

304SS Cap Slitting And Folding Machine 600 Pieces/Minute Bottle Flanging Machine

①Cut the ring into the cap track (including two sensors, green light when there is no cap and yellow light when there is a
cap. If there is a cap on the first sensor, the ring will be cut in slow speed, and if there is a cap on the second sensor,
it allows for the ring to be cut in fast speed)
②Cut the ring and cap the track
③Cap plate (moves the cap on the same horizontal line when cutting the ring, ensuring that the cut ends of the cap are flat)
④Cap plate fixing column (four in total, which can be adjusted to ensure that the cap plate is at the appropriate height)
⑤Cutting ring turntable, cutting ring workstation mold (a total of 16 stators, orderly locking cap cutting ring)
⑥Safety door sensor (each door has a magnetic sensor, the light turns off when the door is closed and the green light
turns on when the door is opened)


Payment Terms and Trade Terms

Description of Goods Model

Remarks

Plastic Bottle Cap Flanging and Ring Cutting Integrated Molding Machine

With VAT

Place of Origin: Made in China

Price Validation: 100 days

Payment Term: T/T, 30% deposit, 70% to be paid before loading against FAT

Delivery Time: 35 days after the receipt of advanced payment

Warranty: 1 year for complete machine, long time for software&system

Commissioning: free commissioning within 3days, customer bear for the engineer’s local food and accommodation and tickets, extra time will be charged by usd150/day.

After Sales Service
The overall product quality has traceability, and the product quality warranty period is 1 year, calculated from the date of equipment acceptance.
Free maintenance during the warranty period, and corresponding travel and material costs will be charged for after-sales service that exceeds the warranty period.
Daily operation and maintenance services: Our company provides free remote operation and maintenance online services in Pinchi Tech AI cloud platform,
particularly for the system updating, algorithm setting, software adjustment, etc.
