600Units/Mins Edge Slitting Holding Machine Cap Processing Machine 5300mm
600Units/Mins Edge Slitting Holding Machine Cap Processing Machine 5300mm
600Units/Mins Edge Slitting Holding Machine Cap Processing Machine 5300mm
600Units/Mins Edge Slitting Holding Machine Cap Processing Machine 5300mm
Specifications
Brand Name :
PINCHI
Place of Origin :
FOSHAN
MOQ :
1SET
Price :
10000-20000USD
Payment Terms :
T/T
Supply Ability :
20SETS
Delivery Time :
30 WORK DAYS
Packaging Details :
WOODEN BOX
Equipment Dimensions :
5300x1200x2800 (mm)
Material :
Aluminum, 304 stainless steel
Production Capacity :
600 units per minute
Capacity :
reater than 500 liters
Cover type :
3025、2925、2622、28、1881...
Efficiency :
Not less than 99.9%
packing details :
export standerd wooden case
delivery time :
40 days
Description

Equipment Introduction:

Edge Slitting And Edge Holding Machine This machine is a high-speed integrated ring-cutting and flanging line custom-designed for the distinct appearance and dimensions of each plastic bottle cap.

It comprises four major components: a cap storage hopper conveyor, a cascade cap sorting machine, a ring-cutting machine, and a flanging machine.

Integrated with the cap production line, it efficiently cuts rings from caps, folds edges, and quantitatively packs them into boxes.

It precisely cuts connection bridges to specified dimensions per design drawings without damaging caps, while achieving foldable edges that maintain tamper-evident integrity yet facilitate ring separation.



Equipment Technical Specifications:

Primary Material: Aluminum, 304 stainless steel
Housing Material: Features a PC plastic dust cover
Other Materials: Stainless steel/white painted panel
Compatible Dimensions: 5300x1200x2800 (mm)
Production Capacity: 600 pieces/minute (standard)
Cap Type: 3025, 2925, 2622, 28, 1881...
Maximum Cap Cutting Height: Adjustable
Number of Cutting Rings and Folding Stators: 12 or 16
Cap Hopper Capacity: Greater than 500L
Total Installed Power: Less than 3.5kW
Compressed Air Requirements: Less than 6 kg/cm
Air Consumption: Less than 1 m/min

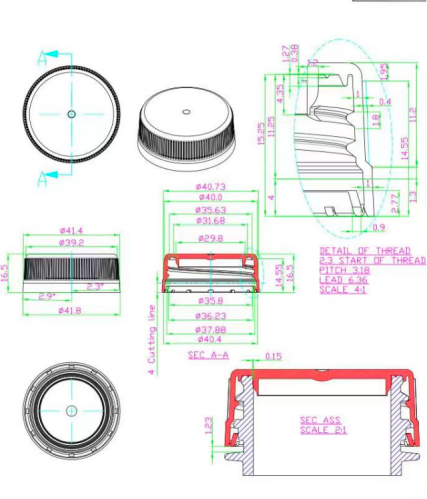

Cut-off Lid Image Drawing

600Units/Mins Edge Slitting Holding Machine Cap Processing Machine 5300mm


Payment Terms and Trade Terms

Description of Goods Model

Remarks

Edge Slitting And Edge Holding Machine

With VAT

Place of Origin: Made in China

Price Validation: 100 days

Payment Term: T/T, 30% deposit, 70% to be paid before loading against FAT

Delivery Time: 35 days after the receipt of advanced payment

Warranty: 1 year for complete machine, long time for software&system

Commissioning: free commissioning within 3days, customer bear for the engineer’s local food and accommodation and tickets, extra time will be charged by usd150/day.



After Sales Service

The overall product quality has traceability, and the product quality warranty period is 1 year, calculated from the date of equipment acceptance.

Free maintenance during the warranty period, and corresponding travel and material costs will be charged for after-sales service that exceeds the warranty period.

Daily operation and maintenance services: Our company provides free remote operation and maintenance online services in Pinchi Tech AI cloud platform,

particularly for the system updating, algorithm setting, software adjustment, etc.
