Automatic Bottle Unscrambler With Horizontal Linear Sorting & Feeding Mechanism For PET Bottles Sorting
Automatic Bottle Unscrambler With Horizontal Linear Sorting & Feeding Mechanism For PET Bottles Sorting
Automatic Bottle Unscrambler With Horizontal Linear Sorting & Feeding Mechanism For PET Bottles Sorting
Automatic Bottle Unscrambler With Horizontal Linear Sorting & Feeding Mechanism For PET Bottles Sorting
Specifications
Delivery Time :
30 WORK DAYS
Function :
Automatically sorts and aligns bottles for packaging
Place of Origin :
FOSHAN
Operation Mode :
Fully automatic
Payment Terms :
T/T
Control System :
PLC with touch screen interface
Key Selling Points :
Easy to Operate
Power Supply :
220V/380V, 50/60Hz
Supply Ability :
20SETS
Material :
Stainless steel SUS304
Packaging Details :
WOODEN BOX
Safety Features :
Emergency stop button, safety guards
Bottle orientation :
Adjustable for different bottle shapes
MOQ :
1SET
Material compatibility :
Plastic, Glass, PET bottles
Brand Name :
PINCHI
Product name :
Automatic Bottle Unscrambler
Price :
10000-20000USD
Feeding Method :
Vibratory bowl feeder or hopper
Description
Automatic Bottle Unscrambler With Horizontal Linear Sorting & Feeding Mechanism For PET Bottles Sorting

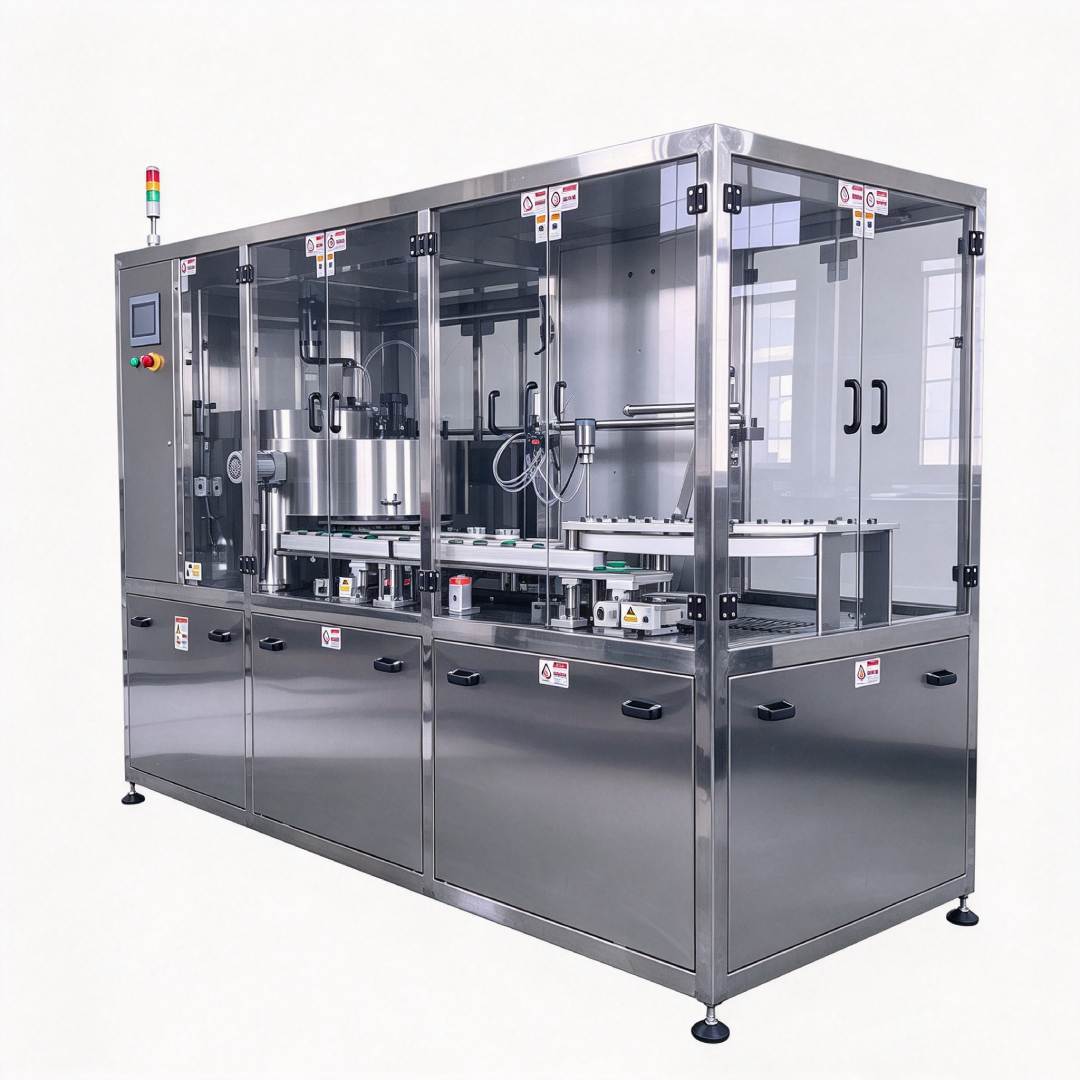

This machine is used for sorting randomly arranged PET bottles. The disorderly bottles are fed via an elevator into the bottle storage ring of the bottle sorter. Driven by the centrifugal force of the turntable, the bottles are gathered and exit the centrifugal disc. At the outlet, a multi-stage belt mechanism stabilizes the bottles and grips them, guiding them into the claw mechanism. The bottle necks are lifted and flipped with the necks facing forward; since the bottle bottoms face forward and cannot be gripped, all bottles ultimately move with their openings facing forward or backward. They then pass through the final conveyor stage, where they are uprighted, completing the sorting process. The bottles are then discharged via an air-conveyor system to the next process.
The machine's main structure is made of high-quality stainless steel, while other components utilize non-toxic, durable materials. The electrical and pneumatic systems incorporate select imported components, and the entire operation is controlled by PLC programming, resulting in a low failure rate and high reliability.
Equipment Specifications
Model LC-GSGZ-06
Main Unit Dimensions 3 meters long, 1.8 meters wide, 1.7 meters high
Production Speed Custom
Air Supply Pressure Required
Air Consumption 0.5 cubic meters per hour
Compatible Bottle Types Specifics subject to the bottles provided by the customer
Main Unit Power 2 kW, 220 V, 50 Hz
Equipment Weight 550 kg
Product Detail Images

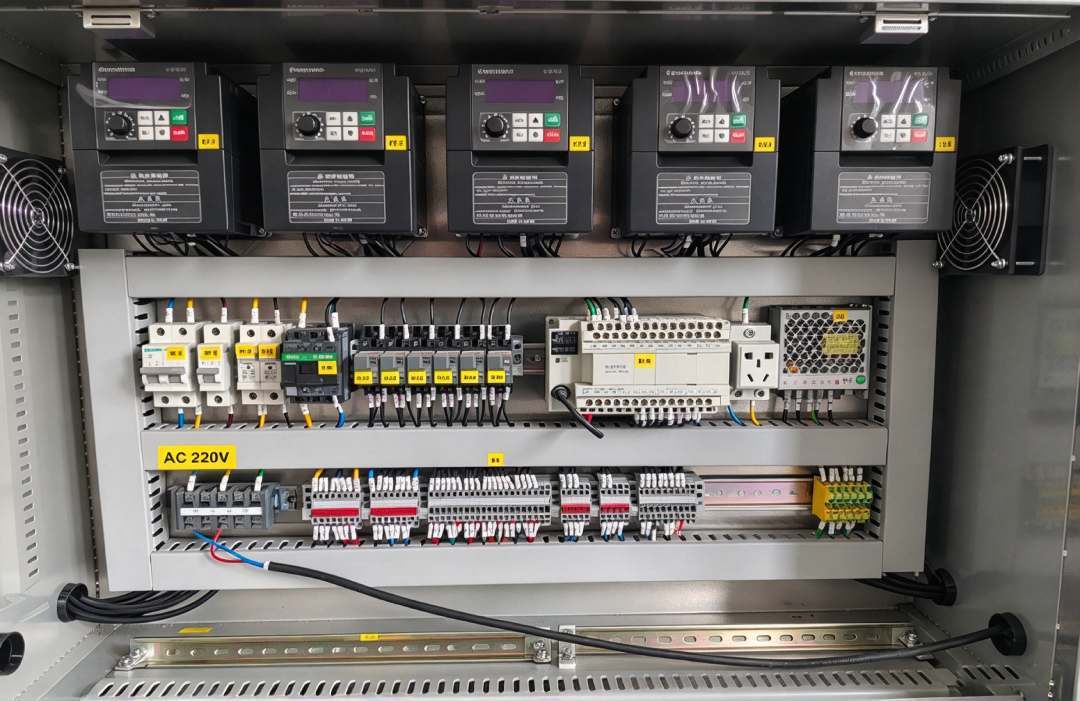

International PLC components for stable control & high automation; VFD-controlled key motors for smooth operation.
Automatic Bottle Unscrambler With Horizontal Linear Sorting & Feeding Mechanism For PET Bottles Sorting
Payment Terms and Trade Terms
Description of Goods Model Remarks
Fully Automatic Horizontal Linear Bottle Sorter With VAT
Place of Origin Made in China
Price Validation 100 days
Payment Term T/T, 30% deposit, 70% to be paid before loading against FAT
Delivery Time 35 days after the receipt of advanced payment
Warranty 1 year for complete machine, long time for software & system
Commissioning Free commissioning within 3 days, customer bears engineer's local food, accommodation and tickets, extra time charged at USD 150/day
After Sales Service
The overall product quality has traceability, and the product quality warranty period is 1 year, calculated from the date of equipment acceptance.
Free maintenance during the warranty period, and corresponding travel and material costs will be charged for after-sales service that exceeds the warranty period.
Daily operation and maintenance services: Our company provides free remote operation and maintenance online services in Pinchi Tech AI cloud platform, particularly for system updating, algorithm setting, software adjustment, etc.
