Automatic Bottle Unscrambler with 304 Stainless Steel Construction and 12,000 Bottles/Hour Capacity Adjustable for Different Bottle Sizes
Automatic Bottle Unscrambler with 304 Stainless Steel Construction and 12,000 Bottles/Hour Capacity Adjustable for Different Bottle Sizes
Automatic Bottle Unscrambler with 304 Stainless Steel Construction and 12,000 Bottles/Hour Capacity Adjustable for Different Bottle Sizes
Automatic Bottle Unscrambler with 304 Stainless Steel Construction and 12,000 Bottles/Hour Capacity Adjustable for Different Bottle Sizes
Specifications
Delivery Time :
30 WORK DAYS
Arrangement Method :
Vertical arrangement
Certification :
CE
Function :
Automatically sorts and orients bottles for packaging lines
Price :
10000-20000USD
Packaging Details :
WOODEN BOX
Adjustability :
Adjustable for different bottle sizes and shapes
Safetyfeatures :
Emergency stop buttons, safety guards
Supply Ability :
20SETS
Material :
304 Stainless steel
Payment Terms :
T/T
Key Selling Points :
Easy to Operate
Place of Origin :
FOSHAN
Automatic Grade :
Automatic
Brand Name :
PINCHI
Product name :
Automatic Bottle Unscrambler
MOQ :
1SET
Bottle Types Supported :
Plastic, glass, PET bottles
Warranty :
1 Year
Description
Automatic Bottle Unscrambler With Elevator Feeding System And Bottle Storage Ring
This advanced equipment is designed for handling disordered PET bottles with automated sorting and orientation capabilities.
Equipment Overview
The fully automatic bottle sorter machine integrates machine vision, industrial robots, and automated conveying technology for rapid identification, sorting, and oriented arrangement of bottles of various materials, shapes, and sizes.
Randomly scattered bottles are fed by an elevator into the bottle storage ring, where they are automatically positioned within bottle compartments by turntable thrust. Through bottle-turning and bottle-pushing mechanisms, bottles are arranged to stand upright with openings facing upward and discharged via air-conveyor system to the next process.
This equipment replaces traditional manual sorting, enabling round-the-clock unmanned operation, and is widely used in food and beverages, personal care, condiments, fruit juices, and milk industries.
Constructed with high-quality stainless steel main body and non-toxic, durable components. Electrical and pneumatic systems incorporate select imported components, with entire operation controlled by PLC programming for low failure rate and high reliability.
Operating Process
  • Bottles are manually loaded into elevator buckets
  • Elevator transports bottles to sorting chamber of bottle sorter
  • Bottles enter sorting chamber for sorting - inverted bottles are righted by bottle-turning mechanism
  • Properly oriented bottles pass directly through mechanism
  • Sorted bottles discharge from outlet to air duct or conveyor
Technical Specifications
Model Lc-pmbm-12
Main Unit Dimensions Diameter: 2.0 meters; Height: 2.0 meters
Lifting Dimensions Width: 1.2 meters × Length: 2.7 meters × Height: 2.7 meters
Production Speed Over 12,000 bottles/hour (stable production capacity)
Air Supply Pressure Required
Compatible Bottle Types Customer must provide bottle specifications
Main Unit Power 3.0KW
Equipment Weight 0.75T

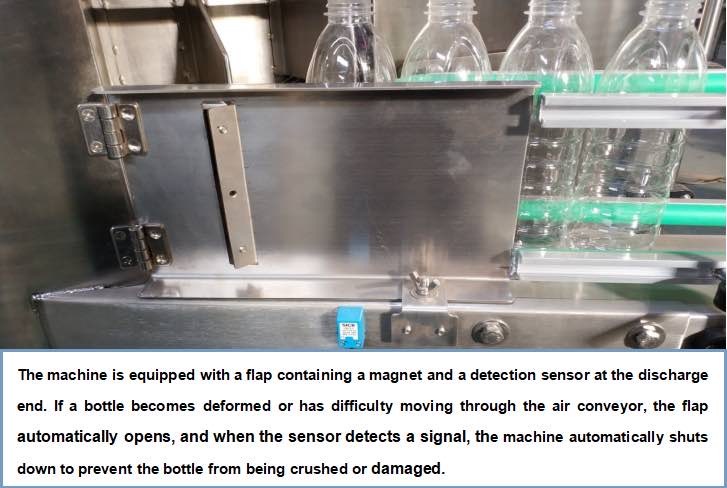

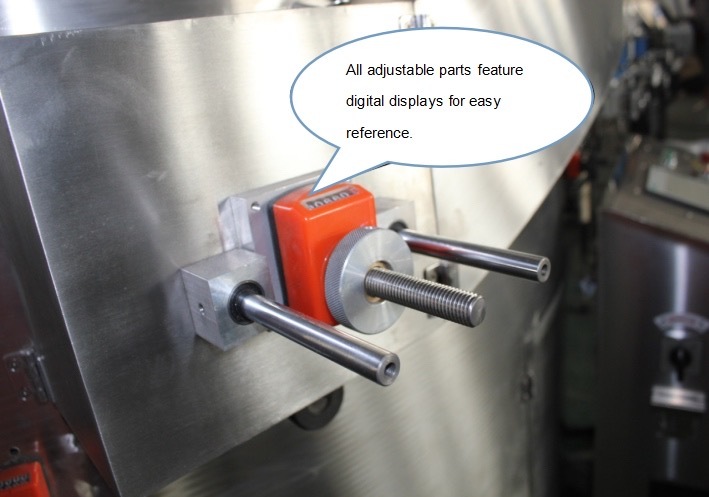

Product Images
Automatic Bottle Unscrambler with 304 Stainless Steel Construction and 12,000 Bottles/Hour Capacity Adjustable for Different Bottle Sizes Automatic Bottle Unscrambler with 304 Stainless Steel Construction and 12,000 Bottles/Hour Capacity Adjustable for Different Bottle Sizes
Payment Terms and Trade Information
Description of Goods Automatic Bottle Unscrambler With Elevator Feeding System And Bottle Storage Ring For Handling Of Disordered PET Bottles (With VAT)
Place of Origin Made in China
Price Validation 100 days
Payment Term T/T, 30% deposit, 70% to be paid before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, long time for software & system
Commissioning Free commissioning within 3 days, customer bears engineer's local food, accommodation and tickets, extra time charged at USD 150/day
After Sales Service
Overall product quality has traceability, with product quality warranty period of 1 year calculated from equipment acceptance date.
Free maintenance during warranty period, with corresponding travel and material costs charged for after-sales service exceeding warranty period.
Daily operation and maintenance services: Our company provides free remote operation and maintenance online services in Pinchi Tech AI cloud platform, particularly for system updating, algorithm setting, software adjustment, etc.
