Fully Automatic Bottle Unscrambler With Elevator, Customizable PET Bottle Sorter For Filling Line
Fully Automatic Bottle Unscrambler With Elevator, Customizable PET Bottle Sorter For Filling Line
Fully Automatic Bottle Unscrambler With Elevator, Customizable PET Bottle Sorter For Filling Line
Fully Automatic Bottle Unscrambler With Elevator, Customizable PET Bottle Sorter For Filling Line
Specifications
Supply Ability :
20SETS
Packing Details :
Export standerd wooden case
Brand Name :
PINCHI
MOQ :
1SET
Certification :
CE
Operation Mode :
Fully automatic
Arrangement Method :
Vertical arrangement
Price :
10000-20000USD
Packaging Details :
WOODEN BOX
Function :
Automatically sorts and orients bottles for packaging lines
Safety Features :
Emergency stop buttons, safety guards
Payment Terms :
T/T
Power Supply :
220V/380V, 50/60Hz
Delivery Time :
30 WORK DAYS
Warranty :
1 Year
Place of Origin :
FOSHAN
Control System :
PLC with touch screen interface
MOQ :
1SET
Material :
Stainless steel SUS304
Description

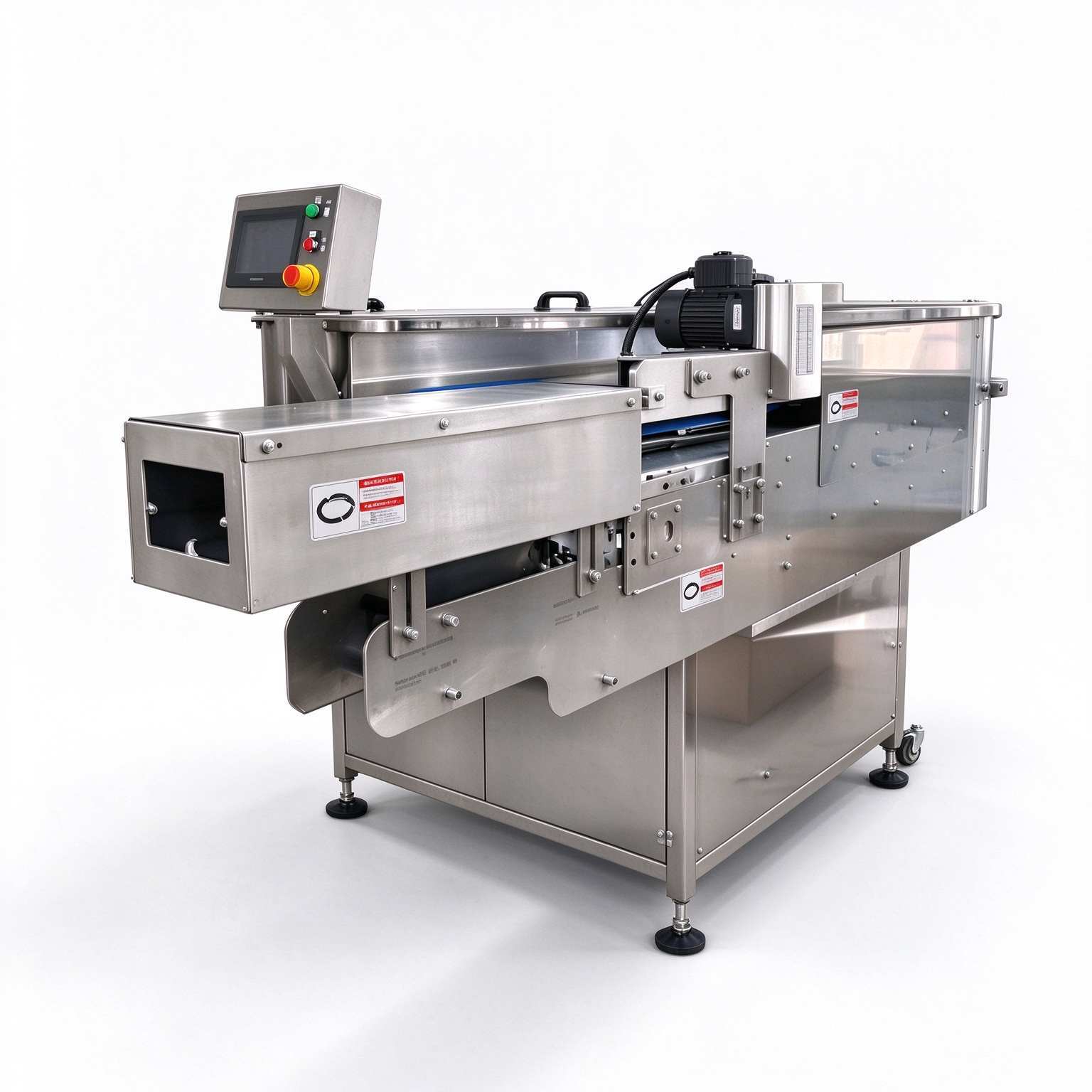

Fully Automatic Bottle Unscrambler With Elevator, Customizable PET Bottle Sorter For Filling Line
Product Overview

The fully automatic bottle sorting machine, paired with an automatic lifting feeder, is primarily used in the food, beverage, juice, condiment, and dairy industries to achieve automatic sorting and continuous feeding of PET plastic bottles. Operators simply pour a random pile of empty bottles into the lifting hopper, and the equipment automatically handles bottle conveyance, centrifugal sorting, and bottle flipping and realignment, ultimately producing an orderly stack of upright bottles.

The entire machine frame is constructed from SUS304 stainless steel, meeting food production hygiene standards. The core electrical control components utilize PLCs from international brands, while key motors are equipped with variable-frequency drives, ensuring smooth start-up and stopping, a high degree of automation, and stable, reliable operation.

The equipment features a compact design and is easy to operate and maintain, significantly reducing the labor costs associated with bottle sorting and minimizing the risk of contamination caused by manual handling. It offers a choice of left or right bottle discharge directions, allowing for flexible adaptation to workshop production line layouts, making it the ideal bottle-feeding equipment for the front end of automated packaging production lines.

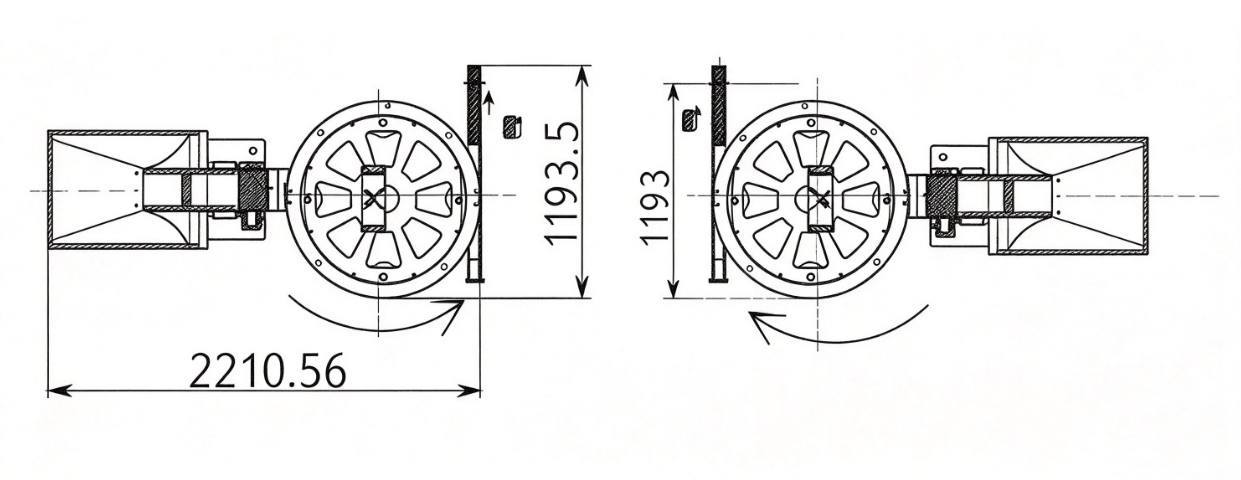

Equipment Drawings
Fully Automatic Bottle Unscrambler With Elevator, Customizable PET Bottle Sorter For Filling Line
Equipment Technical Specifications
Model GSS-06
Main Unit Dimensions Diameter 1.2 meters × Height 1.4 meters (customizable)
Lifting Dimensions Length 1.5 meters × Width 0.85 meters × Height 1.8 meters (customizable)
Production Speed 120 per minute
Air Supply Pressure 0.3 MPa
Air Consumption 0.2 cubic meters per minute
Compatible Bottle Types Compatible with bottle types provided by the customer
Main Unit Power 2.5 kW, 220 V (voltage customizable)
Equipment Weight 0.4T
Payment Terms and Trade Terms
Description of Goods Model With VAT
Place of Origin Made in China
Price Validation 100 days
Payment Term T/T, 30% deposit, 70% to be paid before loading against FAT
Delivery Time 35 days after the receipt of advanced payment
Warranty 1 year for complete machine, long time for software & system
Commissioning Free commissioning within 3 days, customer bears engineer's local food, accommodation and tickets, extra time charged at USD 150/day
After Sales Service

The overall product quality has traceability, and the product quality warranty period is 1 year, calculated from the date of equipment acceptance.

Free maintenance during the warranty period, and corresponding travel and material costs will be charged for after-sales service that exceeds the warranty period.

Daily operation and maintenance services: Our company provides free remote operation and maintenance online services in Pinchi Tech AI cloud platform, particularly for system updating, algorithm setting, software adjustment, etc.
