Automatic Bottle Unscrambler with 12000 BPH Capacity, 304 Stainless Steel Construction, and PLC Control System
Automatic Bottle Unscrambler with 12000 BPH Capacity, 304 Stainless Steel Construction, and PLC Control System
Automatic Bottle Unscrambler with 12000 BPH Capacity, 304 Stainless Steel Construction, and PLC Control System
Automatic Bottle Unscrambler with 12000 BPH Capacity, 304 Stainless Steel Construction, and PLC Control System
Specifications
Place of Origin :
FOSHAN
Automatic Grade :
Automatic
Certification :
CE
Product name :
Automatic Bottle Unscrambler
Price :
10000-20000USD
Packaging Details :
WOODEN BOX
Power Supply :
220V/380V, 50/60Hz
Installationrequirement :
Requires flat surface and stable power supply
Supply Ability :
20SETS
Packing Details :
export standerd wooden case
Payment Terms :
T/T
Materialcompatibility :
Plastic, Glass, PET bottles
Delivery Time :
30 WORK DAYS
Warranty :
1 Year
MOQ :
1SET
Material :
304 Stainless steel
Brand Name :
PINCHI
MOQ :
1SET
Safety Features :
Emergency stop button, safety guards
Description
Automatic Bottle Unscrambler with 12000 BPH Capacity, 304 Stainless Steel Construction, and PLC Control System

The fully automatic bottle sorting machine is a patented product developed by our company, widely used for multifunctional, fully automatic bottle sorting in food and beverage, pharmaceutical, condiment, juice, and dairy industries.

Equipment Overview

This fully automatic bottle sorting machine is specifically designed to handle disordered stacks of PET bottles, enabling automatic sorting and orientation. The equipment features:

  • Customizable enlarged hopper with noise-reducing leather padding and dust cover
  • Automatic feeding system that starts and stops based on bottle count
  • Enlarged hopper capacity: 3,000 350-ml bottles
  • Main body constructed of high-quality stainless steel
  • Non-toxic, durable materials for remaining components
  • Imported electrical and pneumatic components
  • PLC programming control for low failure rate and high reliability
Technical Specifications
Model LPJ-12 Bottle Sorting Machine, 2.0 meters
Elevator Model TSJ-18, 4.5 meters long × 1.2 meters wide × 2.6 meters high
Production Capacity 12,000 BPH
Air Consumption 0.2 cubic metres per minute
Air Pressure 0.4Mpa
Compatible Bottle Types Customer must provide bottle specifications
Main Unit Power 3KW 220v voltage
Equipment Weight 1.2t
Equipment Features
  • Highly automated, stable and efficient operation: Proven PLC control system with touchscreen HMI, imported low-voltage electrical components, automatic shutdown for bottle jams, fault alarms, and automatic restart after jam reset.
  • Outstanding bottle-type adaptability and easy adjustment: Manually adjustable mounting brackets with dedicated position indicator, quick adaptation to different bottle types with strong compatibility.
  • Flexible structural layout and strong site adaptability: Compact design with adjustable hoist installation position to accommodate various workshop production areas.
  • Excellent compatibility for production line integration: Bottle-out section supports both air-conveying and belt-conveying integration methods for seamless downstream process integration.
Product Image
Automatic Bottle Unscrambler with 12000 BPH Capacity, 304 Stainless Steel Construction, and PLC Control System

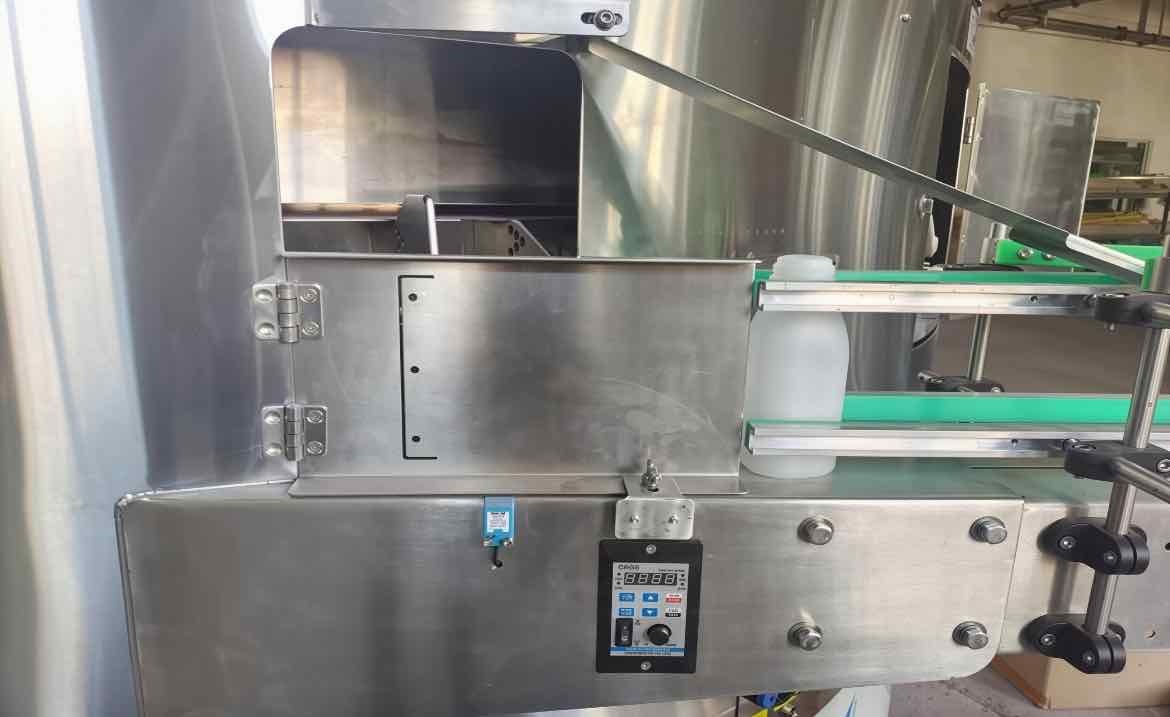

Detects blocked bottles at the outlet, automatically opens them, triggers an alarm and shuts down the equipment, facilitating troubleshooting and enabling rapid resolution.
Payment Terms and Trade Information
Description of Goods Automatic Bottle Unscrambler with 12000 BPH Capacity, 304 Stainless Steel Construction, and PLC Control System (With VAT)
Place of Origin Made in China
Price Validation 100 days
Payment Term T/T, 30% deposit, 70% to be paid before loading against FAT
Delivery Time 35 days after receipt of advanced payment
Warranty 1 year for complete machine, long time for software & system
Commissioning Free commissioning within 3 days, customer bears engineer's local food, accommodation and tickets, extra time charged at USD 150/day
After Sales Service

Overall product quality has traceability, with product quality warranty period of 1 year calculated from equipment acceptance date.

Free maintenance during warranty period, with corresponding travel and material costs charged for after-sales service exceeding warranty period.

Daily operation and maintenance services: Our company provides free remote operation and maintenance online services in Pinchi Tech AI cloud platform, particularly for system updating, algorithm setting, software adjustment, etc.
