Specifications
Place of Origin :
Guangdong, China
Brand Name :
BOJKE
MOQ :
1
Model Number :
PUD-050NP
Certification :
CE
Price :
$17.6
Payment Terms :
T/T
Supply Ability :
150k
Delivery Time :
5~8 work days
Packaging Details :
PP bag with carton box;
Product name :
Label Sensor
Manufacturer Part Number :
PUD-050NP
Usage :
Identification Tag
Output :
NPN/PNP
Response Time :
<1ms
Voltage - Supply :
DC 12~24V ±10%
Description

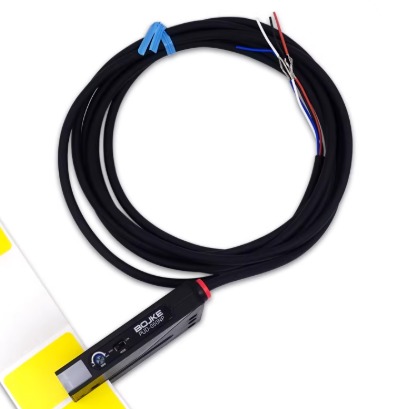

BOJKE Label Sensor U-Slot Type PUD-050NP Label Counting Rewinding Machine

Product Description
Product Name Label Sensor
Material PC
Function Identification Tag
Package Plastic box + inner box
PC Material Label Sensor U Slot Type PUD-050NP Label Counting Rewinding Machine
Model PUD-050NP
Detection Mode infrared sensing
Slot Wideth 2mm
Slot depth 41.5mm
Hysteresis Range <20%
Detection Object opaque label
Repeat Accuracy <5%
Sensitivity Adjustment button adjustable
Output Mode NPN and PNP two channel output at same time
Switch Mode NO/NC swtichable
Response Time <1ms
Response Frequency 10KHz
Working Voltage DC 12~24V ±10%
Residue Voltage <2V (load current 50mA, cable 2 meter)
Max Load Current 100mA
Consumption (no-load) current <40mA
Ambient Temperature working:-10℃~55℃；storage:-25℃~70℃,no freezing
Ambient Humidity working:35%~85% RH；storage:35%~95% RH,no condensation
Protection Circuit polarity reversal protection/surge protection/ short circuit protection
Protection Level IP64
Indicator Light Red: working indicator light; Green: output indicator light
Connection Type cable-type (4 core, 2 meter standard cable)
Housing Material PC
Withstand Voltage AC 500V, 50/60Hz, 1 minute
Vibration Resistance 10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours
Impact Resistance 500m/S2, X,Y,Z directions each 3 times
Insulation Impedance above 20MΩ (DC 500V megohmmeter)
