Specifications
Place of Origin :
Guangdong, China
Brand Name :
BOJKE
MOQ :
1
Model Number :
CK-25ZW
Certification :
CE
Price :
$76.8
Payment Terms :
T/T
Supply Ability :
150k
Delivery Time :
5~8 work days
Packaging Details :
kraft box with carton box;
Product name :
Optical Passage Confirmation Sensors
Type :
Photoelectric Sensor
Usage :
Counting
Output :
NPN
Response Time :
<1ms
Voltage - Supply :
DC12~24V ±10%
Description

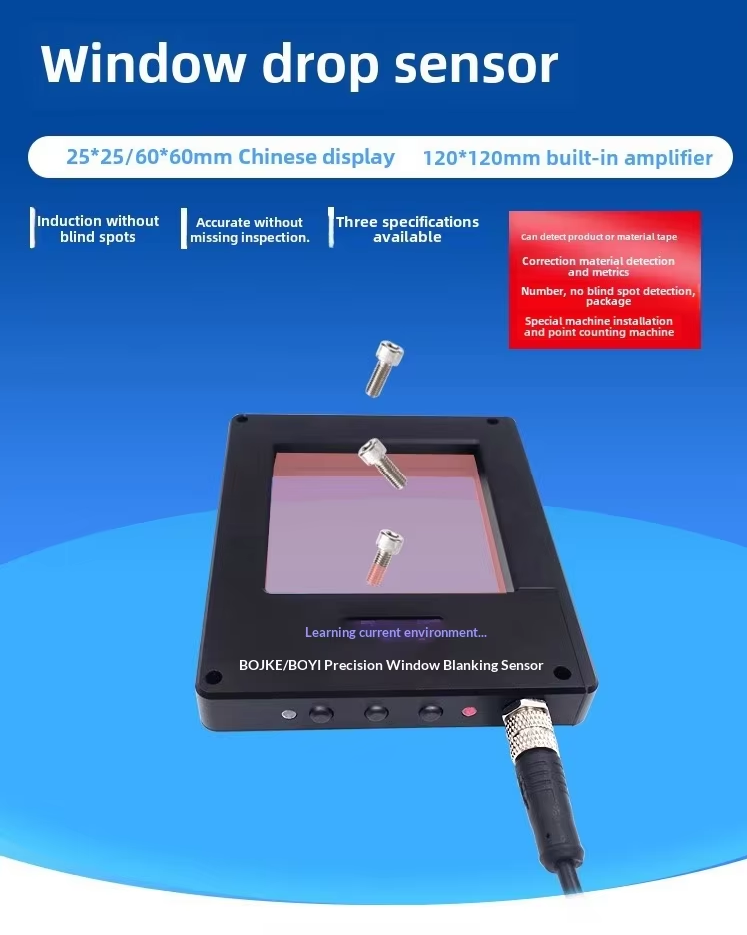

CK-25ZW Drop Count Sensor With No Blind Spot Special For Packaging And Counting Machines
Product Description
Product Name Window Drop Sensor
Material ABS
Function Counting
Package kraft box+inner box

CK-25ZW Drop Counter Sensor , Optical Passage Confirmation Sensors With No Blind Spot Special

Model

CK-25ZW

Type

NPN output

Supply voltage

12-24VDC±10%, floating P-P <10%

Consumption

< 600mW

Light source

Infrared 940nm

Sensitivity

5 levels adjustable

Working mode

Single output/Counting output

Detect output

NPN collector open circuit output,Max current 100mA Max input voltage 30VDC,residual voltage <1V

Output Status

NO/NC switchable

Timer function

3 output modes available:standard/single output, ouput delay.3 adjustable delay time:1ms~9999ms

Response time

< 900uS

Displayer

OLED display

Protection Circuit

Power polarity reverse protection; Output short circuit or overload protection

Ambient luminance

Incandescent lamp ≤ 20,000lux, Sunlight ≤ 30,000lux

Vibration resistance

10 to 55Hz, dual amplitude: 1.5mm, X, Y, Z directions each 2 hours

Ambient temperature

-25 ~ +55 ℃, no freezing
