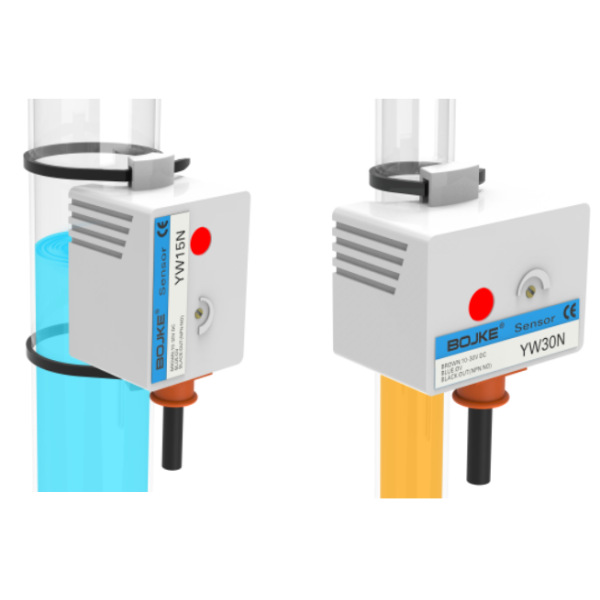

PNP Capacitive Sensor , IP66 Precise Capacitive Liquid Level Sensor
PNP Capacitive Sensor , IP66 Precise Capacitive Liquid Level Sensor
PNP Capacitive Sensor , IP66 Precise Capacitive Liquid Level Sensor
PNP Capacitive Sensor , IP66 Precise Capacitive Liquid Level Sensor
PNP Capacitive Sensor , IP66 Precise Capacitive Liquid Level Sensor
PNP Capacitive Sensor , IP66 Precise Capacitive Liquid Level Sensor
PNP Capacitive Sensor , IP66 Precise Capacitive Liquid Level Sensor
PNP Capacitive Sensor , IP66 Precise Capacitive Liquid Level Sensor
Specifications
Place of Origin :
Guangdong, China
Brand Name :
BOJKE
MOQ :
1
Model Number :
YW15N/YW30N
Certification :
CE
Price :
$24
Payment Terms :
T/T
Supply Ability :
150k
Delivery Time :
5~8 work days
Packaging Details :
kraft paper box with carton box;
Product name :
Liquid Level Sensing Precision
Description :
Precise liquid level measurement sensor
Features :
Applicable Piple Outerdiameter: Within 0~15mm
Theory :
Capacitive Detection Principle
Output :
NPN Output
Voltage - Supply :
10-30V
Description
Liquid Level Sensor Nonmetal Economical Durable Strong Adaptability Capacitive
Product Description
Product Name Liquid Level Sensor
Material ABS
Function Liquid level detection control
Package Plastic box + inner box
PNP Capacitive Sensor , IP66 Precise Capacitive Liquid Level Sensor
Suitable Pipe Material non-metal
Outer Diameter Ø6~Ø13mm Ø14~Ø26mm
Pipe Wall Thickness <1.5mm <2mm
Detectable Objects liquid
Repeat Accuracy <0.2mm
Sensitivity Adjustment knob adjustment
Response Frequecy 20Hz
Output Mode NPN open collector
Switch Mode Normal open
Working Voltage DC 10~30V ±10%
Residual Voltage (Voltage Drop) <1V
Consumption (no-load) Current <12mA
Ambient Temperature working temperature:-10℃~55℃；storage temperature:-25℃~70℃,no freezing
Ambient Humidity working humidity:35%~85% RH；storage humidity:35%~95% RH,no condensation
Protection Circuit polarity reversal protection/surge protection/ short circuit protection
Protection Level IP66
Indicator operation indicator light: Red light
Connection Type cable-type (3 core, 2 meter standard cable)
Housing Material ABS
Withstand Voltage AC 500V, 50/60Hz, 1分钟 AC 500V, 50/60Hz, 1 minute
Vibration Resistance 10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours
Impact Resistance 500m/S2, X,Y,Z directions each 3 times
Insulation resistance above 20MΩ (DC 500V megohmmeter)
