ABS Capacitive Liquid Level Sensor YW-613 Industrial Automation Pipeline Limit Switch Detection
ABS Capacitive Liquid Level Sensor YW-613 Industrial Automation Pipeline Limit Switch Detection
ABS Capacitive Liquid Level Sensor YW-613 Industrial Automation Pipeline Limit Switch Detection
ABS Capacitive Liquid Level Sensor YW-613 Industrial Automation Pipeline Limit Switch Detection
ABS Capacitive Liquid Level Sensor YW-613 Industrial Automation Pipeline Limit Switch Detection
ABS Capacitive Liquid Level Sensor YW-613 Industrial Automation Pipeline Limit Switch Detection
ABS Capacitive Liquid Level Sensor YW-613 Industrial Automation Pipeline Limit Switch Detection
ABS Capacitive Liquid Level Sensor YW-613 Industrial Automation Pipeline Limit Switch Detection
Specifications
Brand Name :
BOJKE
Model Number :
YW-613
Certification :
CE
Place of Origin :
Dongguan China
MOQ :
1pcs
Price :
$19.8
Payment Terms :
T/T
Supply Ability :
150k
Delivery Time :
5~8 work days
Packaging Details :
PP bag with carton box;
Power supply :
DC 10~30V
Suitable Pipe :
transparent
Pipe diameter :
Φ6~Φ13mm
Pipe wall thickness :
less than 1mm
Output :
NPN/PNP
Mode :
Light.on/Dark.on
Name :
Capacitive Liquid Level Sensor
Description

Capacitive Liquid Level Sensor YW-613 Industrial Automation Pipeline Limit Switch Detection NPN PNP

Product Name Liquid level sensor
Material ABS
Function Liquid level detection control

ABS Capacitive Liquid Level Sensor YW-613 Industrial Automation Pipeline Limit Switch Detection

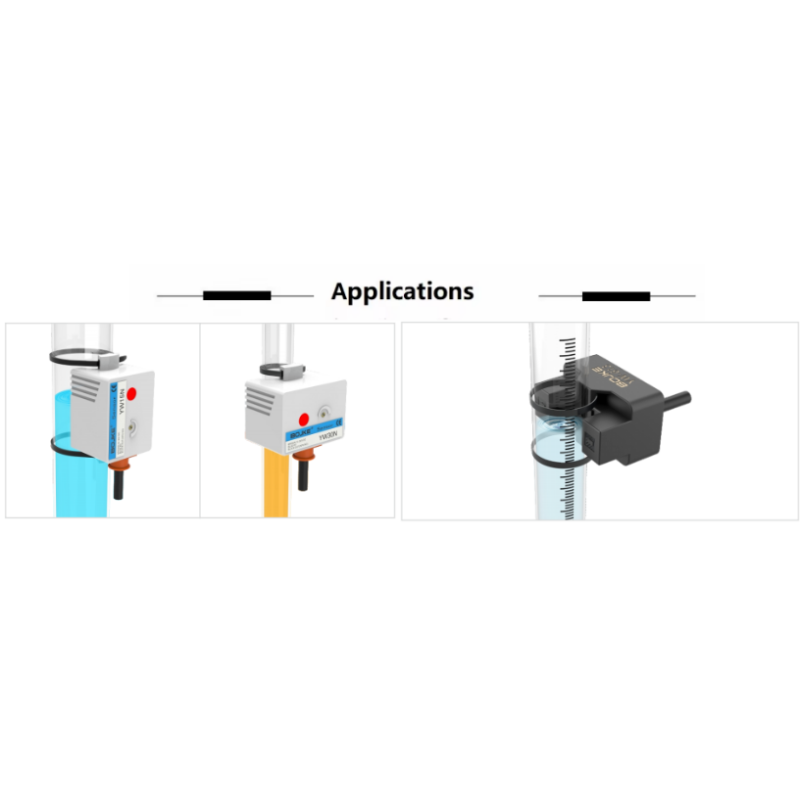

Curved appearance design, more flexible installation and detection; Non-metallic media in the container can be detected directly through the non-metallic pipe wall

Model YW-613
Suitable Pipe Material transparent pipe
Outer Diameter Ø6~Ø13mm
Pipe Wall Thickness <1mm
Detectable Objects liquid (If the liquid has high viscosity or has suspended solids, it may not be detected)
Repeat Accuracy <1%(Sr)
Sensitivity Adjustment knob adjustable
Response Frequecy 20Hz
Output Mode NPN open collector
Switch Mode NO/NC switchable
Working Voltage DC 12~24V ±10%
Residual Voltage (Voltage Drop) <0.8V(load current 100mA),<0.4V(load current 50mA)
Consumption (no-load) Current average current below 30mA, Max current below 80mA
Ambient Temperature working temperature:-10℃~55℃；storage temperature:-25℃~70℃,no freezing
Ambient Humidity working humidity:35%~85% RH；storage humidity:35%~95% RH,no condensation
Protection Circuit polarity reversal protection/surge protection/ short circuit protection
Protection Level IP50
Indicator operation indicator light: Red light
Connection Type cable-type (3 core, 2 meter standard cable)
Housing Material PC
Withstand Voltage AC 500V, 50/60Hz, 1分钟 AC 500V, 50/60Hz, 1 minute
Vibration Resistance 10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours
Impact Resistance 500m/S2, X,Y,Z directions each 3 times
Insulation resistance above 20MΩ (DC 500V megohmmeter)
